HZB50-BKPRS (1999)
Toyota Coaster

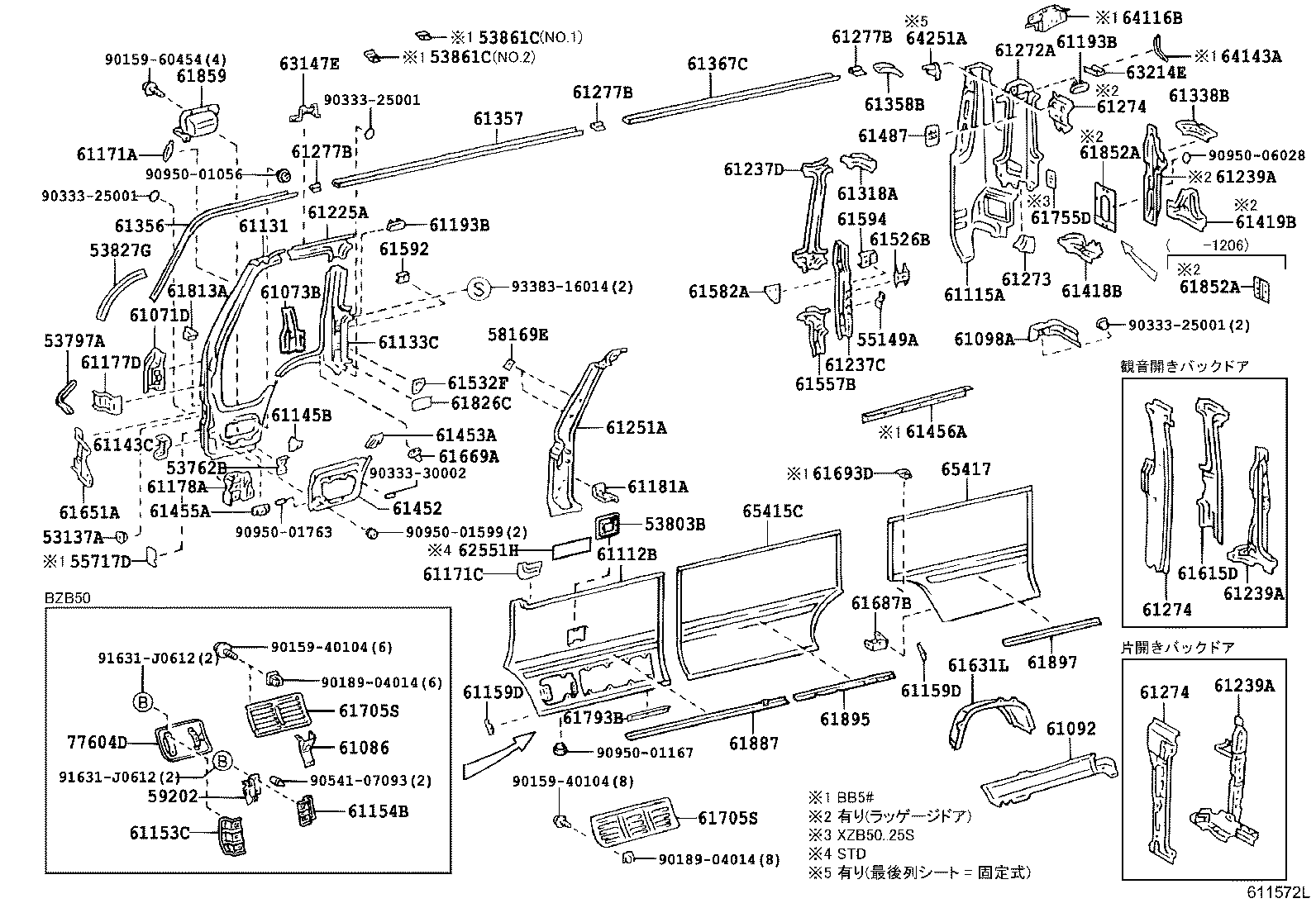

ILLUST NO. 1 OF 5(9301-0203)BB5#,HDB5#,HZB5#
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53137A - RETAINER, HEADLAMP DOOR | ||||
| 53137-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 53137-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 53762B - REINFORCEMENT, RADIATOR RESERVE TANK MOUNT | ||||
| 53762-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53762-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53797A - PROTECTOR, SIDE TURN SIGNAL LAMP | ||||
| 53797-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53797-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53827-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 55149A - BRACKET, DASH WIRING HARNESS | ||||
| 55149-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 55149-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58169E - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58169-90A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61071D - REINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH | ||||
| 61071-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61071-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61073B - REINFORCE SUB-ASSY, NO.2 PILLAR, CENTER | ||||
| 61073-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61073-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61073B - REINFORCE SUB-ASSY, NO.2 PILLAR, CENTER | ||||
| 61073-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61073-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61092 - RAIL SUB-ASSY, NO.3 LOWER INNER, RH | ||||
| 61092-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61092-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61092-36011 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61098A - STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH | ||||
| 61098-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61098-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-36030 |
HZB50..STD..WOC |
1 | ||
| 61112-36030 |
HZB50..STD..WOC |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-36030 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61115-36030 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61131-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61133C - PILLAR, FRONT BODY, LOWER OUTER RH | ||||
| 61133-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61133-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61143C - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 61143-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61143-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61145-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 61159-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 61159-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61171A - BRACKET, ANTENNA POLE MOUNTING | ||||
| 61171-20020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61171C - STIFFENER, SIDE PANEL, NO.1 | ||||
| 61171-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61171-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61177D - REINFORCEMENT, NO.1 PILLAR, CENTER | ||||
| 61177-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61177-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61178A - REINFORCEMENT, NO.1 PILLAR, LOWER RH | ||||
| 61178-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61178-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 53803-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 61193-36010A1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 61193-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 61193-36010A1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 61193-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61225-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61237C - RAIL, ROOF SIDE, INNER NO.4 RH | ||||
| 61238-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61238-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61237D - PILLAR, NO.9 OUTER, UPPER RH | ||||
| 61237-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61237-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61031-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61031-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61031-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61251A - PILLAR, NO.1 INNER, RH | ||||
| 61251-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61251-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61272A - PILLAR, NO.9 INNER, RH | ||||
| 61272-36031 |
HZB50..CBU;BB58,BZB40,50,HDB5#,HZB4#,56..(08S,09S,10S,19S,20S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61272-36030 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 61273 - PILLAR, NO.9 INNER, LOWER RH | ||||
| 61273-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61273-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61273-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61318-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61338B - RAIL, REAR SIDE NO.2, RH | ||||
| 61338-36020 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61356 - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61356-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358B - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61358-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61367C - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61367C - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61452-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61453-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61159-60010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61455-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 61526B - BRACKET, SEAT ANCHOR, NO.2 RH | ||||
| 61509-36010 |
BB40,HZB50..39S,49S |
1 | ||
| 61509-36011 |
BZB40,50,HZB40,46,5#..09S,39S,49S |
1 | ||
| 61532F - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61532-36010 |
BB46,5#,HZB56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
2 | ||
| 61532-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61532-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61557B - GUSSET, PILLAR TO RAIL, NO.2 | ||||
| 61557-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61557-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61582A - BRACKET, REAR SEAT, NO.2 | ||||
| 61582-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61592 - BRACKET, STIFFENER, NO.2 | ||||
| 61592-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61592-36010 |
BZB40,50,HZB40,50..STD NO.2 |
1 | ||
| 61592-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61594 - BRACKET, STIFFENER, NO.4 | ||||
| 61594-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61594-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61631L - PANEL, REAR WHEEL HOUSE, OUTER RH | ||||
| 61631-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61631-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61651A - GUSSET, PILLAR SHEAR, NO.1 RH | ||||
| 61651-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61651-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61669-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61687B - BRACKET, MUDGUARD, REAR RH | ||||
| 61687-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61687-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61705S - COVER SUB-ASSY, COOLER CONDENSER AIR INTAKE | ||||
| 61705-36030 |
BZB40,50 |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61813-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61859 - COVER, FRONT DOOR STEP, RH | ||||
| 61859-36010 |
HDB51..29S..TD2;HDB51..TD4..(CBU,IV5);BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61859-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61887 - RAIL, SIDE PANEL DUST PROOF, NO.1 RH | ||||
| 61887-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61887-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61895 - RAIL, SIDE PANEL DUST PROOF, NO.2 RH | ||||
| 61895-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61895-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61897 - RAIL, SIDE PANEL DUST PROOF, NO.3 RH | ||||
| 61897-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61897-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 65415C - PANEL, REAR BODY, FRONT RH | ||||
| 65415-36020 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 65415-36021 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 65415-36020 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 65417 - PANEL, REAR BODY, REAR RH | ||||
| 65417-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 65417-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90159-40104 | ||||
| 90159-60454 | ||||
| 90189-04014 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01056 | ||||
| 90950-01167 | ||||
| 90950-01599 | ||||
| 90950-01763 | ||||
| 90950-06028 | ||||
| 93383-16014 | ||||

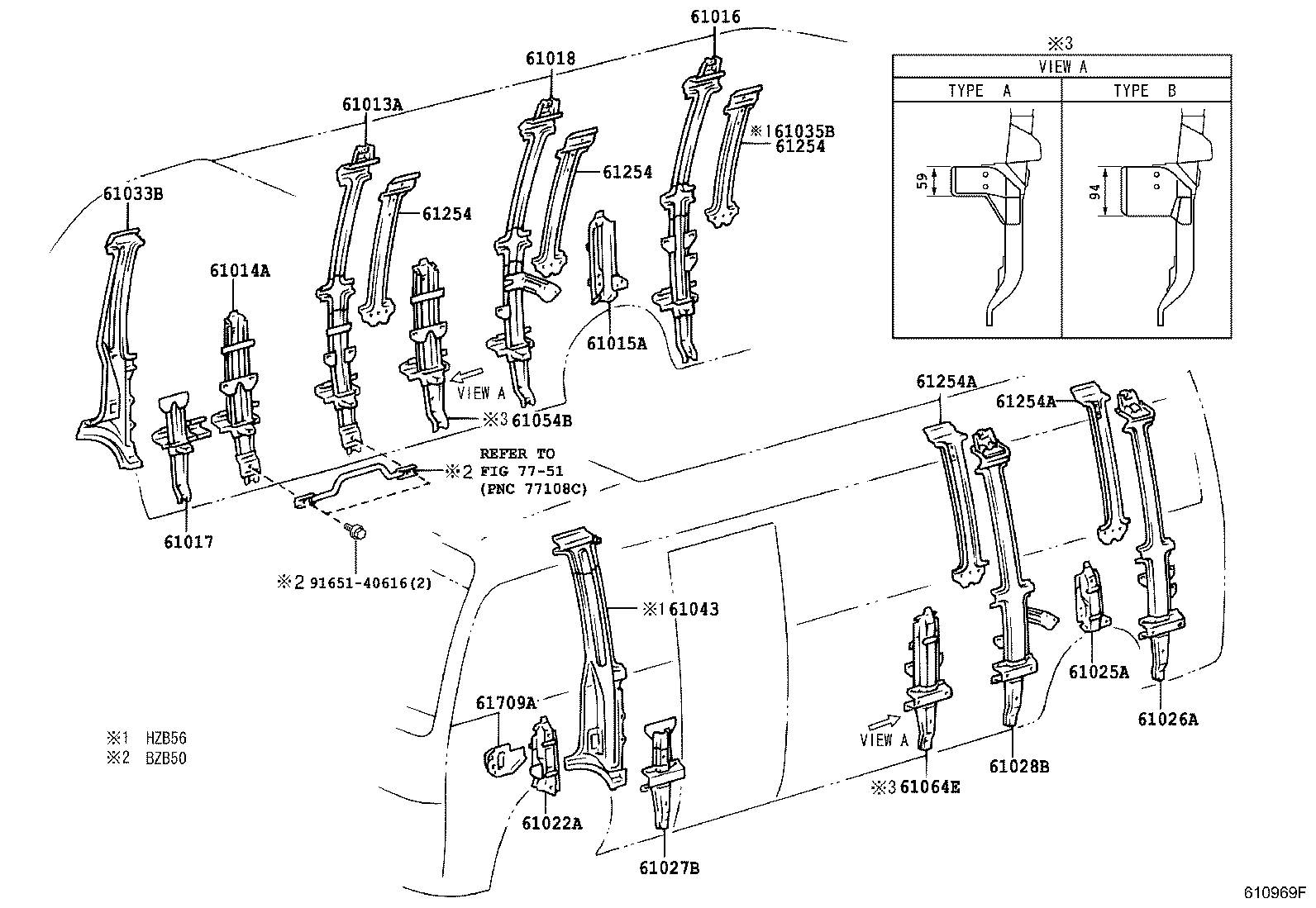

ILLUST NO. 4 OF 5(9301-0408)BB5#,BZB50,HDB5#,HZB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-36020 |
HZB50..SRF |
1 | ||
| 61013-36120 |
BZB40,50..STD |
1 | ||
| 61013-36020 |
BB40,HZB50..SRF |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61051-36010 |
HZB50..STD |
1 | ||
| 61051-36010 |
HZB50..STD |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-36020 |
HDB51..IV5;BB5#,HDB50,HZB5# |
1 | ||
| 61015-36021 |
BB58,HDB50,HZB5#..DX,LX,STD |
1 | ||
| 61015-36022 |
HDB51..IV5;BB58,BZB50,HDB50,HZB5#..DX,LX,STD |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61016-36050 |
HZB50..SRF |
1 | ||
| 61016-36051 |
BZB50,HZB50..SRF |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36040 |
HZB50..STD |
1 | ||
| 61017-36041 |
HZB50..STD |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-36031 |
BZB50,HZB50..SRF |
1 | ||
| 61018-36030 |
HZB50..SRF |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-36011 |
HDB50..LX;HZB40..SRF..LX;HZB50..STD..5F;HZB50..(DX,STD)..4FC;BZB40,50,HZB40..DX,STD |
1 | ||
| 61022-36010 |
BB40,HZB50..39S,49S |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-36022 |
BB58,BZB50,HDB5#,HZB5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 61025-36021 |
BB58,HDB5#,HZB5#..(09S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 61025-36020 |
HDB51..IV5;BB5#,HDB50,HZB5# |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61026-36050 |
HZB50..SRF |
1 | ||
| 61026-36051 |
BZB50,HZB50..SRF |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-36040 |
HZB50..STD |
1 | ||
| 61027-36042 |
BZB50,HZB50..STD |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-36031 |
BZB50,HZB50..SRF |
1 | ||
| 61028-36030 |
HZB50..SRF |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-36030 |
BB40,HZB50..(39S,49S)..WOC |
1 | ||
| 61033-36031 |
HZB40,50..STD..WOC |
1 | ||
| 61054B - PILLAR SUB-ASSY, NO.12 RH | ||||
| 61054-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61014-36040 |
HDB5#,HZB5# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61064E - PILLAR SUB-ASSY, NO.12 LH | ||||
| 61064-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61014-36040 |
HDB5#,HZB5# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61036-36010 |
HZB50..SRF |
3 | ||
| 61036-36010 |
BZB50,HZB50..SRF |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61036-36010 |
HZB50..SRF |
3 | ||
| 61036-36010 |
BZB50,HZB50..SRF |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61036-36010 |
HZB50..SRF |
3 | ||
| 61036-36010 |
BZB50,HZB50..SRF |
3 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61036-36010 |
HZB50..SRF |
2 | ||
| 61036-36010 |
BZB50,HZB50..SRF |
2 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61036-36010 |
HZB50..SRF |
2 | ||
| 61036-36010 |
BZB50,HZB50..SRF |
2 | ||
| Common parts | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 5 OF 5(9301-1501)BB5#,BZB50,HDB5#,HZB5#,XZB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36020 |
BB4#,55,HDB50,HZB40,5# ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
HDB5#,HZB40,41,50..(26S,29S,39S,49S)..CBU ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BZB40,50..STD |
1 | ||
| 61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH | ||||
| 61058-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61058-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61059-36020 |
BB40,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61059-36020 |
BB40,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
HZB41..IV5;BB58,BZB40,50,HDB5#,HZB40,46,5#..(09S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61059-36020 |
BB4#,55,HDB5#,HZB40,5# |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
HZB41..IV5;BB58,BZB40,50,HDB5#,HZB40,46,5#..(09S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61059-36020 |
BB4#,55,HDB5#,HZB40,5# |
2 | ||
| 61061D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH | ||||
| 61061-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61061-36010 |
HDB51..IV5;BB58,BZB40,50,HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 61062D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 | ||||
| 61062-36010 |
HDB51..IV5;BB58,BZB40,50,HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 61062-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH | ||||
| 61067-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61067-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61081B - STRENGTH SUB-ASSY, NO.4 FLOOR BOARD, RH | ||||
| 61081-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61081-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61082 - STRENGTH SUB-ASSY, NO.4 FLOOR BOARD, LH | ||||
| 61082-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61082-36011 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61082-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61091-36040 |
BZB50,HZB50..STD |
1 | ||
| 61091-36040 |
HZB50..STD |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61093-36020 |
HZB50..STD |
1 | ||
| 61093-36020 |
BZB50,HZB50..STD |
1 | ||
| 61093-36021 |
BZB50,HZB50..STD |
1 | ||
| 61096A - RAIL SUB-ASSY, NO.2 LOWER, INNER LH | ||||
| 61096-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61096-36031 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61096-36030 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH | ||||
| 61191-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61191-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
3 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36020 |
BB40,HZB40,50..39S,49S ﾖｳｼﾞﾖｳﾊﾞｽ,ﾌﾛﾝﾄ |
1 | ||
| 61309-36010 |
BB40,HZB40,50..39S,49S ﾖｳｼﾞﾖｳﾊﾞｽ,ﾘﾔ |
1 | ||
| 61352-36020 |
BZB40,50,HZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ﾌﾛﾝﾄ |
1 | ||
| 61309-36010 |
BZB40,50,HZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ﾘﾔ |
1 | ||
| 61352-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36020 |
BB40,HZB40,50..39S,49S ﾖｳｼﾞﾖｳﾊﾞｽ,ﾌﾛﾝﾄ |
1 | ||
| 61309-36010 |
BB40,HZB40,50..39S,49S ﾖｳｼﾞﾖｳﾊﾞｽ,ﾘﾔ |
1 | ||
| 61352-36020 |
BZB40,50,HZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ﾌﾛﾝﾄ |
1 | ||
| 61309-36010 |
BZB40,50,HZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ﾘﾔ |
1 | ||
| 61352-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61353B - RAIL, NO.3 CENTER OUTER, RH | ||||
| 61353-36010 |
HZB40,56..09S,19S;BB58,BZB50,HDB5#,HZB46,50..(08S,20S,24S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 61353-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61353D - RAIL, NO.3 CENTER, LH | ||||
| 61353-36010 |
HZB40,56..09S,19S;BB58,BZB50,HDB5#,HZB46,50..(08S,20S,24S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 61353-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61361-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61364C - RAIL, NO.4 CENTER OUTER, LH | ||||
| 61354-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61354-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61374A - RAIL, NO.4 CENTER INNER | ||||
| 61374-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61374-36011 |
HZB40,56..09S,19S;BB58,BZB50,HDB5#,HZB46,50..(08S,20S,24S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 61374-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61374C - RAIL, NO.4 CENTER INNER, LH | ||||
| 61374-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61374-36011 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61374-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61379A - BRACKET, CENTER PILLAR GARNISH | ||||
| 61379-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61379-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-36010 |
HDB5#,HZB41,5# |
1 | ||
| 61403-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61404-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61407 - STRENGTH SUB-ASSY, NO.3 FLOOR BOARD, RH | ||||
| 61407-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61407-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
3 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
3 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
2 | ||
| 61414-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
2 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
2 | ||
| 61414-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
2 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61415-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61417A - RAIL, NO.7 LOWER OUTER, RH | ||||
| 61417-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 61417-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61425A - RAIL, NO.5 LOWER OUTER, LH | ||||
| 61425-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61425-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61426B - RAIL, NO.6 LOWER OUTER, LH | ||||
| 61426-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61426-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61441B - RAIL, NO.1 LOWER INNER, LH | ||||
| 61441-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR | ||||
| 61508-36050 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61508-36050 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61592 - BRACKET, STIFFENER, NO.2 | ||||
| 61592-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61592-36010 |
BZB40,50,HZB40,50..STD NO.2 |
1 | ||
| 61592-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61599A - BRACKET, STIFFENER, NO.6, LH | ||||
| 61599-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61599-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61608-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61608-36011 |
HDB51..IV5;BB58,BZB40,50,HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61609-36011 |
HDB51..IV5;BB58,BZB40,50,HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61635-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61636-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH | ||||
| 61803-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61803-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90179-06156 | ||||
| 91651-60616 | ||||

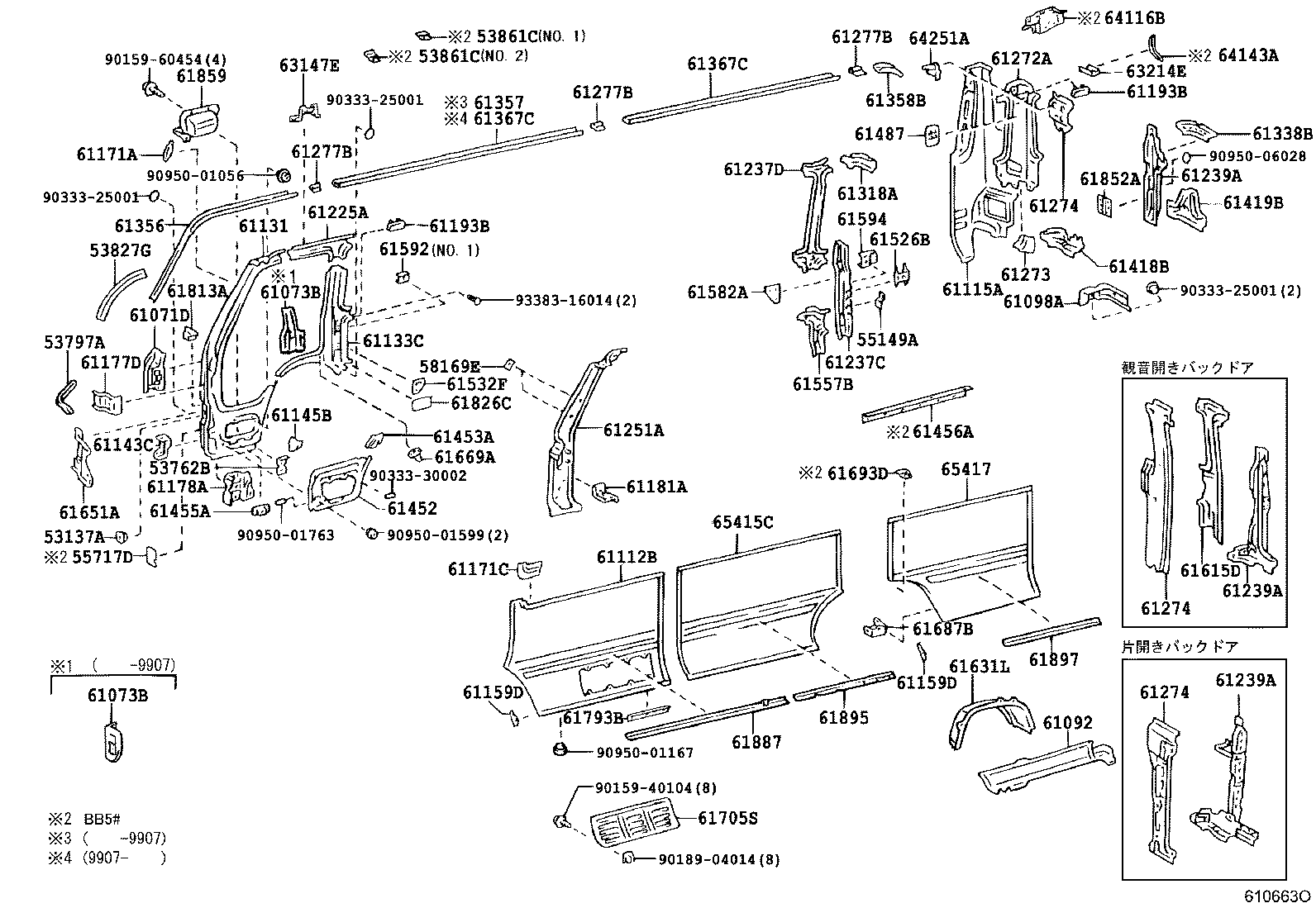

ILLUST NO. 1 OF 5(0203- )BB58,BZB50,HDB5#,HZB5#,XZB5#
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53137A - RETAINER, HEADLAMP DOOR | ||||
| 53137-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 53137-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 53762B - REINFORCEMENT, RADIATOR RESERVE TANK MOUNT | ||||
| 53762-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53762-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53797A - PROTECTOR, SIDE TURN SIGNAL LAMP | ||||
| 53797-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53797-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 53827-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 55149A - BRACKET, DASH WIRING HARNESS | ||||
| 55149-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 55149-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58169E - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58169-90A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 59202 - LOCK SUB-ASSY, INSPECTION HOLE COVER | ||||
| 59202-36010 |
BZB40,50 |
1 | ||
| 61071D - REINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH | ||||
| 61071-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61071-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61073B - REINFORCE SUB-ASSY, NO.2 PILLAR, CENTER | ||||
| 61073-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61073-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61086 - BRACKET SUB-ASSY, FUEL INLET PIPE | ||||
| 61086-36010 |
BZB40,50 |
1 | ||
| 61092 - RAIL SUB-ASSY, NO.3 LOWER INNER, RH | ||||
| 61092-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61092-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61092-36011 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61098A - STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH | ||||
| 61098-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61098-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-36030 |
HZB50..STD..WOC |
1 | ||
| 61112-36030 |
HZB50..STD..WOC |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-36030 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61115-36030 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61131-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61133C - PILLAR, FRONT BODY, LOWER OUTER RH | ||||
| 61133-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61133-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61143C - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 61143-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61143-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61145-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61153C - RETAINER, FRONT BODY PILLAR LOWER HINGE, RH | ||||
| 61153-36020 |
BZB40,50 |
1 | ||
| 61154B - RETAINER, FRONT BODY PILLAR LOWER HINGE, LH | ||||
| 61154-36010 |
BZB40,50 |
1 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 61159-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 61159-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61171A - BRACKET, ANTENNA POLE MOUNTING | ||||
| 61171-20020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61171C - STIFFENER, SIDE PANEL, NO.1 | ||||
| 61171-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61171-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61177D - REINFORCEMENT, NO.1 PILLAR, CENTER | ||||
| 61177-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61177-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61178A - REINFORCEMENT, NO.1 PILLAR, LOWER RH | ||||
| 61178-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61178-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 53803-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 61193-36010A1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 61193-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 61193-36010A1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 61193-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61225-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61237C - RAIL, ROOF SIDE, INNER NO.4 RH | ||||
| 61238-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61238-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61237D - PILLAR, NO.9 OUTER, UPPER RH | ||||
| 61237-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61237-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61031-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61031-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61031-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61251A - PILLAR, NO.1 INNER, RH | ||||
| 61251-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61251-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61272A - PILLAR, NO.9 INNER, RH | ||||
| 61272-36031 |
HZB50..CBU;BB58,BZB40,50,HDB5#,HZB4#,56..(08S,09S,10S,19S,20S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61272-36030 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 61273 - PILLAR, NO.9 INNER, LOWER RH | ||||
| 61273-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61273-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61273-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
BZB40,50,HZB40,50..STD ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61274-36030 |
BB40,HZB40,50..39S,49S ｱﾘ(ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61318-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61338B - RAIL, REAR SIDE NO.2, RH | ||||
| 61338-36020 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61356 - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61356-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358B - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61358-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61367C - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61452-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61453-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61159-60010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61455-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 61526B - BRACKET, SEAT ANCHOR, NO.2 RH | ||||
| 61509-36010 |
BB40,HZB50..39S,49S |
1 | ||
| 61509-36011 |
BZB40,50,HZB40,46,5#..09S,39S,49S |
1 | ||
| 61532F - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61532-36010 |
BB46,5#,HZB56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
2 | ||
| 61532-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61532-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61557B - GUSSET, PILLAR TO RAIL, NO.2 | ||||
| 61557-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61557-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61582A - BRACKET, REAR SEAT, NO.2 | ||||
| 61582-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61592 - BRACKET, STIFFENER, NO.2 | ||||
| 61592-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61592-36010 |
BZB40,50,HZB40,50..STD NO.2 |
1 | ||
| 61592-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61594 - BRACKET, STIFFENER, NO.4 | ||||
| 61594-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61594-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61631L - PANEL, REAR WHEEL HOUSE, OUTER RH | ||||
| 61631-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61631-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61651A - GUSSET, PILLAR SHEAR, NO.1 RH | ||||
| 61651-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61651-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61669-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61687B - BRACKET, MUDGUARD, REAR RH | ||||
| 61687-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61687-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61705S - COVER SUB-ASSY, COOLER CONDENSER AIR INTAKE | ||||
| 61705-36030 |
BZB40,50 |
1 | ||
| 61705S - COVER SUB-ASSY, COOLER CONDENSER AIR INTAKE | ||||
| 61705-36030 |
BZB40,50 |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61813-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61859 - COVER, FRONT DOOR STEP, RH | ||||
| 61859-36010 |
HDB51..29S..TD2;HDB51..TD4..(CBU,IV5);BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61859-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61887 - RAIL, SIDE PANEL DUST PROOF, NO.1 RH | ||||
| 61887-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61887-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61895 - RAIL, SIDE PANEL DUST PROOF, NO.2 RH | ||||
| 61895-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61895-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61897 - RAIL, SIDE PANEL DUST PROOF, NO.3 RH | ||||
| 61897-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61897-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 62551H - PAD, PILLAR, NO.1 RH | ||||
| 61389-36030 |
BZB40,50,HZB40,50..STD |
1 | ||
| 65415C - PANEL, REAR BODY, FRONT RH | ||||
| 65415-36020 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 65415-36021 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 65415-36020 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 65417 - PANEL, REAR BODY, REAR RH | ||||
| 65417-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 65417-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 77604D - COVER SUB-ASSY, FUEL TANK VALVE | ||||
| 77604-36010 |
BZB40,50 |
1 | ||
| Common parts | ||||
| 90159-40104 | ||||
| 90159-60454 | ||||
| 90189-04014 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90541-07093 | ||||
| 90950-01056 | ||||
| 90950-01167 | ||||
| 90950-01599 | ||||
| 90950-01763 | ||||
| 90950-06028 | ||||
| 91631-J0612 | ||||
| 93383-16014 | ||||
ILLUST NO. 1 OF 5(0203- )BB58,BZB50,HDB5#,HZB5#,XZB5#
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53137A - RETAINER, HEADLAMP DOOR | ||||
| 53137-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 53137-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 59401 - COVER SUB-ASSY, COOLER CONDENSER | ||||
| 59401-36020F1 |
BZB40,50..STD YELLOW,541 |
1 | ||
| 59401-36020A0 |
BZB40,50 WHITE,058 |
1 | ||
| 61094 - RAIL SUB-ASSY, NO.3 LOWER INNER, LH | ||||
| 61094-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61094-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61099 - STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH | ||||
| 61099-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61099-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61117B - RETAINER, WASHER TANK | ||||
| 61117-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61117-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-36050 |
HZB50..STD |
1 | ||
| 61122-36050 |
BZB50,HZB50..STD |
1 | ||
| 61125E - PANEL, NO.4 SIDE, LH | ||||
| 61125-36020 |
BB46,58,HDB50,HZB4#,5#;BB40,HDB51..(29S,39S)..(4FC,5F)..CBU;BB40,HDB51..(20S,26S)..(DX,EX,LX,SULNG) |
1 | ||
| 61125-36020 |
HZB40..26S,39S;BB58,BZB40,HDB50,HZB46,5#..09S,29S,39S,49S;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5) |
1 | ||
| 61136B - REINFORCEMENT, FRONT BODY PILLAR, OUTER | ||||
| 61135-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61135-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61144C - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 61144-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61144-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61157 - BRACKET, NO.2 SIDE PANEL | ||||
| 61157-36010 |
HZB50..STD |
1 | ||
| 61157-36010 |
BZB50,HZB50..STD |
1 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF..(CBU,IV5) |
2 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF..(CBU,IV5) |
2 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61183-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61183-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 61221 - PILLAR, NO.1 OUTER, UPPER LH | ||||
| 61221-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61221-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61222 - PILLAR, NO.1 OUTER, LOWER LH | ||||
| 61222-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61222-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61247C - PILLAR, NO.9 OUTER, UPPER LH | ||||
| 61247-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61247-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61248C - PILLAR, NO.9 OUTER, LOWER LH | ||||
| 61248-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61248-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61041-36020 |
HZB40,50;BB40..39S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61041-36020 |
BZB40,50..STD |
1 | ||
| 61041-36020 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61041-36020 |
HZB40,50;BB40..39S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61041-36020 |
BZB40,50..STD |
1 | ||
| 61041-36020 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61261D - PILLAR, NO.1 INNER, LH | ||||
| 61261-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61261-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61282C - PILLAR, NO.9 INNER, LH | ||||
| 61282-36060 |
HZB50..CBU;BB58,HDB5#,HZB4#,56..CBU,IV5 |
1 | ||
| 61282-36060 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 61282-36061 |
HZB50..CBU;BB58,BZB40,50,HDB5#,HZB4#,56..(08S,09S,10S,19S,20S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61283B - PILLAR, NO.9 INNER, LOWER LH | ||||
| 61283-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61283-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61283-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36020 |
BB4#,HZB5#..09S,39S,49S |
1 | ||
| 61284-36030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61284-36030 |
BZB40,50..STD |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36020 |
BB4#,HZB5#..09S,39S,49S |
1 | ||
| 61284-36030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61284-36030 |
BZB40,50..STD |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61328-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61348B - RAIL, REAR SIDE NO.2, LH | ||||
| 61348-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61348-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358A - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61366A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61366-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61368 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61368A - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61368-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61368-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61408B - STRENGTH SUB-ASSY, NO.3 FLOOR BOARD, LH | ||||
| 61408-36011 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61408-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61408-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61421B - RAIL, NO.1 LOWER OUTER, LH | ||||
| 61421-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61421-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61526C - BRACKET, SEAT ANCHOR, NO.2 LH | ||||
| 61526-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 61525-36010 |
BZB40,50,HZB40,46,5#..09S,39S,49S |
1 | ||
| 61567A - GUSSET, PILLAR TO RAIL, NO.2 LH | ||||
| 61567-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61567-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61582B - BRACKET, REAR SEAT, NO.2 LH | ||||
| 61582-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61594A - BRACKET, STIFFENER, NO.4 LH | ||||
| 61594-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61594-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61704-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61704-12060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-36010 |
BB40..39S;BB40..DX,LX;BB46,HDB5#,HZB4#,5# |
1 | ||
| 61625-36010 |
HZB40;HZB50..5F;HZB50..4FC..IV5;HZB50..(DX,GX,STD)..4FC;BB58,BZB40,HDB50,HZB46,56..08S,09S,29S,39S;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5) |
1 | ||
| 61632K - PANEL, REAR WHEEL HOUSE, OUTER LH | ||||
| 61632-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61632-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61633B - PANEL, WHEEL HOUSE | ||||
| 61633-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 61633-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61661E - GUSSET, PILLAR SHEAR, NO.1 LH | ||||
| 61661-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61661-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61688C - BRACKET, MUDGUARD, REAR LH | ||||
| 61688-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61688-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61707M - BRACKET SUB-ASSY, SWITCH RELAY | ||||
| 61707-36010 |
BZB40,50..STD;HDB50,HZB40,50..(26S,29S,39S,49S)..(DX,LX,STD) |
1 | ||
| 61723C - BRACKET, SWITCH RELAY | ||||
| 61723-36010 |
HZB40..5F;HDB50,HZB50..DX,LX,STD;HZB40..(26S,39S)..4FC..CBU;BZB50,HDB51,HZB41..(20S,24S,26S,29S,49S)..(EX,STD,SULNG)..(CBU,IV5) |
2 | ||
| 61723C - BRACKET, SWITCH RELAY | ||||
| 61723-36010 |
HZB40..5F;HDB50,HZB50..DX,LX,STD;HZB40..(26S,39S)..4FC..CBU;BZB50,HDB51,HZB41..(20S,24S,26S,29S,49S)..(EX,STD,SULNG)..(CBU,IV5) |
2 | ||
| 61823B - PLATE, DUST PROOF, NO.1 LH | ||||
| 61823-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61823-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61824B - PLATE, DUST PLOOF, NO.2 LH | ||||
| 61824-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61824-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61888 - RAIL, SIDE PANEL DUST PROOF, NO.1 LH | ||||
| 61888-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 61888-36030 |
BB58,BZB40,50,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 61896 - RAIL, SIDE PANEL DUST PROOF, NO.2 LH | ||||
| 61896-36030 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61896-36030 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61898A - RAIL, SIDE PANEL DUST PROOF, NO.3 LH | ||||
| 61898-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61898-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62429-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63215E - CHANNEL, ROOF DRIP, REAR, LH | ||||
| 63215-36010 |
BB40..39S;BB40..DX,LX;BB46,HDB5#,HZB4#,5# |
1 | ||
| 63215-36010 |
HZB40;HZB50..5F;HZB50..4FC..IV5;HZB50..(DX,GX,STD)..4FC;BB58,BZB40,HDB50,HZB46,56..08S,09S,29S,39S;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5) |
1 | ||
| 65416A - PANEL, REAR BODY, FRONT LH | ||||
| 65416-36060 |
HZB50..STD..5F;HZB50..(LX,STD)..4FC ｱﾘ(ｵﾘﾀﾀﾐ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 65416-36060 |
HZB50..STD |
1 | ||
| 65416A - PANEL, REAR BODY, FRONT LH | ||||
| 65416-36060 |
HZB50..STD..5F;HZB50..(LX,STD)..4FC ｱﾘ(ｵﾘﾀﾀﾐ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 65416-36060 |
HZB50..STD |
1 | ||
| 65614B - PANEL, REAR BODY, REAR LH | ||||
| 65614-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 65614-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77689 - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3 | ||||
| 77689-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77689-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 62557-36040 | ||||
| 90159-40104 | ||||
| 90179-06185 | ||||
| 90189-04014 | ||||
| 90333-30004 | ||||
| 90333-35001 | ||||
| 90467-05096B3 | ||||
| 90950-01056 | ||||
| 90950-01181 | ||||
| 90950-01404 | ||||
| 90950-01444 | ||||
| 90950-01901 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 7553 | ||||
| 7751 | ||||
ILLUST NO. 1 OF 5(9301-0203)BB5#,HDB5#,HZB5#
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53137A - RETAINER, HEADLAMP DOOR | ||||
| 53137-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 53137-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61094 - RAIL SUB-ASSY, NO.3 LOWER INNER, LH | ||||
| 61094-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61094-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61099 - STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH | ||||
| 61099-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61099-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61117B - RETAINER, WASHER TANK | ||||
| 61117-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61117-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-36050 |
HZB50..STD |
1 | ||
| 61122-36050 |
BZB50,HZB50..STD |
1 | ||
| 61125E - PANEL, NO.4 SIDE, LH | ||||
| 61125-36020 |
BB46,58,HDB50,HZB4#,5#;BB40,HDB51..(29S,39S)..(4FC,5F)..CBU;BB40,HDB51..(20S,26S)..(DX,EX,LX,SULNG) |
1 | ||
| 61125-36020 |
HZB40..26S,39S;BB58,BZB40,HDB50,HZB46,5#..09S,29S,39S,49S;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5) |
1 | ||
| 61136B - REINFORCEMENT, FRONT BODY PILLAR, OUTER | ||||
| 61135-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61135-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61144C - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 61144-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61144-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61157 - BRACKET, NO.2 SIDE PANEL | ||||
| 61157-36010 |
HZB50..STD |
1 | ||
| 61157-36010 |
BZB50,HZB50..STD |
1 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF..(CBU,IV5) |
2 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 61159-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61159-36010 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF..(CBU,IV5) |
2 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61183-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61183-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 61221 - PILLAR, NO.1 OUTER, UPPER LH | ||||
| 61221-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61221-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61222 - PILLAR, NO.1 OUTER, LOWER LH | ||||
| 61222-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61222-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61247C - PILLAR, NO.9 OUTER, UPPER LH | ||||
| 61247-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61247-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61248C - PILLAR, NO.9 OUTER, LOWER LH | ||||
| 61248-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61248-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61041-36020 |
HZB40,50;BB40..39S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61041-36020 |
BZB40,50..STD |
1 | ||
| 61041-36020 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61041-36020 |
HZB40,50;BB40..39S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61041-36020 |
BZB40,50..STD |
1 | ||
| 61041-36020 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61261D - PILLAR, NO.1 INNER, LH | ||||
| 61261-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61261-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 61282C - PILLAR, NO.9 INNER, LH | ||||
| 61282-36060 |
HZB50..CBU;BB58,HDB5#,HZB4#,56..CBU,IV5 |
1 | ||
| 61282-36060 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 61282-36061 |
HZB50..CBU;BB58,BZB40,50,HDB5#,HZB4#,56..(08S,09S,10S,19S,20S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61283B - PILLAR, NO.9 INNER, LOWER LH | ||||
| 61283-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61283-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61283-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36020 |
BB4#,HZB5#..09S,39S,49S |
1 | ||
| 61284-36030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61284-36030 |
BZB40,50..STD |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36020 |
BB4#,HZB5#..09S,39S,49S |
1 | ||
| 61284-36030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 61284-36030 |
BZB40,50..STD |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61328-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61348B - RAIL, REAR SIDE NO.2, LH | ||||
| 61348-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61348-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358A - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61358A - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61366A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61366-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61368 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61357-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61368A - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61368-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61368-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61408B - STRENGTH SUB-ASSY, NO.3 FLOOR BOARD, LH | ||||
| 61408-36011 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61408-36010 |
BZB40,50,HZB40,50..STD |
1 | ||
| 61408-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 61421B - RAIL, NO.1 LOWER OUTER, LH | ||||
| 61421-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61421-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61526C - BRACKET, SEAT ANCHOR, NO.2 LH | ||||
| 61526-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 61525-36010 |
BZB40,50,HZB40,46,5#..09S,39S,49S |
1 | ||
| 61567A - GUSSET, PILLAR TO RAIL, NO.2 LH | ||||
| 61567-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61567-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61582B - BRACKET, REAR SEAT, NO.2 LH | ||||
| 61582-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61594A - BRACKET, STIFFENER, NO.4 LH | ||||
| 61594-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 61594-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61704-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61704-12060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-36010 |
BB40..39S;BB40..DX,LX;BB46,HDB5#,HZB4#,5# |
1 | ||
| 61625-36010 |
HZB40;HZB50..5F;HZB50..4FC..IV5;HZB50..(DX,GX,STD)..4FC;BB58,BZB40,HDB50,HZB46,56..08S,09S,29S,39S;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5) |
1 | ||
| 61632K - PANEL, REAR WHEEL HOUSE, OUTER LH | ||||
| 61632-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61632-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61633B - PANEL, WHEEL HOUSE | ||||
| 61633-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 61633-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61661E - GUSSET, PILLAR SHEAR, NO.1 LH | ||||
| 61661-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61661-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61688C - BRACKET, MUDGUARD, REAR LH | ||||
| 61688-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61688-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61707M - BRACKET SUB-ASSY, SWITCH RELAY | ||||
| 61707-36010 |
BZB40,50..STD;HDB50,HZB40,50..(26S,29S,39S,49S)..(DX,LX,STD) |
1 | ||
| 61723C - BRACKET, SWITCH RELAY | ||||
| 61723-36010 |
HZB40..5F;HDB50,HZB50..DX,LX,STD;HZB40..(26S,39S)..4FC..CBU;BZB50,HDB51,HZB41..(20S,24S,26S,29S,49S)..(EX,STD,SULNG)..(CBU,IV5) |
2 | ||
| 61723C - BRACKET, SWITCH RELAY | ||||
| 61723-36010 |
HZB40..5F;HDB50,HZB50..DX,LX,STD;HZB40..(26S,39S)..4FC..CBU;BZB50,HDB51,HZB41..(20S,24S,26S,29S,49S)..(EX,STD,SULNG)..(CBU,IV5) |
2 | ||
| 61823B - PLATE, DUST PROOF, NO.1 LH | ||||
| 61823-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61823-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61824B - PLATE, DUST PLOOF, NO.2 LH | ||||
| 61824-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61824-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61888 - RAIL, SIDE PANEL DUST PROOF, NO.1 LH | ||||
| 61888-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 61888-36030 |
BB58,BZB40,50,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 61896 - RAIL, SIDE PANEL DUST PROOF, NO.2 LH | ||||
| 61896-36030 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61896-36030 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 61898A - RAIL, SIDE PANEL DUST PROOF, NO.3 LH | ||||
| 61898-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 61898-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62429-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63215E - CHANNEL, ROOF DRIP, REAR, LH | ||||
| 63215-36010 |
BB40..39S;BB40..DX,LX;BB46,HDB5#,HZB4#,5# |
1 | ||
| 63215-36010 |
HZB40;HZB50..5F;HZB50..4FC..IV5;HZB50..(DX,GX,STD)..4FC;BB58,BZB40,HDB50,HZB46,56..08S,09S,29S,39S;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5) |
1 | ||
| 65416A - PANEL, REAR BODY, FRONT LH | ||||
| 65416-36060 |
HZB50..STD..5F;HZB50..(LX,STD)..4FC ｱﾘ(ｵﾘﾀﾀﾐ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 65416-36060 |
HZB50..STD |
1 | ||
| 65614B - PANEL, REAR BODY, REAR LH | ||||
| 65614-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 65614-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77689 - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3 | ||||
| 77689-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77689-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90179-06185 | ||||
| 90333-30004 | ||||
| 90467-05096A1 | ||||
| 90467-05096B3 | ||||
| 90950-01056 | ||||
| 90950-01181 | ||||
| 90950-01404 | ||||
| 90950-01444 | ||||
| 90950-01901 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 7553 | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
