HZB50-BKMRS (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )BZB40,50

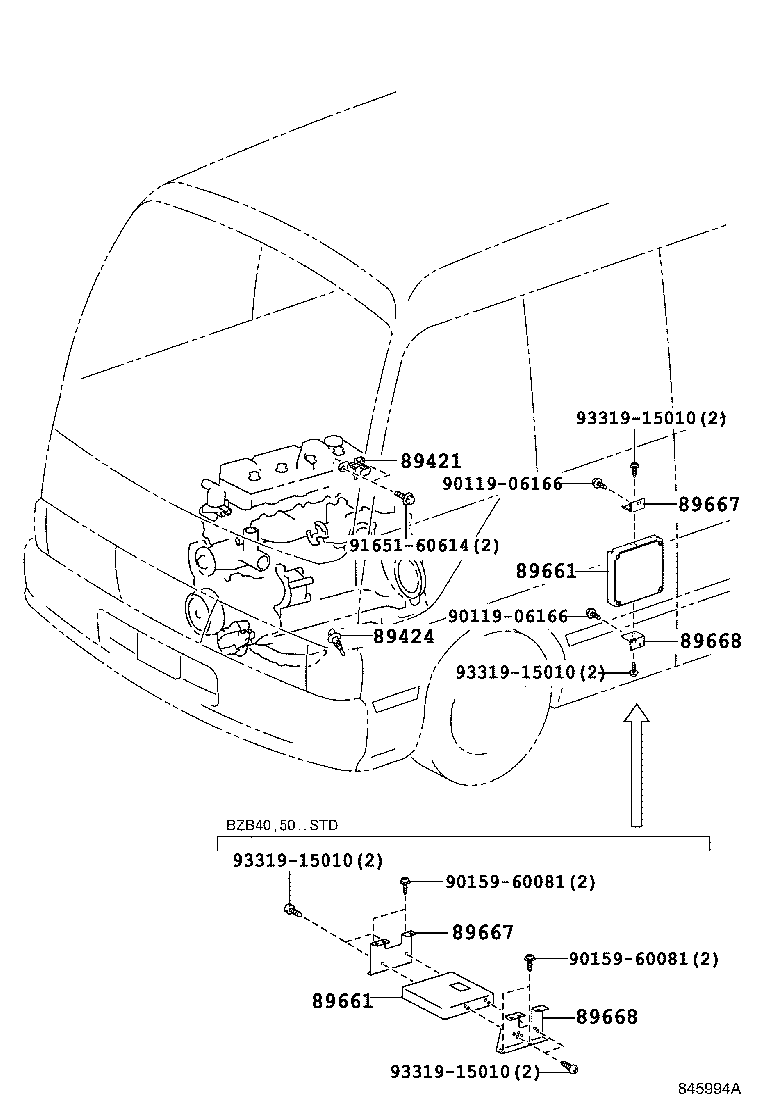

Click highlighted areas on diagram

diagram 89421 89424 89661 89661 89667 89667 89668 89668 9011906166 9011906166 9015960081 9015960081 9165160614 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190

BZB40,50

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

BZB40,50

 1
89661 - COMPUTER, ENGINE CONTROL
89661-36082

BZB40,50

FUJITSU TEN

 1
89661-36110

BZB40,50

FUJITSU TEN

 1
89661-36081

BZB40,50

FUJITSU TEN

 1
89661-36111

BZB40,50

FUJITSU TEN

 1
89661 - COMPUTER, ENGINE CONTROL
89661-36082

BZB40,50

FUJITSU TEN

 1
89661-36110

BZB40,50

FUJITSU TEN

 1
89661-36081

BZB40,50

FUJITSU TEN

 1
89661-36111

BZB40,50

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-36030

BZB40,50..STD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-36030

BZB40,50..STD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36020

BZB40,50..STD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36020

BZB40,50..STD

 1
Common parts
90119-06166
90159-60081
91651-60614
93319-15010
