HZB46V-ZRPNS (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)HZB4#,5#

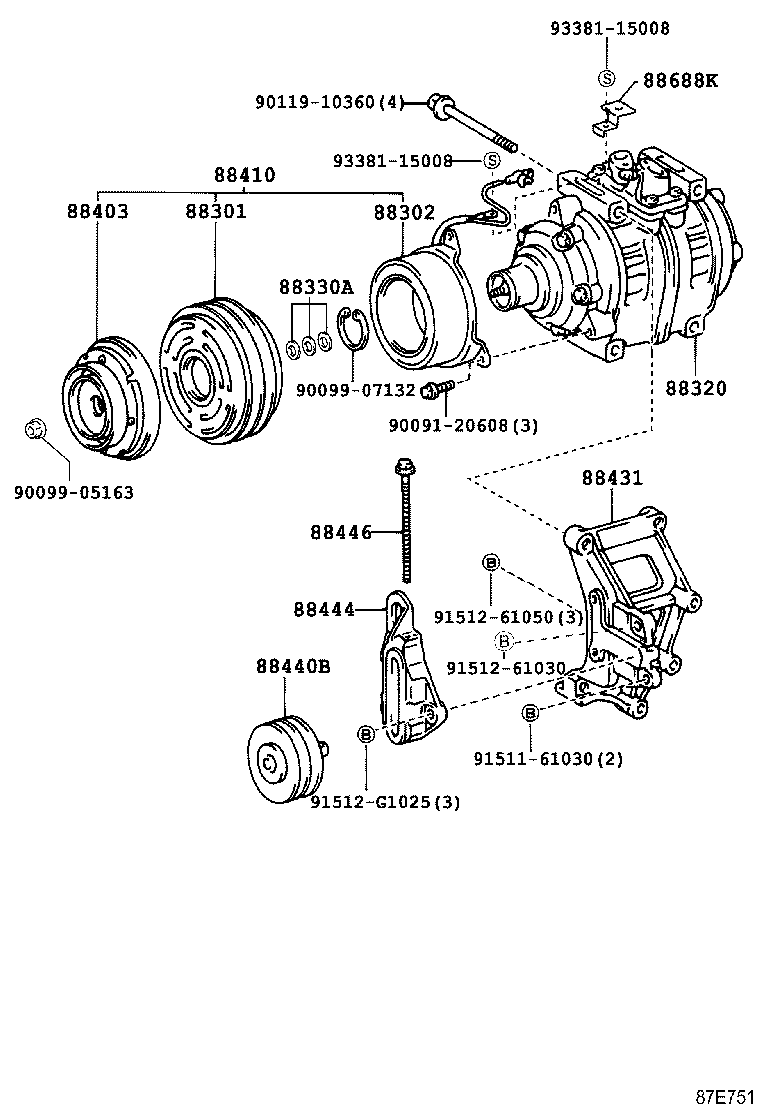

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88440B 88444 88446 88688K 9009120608 9009905163 9009907132 9011910360 9151161030 9151261030 9151261050 91512G1025 9338115008 9338115008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-36040

BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,DSL4,TD2)

 1
88412-36130

HDB5#,HZB4#,5#..WC

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36240

BB58,HDB5#,HZB4#,5#..WC

 1
88411-36240

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88320 - COMPRESSOR ASSY, COOLER
88320-36530

HDB5#,HZB4#,5#..WC

 1
88320-36360

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88335-12050

BB58,BZB40,50,HDB5#,HZB4#,5#..WC

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-36040

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88403-36040

BB58,BZB40,50,HDB5#,HZB4#,5#..WC

 1
88410 - CLUTCH ASSY, MAGNET
88410-36340

BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,DSL4,TD2)

 1
88410-36510

HDB5#,HZB4#,5#..WC

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36550

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,TD2)

 1
88431-36610

HZB4#,5#..WC

 1
88440B - PULLEY ASSY, IDLE
88440-36130

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
16604-76010

HZB4#,5#..WC

 1
88444 - BRACKET, IDLE PULLEY
88444-36150

HZB4#,5#..WC

 1
88444-36150

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,TD2)

 1
88446 - BOLT, IDLE PULLEY
90105-08099

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
90105-08099

HDB5#,HZB4#,5#..WC

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-36620

HDB5#,HZB4#,5#..WC

 1
Common parts
90091-20608
90099-05163
90099-07132
90119-10360
91511-61030
91512-61030
91512-61050
91512-G1025
93381-15008
