HZB46V-ZRPNS (1999)
Toyota Coaster

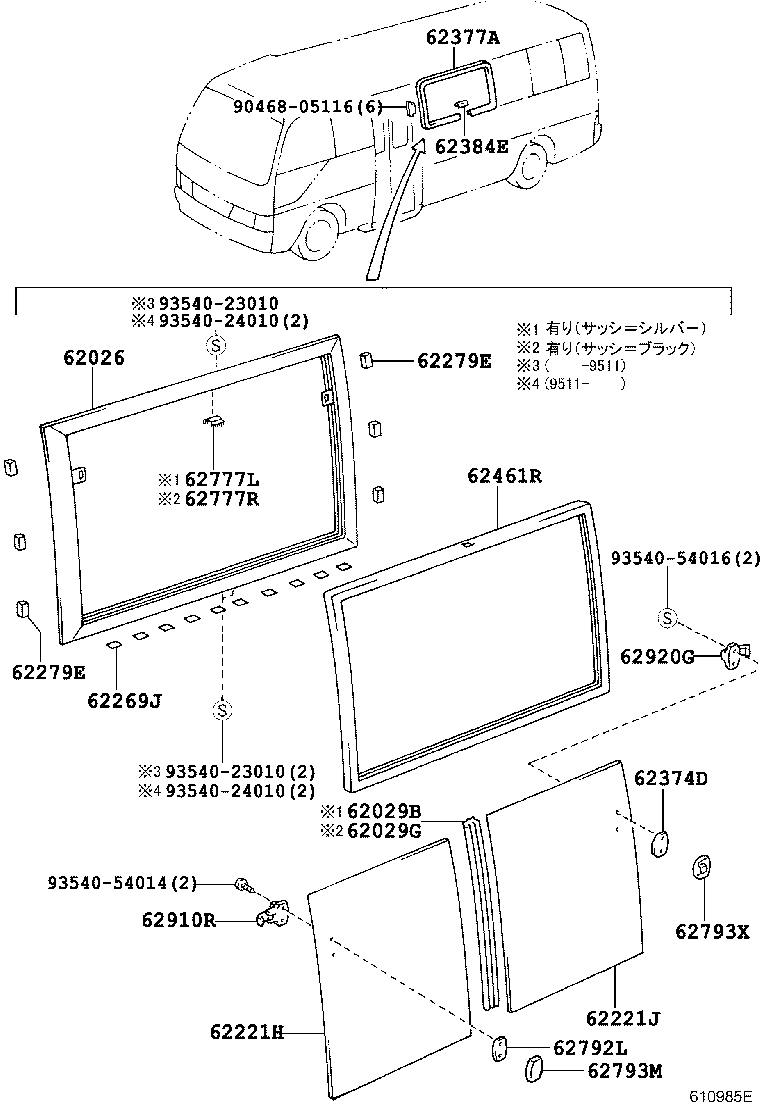

ILLUST NO. 3 OF 7(9301-0408)EX,GX,LX ; (0408- )DX,EX,GX,LX
ｸﾞﾗｲﾄﾞｼｷ ｻｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62026 - FRAME SUB-ASSY, SIDE NO.2 WINDOW, OUTER LH | ||||
| 62026-36030 |
BB46..WOC;BB40,HDB5#,HZB4#,50..DX,EX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62026-36050 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD ｵ-ﾄ) |
1 | ||
| 62026-36031 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ),ﾌﾞﾗｯｸ |
1 | ||
| 62026-36011 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ),ｼﾙﾊﾞｰ |
1 | ||
| 62026-36041 |
HDB50,HZB40,46,5#..(09S,26S,29S)..LX ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ),ｼﾙﾊﾞｰ |
1 | ||
| 62026-36051 |
HZB40..4FC..IV5;HDB5#,HZB4#,5#..(09S,26S,29S)..(EX,GX,LX)..CBU ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ),ﾌﾞﾗｯｸ |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36033 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62029-36034 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62029G - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62029-36044 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62029-36043 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62221H - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
BB40,HDB5#,HZB4#,50..EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62711-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62711-36080 |
HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD ｵ-ﾄ) |
1 | ||
| 62221-36080 |
BB58,HDB50,HZB40,46,5#..DX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62221-36070 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62711-36070 |
HDB50,HZB40,46,5#..(09S,26S,29S)..LX *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62221-36100 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62711-36090 |
HDB5#,HZB4#,5#..(09S,26S,29S)..WC..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62221J - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36100 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36080 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62374D - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM41 |
5 | ||
| 62376-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM10 |
5 | ||
| 62377-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62391F - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62391-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36030 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62461-36050 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62461-36031 |
BB58,HDB50,HZB40,46,5#..DX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62461-36051 |
HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62461-36052 |
HDB5#,HZB4#,5#..(09S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62461-36070 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62777L - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777-36040 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777R - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62793X - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62920G - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54016 | ||||

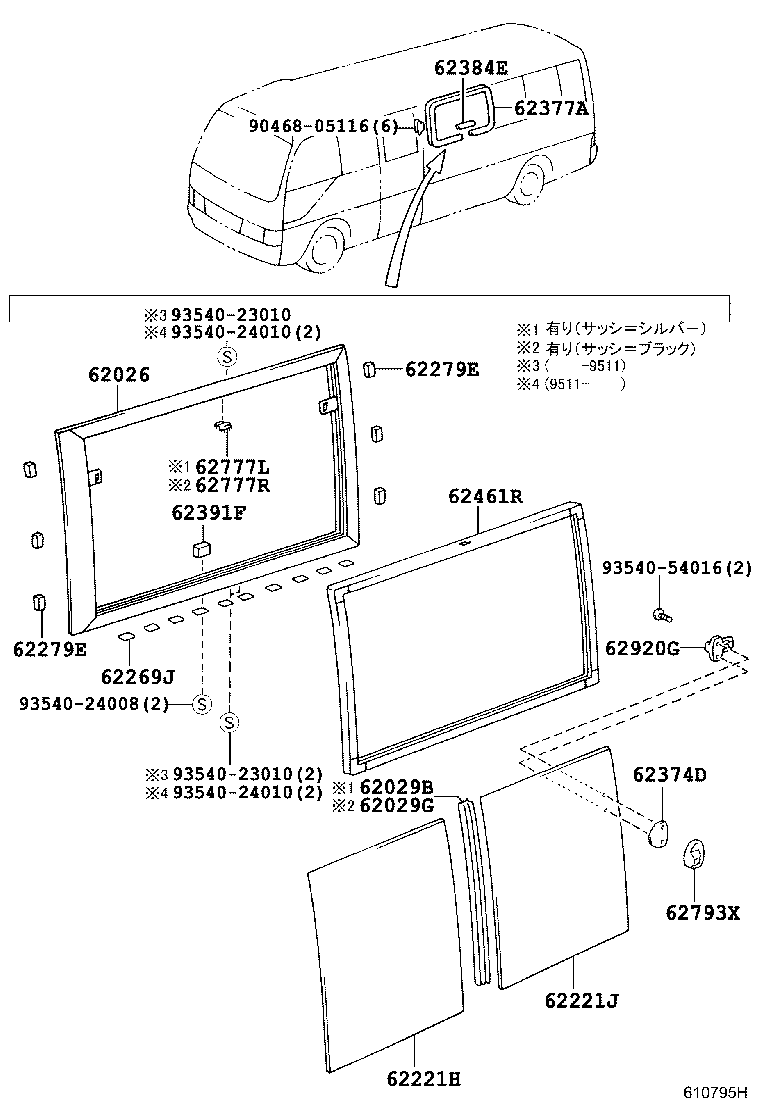

ILLUST NO. 3 OF 7(9301-0408)BB4#,5#,HDB5#,HZB4#,5#..09S,10S,15S,24S,26S,29S..CBU,IV5 ; (0408- )XZ
ｵﾘﾀﾀﾐｼｷ ｻｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62026 - FRAME SUB-ASSY, SIDE NO.2 WINDOW, OUTER LH | ||||
| 62026-36030 |
BB46..WOC;BB40,HDB5#,HZB4#,50..DX,EX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62026-36050 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD ｵ-ﾄ) |
1 | ||
| 62026-36031 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ),ﾌﾞﾗｯｸ |
1 | ||
| 62026-36011 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ),ｼﾙﾊﾞｰ |
1 | ||
| 62026-36041 |
HDB50,HZB40,46,5#..(09S,26S,29S)..LX ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ),ｼﾙﾊﾞｰ |
1 | ||
| 62026-36051 |
HZB40..4FC..IV5;HDB5#,HZB4#,5#..(09S,26S,29S)..(EX,GX,LX)..CBU ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ),ﾌﾞﾗｯｸ |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36033 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62029-36034 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62029G - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62029-36044 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62029-36043 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62221H - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
BB40,HDB5#,HZB4#,50..EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62711-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62711-36080 |
HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD ｵ-ﾄ) |
1 | ||
| 62221-36080 |
BB58,HDB50,HZB40,46,5#..DX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62221-36070 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62711-36070 |
HDB50,HZB40,46,5#..(09S,26S,29S)..LX *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62221-36100 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62711-36090 |
HDB5#,HZB4#,5#..(09S,26S,29S)..WC..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62221J - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36100 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36080 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62374D - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM41 |
5 | ||
| 62376-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM10 |
5 | ||
| 62377-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36030 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62461-36050 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62461-36031 |
BB58,HDB50,HZB40,46,5#..DX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62461-36051 |
HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62461-36052 |
HDB5#,HZB4#,5#..(09S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD ｵ-ﾄ) |
1 | ||
| 62461-36070 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62777L - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777-36040 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777R - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62792-95A00 |
BZB50,HZB40..26S,39S,49S;BB58,BZB40,HDB50,HZB46,5#..(09S,29S,39S,49S)..(DX,LX,STD) |
2 | ||
| 62793M - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62793-95J00 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) |
1 | ||
| 62793X - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910R - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BZB50,HZB40..26S,39S,49S;BB58,BZB40,HDB50,HZB46,5#..(09S,29S,39S,49S)..(DX,LX,STD) |
2 | ||
| 62910-95702 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62920G - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

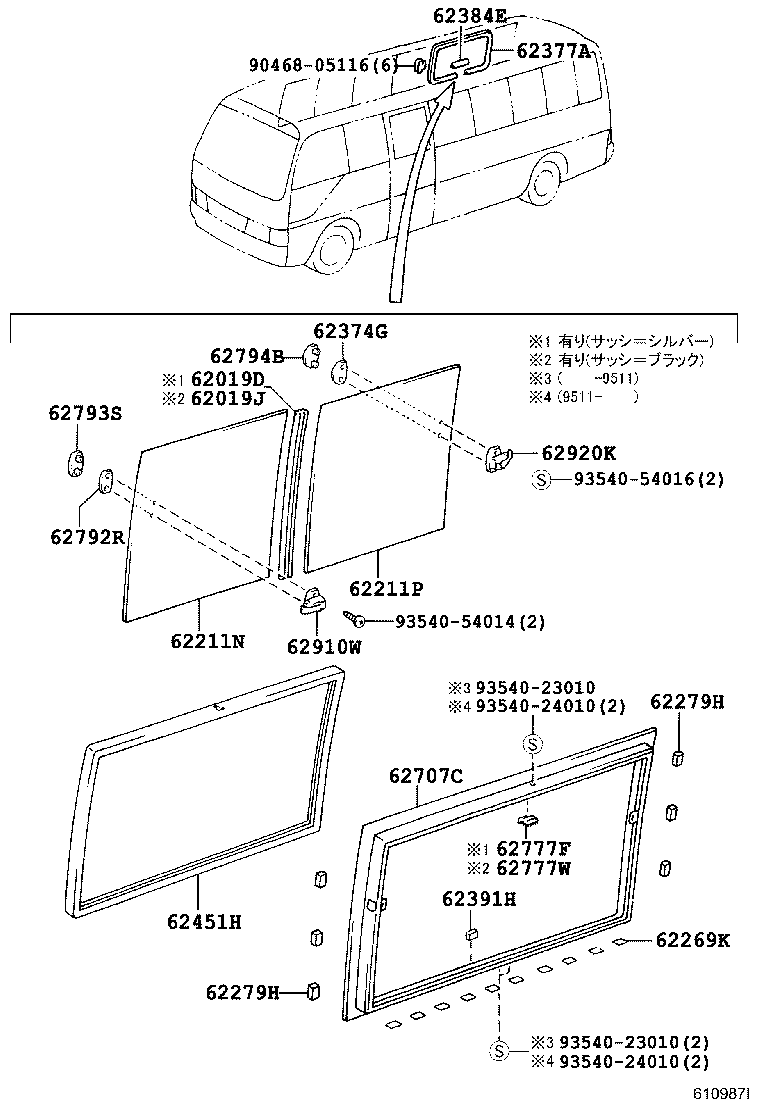

ILLUST NO. 5 OF 7(9301-0408)BB4#,5#,BZB40,50,HDB50,HZB4#,5#..09S,10S,15S,26S,29S ; (0408- )09S,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019D - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36034 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
1 | ||
| 62019-36033 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62019J - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36044 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62019-36043 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36100 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36080 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36080 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62221-36070 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62269K - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
6 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
6 | ||
| 62374G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM41 |
5 | ||
| 62376-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM10 |
5 | ||
| 62377-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36030 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62451-36031 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62451-36120 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36011 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｼﾙﾊﾞｰ |
1 | ||
| 62707-36031 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) ﾌﾞﾗﾂｸ |
1 | ||
| 62777F - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
1 | ||
| 62777W - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62777-36012 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792R - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
HDB51,HZB41..IV5;BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
2 | ||
| 62793S - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62794B - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910W - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
HDB51,HZB41..IV5;BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
2 | ||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62920K - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

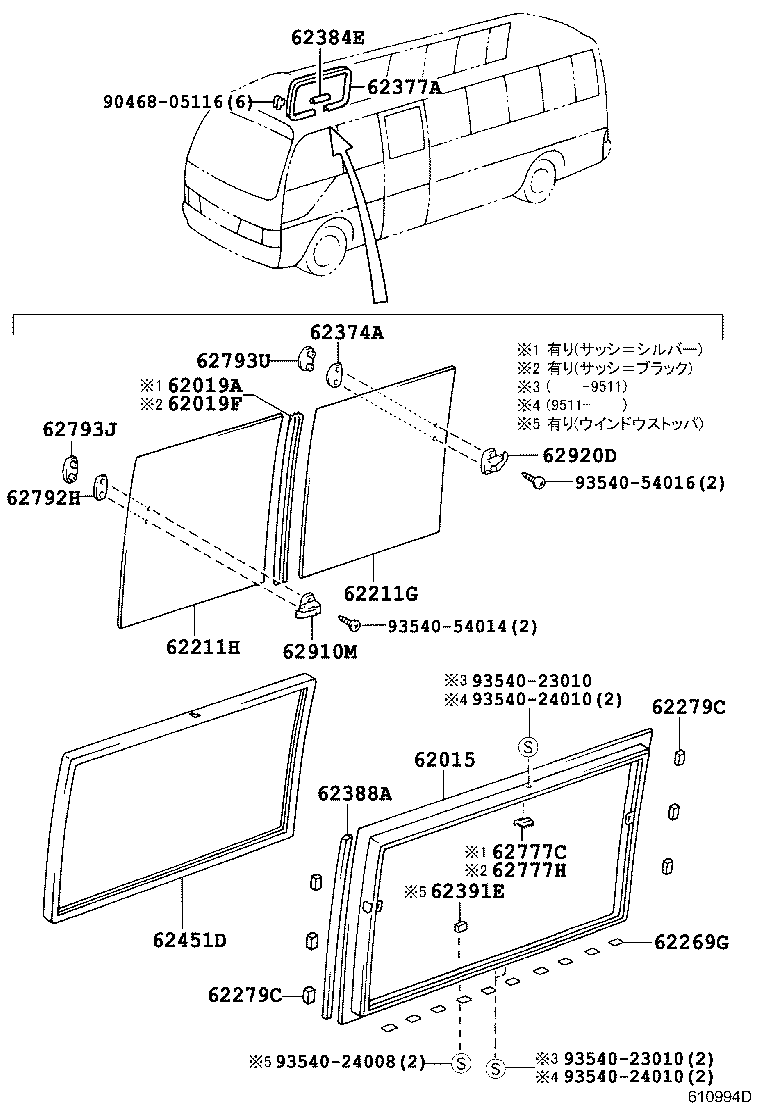

ILLUST NO. 2 OF 7(9301-0408)08S,09S,10S,15S,19S,24S,26S,29S..CBU,IV5 ; (0408-1501)DX,EX,GX,LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015 - FRAME SUB-ASSY, SIDE WINDOW, RH | ||||
| 62015-36011 |
BZB40,50,HDB50,HZB40,46,5#..DX,LX ｼﾙﾊﾞｰ |
1 | ||
| 62015-36031 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) ﾌﾞﾗﾂｸ |
1 | ||
| 62019A - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36034 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62019-36033 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62019F - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36044 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62019-36043 |
HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62211G - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36080 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36070 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62221-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211H - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62211-36080 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211-36100 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62269G - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62374A - PACKING, SIDE REAR WINDOW, RH | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM41 |
5 | ||
| 62376-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM10 |
5 | ||
| 62377-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62388A - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62451D - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36031 |
HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62451-36120 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62451-36030 |
BB4#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62777C - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777-36012 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777H - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62777-36012 |
HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
HDB51,HZB41..IV5;BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
2 | ||
| 62793J - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793U - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
HDB51,HZB41..IV5;BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
2 | ||
| 62920D - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

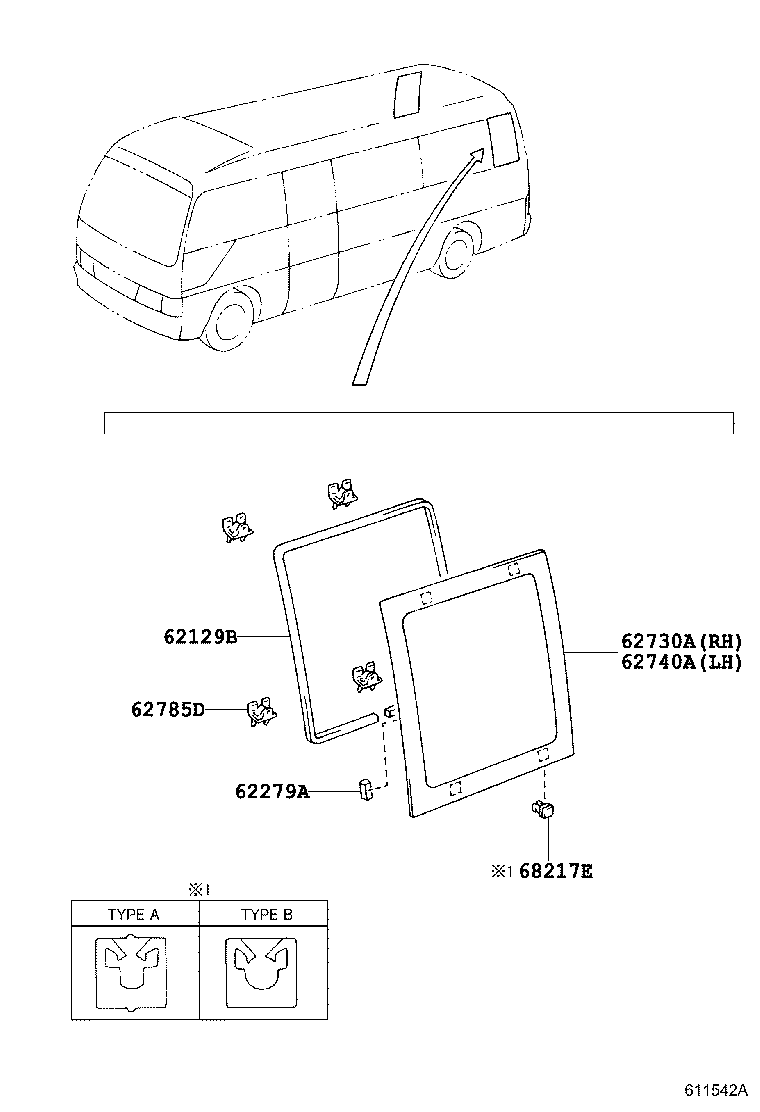

ILLUST NO. 7 OF 7(9907-0408)BB58,BZB50,HDB5#,HZB5#..DX,EX,GX,LX,STD..CBU,IV5 ; (0408- )XZB51 ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62129B - DAM, REAR SIDE WINDOW | ||||
| 62129-36010 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S) |
2 | ||
| 62129-36010 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S) |
2 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62115-36060 |
HZB46..09S..4FC *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S) |
1 | ||
| 62115-36060 |
HZB46..09S..4FC *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S) |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62115-36060 |
HZB46..09S..4FC *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S) |
1 | ||
| 62115-36060 |
HZB46..09S..4FC *TT,厚さ=5.0,ｸﾞﾘｰﾝ,ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S) |
1 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-36010 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S) |
8 | ||
| 62785-36010 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S) |
8 | ||
| 68217E - PIN, SIDE WINDOW, NO.4 | ||||
| 68217-36010 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ, ｼﾖ-ﾄﾎﾞﾃﾞ-ｼﾖｳ(09S OR 20S),ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
4 | ||
| 68217-36010 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ, ｼﾖ-ﾄﾎﾞﾃﾞ-ｼﾖｳ(09S OR 20S),ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
4 | ||
| 68217-36030 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ, ｼﾖ-ﾄﾎﾞﾃﾞ-ｼﾖｳ(09S OR 20S),ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
4 | ||
| 68217-36030 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ, ｼﾖ-ﾄﾎﾞﾃﾞ-ｼﾖｳ(09S OR 20S),ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
4 | ||

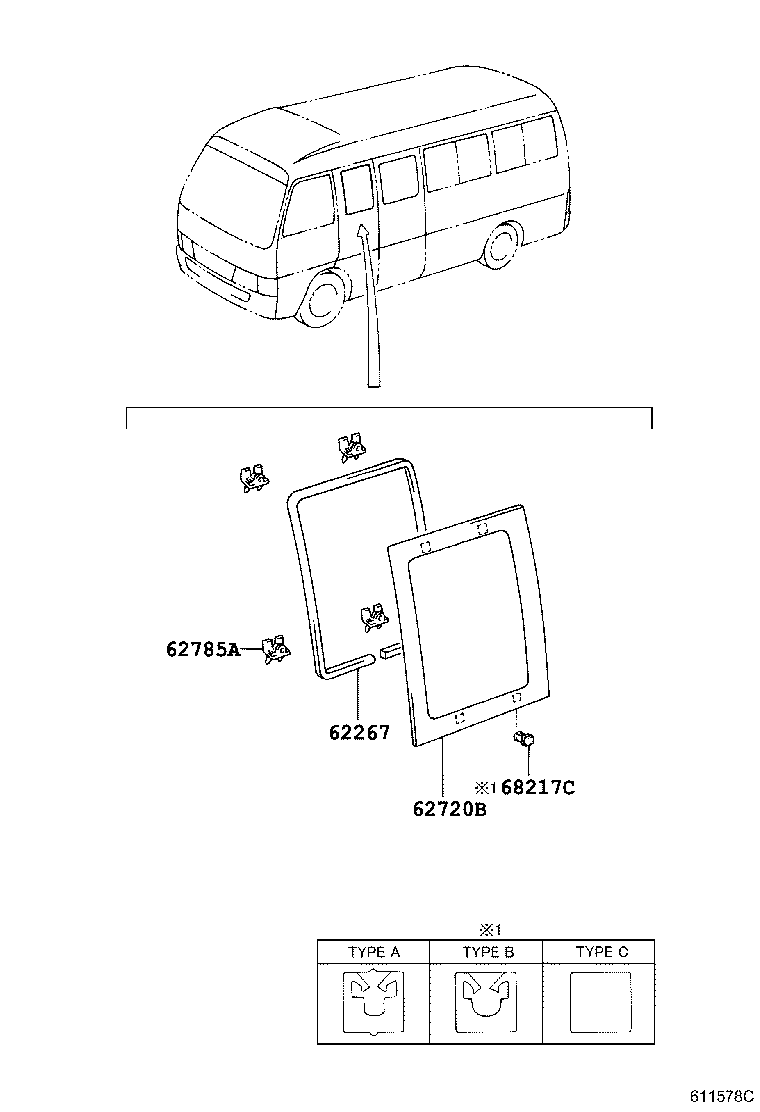

ILLUST NO. 1 OF 7(9301-0408)09S,10S ; (0408- )09S
ｱﾘ(ｼﾞｮｼｭｾｷﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62267 - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36030 |
HZB41,46,56..09S,10S |
1 | ||
| 62720B - WINDOW ASSY, SIDE, FRONT LH | ||||
| 62716-36050 |
HZB41,46,56..09S,10S *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62785A - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-36010 |
HZB41,46,56..09S,10S |
4 | ||
| 68217C - PIN, SIDE WINDOW, NO.2 | ||||
| 68217-36010 |
HZB41,46,56..09S,10S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
1 | ||
| 68217-36030 |
HZB41,46,56..09S,10S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
2 | ||
| 68217-36020 |
HZB41,46,56..09S,10S TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｸﾞﾚｰ OR ｸﾞﾘｰﾝ |
1 | ||

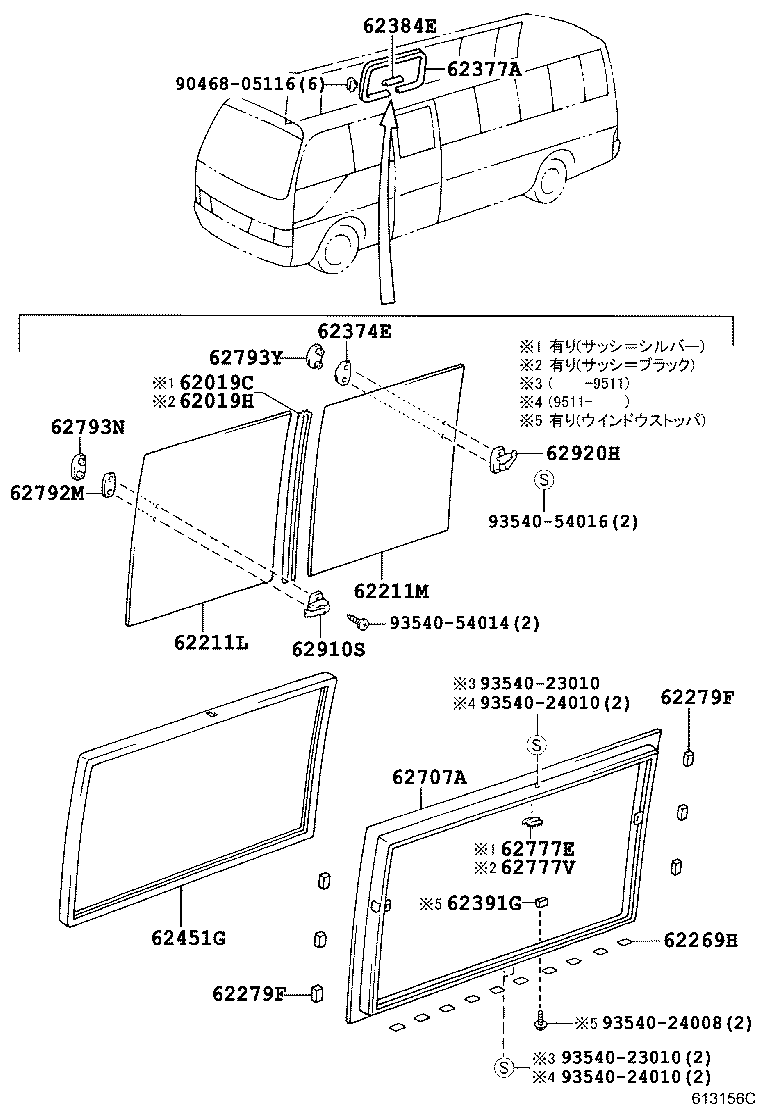

ILLUST NO. 4 OF 7(9301-0408)08S,09S,10S,15S,19S,24S,26S,29S..CBU,IV5 ; (0408- )DX,EX,GX,LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019C - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36033 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62019-36034 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62019H - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36043 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62019-36044 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62211L - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36100 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62211-36080 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211M - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36070 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62221-36080 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62269H - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62374E - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM41 |
5 | ||
| 62376-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM10 |
5 | ||
| 62377-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62451G - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36120 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62451-36030 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62451-36031 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 62707-36031 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) ﾌﾞﾗﾂｸ |
1 | ||
| 62707-36011 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX ｼﾙﾊﾞｰ |
1 | ||
| 62777E - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777-36012 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777V - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62777-36012 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792M - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793N - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 62793Y - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910S - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 62920H - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

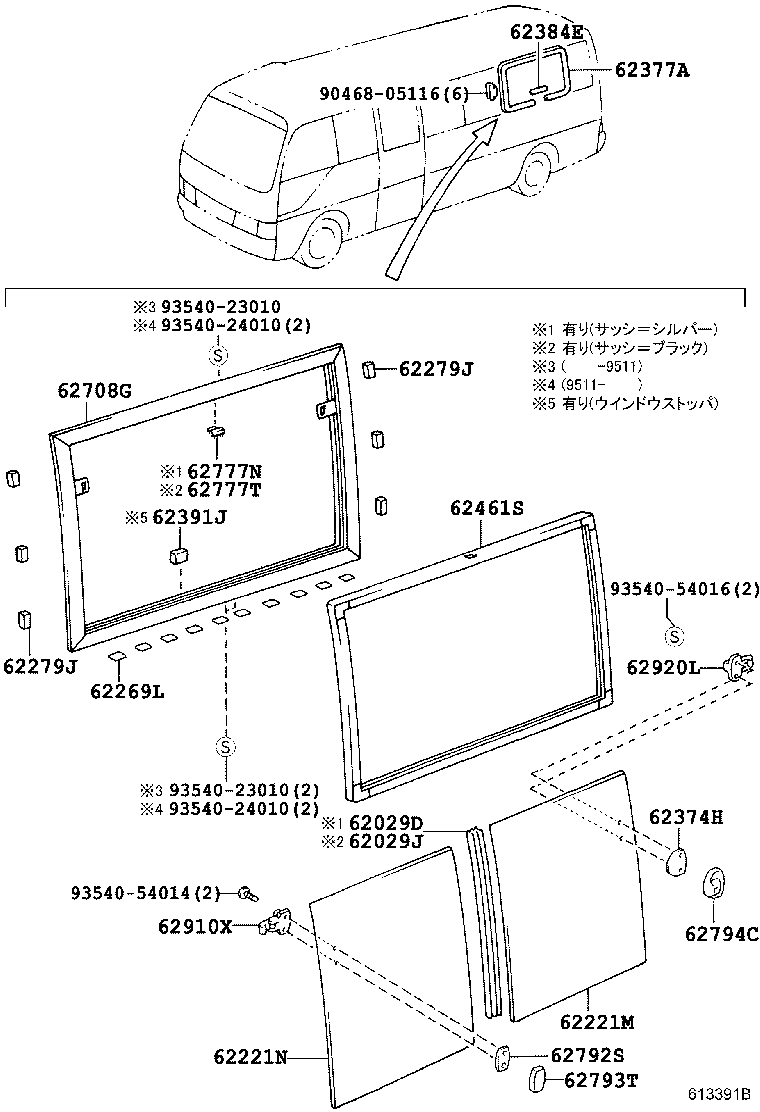

ILLUST NO. 6 OF 7(9301-0408)BB4#,5#,BZB40,50,HDB50,HZB4#,5#..09S,10S,15S,26S,29S ; (0408- )09S,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029D - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36033 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62029-36034 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
1 | ||
| 62029J - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62029-36043 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62029-36044 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62211-36080 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211-36100 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36070 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62221-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62221-36080 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62269L - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
6 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
6 | ||
| 62374H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM41 |
5 | ||
| 62376-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM10 |
5 | ||
| 62377-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB40,46..HRF..(09S,26S)..LX..4FC..CBU ｼﾖｰﾄﾎﾞﾃﾞｰｼﾖｳ(09S OR 20S),IVORY,TRIM4# |
3 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62461-36030 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62461-36031 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62708G - FRAME SUB-ASSY, SIDE REAR WINDOW, LH | ||||
| 62708-36021 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ OR ﾀﾞｰｸｸﾞﾘｰﾝ ｶﾞﾗｽ) |
1 | ||
| 62708-36011 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) |
1 | ||
| 62777N - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB58,HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 62777-36040 |
BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
1 | ||
| 62777T - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62777-36012 |
BB58,HDB5#,HZB4#,5#..(09S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792S - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
HDB51,HZB41..IV5;BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
2 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62794C - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910X - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
HDB51,HZB41..IV5;BB58,BZB40,50,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
2 | ||
| 62920L - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
