HZB46V-ZRPNS (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

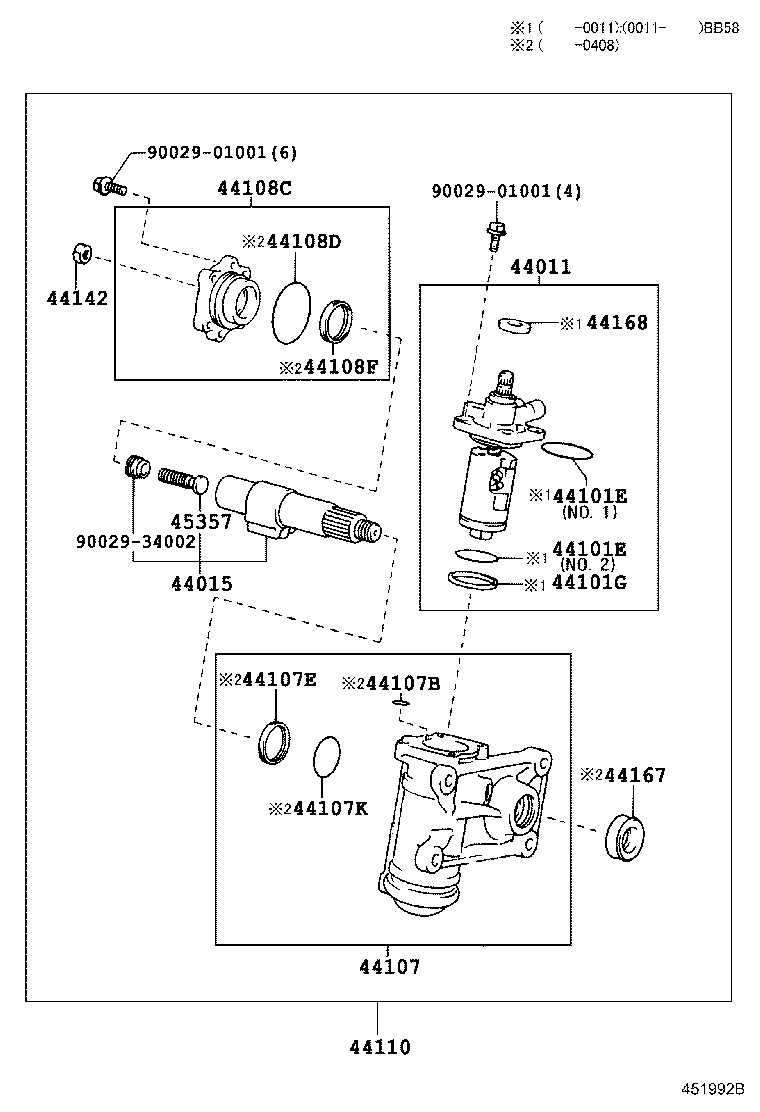

ILLUST NO. 2 OF 4(9907- )

Click highlighted areas on diagram

diagram 44011 44015 44101E 44101E 44101G 44107 44107B 44107E 44107K 44108C 44108D 44108F 44110 44142 44167 44168 45357 9002901001 9002901001 9002934002
Part # Description Qty Price
44011 - PISTON SUB-ASSY, POWER
44011-36300

BB4#,HDB5#,HZB4#,5#

 1
44011-36370

BZB40,50,HDB5#,HZB4#,5#

 1
44011-36350

BB58,HDB5#,HZB4#,5#

 1
44011-36350

HDB5#,HZB4#,5#

 1
44015 - SHAFT SUB-ASSY, SECTOR
44015-36350

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44015-36300

BB4#,5#,HDB5#,HZB4#,5#

 1
44101E - RING, O(FOR STEERING WORM)
90029-20006

BB58,HDB5#,HZB4#,5#

NO.1

 1
90029-20047

BB58,HDB5#,HZB4#,5#

NO.2

 1
90029-20045

BB4#,5#,HDB5#,HZB4#,5#

NO.1

 1
90029-20044

BB4#,5#,HDB5#,HZB4#,5#

NO.2

 1
44101E - RING, O(FOR STEERING WORM)
90029-20006

BB58,HDB5#,HZB4#,5#

NO.1

 1
90029-20047

BB58,HDB5#,HZB4#,5#

NO.2

 1
90029-20045

BB4#,5#,HDB5#,HZB4#,5#

NO.1

 1
90029-20044

BB4#,5#,HDB5#,HZB4#,5#

NO.2

 1
44101G - SEAL, DUST(FOR STEERING WORM)
90029-20708

BB58,HDB5#,HZB4#,5#

 1
90029-20707

BB4#,5#,HDB5#,HZB4#,5#

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-36350

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44107-36300

BB4#,5#,HDB5#,HZB4#,5#

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
96711-19009

BB4#,5#,HDB5#,HZB4#,5#

外径=12.6

 2
96711-35042

BB4#,5#,HDB5#,HZB4#,5#

 1
90029-20061

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90029-21023

BB4#,5#,HDB5#,HZB4#,5#

 1
90029-21023

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44107K - RING, O(FOR POWER STEERING GEAR HOUSING)
96711-35042

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44108C - COVER SUB-ASSY, SECTOR
44108-36300

BB4#,HDB5#,HZB4#,5#

 1
44108-37160

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44108D - RING, O(FOR SECTOR COVER)
90029-20045

BB4#,5#,HDB5#,HZB4#,5#

 1
90029-20006

BB58,HDB5#,HZB4#,5#

 1
44108F - SEAL, DUST(FOR SECTOR COVER)
90029-21023

BB4#,5#,HDB5#,HZB4#,5#

 1
90029-21023

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44110 - GEAR ASSY, POWER STEERING
44110-36350

HDB5#,HZB4#,5#

 1
44110-36350

BB58,HDB5#,HZB4#,5#

 1
44110-36300

BB4#,HDB5#,HZB4#,5#

 1
44110-36370

BZB40,50,HDB5#,HZB4#,5#

 1
44142 - NUT, LOCK
44142-37010

BB4#,5#,HDB5#,HZB4#,5#

 1
94130-61400

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44167 - COVER, SECTOR SHAFT DUST
44167-37010

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44167-37010

BB4#,5#,HDB5#,HZB4#,5#

 1
44168 - COVER, WORM SHAFT DUST
44168-25010

BB58,HDB5#,HZB4#,5#

 1
44168-36020

BB4#,5#,HDB5#,HZB4#,5#

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
90029-02302

BB4#,5#,HDB5#,HZB4#,5#

 1
90029-02302

HDB5#,HZB4#,5#

 1
Common parts
90029-01001
90029-34002
