HZB46V-ZRMNS (1999)
Toyota Coaster

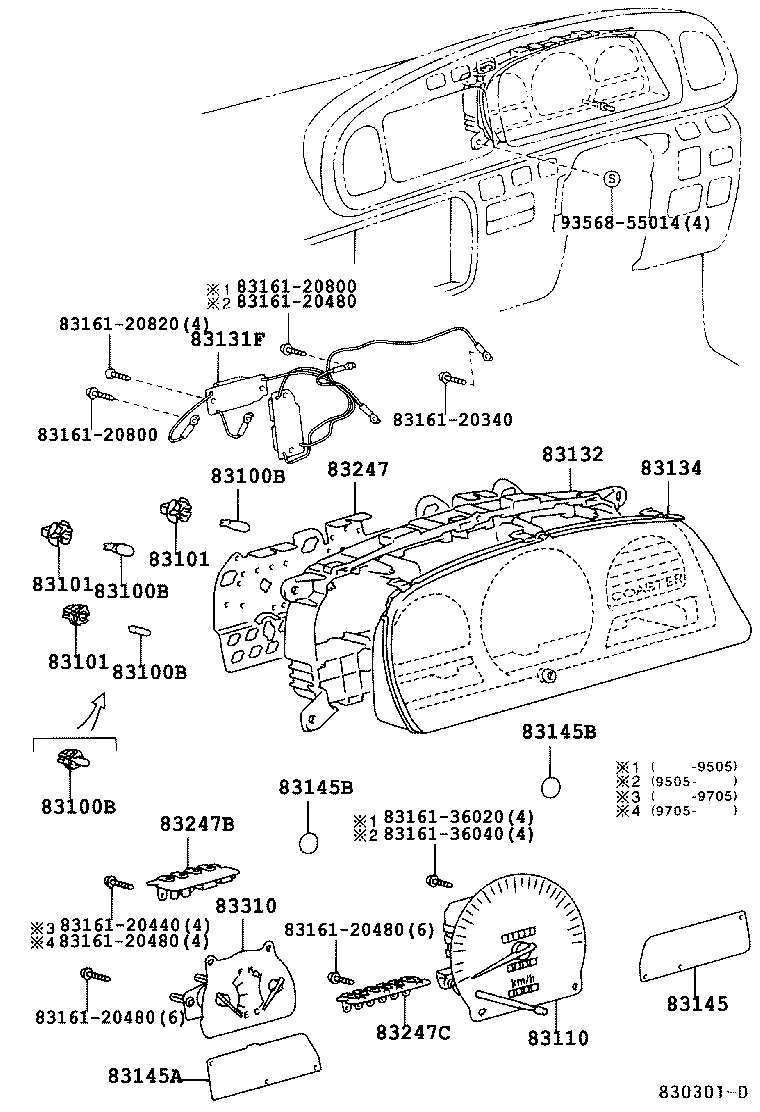

ILLUST NO. 1 OF 3(9301-0408)
ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-36380 |
HZB40,5#..DX,LX,STD YAZAKI |
1 | ||
| 83220-36120 |
HDB5#,HZB4#,5# YAZAKI |
1 | ||
| 83131F - DROPER ASSY, METER | ||||
| 83131-36140 |
HZB4#,5# ﾅｼ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83131-36140 |
BB4#,5#,HZB4#,5# |
1 | ||
| 83131-36100 |
HZB4#,5#..09S,26S,29S,39S,49S ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 83841-36420 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-36110 |
HZB4#,5# |
1 | ||
| 83134-36040 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 83134-36080 |
HZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-36060 |
HZB4#,5#;HDB5#..4FC |
1 | ||
| 83831-36420 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-36240 |
HZB40,5#..DX,LX,STD |
1 | ||
| 83145-36500 |
HZB40,50;BZB40,50,HDB5#,HZB41,46,56..HRF |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 83145-89320 |
HZB4#,5# |
2 | ||
| 83145-89245 |
HZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 83145-89320 |
HZB4#,5# |
2 | ||
| 83145-89245 |
HZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83862-36420 |
HDB5#,HZB41,5# |
1 | ||
| 83247-36060 |
HZB4#,5# |
1 | ||
| 83861-36410 |
HZB40,46 |
1 | ||
| 83862-36420 |
HZB40,46..09S,26S,39S ｱﾘ(ABS) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-36240 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 83247-36240 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83861-36420 |
HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-36020 |
BB4#,5#,HDB5#,HZB4#,5# YAZAKI |
1 | ||
| 83243-36020 |
BB58,HDB5#,HZB4#,5# YAZAKI |
1 | ||
| Common parts | ||||
| 83161-20340 | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-20800 | ||||
| 83161-20820 | ||||
| 83161-36020 | ||||
| 83161-36040 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 3(9301-0708)
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-36380 |
HZB40,5#..DX,LX,STD YAZAKI |
1 | ||
| 83220-36120 |
HDB5#,HZB4#,5# YAZAKI |
1 | ||
| 83131F - DROPER ASSY, METER | ||||
| 83131-36140 |
HZB4#,5# ﾅｼ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83131-36140 |
BB4#,5#,HZB4#,5# |
1 | ||
| 83131-36100 |
HZB4#,5#..09S,26S,29S,39S,49S ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 83841-36420 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-36110 |
HZB4#,5# |
1 | ||
| 83134-36040 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 83134-36080 |
HZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-36060 |
HZB4#,5#;HDB5#..4FC |
1 | ||
| 83831-36420 |
HZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-36240 |
HZB40,5#..DX,LX,STD |
1 | ||
| 83145-36500 |
HZB40,50;BZB40,50,HDB5#,HZB41,46,56..HRF |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 83145-89320 |
HZB4#,5# |
2 | ||
| 83145-89245 |
HZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 83145-89320 |
HZB4#,5# |
2 | ||
| 83145-89245 |
HZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-36300 |
HZB4#,5# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83862-36420 |
HDB5#,HZB41,5# |
1 | ||
| 83247-36060 |
HZB4#,5# |
1 | ||
| 83861-36410 |
HZB40,46 |
1 | ||
| 83862-36420 |
HZB40,46..09S,26S,39S ｱﾘ(ABS) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-36240 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 83247-36240 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83861-36420 |
HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-36020 |
BB4#,5#,HDB5#,HZB4#,5# YAZAKI |
1 | ||
| 83243-36020 |
BB58,HDB5#,HZB4#,5# YAZAKI |
1 | ||
| Common parts | ||||
| 83161-20280 | ||||
| 83161-20340 | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-20800 | ||||
| 83161-20820 | ||||
| 83161-36020 | ||||
| 83161-36040 | ||||
| 90076-00004 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 3(9301-0708)
ﾊﾞﾙﾌﾞ&ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36040 |
BB4#,HDB5#,HZB4#,5# 24V 1.8W,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 99134-12030 |
BB4#,55,HDB5#,HZB4#,5# 24V 3W,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06009 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-36020 |
BB4#,55,HDB5#,HZB4#,5# 24V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90981-11022 |
BB4#,55,HDB5#,HZB4#,5# 24V 1.4W,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90010-06008 |
BB58,HDB5#,HZB4#,5# 24V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-36010 |
BB58,HDB5#,HZB4#,5#..09S,20S,24S,26S,29S,39S,49S 24V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,55,HDB5#,HZB4#,5# TYPE A OR TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101-89101 |
BB4#,55,HDB5#,HZB4#,5# TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
