HZB41-ZRPQS5 (2001)

Toyota Coaster

Production Aug 2001 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)HDB51,HZB41 ; (0408- )XZB51

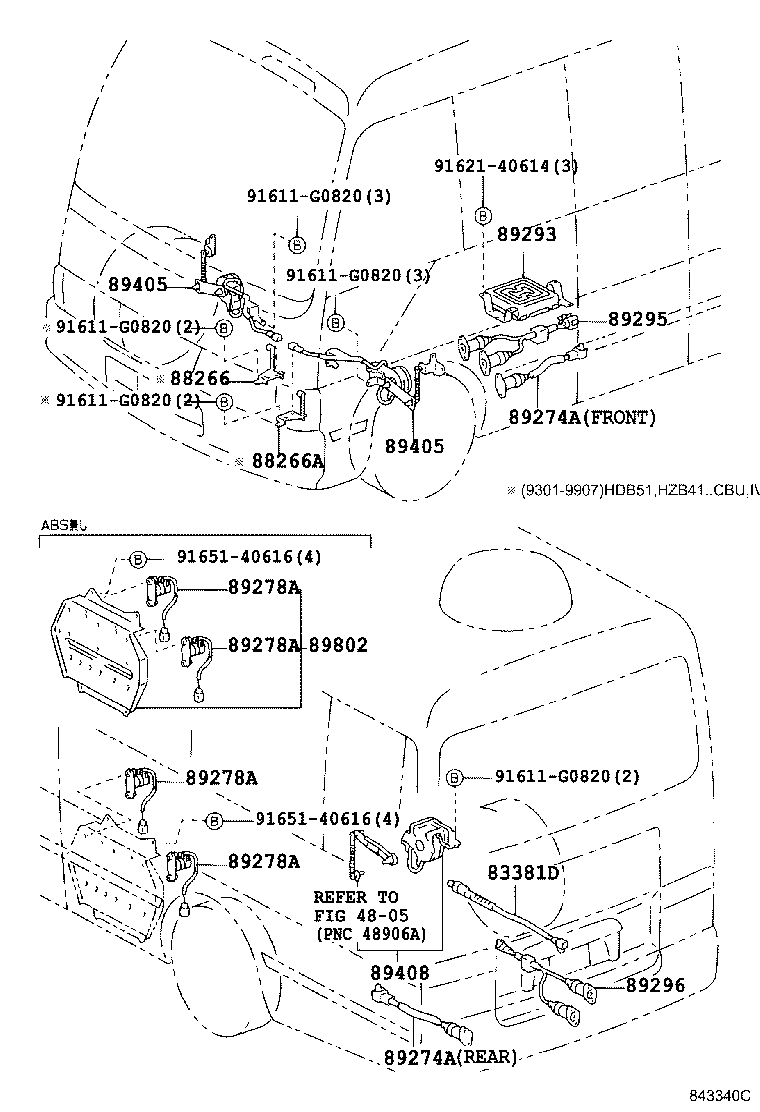

Click highlighted areas on diagram

diagram 4805 83381D 88266 88266A 89274A 89274A 89278A 89278A 89278A 89278A 89293 89295 89296 89405 89405 89408 89802 91611G0820 91611G0820 91611G0820 91611G0820 91611G0820 9162140614 9165140616 9165140616
Part # Description Qty Price
83381D - SWITCH, AIR SUSPENSION PRESSURE
83381-36060

HDB51,HZB41

 1
88266 - CLAMP, AIR SUSPENSION SENSOR, NO.1
88266-36050

HDB51,HZB41..CBU,IV5

 1
88266A - CLAMP, AIR SUSPENSION SENSOR, NO.2
88266-36060

HDB51,HZB41..CBU,IV5

 1
89274A - SOLENOID, AIR VALVE
89274-36030

HDB51,HZB41

ﾌﾛﾝﾄ

 1
89274-36040

HDB51,HZB41

ﾘﾔ

 1
89274A - SOLENOID, AIR VALVE
89274-36030

HDB51,HZB41

ﾌﾛﾝﾄ

 1
89274-36040

HDB51,HZB41

ﾘﾔ

 1
89278A - RELAY, HEIGHT CONTROL
89278-36020

HDB51,HZB41

 2
89278A - RELAY, HEIGHT CONTROL
89278-36020

HDB51,HZB41

 2
89278A - RELAY, HEIGHT CONTROL
89278-36020

HDB51,HZB41

 2
89278A - RELAY, HEIGHT CONTROL
89278-36020

HDB51,HZB41

 2
89293 - COMPUTER, SUSPENSION CONTROL
89293-36010

HDB51,HZB41

 1
89295 - SOLENOID, SUSPENSION CONTROL, FRONT
89295-36010

HDB51,HZB41

 1
89296 - SOLENOID, SUSPENSION CONTROL, REAR
89296-36030

HDB51,HZB41

 1
89405 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT
89406-36010

HDB51,HZB41

左側

 1
89405-36010

HDB51,HZB41

右側

 1
89405 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT
89406-36010

HDB51,HZB41

左側

 1
89405-36010

HDB51,HZB41

右側

 1
89408 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-36010

HDB51,HZB41

 1
89802 - RELAY SUB-ASSY, AIR SUSPENSION
89802-36010

HDB51,HZB41..CBU,IV5

 1
Common parts
91611-G0820
91621-40614
91651-40616
Linked diagrams
4805
