HZB41-ZRPQS5 (2001)
Toyota Coaster

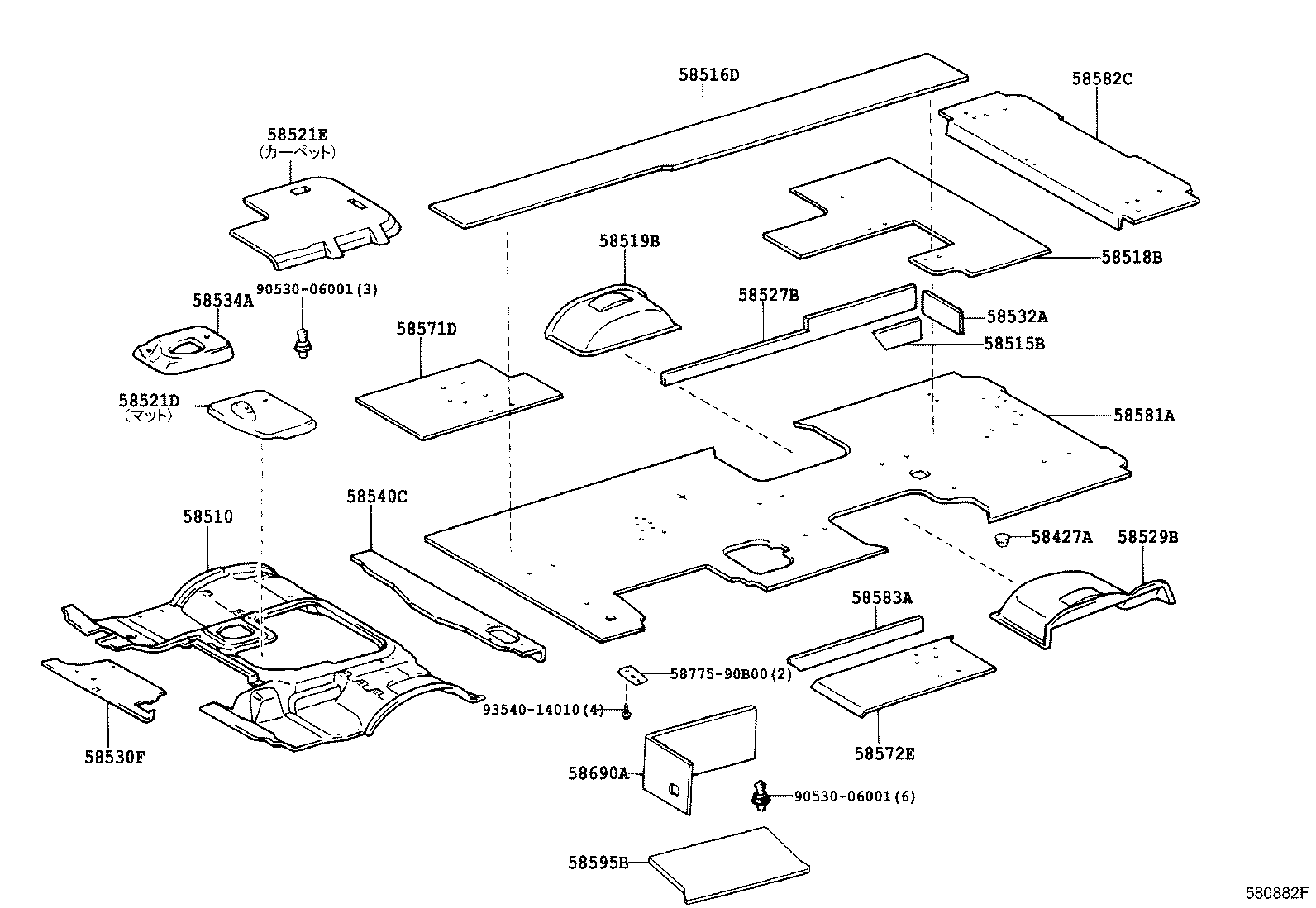

ILLUST NO. 1 OF 3(9301-0408)HZB50..DX,LX,STD ; (9301-0408)BB4#,BZB40,50,HDB5#,HZB4#,56..08S,09S,10S,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36020E0 |
HDB5#,HZB41,50..EX,GX GREIGE,TRIM4# |
1 | ||
| 58510-36690B0 |
HZB4#,5#..(DX,EX,GX,LX)..4FC MD.CHARCOAL,TRIM1# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58580-36010E0 |
HZB50..GX;BB5#,HDB50,HZB41;HDB51..MTM..EX..TD4;HDB51,HZB40,50..IV5;HDB51..26S..TD4..4FC GREIGE,TRIM4# |
1 | ||
| 58580-36010B0 |
HZB40..19S;HZB40,50..IV5;HDB50,HZB50..GX;BB58,HDB51,HZB41..(DX,EX,LX)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521E - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-36131B2 |
HDB5#,HZB41,50..EX,GX,SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58590-36020B0 |
HZB40..19S;HZB40,50..IV5;HDB50,HZB50..GX;BB58,HDB51,HZB41..(DX,EX,LX)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58590-36020E0 |
HZB50..GX;BB5#,HDB50,HZB41;HDB51..MTM..EX..TD4;HDB51,HZB40,50..IV5;HDB51..26S..TD4..4FC GREIGE,TRIM4# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-36030B1 |
HDB51,HZB41 MD.CHARCOAL,TRIM1# |
1 | ||
| 58530-36020E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-36090E0 |
HDB51,HZB41..EX GREIGE,TRIM4# |
1 | ||
| 58540-36200B0 |
HZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 58581A - MAT, REAR FLOOR | ||||
| 58581-3C341B0 |
HZB40,41..4FC..IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58690A - CARPET ASSY, CENTER DOOR STEP | ||||
| 58690-36020E1 |
HDB51,HZB41..EX GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58775-90B00 | ||||
| 90530-04005 | ||||
| 90530-06001 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 6759 | ||||
ILLUST NO. 1 OF 3(9301-0408)HDB5#,HZB50..EX,GX ; (0408- )EX,GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36020E0 |
HDB5#,HZB41,50..EX,GX GREIGE,TRIM4# |
1 | ||
| 58510-36690B0 |
HZB4#,5#..(DX,EX,GX,LX)..4FC MD.CHARCOAL,TRIM1# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58580-36010E0 |
HZB50..GX;BB5#,HDB50,HZB41;HDB51..MTM..EX..TD4;HDB51,HZB40,50..IV5;HDB51..26S..TD4..4FC GREIGE,TRIM4# |
1 | ||
| 58580-36010B0 |
HZB40..19S;HZB40,50..IV5;HDB50,HZB50..GX;BB58,HDB51,HZB41..(DX,EX,LX)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521E - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-36131B2 |
HDB5#,HZB41,50..EX,GX,SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58590-36020B0 |
HZB40..19S;HZB40,50..IV5;HDB50,HZB50..GX;BB58,HDB51,HZB41..(DX,EX,LX)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58590-36020E0 |
HZB50..GX;BB5#,HDB50,HZB41;HDB51..MTM..EX..TD4;HDB51,HZB40,50..IV5;HDB51..26S..TD4..4FC GREIGE,TRIM4# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-36030B1 |
HDB51,HZB41 MD.CHARCOAL,TRIM1# |
1 | ||
| 58530-36020E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-36090E0 |
HDB51,HZB41..EX GREIGE,TRIM4# |
1 | ||
| 58540-36200B0 |
HZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 58581A - MAT, REAR FLOOR | ||||
| 58581-3C341B0 |
HZB40,41..4FC..IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58690A - CARPET ASSY, CENTER DOOR STEP | ||||
| 58690-36020E1 |
HDB51,HZB41..EX GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58775-90B00 | ||||
| 90530-06001 | ||||
| 93540-14010 | ||||
