HZB41-ZRPQS5 (2001)

Toyota Coaster

Production Aug 2001 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)1HD#,1HZ

Click highlighted areas on diagram

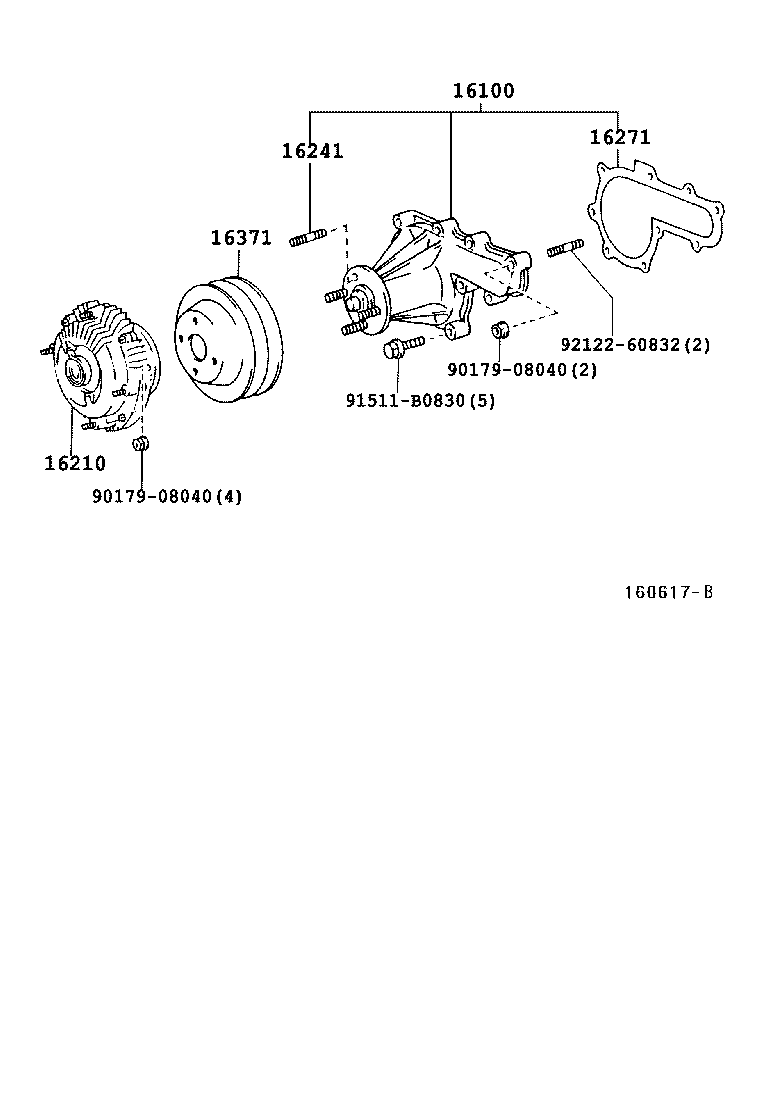

diagram 16100 16210 16241 16271 16371 9017908040 9017908040 91511B0830 9212260832
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19235

1HD#,1HZ..HDB5#,HZB4#,5#

 1
16100-19325

1H#..HDB5#,HZB4#,5#

 1
16210 - COUPLING ASSY, FLUID
16210-17030

1HDT,1HZ..HDB5#,HZB4#,5#

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
90116-08112

1HD#,1HZ..HDB5#,HZB4#,5#

 4
16271 - GASKET, WATER PUMP
16271-17010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
16371 - PULLEY, FAN
16371-17010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
Common parts
90179-08040
91511-B0830
92122-60832
