HZB41-ZRPQS (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

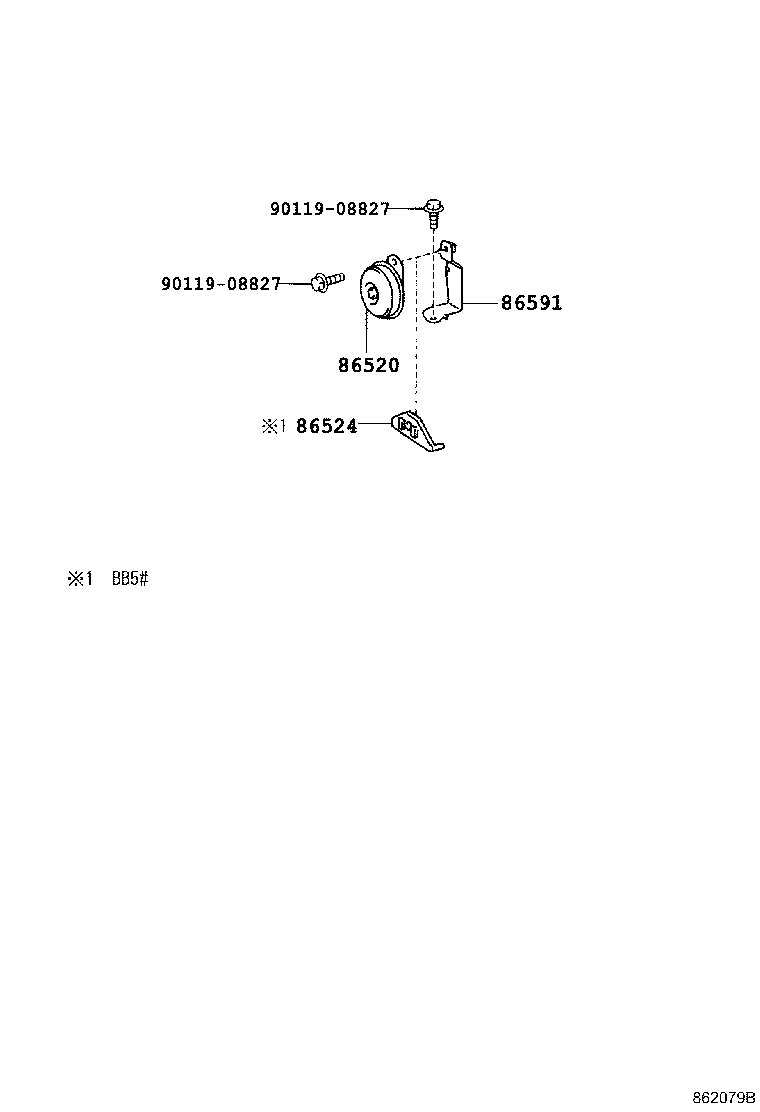

Click highlighted areas on diagram

diagram 86520 86524 86591 9011908827 9011908827
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-36140

BB4#,5#,HDB5#,HZB4#,5#

 1
86520-36190

HDB5#,HZB4#,5#

 1
86591 - BRACKET, HORN
86591-36030

BZB40,50,HDB5#,HZB4#,5#

 1
86591-36010

BB4#,55,HDB5#,HZB4#,5#

 1
86591-36010

BB4#,HDB5#,HZB4#,5#

 1
Common parts
90119-08827
