HZB41-ZRPQS (1993)
Toyota Coaster

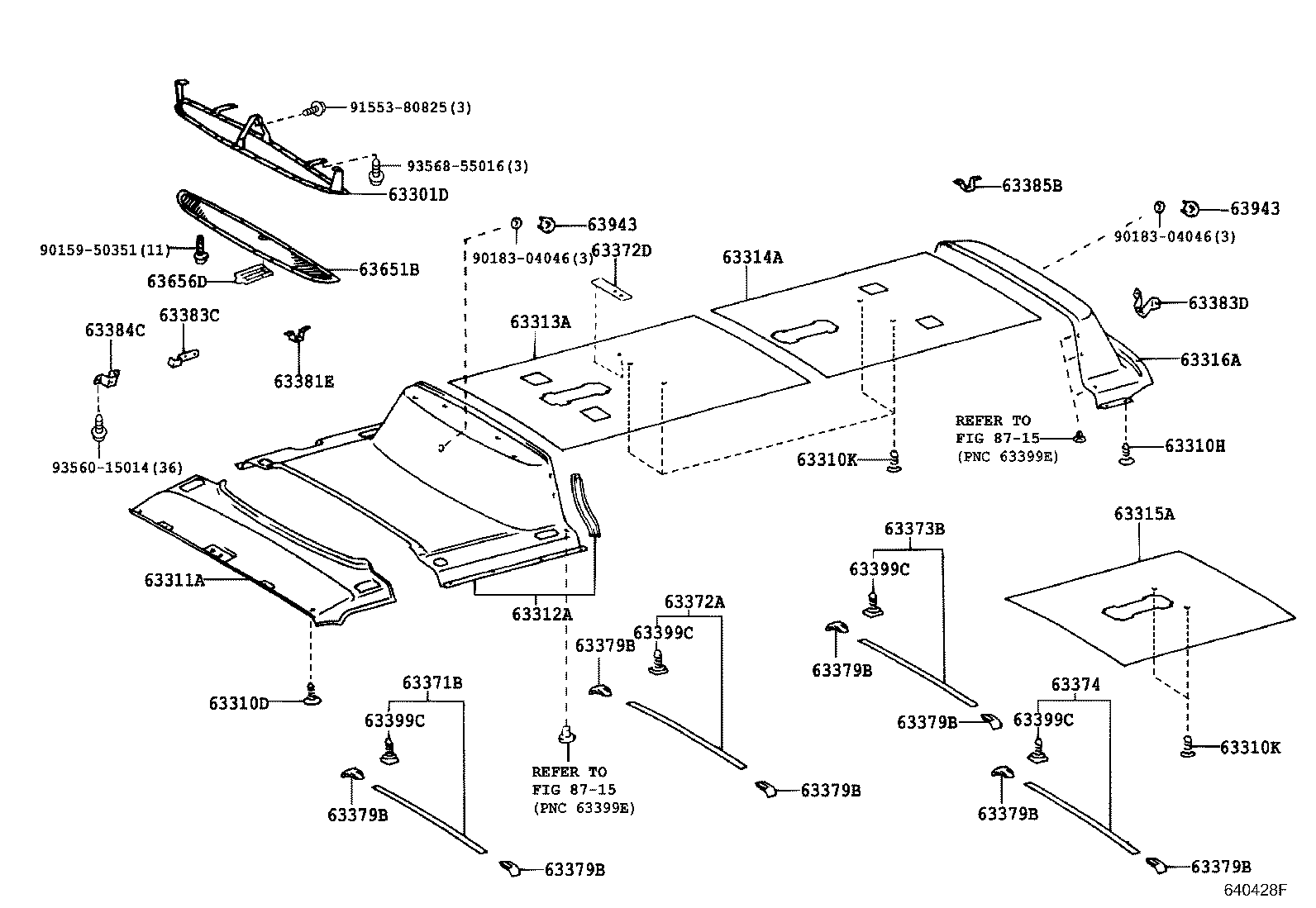

ILLUST NO. 1 OF 3(9301-0408)HRF..WC ; (0408- )HRF..WC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63301D - PLATE SUB-ASSY, ROOF HEADLINING SET | ||||
| 63301-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 63301-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
12 | ||
| 90467-08104A1 |
HDB50,HZB50..GX..(4FC,6F);HDB51..(20S,26S)..(4FC,6F);HDB51..29S..4FC..(CBU,IV5);BB4#,5#,HZB4#,5#..HRF..(EX,LX) IVORY,TRIM4# |
12 | ||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
12 | ||
| 90467-08104B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-08104A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4# |
12 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-08104A1 |
BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
HZB40..5F..CBU;HZB50..LX..CBU;HZB40..4FC..IV5;HDB51,HZB41..CBU,IV5;BB5#,HDB50,HZB40..(29S,39S)..WC..4FC IVORY,TRIM4# |
8 | ||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
8 | ||
| 90467-08104A3 |
BB40,HDB5#,HZB4#,50..EX,GX,LX,SULNG ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
HDB51,HZB41..CBU ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
6 | ||
| 90467-08104A1 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) IVORY,TRIM4# |
8 | ||
| 90467-08104B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
8 | ||
| 63310K - CLIP | ||||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
6 | ||
| 63310K - CLIP | ||||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
6 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-36010A3 |
HDB51,HZB41..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 63311-36010A1 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63311-36010A3 |
HDB51,HZB41..CBU IVORY,TRIM4# |
1 | ||
| 63311-36010B0 |
HDB51,HZB41..CBU,IV5 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-36010A3 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 63312-36040A1 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4# |
1 | ||
| 63312-36040A1 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63312-36270A0 |
HDB51,HZB41..CBU,IV5 ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4# |
1 | ||
| 63312-36270A0 |
HDB51,HZB41..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4# |
1 | ||
| 63312-36260A0 |
HDB51,HZB41..EX..CBU IVORY,TRIM4# |
1 | ||
| 63312-36040A3 |
HDB51,HZB41 ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4# |
1 | ||
| 63312-36260A0 |
HDB51,HZB41..EX..CBU IVORY,TRIM4# |
1 | ||
| 63312-36260B0 |
HDB51,HZB41..EX..CBU MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63312-36270B0 |
HDB51,HZB41..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-36010A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 63313-36010A3 |
HDB51,HZB41..EX..CBU IVORY,TRIM4# |
1 | ||
| 63313-36010A3 |
HDB51,HZB41..EX..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63313-36010B0 |
HDB51,HZB41..EX..(CBU,IV5) MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-36110A1 |
HZB41 IVORY,TRIM4# |
1 | ||
| 63314-36350A1 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ),IVORY,TRIM4# |
1 | ||
| 63314-36110A3 |
HZB41 IVORY,TRIM4# |
1 | ||
| 63314-36110A3 |
HZB41 IVORY,TRIM4# |
1 | ||
| 63314-36350A3 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ),IVORY,TRIM4# |
1 | ||
| 63314-36350A3 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ),IVORY,TRIM4# |
1 | ||
| 63314-36110B0 |
HZB41 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63314-36350B0 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36010A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 63316-36040A1 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 63316-36060A2 |
HDB51,HZB41..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 63316-36160A1 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63316-36030A2 |
HDB51,HZB41..CBU ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63316-36030A2 |
HDB51,HZB41..CBU ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63316-36060A2 |
HDB51,HZB41..CBU IVORY,TRIM4# |
1 | ||
| 63316-36210A2 |
HDB51,HZB41..CBU ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 63316-36210A2 |
HDB51,HZB41..CBU ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 63316-36030B1 |
HDB51,HZB41..CBU ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),ME. CHARCOAL,TRIM1# |
1 | ||
| 63316-36060B1 |
HDB51,HZB41..CBU ME. CHARCOAL,TRIM1# |
1 | ||
| 63316-36210B1 |
HDB51,HZB41..CBU ｱﾘ(*SOBD);ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑ ｶ-ﾃﾝ & *SOBD),ME. CHARCOAL,TRIM1# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63371-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63371-36020A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63371-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63371-36050A0 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) ｱﾘ(ﾙ-ﾑ ﾗﾂｸ),IVORY,TRIM4# |
1 | ||
| 63371-36020A0 |
BB4#,HDB51,HZB4#,56..HRF..(EX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63371-36020A1 |
BB4#,55,HDB50,HZB4#,5#..HRF..(EX,GX,LX) IVORY,TRIM4# |
1 | ||
| 63371-36020A1 |
BB58,HDB50,HZB4#,5#..HRF..WC IVORY,TRIM4# |
1 | ||
| 63371-36020A1 |
HDB51..IV5;BB4#,58,HZB4#,5#..HRF..(EX,LX) IVORY,TRIM4# |
1 | ||
| 63371-36050A1 |
BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ),IVORY,TRIM4# |
1 | ||
| 63371-36050A1 |
BB40,5#,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ),IVORY,TRIM4# |
1 | ||
| 63371-36020B0 |
HDB51..IV5;HZB50..HRF..(LX,STD);BB58,BZB40,50,HDB50,HZB4#,56..HRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63371-36050B0 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63372D - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63372-36021A0 |
BB40,HZB4#..HRF..(EX,LX) IVORY,TRIM4# |
1 | ||
| 63372-36020A0 |
BB40,HZB4#..HRF..(EX,LX) IVORY,TRIM4# |
1 | ||
| 63372-36021B0 |
BZB40,HZB40,41..HRF..26S..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 63372-36021A1 |
BB40,HZB4#..HRF..(EX,LX)..CBU IVORY,TRIM4# |
1 | ||
| 63372-36021A1 |
HZB40,41..HRF..WC..CBU IVORY,TRIM4# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36020A1 |
BB4#,55,HDB50,HZB4#,5#..HRF..(EX,GX,LX) IVORY,TRIM4# |
1 | ||
| 63371-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63371-36020A0 |
BB4#,HDB51,HZB4#,56..HRF..(EX,LX,SULNG) IVORY,TRIM4# |
1 | ||
| 63371-36020B0 |
HDB51..IV5;HZB50..HRF..(LX,STD);BB58,BZB40,50,HDB50,HZB4#,56..HRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63371-36020A1 |
HDB51..IV5;BB4#,58,HZB4#,5#..HRF..(EX,LX) IVORY,TRIM4# |
1 | ||
| 63371-36020A1 |
BB58,HDB50,HZB4#,5#..HRF..WC IVORY,TRIM4# |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63374-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36020A1 |
BB4#,55,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36020A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB4#,58,HDB51,HZB4#,5#..HRF..(EX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-RH,REAR-LH |
2 | ||
| 63373-36020A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) MD.CHARCOAL,TRIM1#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
HZB4#..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010B0 |
BZB40,HZB4#..WC MD.CHARCOAL,TRIM1#,CENTER |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-36010 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) 運転席側 |
3 | ||
| 63385-36010 |
HZB50..SRF..WC;HZB40..STD..WC..4FC;HDB51,HZB56..09S,24S;HZB40,50..HRF..(GX,LX);BZB40,50,HZB41,46..08S,10S,26S,29S,39S,49S 助手席側 |
3 | ||
| 63381-36010 |
HDB51,HZB56..09S,24S;BZB40,50,HZB4#,50..HRF..(08S,10S,19S,26S,29S)..WC 運転席側 |
3 | ||
| 63385-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) 助手席側 |
3 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63384-36010 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) 運転席側 |
1 | ||
| 63385-36010 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) 助手席側 |
1 | ||
| 63384-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) 運転席側 |
1 | ||
| 63385-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) 助手席側 |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-36020 |
HZB40..5F;BB4#,HDB5#,HZB41,5#..EX,GX,LX,SULNG |
4 | ||
| 63383-36020 |
HZB40,50..GX,LX;BB4#,58,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
4 | ||
| 63383-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
4 | ||
| 63383-36020 |
BB58,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
4 | ||
| 63384C - RETAINER, ROOF HEADLINING TRIM SIDE, NO.1 | ||||
| 63385-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
2 | ||
| 63385-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
2 | ||
| 63385B - RETAINER, ROOF HEADLINING TRIM SIDE, NO.1 | ||||
| 63385-36010 |
BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
2 | ||
| 63385-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB40,HZB4#..HRF..(EX,LX)..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399-36020 |
BZB40,HZB4#..WC |
18 | ||
| 63399-36020 |
BZB40,HZB40,41..HRF..26S..WC..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB40,HZB4#..HRF..(EX,LX)..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399-36020 |
BZB40,HZB4#..WC |
18 | ||
| 63399-36020 |
BZB40,HZB40,41..HRF..26S..WC..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB40,HZB4#..HRF..(EX,LX)..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399-36020 |
BZB40,HZB4#..WC |
18 | ||
| 63399-36020 |
BZB40,HZB40,41..HRF..26S..WC..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB40,HZB4#..HRF..(EX,LX)..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399-36020 |
BZB40,HZB4#..WC |
18 | ||
| 63399-36020 |
BZB40,HZB40,41..HRF..26S..WC..CBU ｱﾘ(ﾙ-ﾑ ﾗﾂｸ) |
17 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36011A1 |
BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63651-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 63651-36011A1 |
BB58,HDB5#,HZB4#,5#..WC IVORY,TRIM4# |
1 | ||
| 63651-36011B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 63651-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 63656D - COVER, AIR INTAKE, CENTER | ||||
| 63656-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 63656-36010A0 |
BB58,HDB5#,HZB4#,5#..WC IVORY,TRIM4# |
1 | ||
| 63656-36010A0 |
BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63943 - COVER, COOLER THERMISTOR | ||||
| 63943-36010A1 |
HZB40,50..GX,LX;BB4#,5#,HDB5#,HZB41,56..HRF..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
2 | ||
| 63943-36010A0 |
HZB41..26S..4FC ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ,IVORY,TRIM4# |
1 | ||
| 63943-36010A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
2 | ||
| 63943-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
2 | ||
| 63943-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
2 | ||
| 63943 - COVER, COOLER THERMISTOR | ||||
| 63943-36010A0 |
HZB41..26S..4FC ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ,IVORY,TRIM4# |
1 | ||
| 63943-36010A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
2 | ||
| 63943-36010A1 |
HZB40,50..GX,LX;BB4#,5#,HDB5#,HZB41,56..HRF..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
2 | ||
| 63943-36010A1 |
BB58,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
2 | ||
| 63943-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-50351 | ||||
| 90183-04046 | ||||
| 91553-80825 | ||||
| 93560-15014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

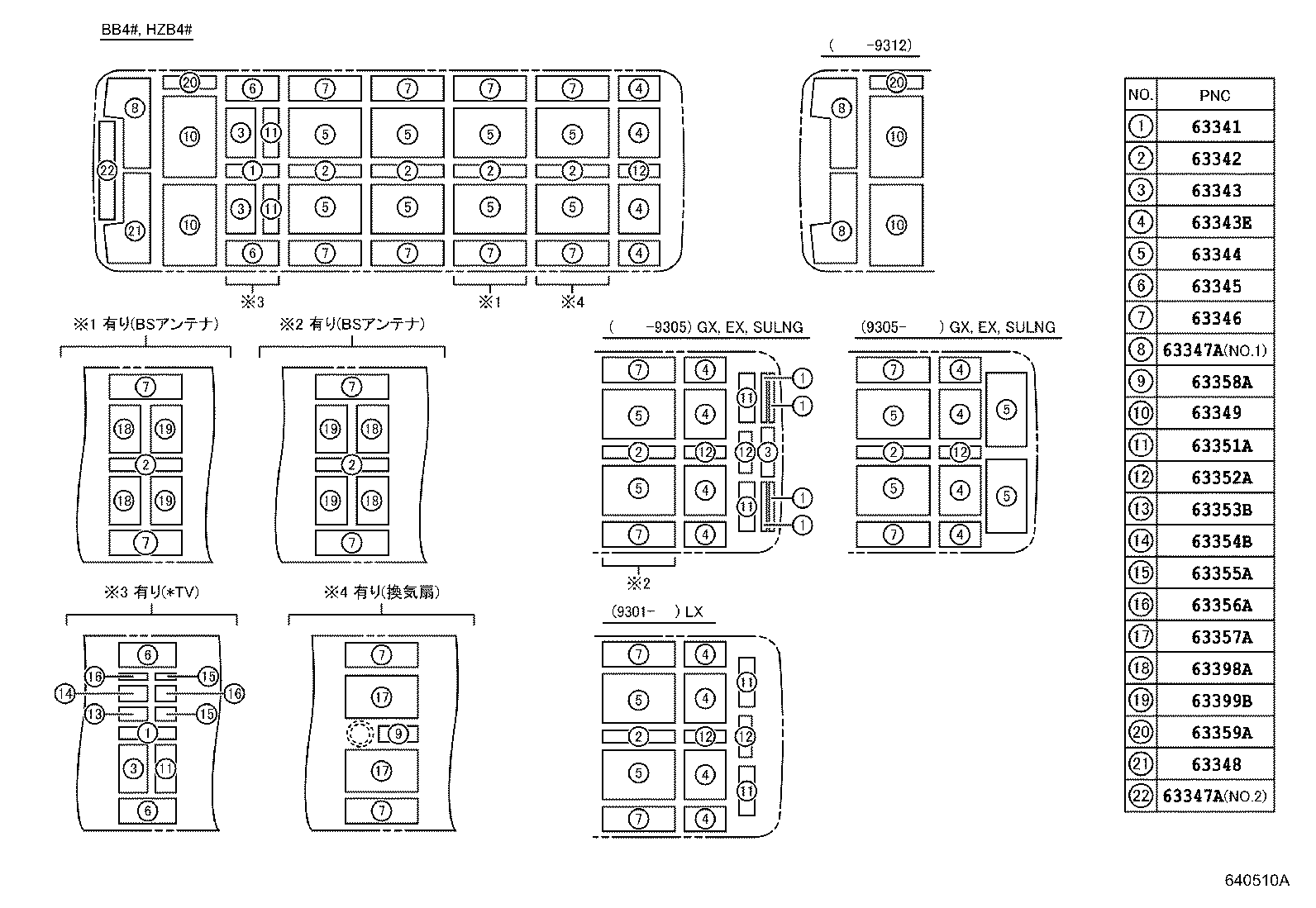

ILLUST NO. 3 OF 3(9301-9907)HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63349-36010 |
BB4#,HZB4#,5#..HRF..(09S,26S,29S)..(DX,EX,LX) |
1 | ||
| 63349-36010 |
HDB5#,HZB41,50..EX,GX,SULNG |
5 | ||
| 63349-36010 |
HZB41..26S |
1 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ- ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357-36030 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(EX,GX,LX,STD,SULNG)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) |
4 | ||
| 63349-36031 |
HZB41 ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
3 | ||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63349-36031 |
HZB41 ｱﾘ(BS ｱﾝﾃﾅ) |
4 | ||
| 63349-36031 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63349-36031 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63342-36010 |
HZB41..26S |
4 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
4 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BS ｱﾝﾃﾅ) |
4 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
3 | ||
| 63357-36030 |
HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63357-36030 |
HZB4#..HRF..(09S,10S,26S) ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36010 |
HDB51,HZB41..20S,26S,29S ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) |
2 | ||
| 63349-36010 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
3 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ- ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36010 |
BB4#,HZB4#,5#..HRF..(09S,26S,29S)..(DX,EX,LX) |
2 | ||
| 63349-36010 |
HZB41..26S |
2 | ||
| 63349-36031 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(*TV) |
1 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
2 | ||
| 63349-36031 |
HDB51..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB4#,50..HRF..(EX,GX,LX) ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
2 | ||
| 63357-36090 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(EX,GX,LX,STD,SULNG)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 63349-36031 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357-36090 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..(EX,GX,LX,SULNG)..CBU ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 63343E - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
4 | ||
| 63349-36031 |
HZB41..26S ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
4 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(ｶﾝｷｾﾝ) |
4 | ||
| 63343-36020 |
HZB41..26S;BB40,HZB50..SRF |
4 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63343-36020 |
HZB41..26S |
4 | ||
| 63349-36031 |
HZB40,50..SRF..WOC;BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
6 | ||
| 63344-36010 |
HZB41;BB4#,HDB51,HZB40..HRF..(DX,LX,SULNG) |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV & ｶﾝｷｾﾝ) |
4 | ||
| 63344-36010 |
HZB41;BB5#,HDB51,HZB5#..DX,LX,STD,SULNG |
10 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV & ｶﾝｷｾﾝ) |
6 | ||
| 63344-36010 |
HZB41;HDB51,HZB5#..HRF..(DX,LX,SULNG) |
10 | ||
| 63344-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36010 |
HZB50..SRF..WC;HZB40,46..HRF..(09S,26S);HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
10 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41..26S ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63345-36010 |
HZB41..26S |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
2 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63344-36010 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36020 |
HZB41..26S |
8 | ||
| 63344-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(BS ｱﾝﾃﾅ) |
8 | ||
| 63344-36010 |
HZB41..CBU ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(BS ｱﾝﾃﾅ) |
8 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36041 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
2 | ||
| 63347-36041 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63347-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB40..LX;BB4#,58,HDB5#,HZB41,5#..CBU,IV5 NO.1 |
1 | ||
| 63347-36041 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36041 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63347-36060 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63347-36041 |
HDB51..IV5;BB58,HDB50,HZB4#,5#..HRF..(09S,10S,26S,29S,49S)..(DX,EX,LX,STD) NO.1 |
1 | ||
| 63347-36060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36041 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
2 | ||
| 63347-36041 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63347-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB40..LX;BB4#,58,HDB5#,HZB41,5#..CBU,IV5 NO.1 |
1 | ||
| 63347-36041 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36041 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63347-36060 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63347-36041 |
HDB51..IV5;BB58,HDB50,HZB4#,5#..HRF..(09S,10S,26S,29S,49S)..(DX,EX,LX,STD) NO.1 |
1 | ||
| 63347-36060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63348-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63348-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36031 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
2 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63349-36031 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63349-36010 |
HDB5#,HZB41,50..(26S,29S)..(EX,GX) ｱﾘ(*TV) |
3 | ||
| 63349-36010 |
HZB50..SRF..DX;HDB5#,HZB41,50..(20S,26S,29S,49S)..(EX,GX,STD,SULNG) |
4 | ||
| 63349-36010 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ) |
3 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(ｶﾝｷｾﾝ) |
4 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
3 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36010 |
HZB41..26S |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HDB50,HZB41,50..(EX,GX,LX)..CBU ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
6 | ||
| 63357-36090 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..(EX,GX,LX,SULNG)..CBU ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾚﾋﾞ) |
5 | ||
| 63349-36031 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(*TV) |
5 | ||
| 63349-36031 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
6 | ||
| 63357-36090 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(EX,GX,LX,STD,SULNG)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
6 | ||
| 63352A - PAD, ROOF SILENCER, NO.11 | ||||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357-36030 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 63349-36010 |
HZB41..26S |
1 | ||
| 63349-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63349-36031 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41,50..(EX,LX)..CBU ｱﾘ(*TV) |
1 | ||
| 63353B - PAD, ROOF SILENCER, NO.12 | ||||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
HDB51,HZB41..EX ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HDB51,HZB41..26S,29S ｱﾘ(*TV) OR ｱﾘ(BSｱﾝﾃﾅ) |
3 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
2 | ||
| 63354B - PAD, ROOF SILENCER, NO.13 | ||||
| 63349-36010 |
HDB51,HZB41..26S,29S ｱﾘ(*TV) OR ｱﾘ(BSｱﾝﾃﾅ) |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HDB51,HZB41..EX ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
1 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63349-36010 |
HDB5#,HZB41,50..(26S,29S)..(EX,GX) ｱﾘ(*TV) |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
2 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63356A - PAD, ROOF SILENCER, NO.15 | ||||
| 63349-36031 |
HDB51,HZB41..EX ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36010 |
HDB51,HZB41..26S,29S ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
1 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357A - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-36011 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63357-36012 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
2 | ||
| 63357-36011 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63357-36011 |
HZB40..4FC;HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63357-36012 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
2 | ||
| 63358A - PAD, ROOF SILENCER, NO.17 | ||||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36010 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63349-36031 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
1 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 63347-36032 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63347-36032 |
HZB40..LX;BB4#,5#,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 63349-36031 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 63349-36031 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63398A - PAD, ROOF SILENCER, NO.19 | ||||
| 63398-36020 |
HDB51,HZB41 |
3 | ||
| 63398-36011 |
HDB51,HZB41 |
2 | ||
| 63399B - PAD, ROOF SILENCER, NO.20 | ||||
| 63398-36020 |
HDB51,HZB41 ｱﾘ(BSｱﾝﾃﾅ) |
1 | ||

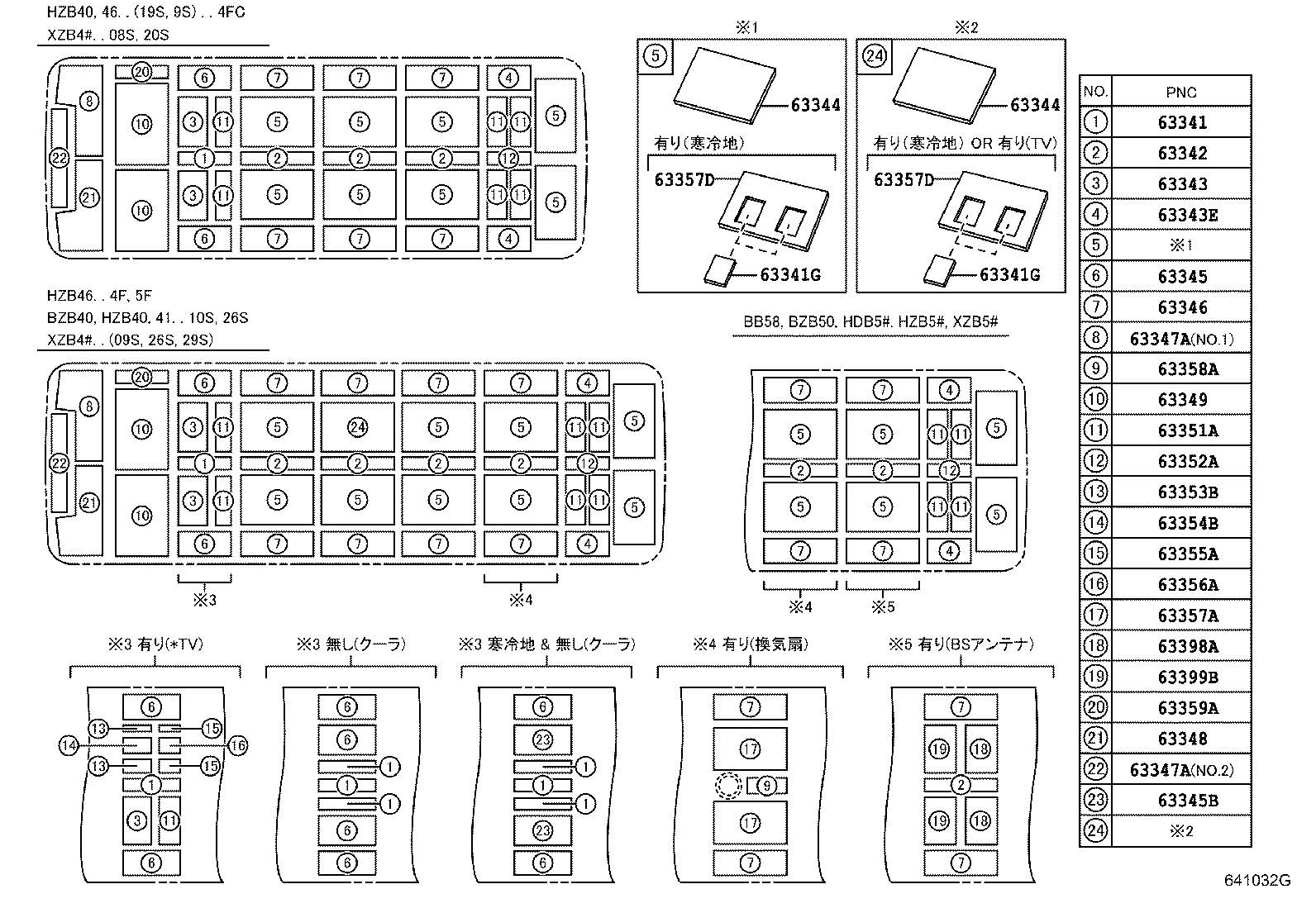

ILLUST NO. 3 OF 3(9907- )HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63349-36010 |
BB4#,HZB4#,5#..HRF..(09S,26S,29S)..(DX,EX,LX) |
1 | ||
| 63349-36010 |
HDB5#,HZB41,50..EX,GX,SULNG |
5 | ||
| 63349-36010 |
HZB41..26S |
1 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ- ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357-36030 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(EX,GX,LX,STD,SULNG)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63357-36060 |
HZB41..CBU ｶﾝﾚｲﾁ ｼﾖｳ |
16 | ||
| 63357-36060 |
HZB41;HZB50..SRF..WC;HZB40..SRF..WOC;HDB51,HZB40,46..HRF..(09S,20S,26S)..(DX,LX,SULNG) |
20 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63357-36060 |
HZB41..CBU ｶﾝﾚｲﾁ ｼﾖｳ |
16 | ||
| 63357-36060 |
HZB41;HZB50..SRF..WC;HZB40..SRF..WOC;HDB51,HZB40,46..HRF..(09S,20S,26S)..(DX,LX,SULNG) |
20 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) |
4 | ||
| 63349-36031 |
HZB41 ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
3 | ||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63349-36031 |
HZB41 ｱﾘ(BS ｱﾝﾃﾅ) |
4 | ||
| 63349-36031 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63349-36031 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63342-36010 |
HZB41..26S |
4 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
4 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BS ｱﾝﾃﾅ) |
4 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
3 | ||
| 63357-36030 |
HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
3 | ||
| 63357-36030 |
HZB4#..HRF..(09S,10S,26S) ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36010 |
HDB51,HZB41..20S,26S,29S ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) |
2 | ||
| 63349-36010 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
3 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ- ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36010 |
BB4#,HZB4#,5#..HRF..(09S,26S,29S)..(DX,EX,LX) |
2 | ||
| 63349-36010 |
HZB41..26S |
2 | ||
| 63349-36031 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(*TV) |
1 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
2 | ||
| 63349-36031 |
HDB51..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB4#,50..HRF..(EX,GX,LX) ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
2 | ||
| 63357-36090 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(EX,GX,LX,STD,SULNG)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 63349-36031 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357-36090 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..(EX,GX,LX,SULNG)..CBU ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 63343E - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
4 | ||
| 63349-36031 |
HZB41..26S ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
4 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(ｶﾝｷｾﾝ) |
4 | ||
| 63343-36020 |
HZB41..26S;BB40,HZB50..SRF |
4 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
4 | ||
| 63343-36020 |
HZB41..26S |
4 | ||
| 63349-36031 |
HZB40,50..SRF..WOC;BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
6 | ||
| 63344-36010 |
HZB41;BB4#,HDB51,HZB40..HRF..(DX,LX,SULNG) |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV & ｶﾝｷｾﾝ) |
4 | ||
| 63344-36010 |
HZB41;BB5#,HDB51,HZB5#..DX,LX,STD,SULNG |
10 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV & ｶﾝｷｾﾝ) |
6 | ||
| 63344-36010 |
HZB41;HDB51,HZB5#..HRF..(DX,LX,SULNG) |
10 | ||
| 63344-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36010 |
HZB50..SRF..WC;HZB40,46..HRF..(09S,26S);HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
10 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
6 | ||
| 63344-36010 |
HZB41;BB4#,HDB51,HZB40..HRF..(DX,LX,SULNG) |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV & ｶﾝｷｾﾝ) |
4 | ||
| 63344-36010 |
HZB41;BB5#,HDB51,HZB5#..DX,LX,STD,SULNG |
10 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV & ｶﾝｷｾﾝ) |
6 | ||
| 63344-36010 |
HZB41;HDB51,HZB5#..HRF..(DX,LX,SULNG) |
10 | ||
| 63344-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36010 |
HZB50..SRF..WC;HZB40,46..HRF..(09S,26S);HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
10 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41..26S ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63345-36010 |
HZB41..26S |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(*TV) |
2 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ) & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BS ｱﾝﾃﾅ) OR ｱﾘ(BS ｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63344-36010 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
8 | ||
| 63344-36010 |
HZB41 ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63344-36020 |
HZB41..26S |
8 | ||
| 63344-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(BS ｱﾝﾃﾅ) |
8 | ||
| 63344-36010 |
HZB41..CBU ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) OR ｱﾘ(BS ｱﾝﾃﾅ) |
8 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36041 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
2 | ||
| 63347-36041 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63347-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB40..LX;BB4#,58,HDB5#,HZB41,5#..CBU,IV5 NO.1 |
1 | ||
| 63347-36041 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36041 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63347-36060 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63347-36041 |
HDB51..IV5;BB58,HDB50,HZB4#,5#..HRF..(09S,10S,26S,29S,49S)..(DX,EX,LX,STD) NO.1 |
1 | ||
| 63347-36060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36041 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
2 | ||
| 63347-36041 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63347-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63347-36041 |
HZB40..LX;BB4#,58,HDB5#,HZB41,5#..CBU,IV5 NO.1 |
1 | ||
| 63347-36041 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36041 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63347-36060 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63347-36041 |
HDB51..IV5;BB58,HDB50,HZB4#,5#..HRF..(09S,10S,26S,29S,49S)..(DX,EX,LX,STD) NO.1 |
1 | ||
| 63347-36060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) NO.2 |
1 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63348-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63348-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36031 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
2 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63349-36031 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63349-36010 |
HDB5#,HZB41,50..(26S,29S)..(EX,GX) ｱﾘ(*TV) |
3 | ||
| 63349-36010 |
HZB50..SRF..DX;HDB5#,HZB41,50..(20S,26S,29S,49S)..(EX,GX,STD,SULNG) |
4 | ||
| 63349-36010 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ) |
3 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(ｶﾝｷｾﾝ) |
4 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
3 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36010 |
HZB41..26S |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HDB50,HZB41,50..(EX,GX,LX)..CBU ｱﾘ(*TV) |
1 | ||
| 63349-36031 |
BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
6 | ||
| 63357-36090 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..(EX,GX,LX,SULNG)..CBU ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾚﾋﾞ) |
5 | ||
| 63349-36031 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(*TV) |
5 | ||
| 63349-36031 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
6 | ||
| 63357-36090 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(EX,GX,LX,STD,SULNG)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
6 | ||
| 63352A - PAD, ROOF SILENCER, NO.11 | ||||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｱﾘ(ｶﾝｷｾﾝ & ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357-36030 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(CBU,IV5) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 63349-36010 |
HZB41..26S |
1 | ||
| 63349-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63349-36031 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36031 |
HZB41,50..(EX,LX)..CBU ｱﾘ(*TV) |
1 | ||
| 63353B - PAD, ROOF SILENCER, NO.12 | ||||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63349-36031 |
HDB51,HZB41..EX ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36010 |
HDB51,HZB41..26S,29S ｱﾘ(*TV) OR ｱﾘ(BSｱﾝﾃﾅ) |
3 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
2 | ||
| 63354B - PAD, ROOF SILENCER, NO.13 | ||||
| 63349-36010 |
HDB51,HZB41..26S,29S ｱﾘ(*TV) OR ｱﾘ(BSｱﾝﾃﾅ) |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HDB51,HZB41..EX ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
1 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63349-36010 |
HDB5#,HZB41,50..(26S,29S)..(EX,GX) ｱﾘ(*TV) |
2 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
2 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
2 | ||
| 63356A - PAD, ROOF SILENCER, NO.15 | ||||
| 63349-36031 |
HDB51,HZB41..EX ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36010 |
HDB51,HZB41..26S,29S ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) |
2 | ||
| 63349-36010 |
HZB41..26S..4FC ｱﾘ(*TV & ｶﾝｷｾﾝ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63347-36032 |
HDB51,HZB40..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41,50..HRF..(EX,GX,LX) |
1 | ||
| 63347-36032 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63347-36032 |
HZB41..26S..4FC ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63347-36032 |
HZB41..4FC..CBU ｱﾘ(*TV) OR ｱﾘ(BS ｱﾝﾃﾅ) OR ｷﾔﾝﾋﾟﾝｸﾞｻﾙ-ﾝ ｼﾔﾜ-ﾙ-ﾑ ｼﾖｳ |
1 | ||
| 63357A - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-36011 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63357-36012 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
2 | ||
| 63357-36011 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63357-36011 |
HZB40..4FC;HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63357-36012 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
2 | ||
| 63357D - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-36050 |
HZB4#..HRF..(09S,10S,26S) ｶﾝﾚｲﾁ ｼﾖｳ |
10 | ||
| 63357-36050 |
HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63357D - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-36050 |
HZB4#..HRF..(09S,10S,26S) ｶﾝﾚｲﾁ ｼﾖｳ |
10 | ||
| 63357-36050 |
HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｶﾝｷｾﾝ) |
8 | ||
| 63358A - PAD, ROOF SILENCER, NO.17 | ||||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36010 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 63349-36031 |
HZB41..26S..4FC ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 63349-36031 |
HZB41..CBU ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63349-36031 |
HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,SULNG) |
1 | ||
| 63349-36010 |
HZB41..26S ｱﾘ(*TV) OR ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
HZB41 ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36031 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 63347-36032 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63347-36032 |
HZB40..LX;BB4#,5#,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 63349-36031 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 63349-36031 |
HZB41..26S ｱﾘ(BSｱﾝﾃﾅ & ｶﾝｷｾﾝ) |
1 | ||
| 63349-36010 |
HZB41 ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63398A - PAD, ROOF SILENCER, NO.19 | ||||
| 63398-36020 |
HDB51,HZB41 |
3 | ||
| 63398-36011 |
HDB51,HZB41 |
2 | ||
| 63399B - PAD, ROOF SILENCER, NO.20 | ||||
| 63398-36020 |
HDB51,HZB41 ｱﾘ(BSｱﾝﾃﾅ) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
