HZB41-ZRMQS (1993)
Toyota Coaster

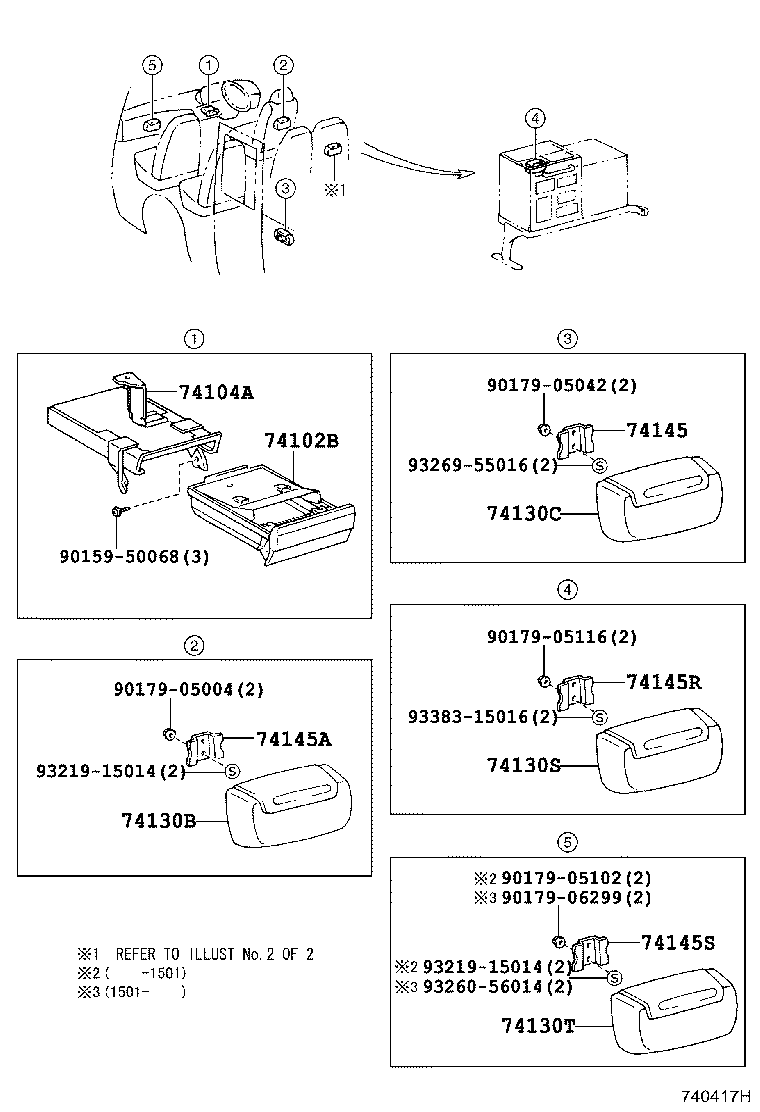

ILLUST NO. 1 OF 2(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74102-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 74102-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74104-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 74104-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 74130B - RECEPTACLE ASSY, REAR ASH | ||||
| 74130-36010B1 |
HDB5#,HZB41..(26S,29S)..CBU CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
HDB5#,HZB41..(26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130S - RECEPTACLE ASSY, REAR ASH | ||||
| 74130-36010E0 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 74145A - PLATE, REAR ASH RECEPTACLE | ||||
| 74145-36010 |
HDB5#,HZB41..(26S,29S)..CBU |
1 | ||
| 74145R - PLATE, REAR ASH RECEPTACLE | ||||
| 74145-36010 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU |
1 | ||
| 74145-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90179-05004 | ||||
| 90179-05042 | ||||
| 90179-05102 | ||||
| 90179-05116 | ||||
| 90179-06299 | ||||
| 93219-15014 | ||||
| 93260-56014 | ||||
| 93269-55016 | ||||
| 93383-15016 | ||||

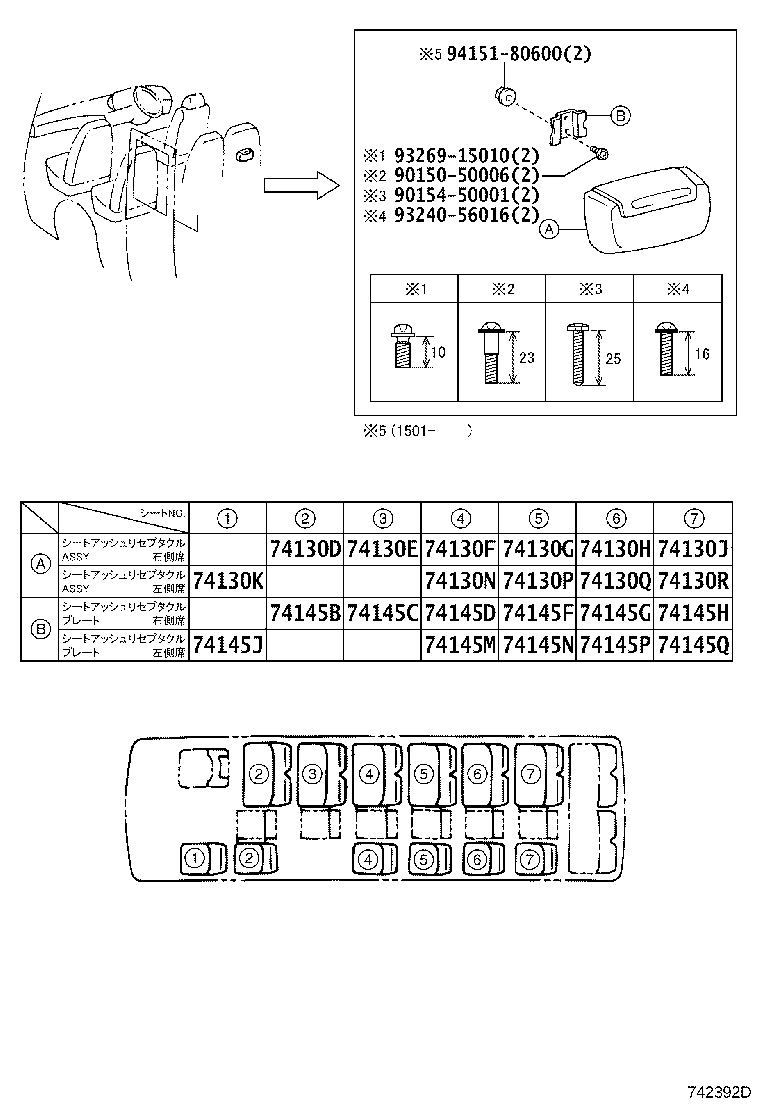

ILLUST NO. 2 OF 2(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74130D - RECEPTACLE ASSY, REAR ASH | ||||
| 74130-36010E0 |
HZB50..29S;BB4#,5#,HDB5#,HZB4#,56..(09S,20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
BB4#,HDB5#,HZB40,5#..09S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
HZB40..26S..CBU;BB58,HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130E - RECEPTACLE ASSY, REAR ASH, NO.3 RH | ||||
| 74130-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
HZB40..26S..CBU;BB58,HDB5#,HZB41,50..(20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
BB40,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 74130F - RECEPTACLE ASSY, REAR ASH, NO.4 RH | ||||
| 74130-36010E0 |
HZB40..26S..CBU;BB58,HDB5#,HZB41,50..(20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130H - RECEPTACLE ASSY, REAR ASH, NO.6 RH | ||||
| 74130-36010E0 |
HZB50..29S;BB40,5#,HDB5#,HZB4#..(15S,20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
HZB40..26S..CBU;BB58,HDB5#,HZB41,50..(20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130J - RECEPTACLE ASSY, REAR ASH, NO.7 RH | ||||
| 74130-36010E0 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(26S,29S)..CBU CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130K - RECEPTACLE ASSY, REAR ASH, NO.1 LH | ||||
| 74130-36010E0 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,5#,HDB5#,HZB41,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 74130N - RECEPTACLE ASSY, REAR ASH, NO.4 LH | ||||
| 74130-36010E0 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB5#,HZB41,50..(20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130-36010E0 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130Q - RECEPTACLE ASSY, REAR ASH, NO.6 LH | ||||
| 74130-36010E0 |
HZB40..26S..CBU;BB58,HDB5#,HZB41,50..(20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(10S,20S,26S,29S)..(CBU,IV5) CHARCOAL,TRIM1# |
1 | ||
| 74130R - RECEPTACLE ASSY, REAR ASH, NO.7 LH | ||||
| 74130-36010E0 |
BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010E0 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..CBU GREIGE,TRIM4# |
1 | ||
| 74130-36010B1 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU CHARCOAL,TRIM1# |
1 | ||
| 74145B - PLATE, REAR ASH RECEPTACLE, NO.2 RH | ||||
| 74145-36010 |
HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 74145-36010 |
HZB50..29S;BB4#,5#,HDB5#,HZB4#,56..(09S,20S,26S,29S)..CBU |
1 | ||
| 74145C - PLATE, REAR ASH RECEPTACLE, NO.3 RH | ||||
| 74145-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(20S,26S,29S)..CBU |
1 | ||
| 74145-36010 |
BB40,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 74145-36010 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 74145-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 74145D - PLATE, REAR ASH RECEPTACLE, NO.4 RH | ||||
| 74145-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(20S,26S,29S)..CBU |
1 | ||
| 74145-36010 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 74145G - PLATE, REAR ASH RECEPTACLE, NO.6 RH | ||||
| 74145-36010 |
HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 74145-36010 |
HZB50..29S;BB40,5#,HDB5#,HZB4#..(15S,20S,26S,29S)..CBU |
1 | ||
| 74145H - PLATE, REAR ASH RECEPTACLE, NO.7 RH | ||||
| 74145-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU |
1 | ||
| 74145-36010 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..CBU |
1 | ||
| 74145J - PLATE, REAR ASH RECEPTACLE, NO.1 LH | ||||
| 74145-36010 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,5#,HDB5#,HZB41,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 74145-36010 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 74145M - PLATE, REAR ASH RECEPTACLE, NO.4 LH | ||||
| 74145-36010 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 74145-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(20S,26S,29S)..CBU |
1 | ||
| 74145P - PLATE, REAR ASH RECEPTACLE, NO.6 LH | ||||
| 74145-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..CBU |
1 | ||
| 74145-36010 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,50..(20S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 74145Q - PLATE, REAR ASH RECEPTACLE, NO.7 LH | ||||
| 74145-36010 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..CBU |
1 | ||
| 74145-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU |
1 | ||
| Common parts | ||||
| 90150-50006 | ||||
| 90154-50001 | ||||
| 93240-56016 | ||||
| 93269-15010 | ||||
| 94151-80600 | ||||
