HZB41-ZRMQS (1993)
Toyota Coaster
(9505- )BB4#,BZB40,HZB4#,XZB4#..4FC,5F

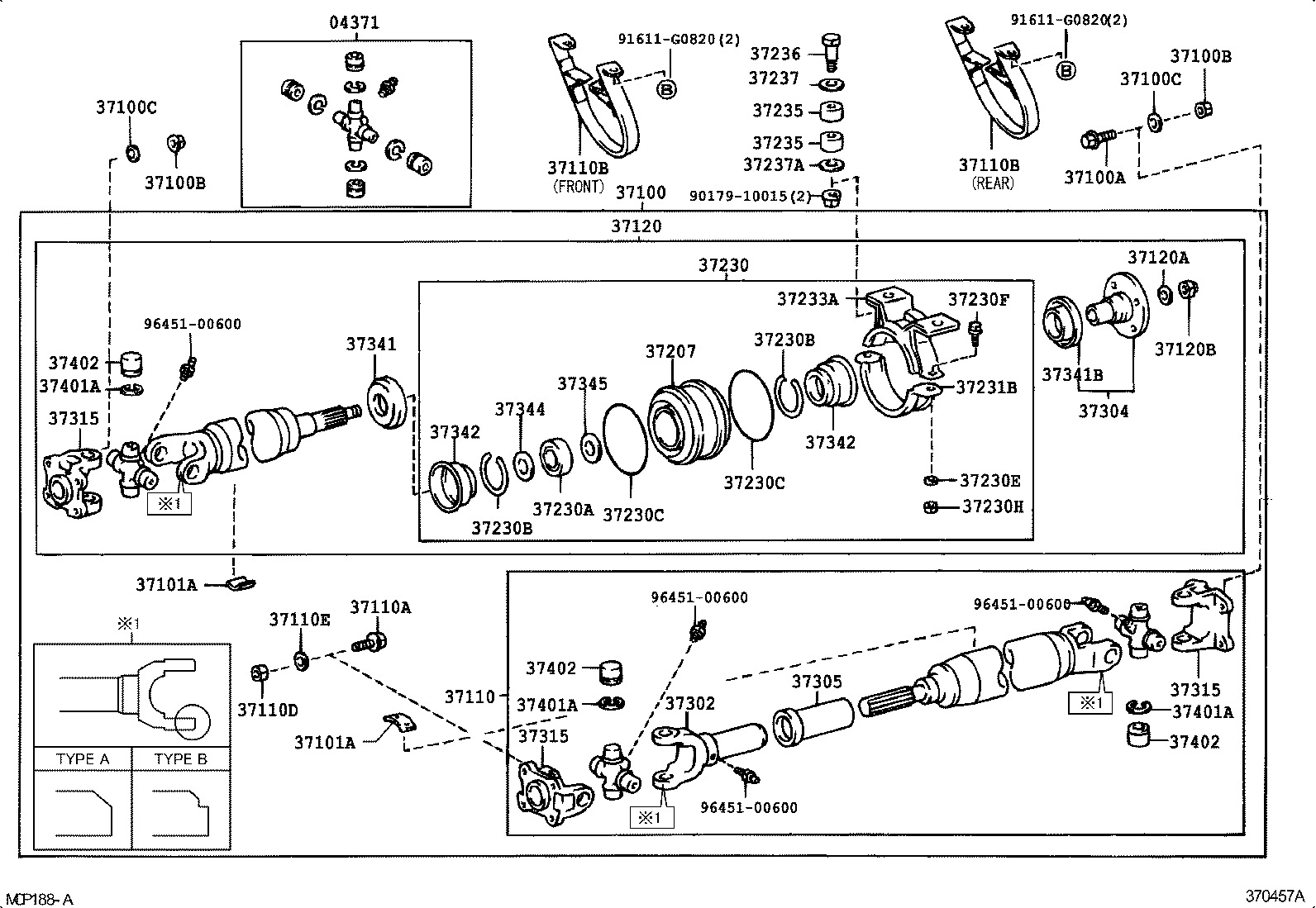

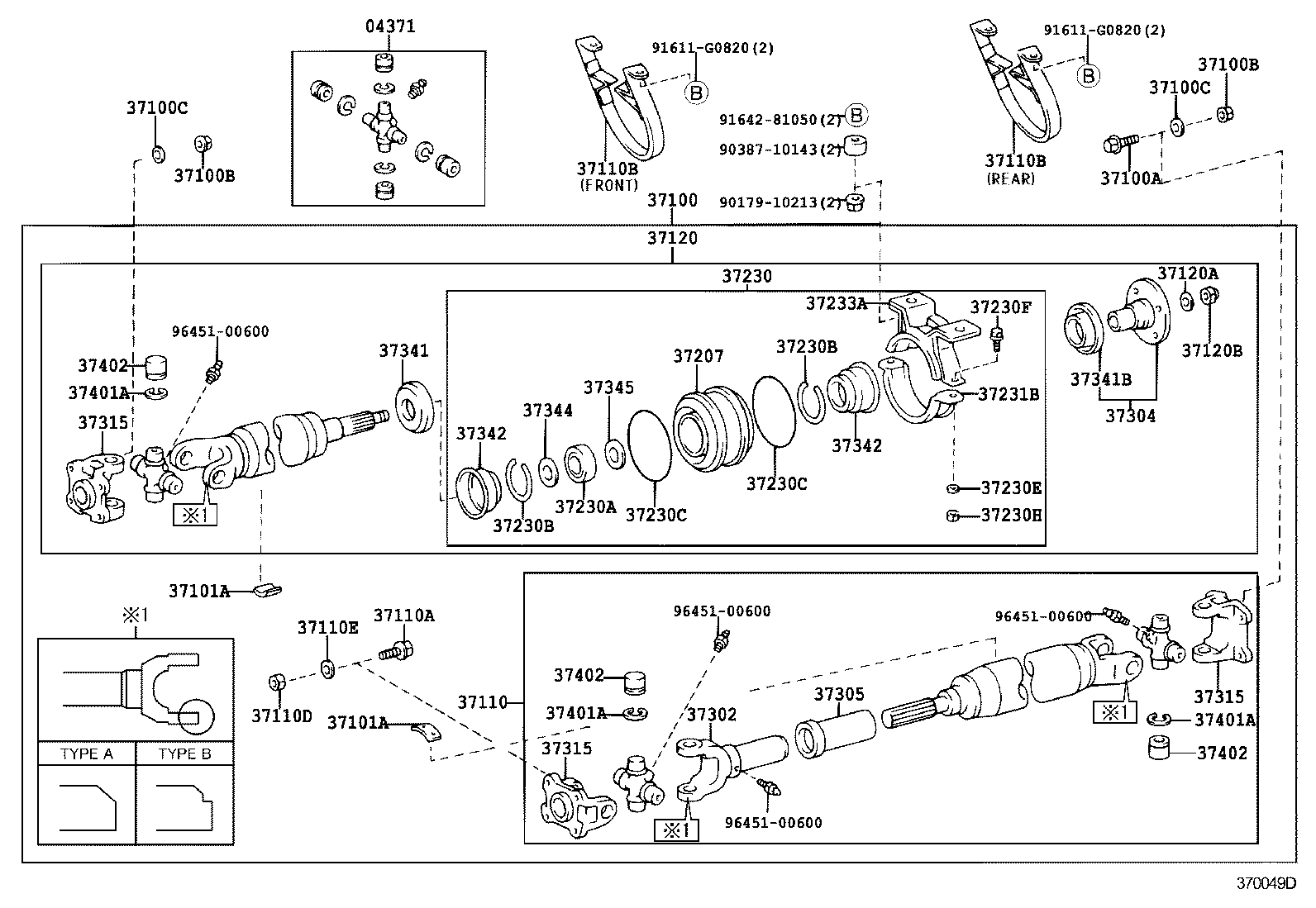

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36030 |
BB4#,HZB4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,塗装なし |
3 | ||
| 04371-36050 |
BB4#,HZB4# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
3 | ||
| 04371-36030 |
BZB40,HZB4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,塗装なし |
3 | ||
| 04371-36050 |
BZB40,HZB4# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-36720 |
HZB4#..5F |
1 | ||
| 37100-36720 |
BZB40,HZB4#..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11013 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 90105-11013 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 90179-11005 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 90179-11005 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
BB4#,5#,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
BB4#,5#,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
BB4#,5#,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
BB4#,5#,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01136 |
BB4#,5#,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
BB4#,5#,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
BB4#,5#,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01158 |
BB4#,5#,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01132 |
BB58,BZB40,50,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01155 |
BB4#,5#,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01156 |
BB4#,5#,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 90937-01147 |
BB58,BZB40,50,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
BB58,BZB40,50,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
BB58,BZB40,50,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
BB58,BZB40,50,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01154 |
BB4#,5#,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BB4#,5#,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
BB58,BZB40,50,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01150 |
BB58,BZB40,50,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
BB4#,5#,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01157 |
BB4#,5#,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BB4#,5#,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01155 |
BB58,BZB40,50,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01151 |
BB58,BZB40,50,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
BB58,BZB40,50,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01152 |
BB58,BZB40,50,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01157 |
BB58,BZB40,50,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01154 |
BB58,BZB40,50,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01153 |
BB58,BZB40,50,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
BB58,BZB40,50,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
BB4#,5#,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
BB4#,5#,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
BB4#,5#,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
BB4#,5#,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01136 |
BB4#,5#,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
BB4#,5#,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
BB4#,5#,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01158 |
BB4#,5#,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01132 |
BB58,BZB40,50,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01155 |
BB4#,5#,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01156 |
BB4#,5#,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 90937-01147 |
BB58,BZB40,50,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
BB58,BZB40,50,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
BB58,BZB40,50,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
BB58,BZB40,50,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01154 |
BB4#,5#,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BB4#,5#,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
BB58,BZB40,50,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01150 |
BB58,BZB40,50,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
BB4#,5#,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01157 |
BB4#,5#,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BB4#,5#,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01155 |
BB58,BZB40,50,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01151 |
BB58,BZB40,50,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
BB58,BZB40,50,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01152 |
BB58,BZB40,50,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01157 |
BB58,BZB40,50,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01154 |
BB58,BZB40,50,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01153 |
BB58,BZB40,50,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
BB58,BZB40,50,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36730 |
BB4#,HZB4# |
1 | ||
| 37110-36730 |
BZB40,HZB4# |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BB58,BZB40,HZB4# *11−1.00PX28−16 |
4 | ||
| 90105-11013 |
BB4#,5#,HZB4# *11−1.00PX28−16 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36190 |
BB4#,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 51569-36180 |
BB4#,HZB4# ﾘﾔ |
1 | ||
| 51569-36180 |
BZB40,HZB4# ﾘﾔ |
1 | ||
| 51569-36190 |
BZB40,50,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36190 |
BB4#,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 51569-36180 |
BB4#,HZB4# ﾘﾔ |
1 | ||
| 51569-36180 |
BZB40,HZB4# ﾘﾔ |
1 | ||
| 51569-36190 |
BZB40,50,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BB4#,5#,HZB4# |
4 | ||
| 90179-11005 |
BB58,BZB40,HZB4# |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BB4#,5#,HZB4# |
4 | ||
| 90201-11013 |
BB58,BZB40,HZB4# |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-36510 |
BZB40,HZB4#..5F |
1 | ||
| 37120-36510 |
HZB4#..5F |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BB4#,5#,HZB4# 外径=33.5,厚さ=4.0 |
1 | ||
| 90201-20005 |
BB58,BZB40,HZB4# 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20006 |
BB4#,5#,HZB4# |
1 | ||
| 90179-20006 |
BB58,BZB40,HZB4# |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37207-35011 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37207-35011 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36140 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 37230-36140 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90363-30029 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90521-66077 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90521-66077 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 90522-97001 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 90522-97001 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94512-00800 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 94512-00800 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 91112-80816 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 90101-08157 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90101-08157 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94130-00802 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 94110-50800 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 94130-00802 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 37231B - HOUSING, CENTER SUPPORT BEARING, NO.1 | ||||
| 37231-36020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 37231-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37231-36021 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37233A - HOUSING, CENTER SUPPORT BEARING, NO.2 | ||||
| 37233-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37233-36080 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37302-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-36030 |
BB4#,5#,HZB4# |
1 | ||
| 37304-36030 |
BB58,BZB40,HZB4# |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37305-36020 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BZB40,HZB4# |
3 | ||
| 37315-36020 |
BB4#,HZB4# |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BZB40,HZB4# |
3 | ||
| 37315-36020 |
BB4#,HZB4# |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BZB40,HZB4# |
3 | ||
| 37315-36020 |
BB4#,HZB4# |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BB4#,5#,HZB4# |
1 | ||
| 37341-36010 |
BB58,BZB40,HZB4# |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-36010 |
BB4#,5#,HZB4# |
1 | ||
| 37341-36010 |
BB58,BZB40,HZB4# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37342-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37342-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37344-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37345-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29024 |
BB4#,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29027 |
BB4#,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BB4#,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29025 |
BB4#,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BZB40,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BZB40,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29026 |
BZB40,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29024 |
BZB40,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29024 |
BB4#,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29027 |
BB4#,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BB4#,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29025 |
BB4#,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BZB40,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BZB40,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29026 |
BZB40,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29024 |
BZB40,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29024 |
BB4#,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29027 |
BB4#,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BB4#,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29025 |
BB4#,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BZB40,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BZB40,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29026 |
BZB40,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29024 |
BZB40,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402-36070 |
BB4#,HZB4# |
12 | ||
| 37402-36070 |
BZB40,HZB4# |
12 | ||
| 37402-36080 |
BZB40,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402-36070 |
BB4#,HZB4# |
12 | ||
| 37402-36070 |
BZB40,HZB4# |
12 | ||
| 37402-36080 |
BZB40,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402-36070 |
BB4#,HZB4# |
12 | ||
| 37402-36070 |
BZB40,HZB4# |
12 | ||
| 37402-36080 |
BZB40,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| Common parts | ||||
| 90179-10213 | ||||
| 90387-10143 | ||||
| 91611-G0820 | ||||
| 91642-81050 | ||||
| 96451-00600 | ||||
(9301-9505)BB4#,HZB4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36030 |
BB4#,HZB4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,塗装なし |
3 | ||
| 04371-36050 |
BB4#,HZB4# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
3 | ||
| 04371-36030 |
BZB40,HZB4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,塗装なし |
3 | ||
| 04371-36050 |
BZB40,HZB4# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-36720 |
HZB4#..5F |
1 | ||
| 37100-36720 |
BZB40,HZB4#..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11013 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 90105-11013 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 90179-11005 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 90179-11005 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HDB5#,HZB4#,5# |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
BB4#,5#,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
BB4#,5#,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
BB4#,5#,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
BB4#,5#,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01136 |
BB4#,5#,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
BB4#,5#,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
BB4#,5#,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01158 |
BB4#,5#,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01132 |
BB58,BZB40,50,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01155 |
BB4#,5#,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01156 |
BB4#,5#,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 90937-01147 |
BB58,BZB40,50,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
BB58,BZB40,50,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
BB58,BZB40,50,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
BB58,BZB40,50,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01154 |
BB4#,5#,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BB4#,5#,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
BB58,BZB40,50,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01150 |
BB58,BZB40,50,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
BB4#,5#,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01157 |
BB4#,5#,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BB4#,5#,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01155 |
BB58,BZB40,50,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01151 |
BB58,BZB40,50,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
BB58,BZB40,50,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01152 |
BB58,BZB40,50,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01157 |
BB58,BZB40,50,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01154 |
BB58,BZB40,50,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01153 |
BB58,BZB40,50,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
BB58,BZB40,50,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
BB4#,5#,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
BB4#,5#,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
BB4#,5#,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
BB4#,5#,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01136 |
BB4#,5#,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
BB4#,5#,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
BB4#,5#,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01158 |
BB4#,5#,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01132 |
BB58,BZB40,50,HDB5#,HZB4#,5# 10G,長さ=20.7 |
1 | ||
| 90937-01155 |
BB4#,5#,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01156 |
BB4#,5#,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 90937-01147 |
BB58,BZB40,50,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
BB58,BZB40,50,HDB5#,HZB4#,5# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
BB58,BZB40,50,HDB5#,HZB4#,5# 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
BB58,BZB40,50,HDB5#,HZB4#,5# 30G,長さ=62.2 |
1 | ||
| 90937-01154 |
BB4#,5#,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BB4#,5#,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
BB58,BZB40,50,HDB5#,HZB4#,5# 6G,長さ=12.4 |
1 | ||
| 90937-01150 |
BB58,BZB40,50,HDB5#,HZB4#,5# 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
BB4#,5#,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01157 |
BB4#,5#,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BB4#,5#,HDB5#,HZB4#,5# 2G,厚さ=2.0 |
1 | ||
| 90937-01155 |
BB58,BZB40,50,HDB5#,HZB4#,5# 22G,長さ=45.6 |
1 | ||
| 90937-01151 |
BB58,BZB40,50,HDB5#,HZB4#,5# 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
BB58,BZB40,50,HDB5#,HZB4#,5# 28G,長さ=58.1 |
1 | ||
| 90937-01152 |
BB58,BZB40,50,HDB5#,HZB4#,5# 14G,長さ=29.0 |
1 | ||
| 90937-01157 |
BB58,BZB40,50,HDB5#,HZB4#,5# 26G,長さ=53.9 |
1 | ||
| 90937-01154 |
BB58,BZB40,50,HDB5#,HZB4#,5# 18G,長さ=37.3 |
1 | ||
| 90937-01153 |
BB58,BZB40,50,HDB5#,HZB4#,5# 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
BB58,BZB40,50,HDB5#,HZB4#,5# 24G,長さ=49.7 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36730 |
BB4#,HZB4# |
1 | ||
| 37110-36730 |
BZB40,HZB4# |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BB58,BZB40,HZB4# *11−1.00PX28−16 |
4 | ||
| 90105-11013 |
BB4#,5#,HZB4# *11−1.00PX28−16 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36190 |
BB4#,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 51569-36180 |
BB4#,HZB4# ﾘﾔ |
1 | ||
| 51569-36180 |
BZB40,HZB4# ﾘﾔ |
1 | ||
| 51569-36190 |
BZB40,50,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36190 |
BB4#,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 51569-36180 |
BB4#,HZB4# ﾘﾔ |
1 | ||
| 51569-36180 |
BZB40,HZB4# ﾘﾔ |
1 | ||
| 51569-36190 |
BZB40,50,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BB4#,5#,HZB4# |
4 | ||
| 90179-11005 |
BB58,BZB40,HZB4# |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BB4#,5#,HZB4# |
4 | ||
| 90201-11013 |
BB58,BZB40,HZB4# |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-36510 |
BZB40,HZB4#..5F |
1 | ||
| 37120-36510 |
HZB4#..5F |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BB4#,5#,HZB4# 外径=33.5,厚さ=4.0 |
1 | ||
| 90201-20005 |
BB58,BZB40,HZB4# 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20006 |
BB4#,5#,HZB4# |
1 | ||
| 90179-20006 |
BB58,BZB40,HZB4# |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37207-35011 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37207-35011 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36140 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 37230-36140 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90363-30029 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90521-66077 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90521-66077 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 90522-97001 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 90522-97001 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94512-00800 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 94512-00800 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 91112-80816 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 90101-08157 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90101-08157 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94130-00802 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 94110-50800 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 94130-00802 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 37231B - HOUSING, CENTER SUPPORT BEARING, NO.1 | ||||
| 37231-36020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 37231-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37231-36021 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37233A - HOUSING, CENTER SUPPORT BEARING, NO.2 | ||||
| 37233-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37233-36080 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37235 - CUSHION, CENTER SUPPORT BEARING | ||||
| 37235-36010 |
BB4#,HZB4# |
4 | ||
| 37235 - CUSHION, CENTER SUPPORT BEARING | ||||
| 37235-36010 |
BB4#,HZB4# |
4 | ||
| 37236 - BOLT, CENTER SUPPORT BEARING HOUSING | ||||
| 37236-36061 |
BB4#,HZB4# |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-36020 |
BB4#,HZB4# 厚さ=2.3 |
2 | ||
| 37237A - PLATE, CENTER SUPPORT BEARING, NO.2 | ||||
| 37237-36030 |
BB4#,HDB5#,HZB4#,5# 厚さ=2.0 |
2 | ||
| 37237-36050 |
BB4#,HZB4# 厚さ=6.0 |
2 | ||
| 37237-36100 |
BB4#,HDB5#,HZB4#,5# 厚さ=16.0 |
2 | ||
| 37237-36090 |
BB4#,HDB5#,HZB4#,5# 厚さ=14.0 |
2 | ||
| 37237-36080 |
BB4#,HDB5#,HZB4#,5# 厚さ=12.0 |
2 | ||
| 37237-36060 |
BB4#,HDB5#,HZB4#,5# 厚さ=8.0 |
2 | ||
| 37237-36070 |
BB4#,HDB5#,HZB4#,5# 厚さ=10.0 |
2 | ||
| 37237-36110 |
BB4#,HDB5#,HZB4#,5# 厚さ=18.0 |
2 | ||
| 37237-36040 |
BB4#,HDB5#,HZB4#,5# 厚さ=4.0 |
2 | ||
| 37237-36120 |
BB4#,HDB5#,HZB4#,5# 厚さ=20.0 |
2 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37302-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-36030 |
BB4#,5#,HZB4# |
1 | ||
| 37304-36030 |
BB58,BZB40,HZB4# |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37305-36020 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BZB40,HZB4# |
3 | ||
| 37315-36020 |
BB4#,HZB4# |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BZB40,HZB4# |
3 | ||
| 37315-36020 |
BB4#,HZB4# |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BZB40,HZB4# |
3 | ||
| 37315-36020 |
BB4#,HZB4# |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BB4#,5#,HZB4# |
1 | ||
| 37341-36010 |
BB58,BZB40,HZB4# |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-36010 |
BB4#,5#,HZB4# |
1 | ||
| 37341-36010 |
BB58,BZB40,HZB4# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37342-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 37342-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37344-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 37345-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29024 |
BB4#,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29027 |
BB4#,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BB4#,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29025 |
BB4#,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BZB40,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BZB40,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29026 |
BZB40,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29024 |
BZB40,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29024 |
BB4#,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29027 |
BB4#,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BB4#,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29025 |
BB4#,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BZB40,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BZB40,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29026 |
BZB40,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29024 |
BZB40,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29024 |
BB4#,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29027 |
BB4#,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BB4#,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29025 |
BB4#,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BZB40,HZB4# 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BZB40,HZB4# 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29026 |
BZB40,HZB4# 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 90520-29024 |
BZB40,HZB4# 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402-36070 |
BB4#,HZB4# |
12 | ||
| 37402-36070 |
BZB40,HZB4# |
12 | ||
| 37402-36080 |
BZB40,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402-36070 |
BB4#,HZB4# |
12 | ||
| 37402-36070 |
BZB40,HZB4# |
12 | ||
| 37402-36080 |
BZB40,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402-36070 |
BB4#,HZB4# |
12 | ||
| 37402-36070 |
BZB40,HZB4# |
12 | ||
| 37402-36080 |
BZB40,HZB4# ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-G0820 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
