HZB41-ZCMQS (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

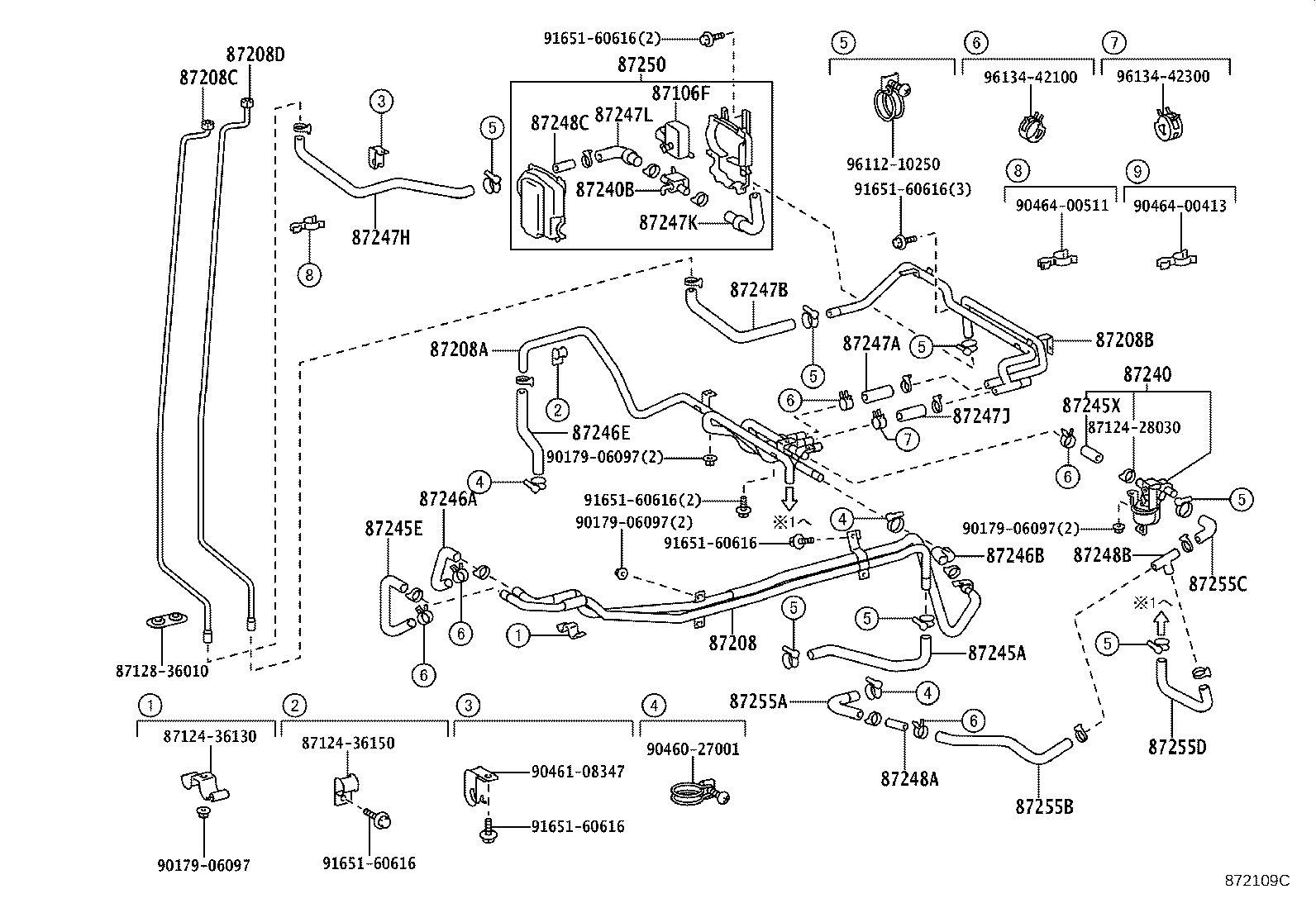

ILLUST NO. 1 OF 3(9301-9907)HZB41

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87106F 8712428030 8712436130 8712436150 8712836010 87208 87208A 87208B 87208C 87208D 87240 87240B 87245A 87245E 87245X 87246A 87246B 87246E 87247A 87247B 87247H 87247J 87247K 87247L 87248A 87248B 87248C 87250 87255A 87255B 87255C 87255D 9017906097 9017906097 9017906097 9017906097 9046027001 9046108347 9046400413 9046400511 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9611210250 9613442100 9613442300
Part # Description Qty Price
87106F - SERVO SUB-ASSY, HEATER VALVE DAMPER
87106-36070

HDB51,HZB41..CBU

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36370

HDB5#,HZB4#,5#

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36450

HDB51,HZB41

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36500

HZB41

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-36510

HDB51,HZB41..(4FC,5F)..CBU

ﾌﾛﾝﾄ

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-36520

HDB51,HZB41..(4FC,5F)..CBU

 1
87240 - VALVE ASSY, HEATER WATER
87240-36070

HDB5#,HZB41,50..EX,GX,SULNG

 1
87240B - VALVE ASSY, HEATER WATER, NO.2
87240-36100

HDB51,HZB41..CBU

 1
87245A - HOSE, HEATER WATER, INLET A
87245-36270

HDB5#,HZB4#,5#

 1
87245-36230

HDB51..(4FC,5F)..(CBU,IV1);HDB50,HZB4#,50..(15S,26S,29S,39S)..CBU

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390

BB4#,HDB5#,HZB4#,5#

 1
87245X - HOSE, HEATER WATER
87245-36280

BB40,HZB41,50..15S,39S,49S

NO.3

 1
87245-36290

BB40,HZB41,50..15S,39S,49S

NO.1

 1
99556-30100

BB40,HDB5#,HZB4#,50

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400

BB4#,HDB5#,HZB4#,5#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410

BB4#,HDB5#,HZB4#,5#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480

HDB5#,HZB4#,5#

 1
87247A - HOSE, HEATER WATER, A
99556-30200

HDB51,HZB41

*H,L=170

 1
87247B - HOSE, HEATER WATER, B
87245-3B570

HDB51,HZB41

NO.2

 1
87247H - HOSE, HEATER WATER, H
87245-3B560

HZB41

 1
87247J - HOSE, HEATER WATER, J
87245-3B550

HDB51,HZB41

 1
87247K - HOSE, HEATER WATER, K
87245-3C090

HDB51,HZB41

 1
87247L - HOSE, HEATER WATER, L
87245-3C100

HDB51,HZB41

 1
87248A - PIPE, HEATER WATER INLET, A
87248-14090

HDB5#,HZB4#,5#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-36080

HZB41

 1
87248C - PIPE, HEATER WATER INLET, C
87248-14090

HZB41

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ

 1
87250 - HOSE AND VALVE ASSY
87250-36030

HDB51,HZB41..CBU

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3B620

HDB5#,HZB4#,50

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-3B580

HDB51,HZB41

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ

 1
87245-3B610

HDB51,HZB41

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-3B590

HDB51,HZB41

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3B600

HDB51,HZB41

 1
Common parts
87124-28030
87124-36130
87124-36150
87128-36010
90179-06097
90460-27001
90461-08347
90464-00413
90464-00511
91651-60616
96112-10250
96134-42100
96134-42300

ILLUST NO. 1 OF 3(9301-9907)HDB50,HZB40,5# ; (9301-9907)HDB51..IV1,IV5

Click highlighted areas on diagram

ﾌﾛﾝﾄ(ｶﾝﾚｲﾁ ｼﾖｳ)

diagram 8712428030 8712436130 8712436140 8712436150 87208 87208A 87240 87245A 87245B 87245E 87245X 87246A 87246B 87246E 87255A 9017906097 9017906097 9017906097 9017906097 9046027001 9046400427 9165160616 9165160616 9165160616 91651B0820 9611210250 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36370

HDB5#,HZB4#,5#

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36450

HDB51,HZB41

 1
87240 - VALVE ASSY, HEATER WATER
87240-36070

HDB5#,HZB41,50..EX,GX,SULNG

 1
87245A - HOSE, HEATER WATER, INLET A
87245-36270

HDB5#,HZB4#,5#

 1
87245-36230

HDB51..(4FC,5F)..(CBU,IV1);HDB50,HZB4#,50..(15S,26S,29S,39S)..CBU

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245B - HOSE, HEATER WATER, INLET B
87245-36210

BB4#,HDB5#,HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390

BB4#,HDB5#,HZB4#,5#

 1
87245X - HOSE, HEATER WATER
87245-36280

BB40,HZB41,50..15S,39S,49S

NO.3

 1
87245-36290

BB40,HZB41,50..15S,39S,49S

NO.1

 1
99556-30100

BB40,HDB5#,HZB4#,50

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400

BB4#,HDB5#,HZB4#,5#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410

BB4#,HDB5#,HZB4#,5#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480

HDB5#,HZB4#,5#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3B620

HDB5#,HZB4#,50

 1
Common parts
87124-28030
87124-36130
87124-36140
87124-36150
90179-06097
90460-27001
90464-00427
91651-60616
91651-B0820
96112-10250
96134-42100

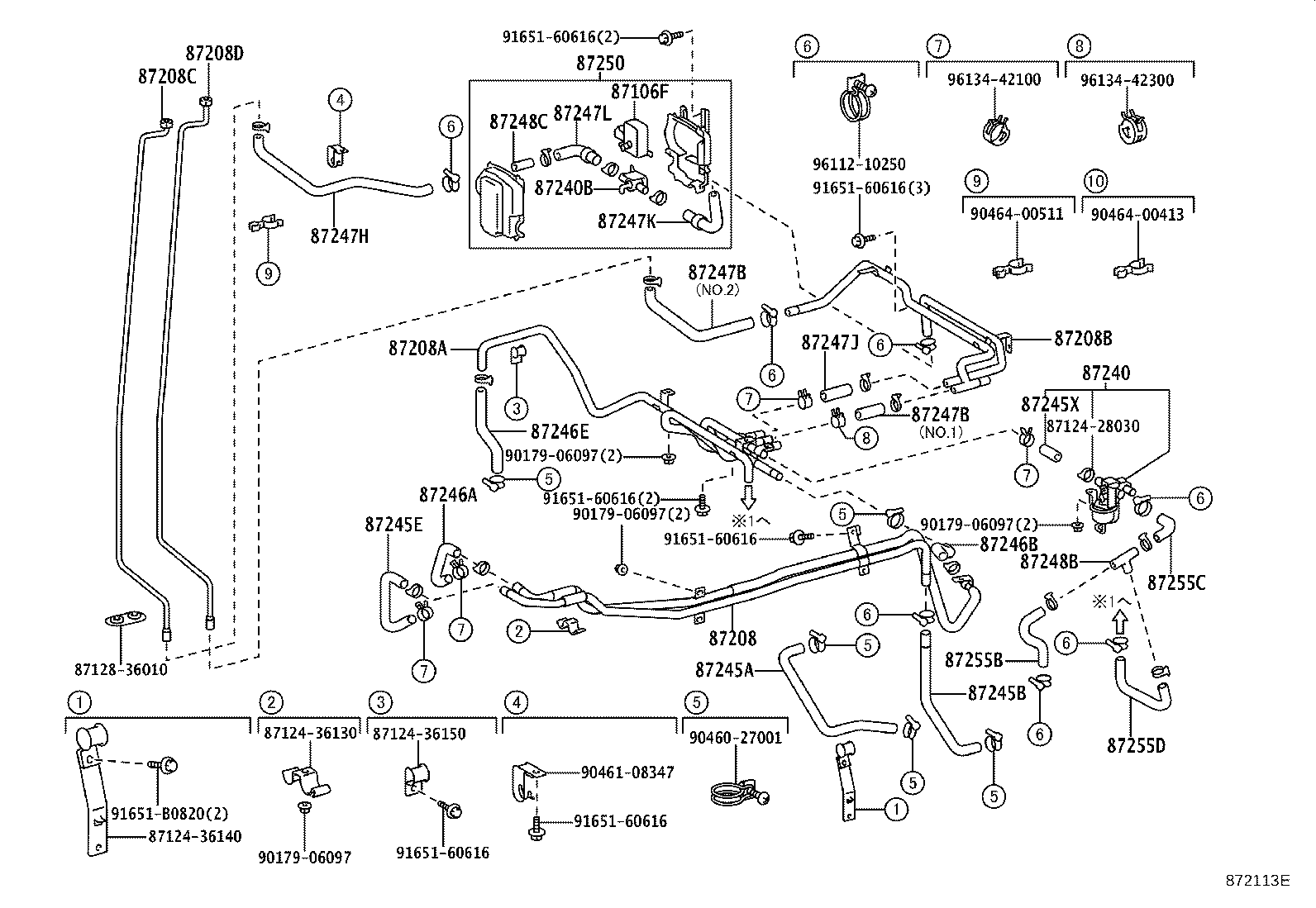

ILLUST NO. 1 OF 3(9301-9907)HZB41

Click highlighted areas on diagram

ﾌﾛﾝﾄ(ｶﾝﾚｲﾁ ｼﾖｳ)

diagram 87106F 8712428030 8712436130 8712436140 8712436150 8712836010 87208 87208A 87208B 87208C 87208D 87240 87240B 87245A 87245B 87245E 87245X 87246A 87246B 87246E 87247B 87247B 87247H 87247J 87247K 87247L 87248B 87248C 87250 87255B 87255C 87255D 9017906097 9017906097 9017906097 9017906097 9046027001 9046108347 9046400413 9046400511 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 91651B0820 9611210250 9613442100 9613442300
Part # Description Qty Price
87106F - SERVO SUB-ASSY, HEATER VALVE DAMPER
87106-36070

HDB51,HZB41..CBU

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36370

HDB5#,HZB4#,5#

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36450

HDB51,HZB41

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36500

HZB41

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-36510

HDB51,HZB41..(4FC,5F)..CBU

ﾌﾛﾝﾄ

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-36520

HDB51,HZB41..(4FC,5F)..CBU

 1
87240 - VALVE ASSY, HEATER WATER
87240-36070

HDB5#,HZB41,50..EX,GX,SULNG

 1
87240B - VALVE ASSY, HEATER WATER, NO.2
87240-36100

HDB51,HZB41..CBU

 1
87245A - HOSE, HEATER WATER, INLET A
87245-36270

HDB5#,HZB4#,5#

 1
87245-36230

HDB51..(4FC,5F)..(CBU,IV1);HDB50,HZB4#,50..(15S,26S,29S,39S)..CBU

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245B - HOSE, HEATER WATER, INLET B
87245-36210

BB4#,HDB5#,HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390

BB4#,HDB5#,HZB4#,5#

 1
87245X - HOSE, HEATER WATER
87245-36280

BB40,HZB41,50..15S,39S,49S

NO.3

 1
87245-36290

BB40,HZB41,50..15S,39S,49S

NO.1

 1
99556-30100

BB40,HDB5#,HZB4#,50

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400

BB4#,HDB5#,HZB4#,5#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410

BB4#,HDB5#,HZB4#,5#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480

HDB5#,HZB4#,5#

 1
87247B - HOSE, HEATER WATER, B
87245-3B570

HDB51,HZB41

NO.2

 1
87247B - HOSE, HEATER WATER, B
87245-3B570

HDB51,HZB41

NO.2

 1
87247H - HOSE, HEATER WATER, H
87245-3B560

HZB41

 1
87247J - HOSE, HEATER WATER, J
87245-3B550

HDB51,HZB41

 1
87247K - HOSE, HEATER WATER, K
87245-3C090

HDB51,HZB41

 1
87247L - HOSE, HEATER WATER, L
87245-3C100

HDB51,HZB41

 1
87248B - PIPE, HEATER WATER INLET, B
87248-36080

HZB41

 1
87248C - PIPE, HEATER WATER INLET, C
87248-14090

HZB41

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ

 1
87250 - HOSE AND VALVE ASSY
87250-36030

HDB51,HZB41..CBU

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-3B580

HDB51,HZB41

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ

 1
87245-3B610

HDB51,HZB41

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-3B590

HDB51,HZB41

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3B600

HDB51,HZB41

 1
Common parts
87124-28030
87124-36130
87124-36140
87124-36150
87128-36010
90179-06097
90460-27001
90461-08347
90464-00413
90464-00511
91651-60616
91651-B0820
96112-10250
96134-42100
96134-42300

ILLUST NO. 3 OF 3(9301-9907)BB4#,HDB5#,HZB4#,5#

Click highlighted areas on diagram

ﾋ-ﾀﾖｳ ｳｵ-ﾀﾎﾟﾝﾌﾟ ﾂｷ

diagram 8712436240 8712436250 8712436260 8712436270 8712436270 87208E 87245H 87245Q 87248J 87248K 87260 87452J 87452K 87452L 9017908017 9017908017 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 9413000802 9413000802 9611210360 9611210360 9611210360 9611210360
Part # Description Qty Price
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36320

HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245H - HOSE, HEATER WATER, INLET H
87245-36190

BB4#,HDB5#,HZB4#,5#

 1
87245Q - HOSE, HEATER WATER, INLET Q
87245-36200

BB4#,HDB5#,HZB4#,5#

 1
87248J - PIPE, HEATER WATER INLET, J
87248-36100

BB4#,HDB5#,HZB4#,5#

 1
87248K - PIPE, HEATER WATER INLET, K
87248-36110

BB4#,HDB5#,HZB4#,5#

 1
87260 - PUMP ASSY, HEATER
87260-36030

BB4#,HDB5#,HZB4#,5#

 1
87452J - BRACKET, REAR HEATER PIPE, NO.1
87452-36170

BB4#,HDB5#,HZB4#,5#

 1
87452K - BRACKET, REAR HEATER PIPE, NO.2
87452-36180

BB4#,HDB5#,HZB4#,5#

 1
87452L - BRACKET, REAR HEATER PIPE, NO.3
87452-36190

BB4#,HDB5#,HZB4#,5#

 1
Common parts
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-B0820
94130-00802
96112-10360

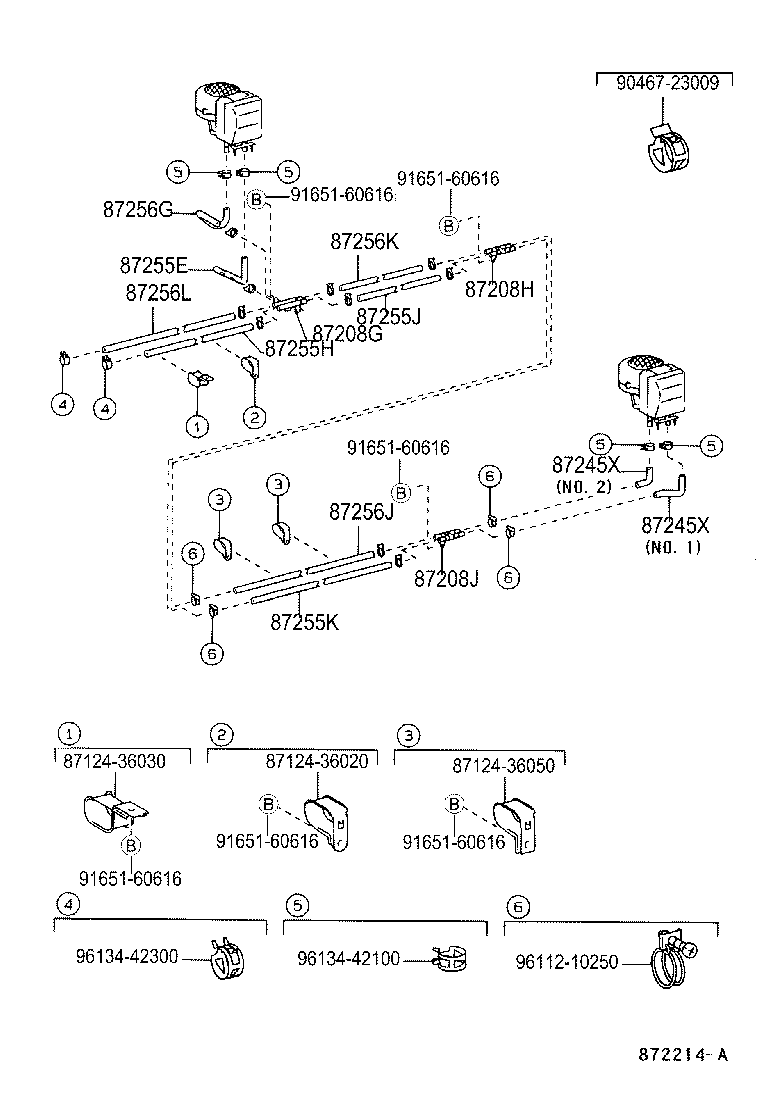

ILLUST NO. 2 OF 3(9301-9907)15S

Click highlighted areas on diagram

ﾘﾔ

diagram 8712436020 8712436030 8712436050 87208G 87208H 87208J 87245X 87245X 87255E 87255H 87255J 87255K 87256G 87256J 87256K 87256L 9046723009 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9611210250 9613442100 9613442300
Part # Description Qty Price
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36540

HDB51..IV1,IV5;BB4#,HDB50,HZB4#,5#

 1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36590

BB40,HZB4#

 1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530

BB40,HDB50,HZB4#,50

 1
87245X - HOSE, HEATER WATER
87245-36280

BB40,HZB41,50..15S,39S,49S

NO.3

 1
87245-36290

BB40,HZB41,50..15S,39S,49S

NO.1

 1
99556-30100

BB40,HDB5#,HZB4#,50

*H,L=55

 1
87245X - HOSE, HEATER WATER
87245-36280

BB40,HZB41,50..15S,39S,49S

NO.3

 1
87245-36290

BB40,HZB41,50..15S,39S,49S

NO.1

 1
99556-30100

BB40,HDB5#,HZB4#,50

*H,L=55

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B720

HZB41..15S

 1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660

BB40,HDB50,HZB4#,50

 1
87255J - HOSE, HEATER WATER INLET, J
87245-3B820

BB40,HZB4#

 1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000

HDB51..29S..4FC;BB4#,HDB50,HZB4#,50

*H,L=720

 1
99556-31000

BB4#,HDB50,HZB4#,50

*H,L=720

 1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3B710

HZB41..15S

 1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000

HDB51..29S..4FC;BB4#,HDB50,HZB4#,50

*H,L=720

 1
99556-31000

BB4#,HDB50,HZB4#,50

*H,L=720

 1
87256K - HOSE, REAR HEATER WATER OUTLET, K
87245-3B830

BB40,HZB4#

 1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B650

BB40,HDB50,HZB4#,50

 1
Common parts
87124-36020
87124-36030
87124-36050
90467-23009
91651-60616
96112-10250
96134-42100
96134-42300

ILLUST NO. 3 OF 3(9301-9907)BB4#,HDB5#,HZB4#,5#

Click highlighted areas on diagram

ﾊﾟﾜ-ﾋ-ﾀ ﾂｷ

diagram 8712436100 8712436190 8712436190 8712436200 8712436230 8712436230 8712436240 8712436250 8712436260 8712436270 8712436270 87208E 87245H 87245J 87245K 87245L 87245M 87245N 87245P 87248D 87248F 87248J 87248K 87248L 87248M 87260 87452F 87452G 87452H 87452J 87452K 87452L 9017908017 9165160620 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 9413000802 9413000802 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360 9611210360
Part # Description Qty Price
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36320

HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245H - HOSE, HEATER WATER, INLET H
87245-36190

BB4#,HDB5#,HZB4#,5#

 1
87245J - HOSE, HEATER WATER, INLET J
87245-3B380

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87245K - HOSE, HEATER WATER, INLET K
87245-3B360

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87245L - HOSE, HEATER WATER, L
87245-3B640

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87245M - HOSE, HEATER WATER, M
87245-3B630

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87245N - HOSE, HEATER WATER, INLET N
87245-3B350

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87245P - HOSE, HEATER WATER, INLET P
87245-3B370

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87248D - PIPE, HEATER WATER INLET, D
87248-36060

HZB4#

 1
87248F - PIPE, HEATER WATER INLET, F
87248-36070

HZB4#

 1
87248J - PIPE, HEATER WATER INLET, J
87248-36100

BB4#,HDB5#,HZB4#,5#

 1
87248K - PIPE, HEATER WATER INLET, K
87248-36110

BB4#,HDB5#,HZB4#,5#

 1
87248L - PIPE, HEATER WATER, L
87248-36120

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87248M - PIPE, HEATER WATER, M
87248-36130

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87260 - PUMP ASSY, HEATER
87260-36030

BB4#,HDB5#,HZB4#,5#

 1
87452F - BRACKET, POWER HEATER, NO.3
87452-36090

BB4#,HDB5#,HZB4#,5#

 1
87452G - BRACKET, REAR HEATER, NO.1
87452-36110

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87452H - BRACKET, REAR HEATER, NO.2
87452-36120

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
87452J - BRACKET, REAR HEATER PIPE, NO.1
87452-36170

BB4#,HDB5#,HZB4#,5#

 1
87452K - BRACKET, REAR HEATER PIPE, NO.2
87452-36180

BB4#,HDB5#,HZB4#,5#

 1
87452L - BRACKET, REAR HEATER PIPE, NO.3
87452-36190

BB4#,HDB5#,HZB4#,5#

 1
Common parts
87124-36100
87124-36190
87124-36200
87124-36230
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-60620
91651-B0820
94130-00802
96112-10360
