HZB41-ZCMQS (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9705)DX,STD..5F ; (9301-9705)HZB50..GX,STD..4FC ; (9301-9705)HDB5#,HZB4#..EX,

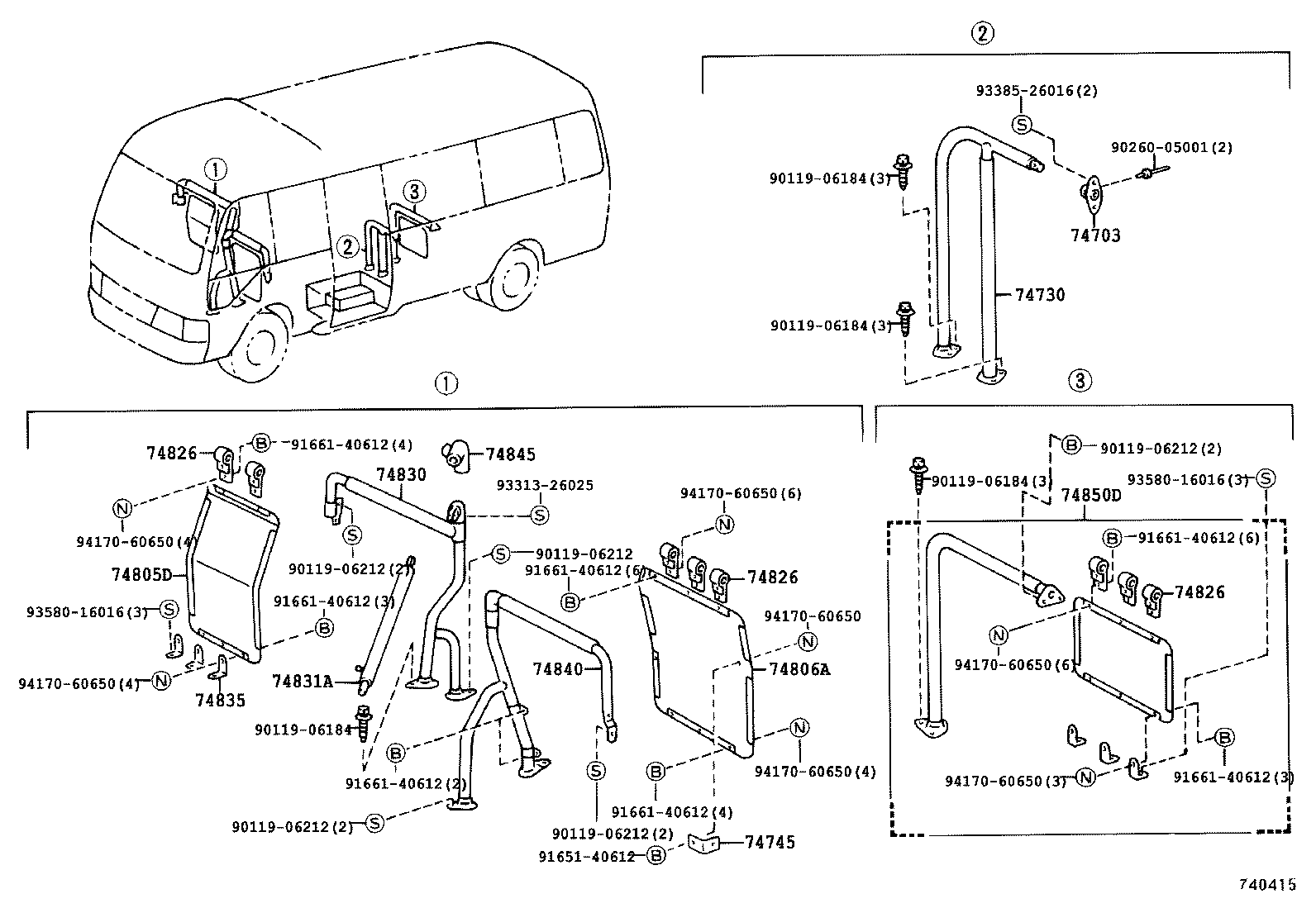

Click highlighted areas on diagram

ﾖｳｼﾞﾊﾞｽ

diagram 74703 74730 74745 74805D 74806A 74826 74826 74826 74830 74831A 74835 74840 74845 74850D 9011906184 9011906184 9011906184 9011906184 9011906212 9011906212 9011906212 9011906212 9011906212 9026005001 9165140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9331326025 9338526016 9358016016 9358016016 9417060650 9417060650 9417060650 9417060650 9417060650 9417060650 9417060650
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

BB46..WOC;BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,STD

 1
74730 - FRAME ASSY, HAND GRIP
74730-36030

BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S

 1
Common parts
90119-06184
90119-06212
90260-05001
91651-40612
91661-40612
93313-26025
93385-26016
93580-16016
94170-60650

(9301-0408)

Click highlighted areas on diagram

ﾄﾞｱｻｲﾄﾞ(ｵﾘﾀﾀﾐﾄﾞｱ)

diagram 74703 74730 74730 74730 9011906184 9011906184 9011906184 9011906184 9015940052 9015940052 9015940052 9026005001 9338526016
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

BB46..WOC;BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,STD

 1
74730 - FRAME ASSY, HAND GRIP
74730-36030

BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S

 1
74730 - FRAME ASSY, HAND GRIP
74730-36030

BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S

 1
74730 - FRAME ASSY, HAND GRIP
74730-36030

BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S

 1
Common parts
90119-06184
90159-40052
90260-05001
93385-26016

(9301-9907)

Click highlighted areas on diagram

ﾄﾞｱｻｲﾄﾞ(ｸﾞﾗｲﾄﾞﾄﾞｱ)

diagram 74705B 74708 9011906184 9015940052 9015940052 9026906006
Part # Description Qty Price
74705B - NET SUB-ASSY, HAND GRIP PROTECTOR
74705-36020A0

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

IVORY,TRIM4#

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74708-36010

HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU

 1
Common parts
90119-06184
90159-40052
90269-06006

(9301-9505)09S,15S,20S,26S,29S

Click highlighted areas on diagram

ｱﾝﾌﾞﾚﾗｽﾀﾝﾄﾞ

diagram 62591B 62594C 62594C 62594D 62595F 9011906003 9011906003 9020108055 9020209005 9354054008
Part # Description Qty Price
62591B - STAND, UMBRELLA
62591-36010E0

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

GRAIGE,TRIM4#

 1
62591-36040E0

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

GRAIGE,TRIM4#

 1
62594C - MAT, UMBRELLA STAND
62594-36050E0

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

GRAIGE,TRIM4#

 1
62594-36020

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

 1
62594C - MAT, UMBRELLA STAND
62594-36050E0

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

GRAIGE,TRIM4#

 1
62594-36020

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

 1
62594D - MAT, UMBRELLA STAND, NO.2
62594-36020

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

 1
62595F - COVER, UMBRELLA STAND
62595-36010E0

BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG

GRAIGE,TRIM4#

 1
Common parts
90119-06003
90201-08055
90202-09005
93540-54008
