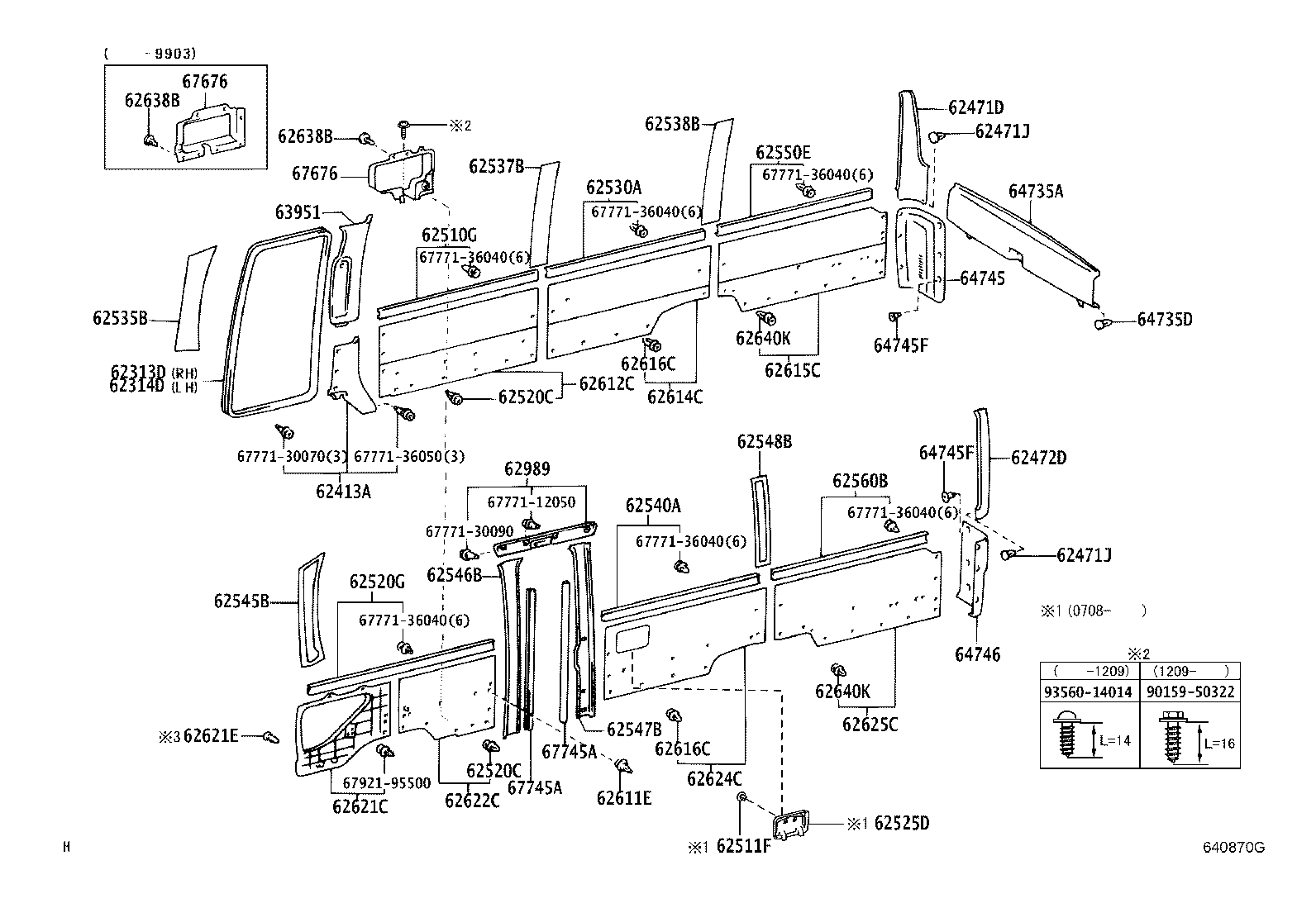

HZB41-ZCMQS (1993)
Toyota Coaster
(9301-0408)BB4#,BZB40,HZB4#..09S,10S,15S,26S,39S; (0408-1108)XZB46 ; (0408-1501)XZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62413-36010A0 |
BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62471-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62472-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36210E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36330E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36330E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62570-36050E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62570-36010E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62535B - GARNISH, PILLAR NO.1, RH | ||||
| 62535-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-36230E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62540-36270E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62546B - GARNISH, PILLAR NO.2, LH | ||||
| 62536-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62536-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62536-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62547B - GARNISH, PILLAR NO.3, LH | ||||
| 62537-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62537-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62537-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62540-36270E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62550-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62530-36280E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB41..15S ﾚｯﾄﾞ |
42 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB41..15S ﾚｯﾄﾞ |
42 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-08104A1 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-05020A0 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020A0 |
HDB50..4FC;BB46,HZB41..09S,15S;BB40,HDB51,HZB40,5#..GX,LX,SULNG IVORY,TRIM4# |
27 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-08104A1 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-05020A0 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020A0 |
HDB50..4FC;BB46,HZB41..09S,15S;BB40,HDB51,HZB40,5#..GX,LX,SULNG IVORY,TRIM4# |
27 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-08104A1 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-05020A0 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020A0 |
HDB50..4FC;BB46,HZB41..09S,15S;BB40,HDB51,HZB40,5#..GX,LX,SULNG IVORY,TRIM4# |
27 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62630-36100A2 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62670-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62070-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62621C - BOARD, SIDE TRIM NO.1, LH | ||||
| 62621-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62640-36090A0 |
HDB51,HZB41..EX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVOR,TRIM4# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62680-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62080-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36020A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
1 | ||
| 62989-36021A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD GRAIGE,TRIM4# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36040A1 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63951-36030A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A0 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB40,HDB51,HZB4#,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 75597-36010 | ||||
| 90159-50322 | ||||
| 93560-14014 | ||||
| 93560-55020 | ||||
(9301-0408)HZB4#..09S,10S,15S,26S,39S ; (0408-0708)XZB40..20S ; (0408-1501)XZB40..5
ﾌﾙﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62413-36010A0 |
BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62471-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62472-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36210E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36330E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62570-36050E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62570-36010E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62535B - GARNISH, PILLAR NO.1, RH | ||||
| 62535-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-36230E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62540-36270E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62546B - GARNISH, PILLAR NO.2, LH | ||||
| 62536-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62536-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62536-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62547B - GARNISH, PILLAR NO.3, LH | ||||
| 62537-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62537-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62537-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62540-36270E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62550-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62530-36280E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-08104A1 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-05020A0 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020A0 |
HDB50..4FC;BB46,HZB41..09S,15S;BB40,HDB51,HZB40,5#..GX,LX,SULNG IVORY,TRIM4# |
27 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62630-36100A2 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62670-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62070-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62621C - BOARD, SIDE TRIM NO.1, LH | ||||
| 62621-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 62621E - CLIP | ||||
| 90467-08104A3 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM41 |
4 | ||
| 90467-08104A1 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
4 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62640-36090A0 |
HDB51,HZB41..EX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVOR,TRIM4# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62680-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62080-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36020A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
1 | ||
| 62989-36021A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD GRAIGE,TRIM4# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36040A1 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63951-36030A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A0 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB40,HDB51,HZB4#,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 67921-95500 | ||||
| 90159-50322 | ||||
| 93560-14014 | ||||
(9301-0408)BZB50,HDB51,HZB41..15S,24S,26S,29S ;(0408-1501)EX,GX ; (0408-1501)XZB50
ﾌﾙﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62313-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62413-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62413-36010A0 |
BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62413-36010A0 |
BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62471-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62471-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62471-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 90467-05009 |
HDB5#,HZB41,50..EX,GX,SULNG |
2 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62472-36050A1 |
HDB51,HZB41..EX ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62472-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62472-36040A1 |
HDB51,HZB41..EX IVORY,TRIM4# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36210E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62510-36210E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36330E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62520-36330E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62570-36050E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62570-36050E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62570-36010E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62570-36010E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62535B - GARNISH, PILLAR NO.1, RH | ||||
| 62535-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62535-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-36230E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62540-36230E0 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 62540-36270E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62540-36270E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62545-36020A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62546B - GARNISH, PILLAR NO.2, LH | ||||
| 62536-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62536-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62536-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62536-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62536-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62536-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62547B - GARNISH, PILLAR NO.3, LH | ||||
| 62537-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62537-36050A0 |
HDB51,HZB41..EX ｱﾘ(*FD(AUTO)),IVORY,TRIM4# |
1 | ||
| 62537-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62537-36020A0 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 62537-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62537-36010A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62538-36020A0 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62540-36270E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62540-36270E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62550-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62550-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62560-36110E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62530-36280E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62530-36280E0 |
HZB41 GREIGE,TRIM4# |
1 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB41..15S ﾚｯﾄﾞ |
42 | ||
| 67771-12050 |
HZB41..15S ﾚｯﾄﾞ |
42 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-08104A1 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-08104A1 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-05020A0 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-05020A0 |
BB4#,HDB50,HZB40,5#..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020A0 |
HDB50..4FC;BB46,HZB41..09S,15S;BB40,HDB51,HZB40,5#..GX,LX,SULNG IVORY,TRIM4# |
27 | ||
| 90467-06020A0 |
HDB50..4FC;BB46,HZB41..09S,15S;BB40,HDB51,HZB40,5#..GX,LX,SULNG IVORY,TRIM4# |
27 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62630-36100A2 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62630-36100A2 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62670-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62670-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62070-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62070-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62621C - BOARD, SIDE TRIM NO.1, LH | ||||
| 62621-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 62621-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 62621E - CLIP | ||||
| 90467-08104A3 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM41 |
4 | ||
| 90467-08104A3 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM41 |
4 | ||
| 90467-08104A1 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
4 | ||
| 90467-08104A1 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
4 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62640-36090A0 |
HDB51,HZB41..EX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVOR,TRIM4# |
1 | ||
| 62640-36090A0 |
HDB51,HZB41..EX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ),IVOR,TRIM4# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62680-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62680-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62080-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62080-36020A1 |
HZB41..15S IVORY,TRIM4# |
1 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36020A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
1 | ||
| 62989-36020A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
1 | ||
| 62989-36021A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD GRAIGE,TRIM4# |
1 | ||
| 62989-36021A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD GRAIGE,TRIM4# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36040A1 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63951-36040A1 |
HDB51,HZB41 ｱﾘ(ﾃﾞﾗﾂｸｽ ﾙ-ﾑｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63951-36030A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 63951-36030A1 |
HDB51,HZB41 IVORY,TRIM4# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A0 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) |
2 | ||
| 90467-05009 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..15S,20S,26S,29S IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB40,HDB51,HZB4#,50..(15S,20S,26S,29S)..(DX,EX,LX,STD,SULNG) IVORY,TRIM4# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB40..5F;BB40,HDB51,HZB41,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HDB51,HZB41 ｱﾘ(*SOBD),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB40,HDB51,HZB4#,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB40,HDB51,HZB4#,50..DX,EX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| 67745-36010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 67921-95500 | ||||
| 75597-36010 | ||||
| 90159-50322 | ||||
| 90179-05042 | ||||
| 93249-55016 | ||||
| 93269-55016 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
