HZB41-ZCMQS (1993)
Toyota Coaster
Production
Jan 1993
-
May 1995
Engine
1HZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

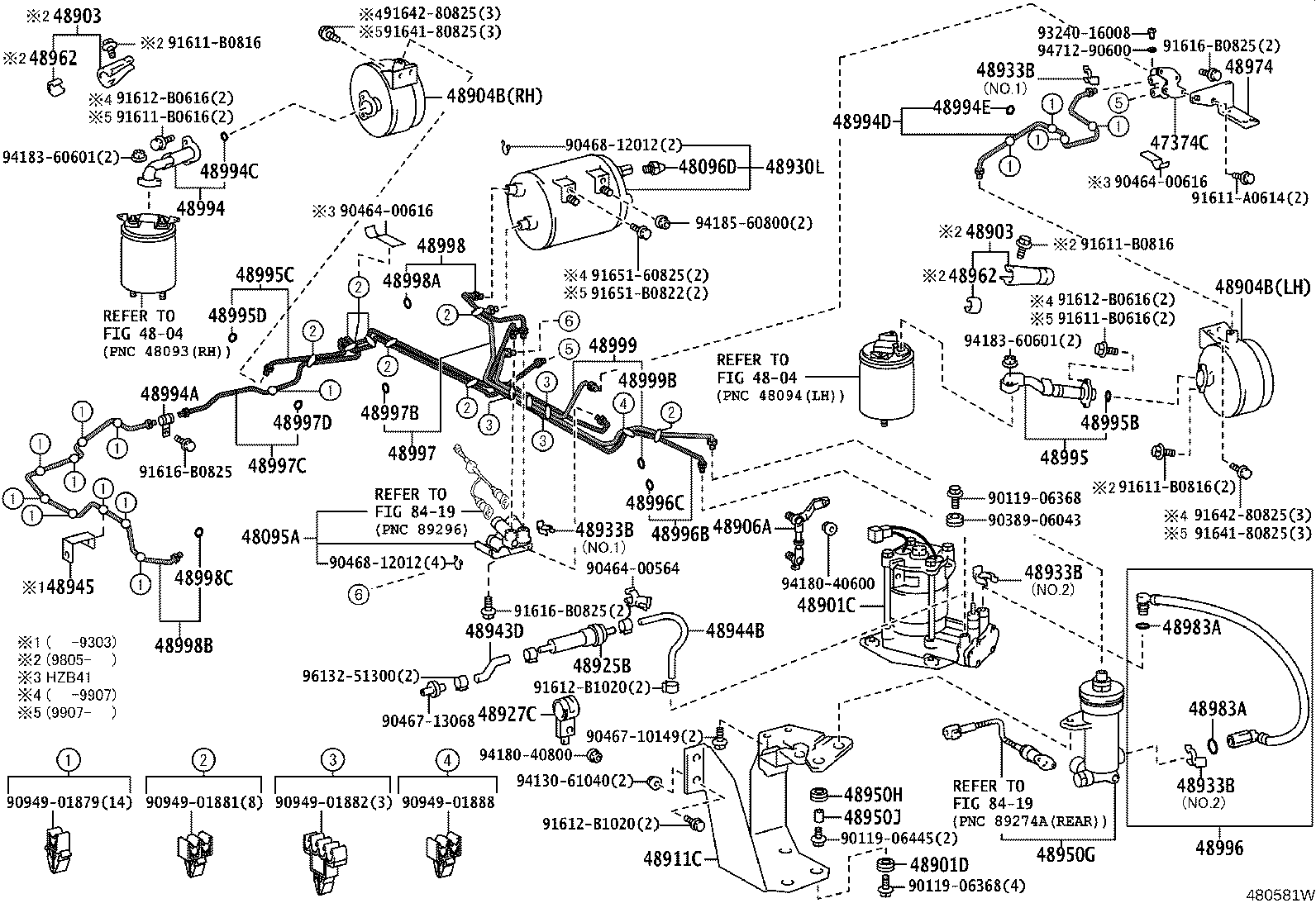

ILLUST NO. 2 OF 2(9301- )HDB51,HZB41,XZB51
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47374C - CONNECTOR, TUBE | ||||
| 47374-36050 |
HDB51,HZB41 |
1 | ||
| 48095A - VALVE SUB-ASSY, REAR HEIGHT CONTROL, NO.1 | ||||
| 48096-36020 |
HDB51,HZB41 |
1 | ||
| 48096D - VALVE SUB-ASSY, REAR HEIGHT CONTROL, NO.2 | ||||
| 48096-36010 |
HDB51,HZB41 |
1 | ||
| 48901C - COMPRESSOR SUB-ASSY, REAR HEIGHT CONTROL | ||||
| 48901-36020 |
HDB51,HZB41 |
1 | ||
| 48901D - BUSH(FOR REAR HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06022 |
HDB51,HZB41 |
4 | ||
| 48904B - TANK SUB-ASSY, HEIGHT CONTROL SUB, REAR | ||||
| 48904-36030 |
HDB51,HZB41 左側 |
1 | ||
| 48904-36020 |
HDB51,HZB41 右側 |
1 | ||
| 48904B - TANK SUB-ASSY, HEIGHT CONTROL SUB, REAR | ||||
| 48904-36030 |
HDB51,HZB41 左側 |
1 | ||
| 48904-36020 |
HDB51,HZB41 右側 |
1 | ||
| 48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-36020 |
HDB51,HZB41 |
1 | ||
| 48911C - BRACKET, REAR HEIGHT CONTROL COMPRESSOR | ||||
| 48911-36020 |
HDB51,HZB41 |
1 | ||
| 48925B - FILTER, REAR HEIGHT CONTROL | ||||
| 48925-36010 |
HDB51,HZB41 |
1 | ||
| 48927C - BRACKET, REAR HEIGHT CONTROL AIR CLEANER, NO.1 | ||||
| 48927-36010 |
HDB51,HZB41 |
1 | ||
| 48930L - RESERVOIR ASSY, REAR HEIGHT CONTROL | ||||
| 48930-36040 |
HDB51,HZB41 |
1 | ||
| 48933B - HOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30030 |
HDB51,HZB41 NO.1 & NO.2 |
18 | ||
| 48933B - HOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30030 |
HDB51,HZB41 NO.1 & NO.2 |
18 | ||
| 48933B - HOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30030 |
HDB51,HZB41 NO.1 & NO.2 |
18 | ||
| 48933B - HOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30030 |
HDB51,HZB41 NO.1 & NO.2 |
18 | ||
| 48943D - HOSE, REAR HEIGHT CONTROL, NO.1 | ||||
| 48943-36030 |
HDB51,HZB41 |
1 | ||
| 48944B - HOSE, REAR HEIGHT CONTROL, NO.2 | ||||
| 48943-36040 |
HDB51,HZB41 |
1 | ||
| 48945 - BRACKET, HEIGHT CONTROL HOSE, RH | ||||
| 48945-36020 |
HDB51,HZB41 |
1 | ||
| 48950G - DRYER ASSY, REAE HEIGHT CONTROL | ||||
| 48950-36020 |
HDB51,HZB41 |
1 | ||
| 48950H - BUSH(FOR REAR HEIGHT CONTROL DRYER) | ||||
| 90385-08009 |
HDB51,HZB41 |
2 | ||
| 48950J - SPACER(FOR REAR HEIGHT CONTROL DRYER) | ||||
| 90560-06026 |
HDB51,HZB41 |
2 | ||
| 48974 - BRACKET, HEIGHT CONTROL VALVE | ||||
| 48974-36010 |
HDB51,HZB41 |
1 | ||
| 48994 - TUBE, HEIGHT CONTROL, REAR NO.1 | ||||
| 48994-36020 |
HDB51,HZB41 |
1 | ||
| 48994A - WAY, NO.1(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 48976-36010 |
HDB51,HZB41 |
1 | ||
| 48994C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.1) | ||||
| 90301-25006 |
HDB51,HZB41 |
1 | ||
| 48994D - TUBE, HEIGHT CONTROL, REAR NO.7 | ||||
| 48985-36020 |
HDB51,HZB41 |
1 | ||
| 48994E - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.7) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48995 - TUBE, HEIGHT CONTROL, REAR NO.2 | ||||
| 48995-36020 |
HDB51,HZB41 |
1 | ||
| 48995B - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-25006 |
HDB51,HZB41 |
1 | ||
| 48995C - TUBE, HEIGHT CONTROL, REAR NO.8 | ||||
| 48986-36020 |
HDB51,HZB41 |
1 | ||
| 48995D - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.8) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48996 - TUBE, HEIGHT CONTROL, REAR NO.3 | ||||
| 48981-36020 |
HDB51,HZB41 |
1 | ||
| 48996B - TUBE, HEIGHT CONTROL, REAR NO.9 | ||||
| 48987-36020 |
HDB51,HZB41 |
1 | ||
| 48996C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.9) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48997 - TUBE, HEIGHT CONTROL, REAR NO.4 | ||||
| 48982-36020 |
HDB51,HZB41 |
1 | ||
| 48997B - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48997C - TUBE, HEIGHT CONTROL, REAR NO.10 | ||||
| 48988-36010 |
HDB51,HZB41 |
1 | ||
| 48997D - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.10) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48998 - TUBE, HEIGHT CONTROL, REAR NO.5 | ||||
| 48983-36020 |
HDB51,HZB41 |
1 | ||
| 48998A - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48998B - TUBE, HEIGHT CONTROL, REAR NO.11 | ||||
| 48989-36012 |
HDB51,HZB41 |
1 | ||
| 48998C - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.11) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48999 - TUBE, HEIGHT CONTROL, REAR NO.6 | ||||
| 48984-36020 |
HDB51,HZB41 |
1 | ||
| 48999B - RING, O(FOR REAR HEIGHT CONTROL TUBE NO.6) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06445 | ||||
| 90389-06043 | ||||
| 90464-00564 | ||||
| 90464-00616 | ||||
| 90467-10149 | ||||
| 90467-13068 | ||||
| 90468-12012 | ||||
| 90949-01879 | ||||
| 90949-01881 | ||||
| 90949-01882 | ||||
| 90949-01888 | ||||
| 91611-A0614 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91612-B0616 | ||||
| 91612-B1020 | ||||
| 91616-B0825 | ||||
| 91641-80825 | ||||
| 91642-80825 | ||||
| 91651-60825 | ||||
| 91651-B0822 | ||||
| 93240-16008 | ||||
| 94130-61040 | ||||
| 94180-40600 | ||||
| 94180-40800 | ||||
| 94183-60601 | ||||
| 94185-60800 | ||||
| 94712-90600 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 8419 | ||||
ILLUST NO. 1 OF 2(9301-0408)HDB51,HZB41
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48095B - VALVE SUB-ASSY, FRONT HEIGHT CONTROL, NO.1 | ||||
| 48095-36020 |
HDB51,HZB41 |
1 | ||
| 48901A - COMPRESSOR SUB-ASSY, FRONT HEIGHT CONTROL | ||||
| 48901-36030 |
HDB51,HZB41 |
1 | ||
| 48901E - BUSH(FOR FRONT HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06022 |
HDB51,HZB41 |
3 | ||
| 48911B - BRACKET, FRONT HEIGHT CONTROL COMPRESSOR | ||||
| 48911-36030 |
HDB51,HZB41 |
1 | ||
| 48925A - FILTER, FRONT HEIGHT CONTROL | ||||
| 48925-36010 |
HDB51,HZB41 |
1 | ||
| 48927B - BRACKET, FRONT HEIGHT CONTROL AIR CLEANER, NO.1 | ||||
| 48927-36010 |
HDB51,HZB41 |
1 | ||
| 48930E - TANK ASSY, PNEUMATIC | ||||
| 48930-36020 |
HDB51,HZB41 右側 |
1 | ||
| 48930-36030 |
HDB51,HZB41 左側 |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
HDB51,HZB41 |
4 | ||
| 48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30010 |
HDB51,HZB41 |
2 | ||
| 48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP | ||||
| 48933-30010 |
HDB51,HZB41 |
2 | ||
| 48943C - HOSE, FRONT HEIGHT CONTROL, NO.1 | ||||
| 48943-36010 |
HDB51,HZB41 |
1 | ||
| 48944A - HOSE, FRONT HEIGHT CONTROL, NO.2 | ||||
| 48943-36020 |
HDB51,HZB41 |
1 | ||
| 48950F - DRYER ASSY, FRONT HEIGHT CONTROL | ||||
| 48950-36030 |
HDB51,HZB41 |
1 | ||
| 48950K - BUSH(FOR FRONT HEIGHT CONTROL DRYER) | ||||
| 90385-08009 |
HDB51,HZB41 |
2 | ||
| 48950L - SPACER(FOR FRONT HEIGHT CONTROL DRYER) | ||||
| 90560-06026 |
HDB51,HZB41 |
2 | ||
| 48981G - TUBE, HEIGHT CONTROL, FRONT NO.1 | ||||
| 48981-36030 |
HDB51,HZB41 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48982D - TUBE, HEIGHT CONTROL, FRONT NO.2 | ||||
| 48982-36030 |
HDB51,HZB41 |
1 | ||
| 48983C - TUBE, HEIGHT CONTROL, FRONT NO.3 | ||||
| 48983-36030 |
HDB51,HZB41 |
1 | ||
| 48983D - RING, O(FOR FRONT HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04004 |
HDB51,HZB41 |
4 | ||
| 48984B - TUBE, HEIGHT CONTROL, FRONT NO.4 | ||||
| 48984-36030 |
HDB51,HZB41 |
1 | ||
| 48985C - TUBE, HEIGHT CONTROL, FRONT NO.5 | ||||
| 48947-36010 |
HDB51,HZB41 |
1 | ||
| 48985D - RING, O(FOR FRONT HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-25006 |
HDB51,HZB41 |
2 | ||
| 48986B - TUBE, HEIGHT CONTROL, FRONT NO.6 | ||||
| 48947-36020 |
HDB51,HZB41 |
1 | ||
| 48986C - RING, O(FOR FRONT HEIGHT CONTROL TUBE NO.6) | ||||
| 90301-25006 |
HDB51,HZB41 |
2 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06445 | ||||
| 90119-08594 | ||||
| 90467-09073 | ||||
| 90467-10149 | ||||
| 90467-13068 | ||||
| 90468-12012 | ||||
| 90949-01879 | ||||
| 90949-01880 | ||||
| 90949-01881 | ||||
| 90949-01883 | ||||
| 91611-A0614 | ||||
| 91611-B0616 | ||||
| 91612-B0616 | ||||
| 91612-B1020 | ||||
| 91641-80825 | ||||
| 91642-80825 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 8419 | ||||
