HZB41-ZCMQS (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9703)HDB51,HZB41

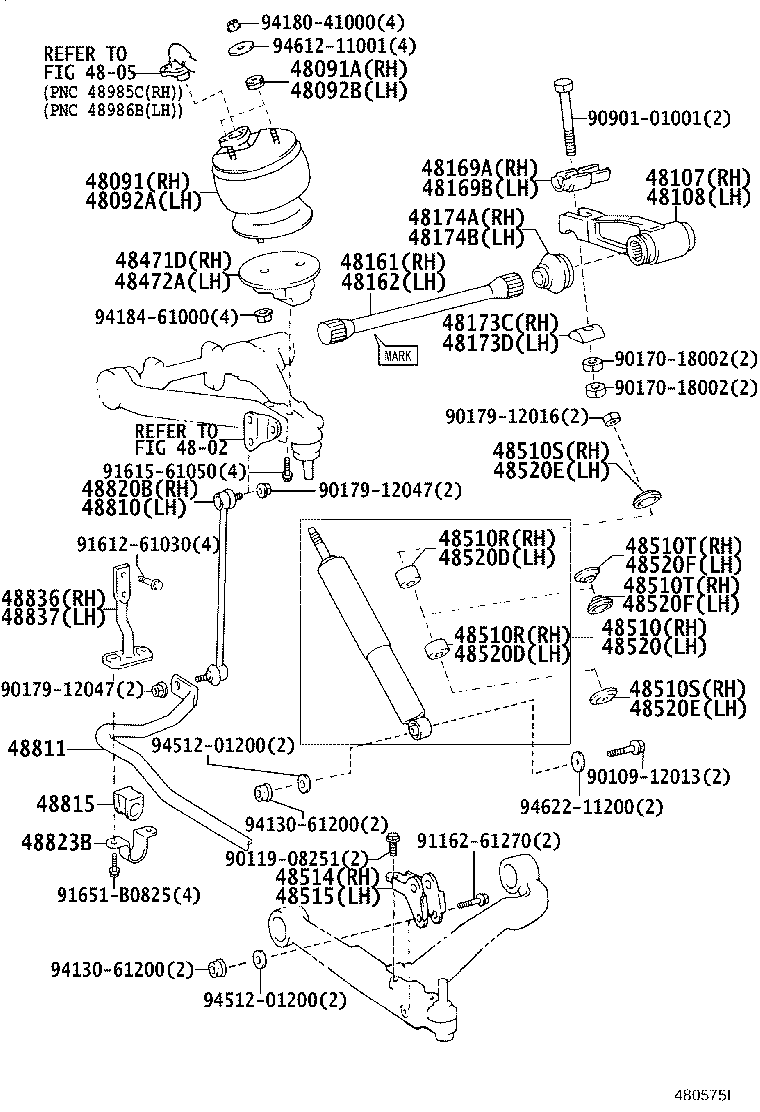

Click highlighted areas on diagram

diagram 4802 4805 48091 48091A 48092A 48092B 48107 48108 48161 48162 48169A 48169B 48173C 48173D 48174A 48174B 48471D 48472A 48510 48510R 48510R 48510S 48510S 48510T 48510T 48514 48515 48520 48520D 48520D 48520E 48520E 48520F 48520F 48810 48811 48815 48820B 48823B 48836 48837 9010912013 9011908251 9017018002 9017018002 9017912016 9017912047 9017912047 9090101001 9116261270 9161261030 9161561050 91651B0825 9413061200 9413061200 9418041000 9418461000 9451201200 9451201200 9461211001 9462211200
Part # Description Qty Price
48091 - SLEEVE SUB-ASSY, FRONT SUSPENSION, RH
48901-36040

HDB51,HZB41

 1
48091A - GROMMET(FOR FRONT SUSPENSION SLEEVE RH)
90480-16038

HDB51,HZB41

 2
48092A - SLEEVE SUB-ASSY, FRONT SUSPENSION, LH
48902-36030

HDB51,HZB41

 1
48092B - GROMMET(FOR FRONT SUSPENSION SLEEVE LH)
90480-16038

HDB51,HZB41

 2
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-36030

BB4#,HDB50,HZB40,5#

 1
48107-36020

HDB51,HZB41

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-36020

HDB51,HZB41

 1
48108-36030

BB4#,HDB50,HZB40,5#

 1
48161 - SPRING, TORSION BAR, RH
48161-36070

HDB50,HZB40,5#

MARK 48161-36070 OR 36070R G

 1
48161-36090

HDB51,HZB41

MARK 48161-36090 OR 36090R H

 1
48162 - SPRING, TORSION BAR, LH
48162-36090

HDB51,HZB41

MARK 48162-36090 OR 36090L H

 1
48162-36070

HDB50,HZB40,5#

MARK 48162-36070 OR 36070L G

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-36020

BB4#,HDB5#,HZB4#,5#

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-36020

BB4#,HDB5#,HZB4#,5#

 1
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-36010

BB4#,HDB5#,HZB4#,5#

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-36010

BB4#,HDB5#,HZB4#,5#

 1
48174A - COVER, TORSION BAR DUST, RH
48174-35010

HDB51,HZB41

 1
48174-36010

BB4#,HDB50,HZB40,5#

 1
48174B - COVER, TORSION BAR DUST, LH
48174-36010

BB4#,HDB50,HZB40,5#

 1
48174-35010

HDB51,HZB41

 1
48471D - SEAT, FRONT SPRING, RH
48471-36010

HDB51,HZB41

 1
48472A - SEAT, FRONT SPRING, LH
48472-36010

HDB51,HZB41

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80013

HDB51,HZB41

ﾏｰｸ 48511−36250

 1
48511-80012

BB4#,HDB50,HZB40,5#

ﾏｰｸ 48511−36240

 1
48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48510S - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48510S - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48510T - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48510T - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-36050

BB4#,HDB5#,HZB4#,5#

 1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48514-36050

BB4#,HDB5#,HZB4#,5#

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80012

BB4#,HDB50,HZB40,5#

 1
48511-80013

HDB51,HZB41

ﾏｰｸ 48511−36250

 1
48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48520E - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48520E - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48520F - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48520F - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-36010

HDB51,HZB41

 1
48811 - BAR, STABILIZER, FRONT
48811-36040

HDB51,HZB41

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-60020

HDB51,HZB41

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-36010

HDB51,HZB41

 1
48823B - COVER, FRONT STABILIZER BRACKET
48823-60030

HDB51,HZB41

 2
48836 - BRACKET, FRONT STABILIZER END, RH
48836-36030

HDB51,HZB41

 1
48837 - BRACKET, FRONT STABILIZER END, LH
48837-36020

HDB51,HZB41

 1
Common parts
90109-12013
90119-08251
90170-18002
90179-12016
90179-12047
90901-01001
91162-61270
91612-61030
91615-61050
91651-B0825
94130-61200
94180-41000
94184-61000
94512-01200
94612-11001
94622-11200
Linked diagrams
4802
4805

(9301-9703)BB4#,HDB50,HZB40,5#

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169A 48169B 48173C 48173D 48174A 48174B 48510 48510R 48510R 48510S 48510S 48510T 48510T 48514 48515 48520 48520D 48520D 48520E 48520E 48520F 48520F 9010118002 9010912013 9011908251 9017018002 9017018002 9017912016 9116261270 9411541200 9411541200 9451201200 9451201200 9462211200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-36030

BB4#,HDB50,HZB40,5#

 1
48107-36020

HDB51,HZB41

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-36020

HDB51,HZB41

 1
48108-36030

BB4#,HDB50,HZB40,5#

 1
48161 - SPRING, TORSION BAR, RH
48161-36070

HDB50,HZB40,5#

MARK 48161-36070 OR 36070R G

 1
48161-36090

HDB51,HZB41

MARK 48161-36090 OR 36090R H

 1
48162 - SPRING, TORSION BAR, LH
48162-36090

HDB51,HZB41

MARK 48162-36090 OR 36090L H

 1
48162-36070

HDB50,HZB40,5#

MARK 48162-36070 OR 36070L G

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-36020

BB4#,HDB5#,HZB4#,5#

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-36020

BB4#,HDB5#,HZB4#,5#

 1
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-36010

BB4#,HDB5#,HZB4#,5#

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-36010

BB4#,HDB5#,HZB4#,5#

 1
48174A - COVER, TORSION BAR DUST, RH
48174-35010

HDB51,HZB41

 1
48174-36010

BB4#,HDB50,HZB40,5#

 1
48174B - COVER, TORSION BAR DUST, LH
48174-36010

BB4#,HDB50,HZB40,5#

 1
48174-35010

HDB51,HZB41

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80013

HDB51,HZB41

ﾏｰｸ 48511−36250

 1
48511-80012

BB4#,HDB50,HZB40,5#

ﾏｰｸ 48511−36240

 1
48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48510S - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48510S - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48510T - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48510T - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-36050

BB4#,HDB5#,HZB4#,5#

 1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48514-36050

BB4#,HDB5#,HZB4#,5#

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80012

BB4#,HDB50,HZB40,5#

 1
48511-80013

HDB51,HZB41

ﾏｰｸ 48511−36250

 1
48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH
90948-01004

BB4#,HDB5#,HZB4#,5#

 2
48520E - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48520E - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
90948-02009

BB4#,HDB5#,HZB4#,5#

 2
48520F - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
48520F - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
90948-02054

BB4#,HDB5#,HZB4#,5#

 2
Common parts
90101-18002
90109-12013
90119-08251
90170-18002
90179-12016
91162-61270
94115-41200
94512-01200
94622-11200
