HZB36V-MDZR (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HDB3#,HZB3#

Click highlighted areas on diagram

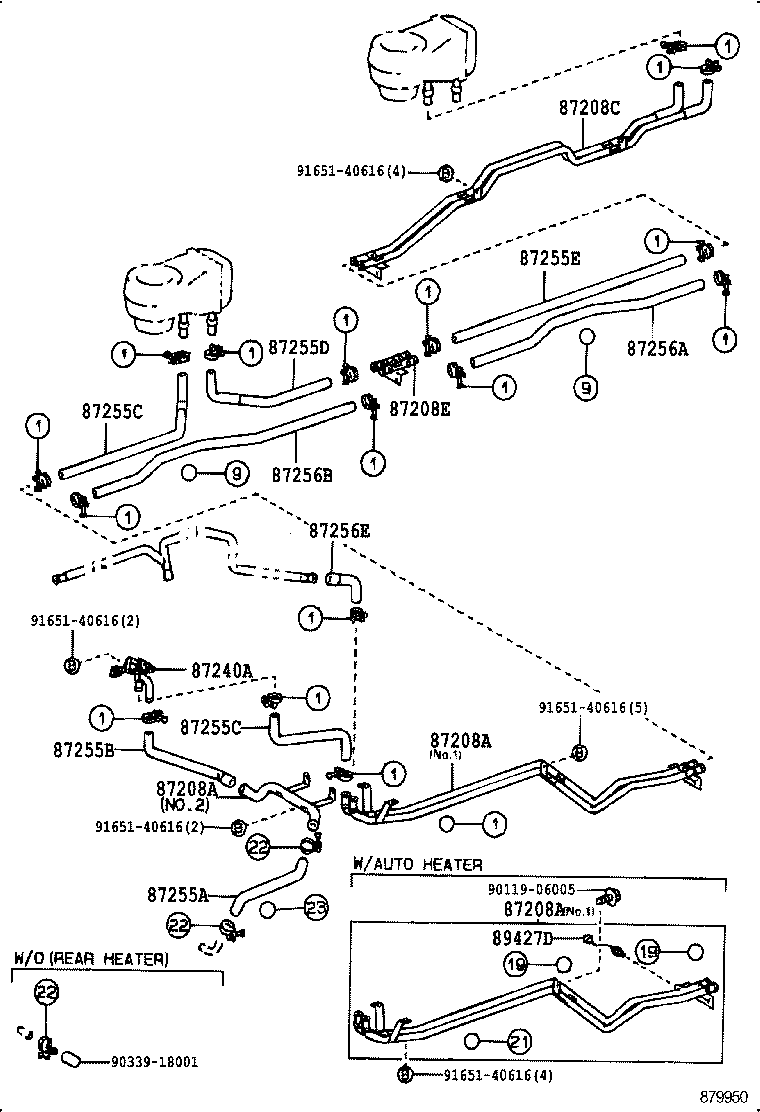

diagram 87208A 87208A 87208A 87208C 87208E 87240A 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256E 89427D 9011906005 9033918001 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B33

HDB20,3#,HZB3#

NO.2

 1
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B33

HDB20,3#,HZB3#

NO.2

 1
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B33

HDB20,3#,HZB3#

NO.2

 1
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B01

BB2#,3#,HB3#,RB2#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-90B22

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

COLD SPEC

 1
87245-90B08

HB30,36

 1
87209-90B05

BB2#,3#

 1
87245-90B70

HDB20,3#,HZB3#

 1
87245-90B73

HDB20,3#,HZB3#

COLD SPEC

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90B69

HDB20,3#,HZB3#

 1
87245-90B09

BB2#,3#,HB3#,RB2#

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-90B09

HDB20,3#,HZB3#

WATER VALVE

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-90B09

HDB20,3#,HZB3#

WATER VALVE

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-90B07

HB30,36

NO.1

 1
87209-90B21

BB2#,3#

 1
87245-90B89

HDB20,3#,HZB3#

 1
89427D - SWITCH, TEMPERATURE
89427-90B00

HDB20,3#,HZB30,31

 1
Common parts
90119-06005
90339-18001
91651-40616

(9001- )HDB20,3#,HZB3#

Click highlighted areas on diagram

diagram 87240 87245A 87245A 87245B 87245C 87245E 87246A 87246B 87246E 87248A 87248B 87249A 87249B 87249B 9033916001 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90B06

HB30,36

 1
87245-90B11

BB2#,3#

 1
87245-90B71

HDB20,3#,HZB3#

 1
87245-90B85

HDB20,3#,HZB3#

COLD SPEC

 1
87245-90B24

BB2#,3#,HB3#..10S,20S,26S,29S

COLD SPEC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90B06

HB30,36

 1
87245-90B11

BB2#,3#

 1
87245-90B71

HDB20,3#,HZB3#

 1
87245-90B85

HDB20,3#,HZB3#

COLD SPEC

 1
87245-90B24

BB2#,3#,HB3#..10S,20S,26S,29S

COLD SPEC

 1
87245B - HOSE, HEATER WATER, INLET B
87245-90B03

BB2#,3#

 1
99556-30250

HDB20,3#,HZB3#

*H,L=250,COLD SPEC

 1
99556-30240

HDB20,3#,HZB3#

*H,L=240

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-90B03

BB21,23,24,26,31,36,RB2#..10S,26S,29S

COLD SPEC

 1
87245-90B04

HDB20,3#,HZB3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90B04

BB2#,3#,RB2#

 1
87245-90B01

HDB20,3#,HZB3#

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30250

HDB20,3#,HZB3#

*H,L=250

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90B05

HB30,36

 1
87245-90B67

HDB20,3#,HZB3#

 1
87245-90B25

BB2#,3#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-90B37

HDB20,3#,HZB3#

COLD SPEC

 1
87208-90B34

HDB20,3#,HZB3#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-90B35

HDB20,3#,HZB3#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-90B01

HDB20,3#,HZB3#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-90B42

HDB30,HZB30,36

W/O REAR HEATER

 1
87208-90B31

HDB20,3#,HZB3#

 1
87209-90B20

HB30,36

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-90B42

HDB30,HZB30,36

W/O REAR HEATER

 1
87208-90B31

HDB20,3#,HZB3#

 1
87209-90B20

HB30,36

 1
Common parts
90339-16001
91651-40616
96112-10250

(9001- )HZB36

Click highlighted areas on diagram

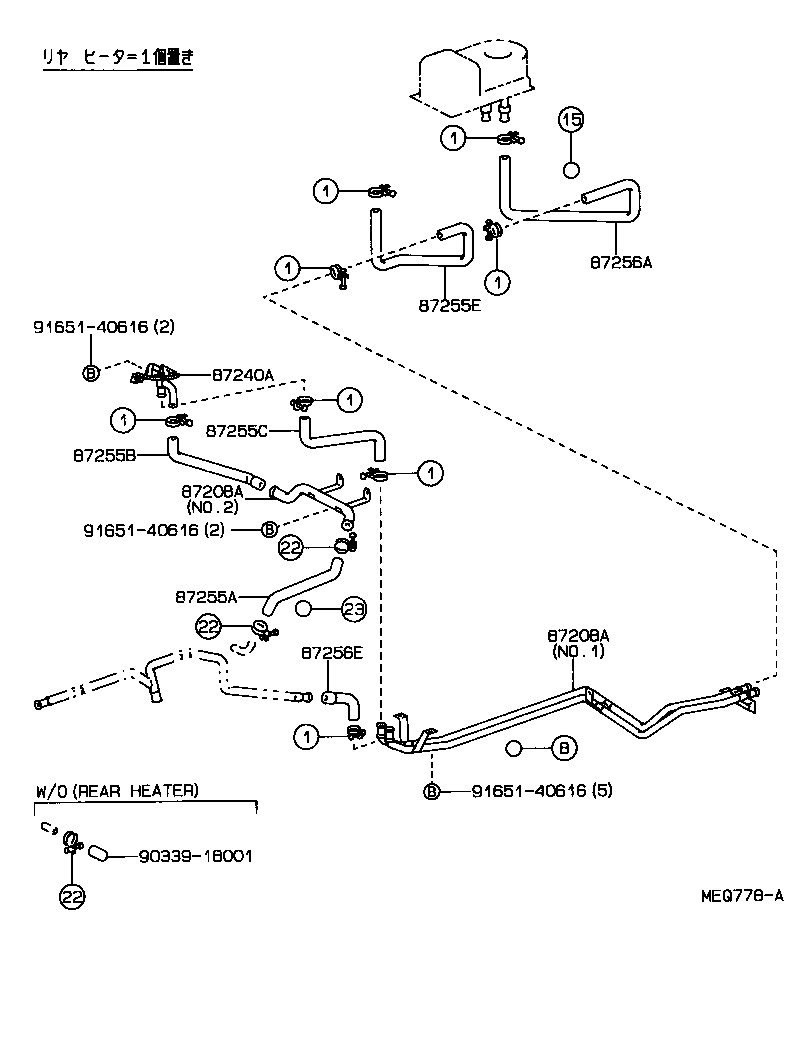

diagram 87208A 87208A 87240A 87255A 87255B 87255C 87255E 87256A 87256E 9033918001 9165140616 9165140616 9165140616
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B33

HDB20,3#,HZB3#

NO.2

 1
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B33

HDB20,3#,HZB3#

NO.2

 1
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B01

BB2#,3#,HB3#,RB2#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-90B22

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

COLD SPEC

 1
87245-90B08

HB30,36

 1
87209-90B05

BB2#,3#

 1
87245-90B70

HDB20,3#,HZB3#

 1
87245-90B73

HDB20,3#,HZB3#

COLD SPEC

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90B69

HDB20,3#,HZB3#

 1
87245-90B09

BB2#,3#,HB3#,RB2#

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-90B09

HDB20,3#,HZB3#

WATER VALVE

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-90B07

HB30,36

NO.1

 1
87209-90B21

BB2#,3#

 1
87245-90B89

HDB20,3#,HZB3#

 1
Common parts
90339-18001
91651-40616

(9001- )HDB20,3#,HZB30,31

Click highlighted areas on diagram

diagram 87208B 87208D 87247B 87247B 87247C 87247C 87247D 87247E 87247F 87260 87264 9165140610 9165140616 9165140616 9165140616 9165160820
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-90B45

BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S

W/*HP & *CH

 1
87208-90B10

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

W/*HP & *CH

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-90B04

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

COLD SPEC

 1
87208-90B36

HDB20,3#,HZB3#

COLD SPEC

 1
87247B - HOSE, HEATER WATER, B
87245-90B18

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S

 1
87247B - HOSE, HEATER WATER, B
87245-90B18

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S

 1
87247D - HOSE, HEATER WATER, D
87245-90B87

BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S

W/*HP & *CH

 1
87245-90B23

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

W/*HP & *CH

 1
87247E - HOSE, HEATER WATER, E
87245-90B88

BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S

W/*HP & *CH

 1
87245-90B22

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

W/*HP & *CH

 1
87260 - PUMP ASSY, HEATER
87260-90B01

BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S

 1
Common parts
91651-40610
91651-40616
91651-60820
