HZB31-PGZGR (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ

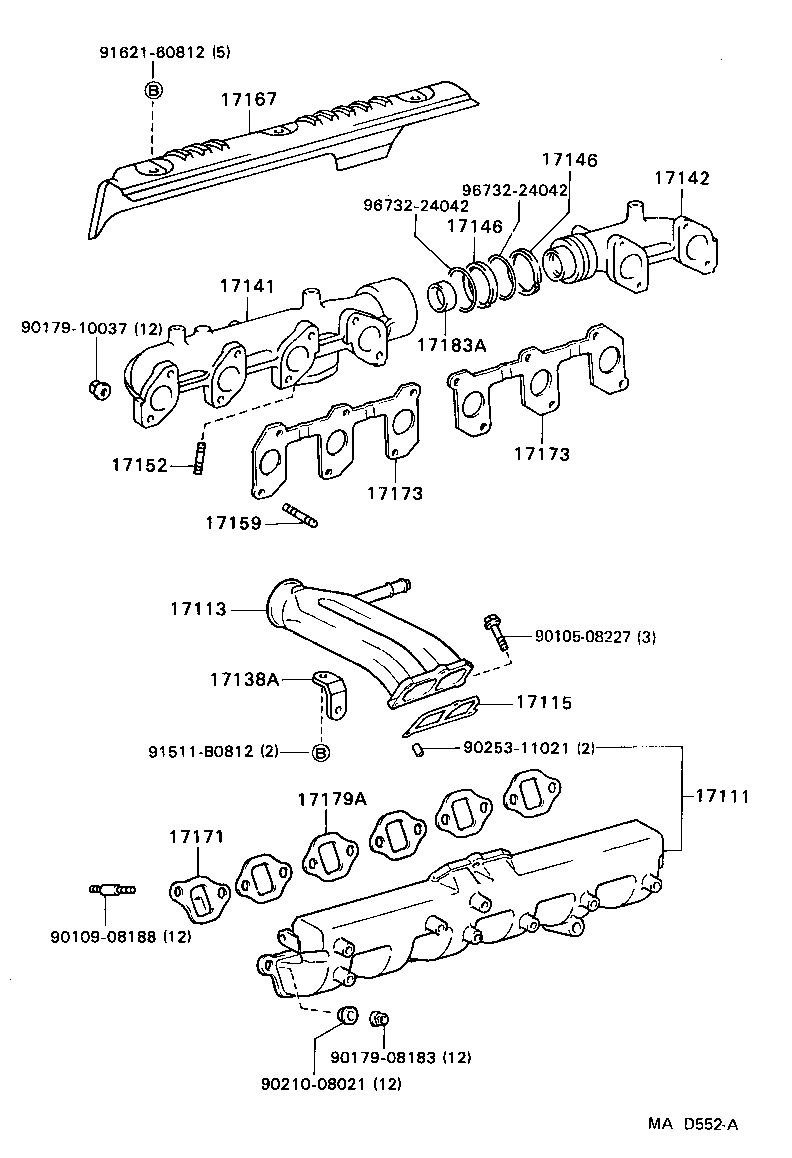

Click highlighted areas on diagram

diagram 17111 17113 17115 17138A 17141 17142 17146 17146 17152 17159 17167 17171 17173 17173 17179A 17183A 9010508227 9010908188 9017908183 9017910037 9021008021 9025311021 91511B0812 9162160812 9673224042 9673224042
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-17011

1H#..HDB20,3#,HZB3#

 1
17111-17010

1H#..HDB20,3#,HZB3#

 1
17113 - PIPE, INTAKE
17113-17010

1HZ..HZB3#

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
17115-17010

1H#..HDB20,3#,HZB3#

 1
17138A - STAY, INTAKE PIPE
17138-17010

1HZ..HZB3#

 1
17141 - MANIFOLD, EXHAUST
17141-17010

1HZ..HZB3#

 1
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-17010

1H#..HDB20,3#,HZB3#

 1
17146 - RING, EXHAUST MANIFOLD
17151-17010

1H#..HDB20,3#,HZB3#

 2
17146 - RING, EXHAUST MANIFOLD
17151-17010

1H#..HDB20,3#,HZB3#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10171

1H#..HDB20,3#,HZB3#

EXHAUST MANIFOLD

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-17010

1HZ..HZB3#

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-17010

1H#..HDB20,3#,HZB3#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-17010

1H#..HDB20,3#,HZB3#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-17010

1H#..HDB20,3#,HZB3#

 2
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-17010

1H#..HDB20,3#,HZB3#

 5
17183A - COLLAR, MANIFOLD
17183-17010

1H#..HDB20,3#,HZB3#

 1
Common parts
90105-08227
90109-08188
90179-08183
90179-10037
90210-08021
90253-11021
91511-B0812
91621-60812
96732-24042
