HZB30-PDZR (1990)
Toyota Coaster
Production
Jan 1990
-
Jan 1993
Engine
1HZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

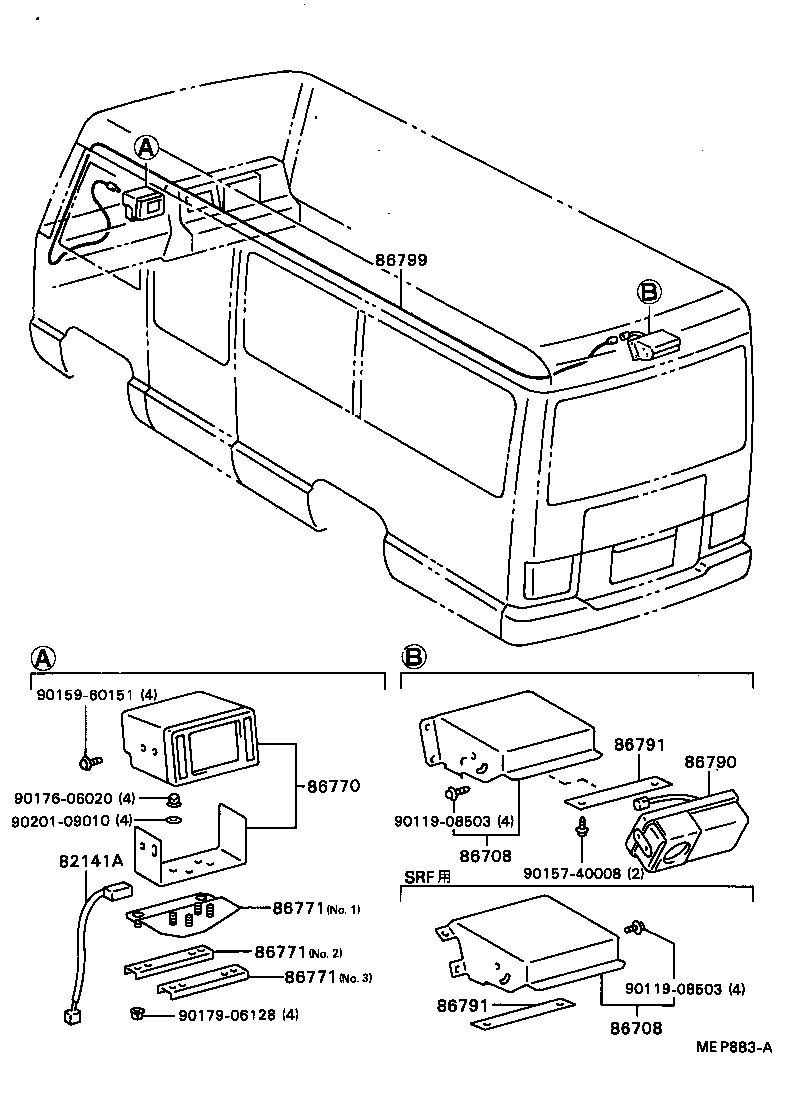

ILLUST NO. 2 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141A - WIRE, INSTRUMENT PANEL | ||||
| 82141-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 86708 - BRACKET SUB-ASSY, TELEVISION CAMERA | ||||
| 86708-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 86708 - BRACKET SUB-ASSY, TELEVISION CAMERA | ||||
| 86708-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 86770 - DISPLAY ASSY, TELEVISION | ||||
| 86770-90B01 |
BB2#,31,HDB20,3#,HZB3# |
1 | ||
| 86771 - BRACET, TELEVISION CAMERA DISPLAY | ||||
| 86771-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.1 |
1 | ||
| 86771-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.2 |
1 | ||
| 86771-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.3 |
1 | ||
| 86771 - BRACET, TELEVISION CAMERA DISPLAY | ||||
| 86771-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.1 |
1 | ||
| 86771-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.2 |
1 | ||
| 86771-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.3 |
1 | ||
| 86771 - BRACET, TELEVISION CAMERA DISPLAY | ||||
| 86771-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.1 |
1 | ||
| 86771-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.2 |
1 | ||
| 86771-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20 NO.3 |
1 | ||
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 86791 - BRACKET, TELEVISION CAMERA | ||||
| 86791-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 86791 - BRACKET, TELEVISION CAMERA | ||||
| 86791-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| Common parts | ||||
| 90119-08503 | ||||
| 90157-40008 | ||||
| 90159-60151 | ||||
| 90176-06020 | ||||
| 90179-06128 | ||||
| 90201-09010 | ||||
