HDB51-ZRPQZ (1999)
Toyota Coaster

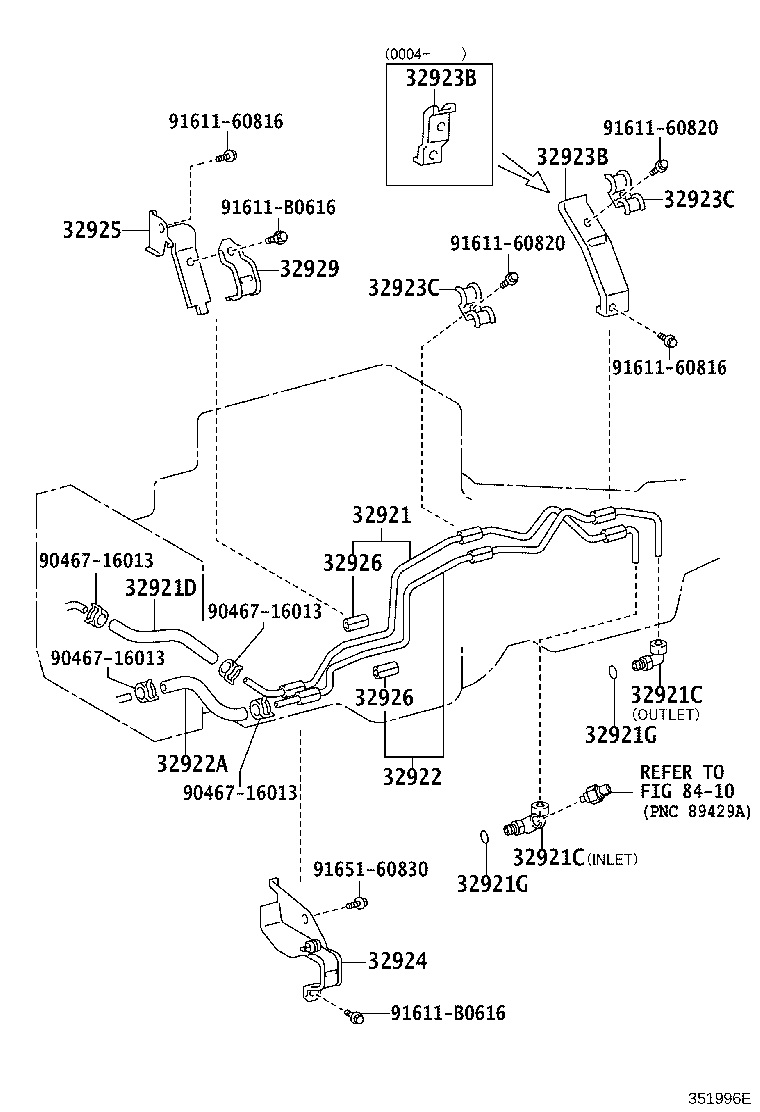

(9907-0408)HZB4#,5#..4FC
A441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921-36131 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921-36130 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 90407-20007 |
BB58,HDB5#,HZB4#,5#..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-20004 |
BB58,HDB5#,HZB4#,5#..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 90407-20007 |
BB58,HDB5#,HZB4#,5#..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-20004 |
BB58,HDB5#,HZB4#,5#..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17115 |
HDB5#,HZB4#,5#..4FC L=275 |
1 | ||
| 90445-17104 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 90445-17104 |
HDB5#,HZB4#,5#..4FC L=270 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
BB5#,HDB5#,HZB4#,5#..4FC |
2 | ||
| 90301-11006 |
BB58,HDB5#,HZB4#,5#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
BB5#,HDB5#,HZB4#,5#..4FC |
2 | ||
| 90301-11006 |
BB58,HDB5#,HZB4#,5#..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922-36141 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922-36140 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17096 |
HZB4#,5#..4FC |
1 | ||
| 90445-17103 |
HDB5#..4FC |
1 | ||
| 90445-17103 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-60050 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-25010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-60050 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-25010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
3 | ||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
3 | ||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32909-60010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60070 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32925-36060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
6 | ||
| 32926-25010 |
HDB5#,HZB4#,5#..4FC 長さ=35,内径=12 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
6 | ||
| 32926-25010 |
HDB5#,HZB4#,5#..4FC 長さ=35,内径=12 |
2 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-25030 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-B0616 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 8410 | ||||

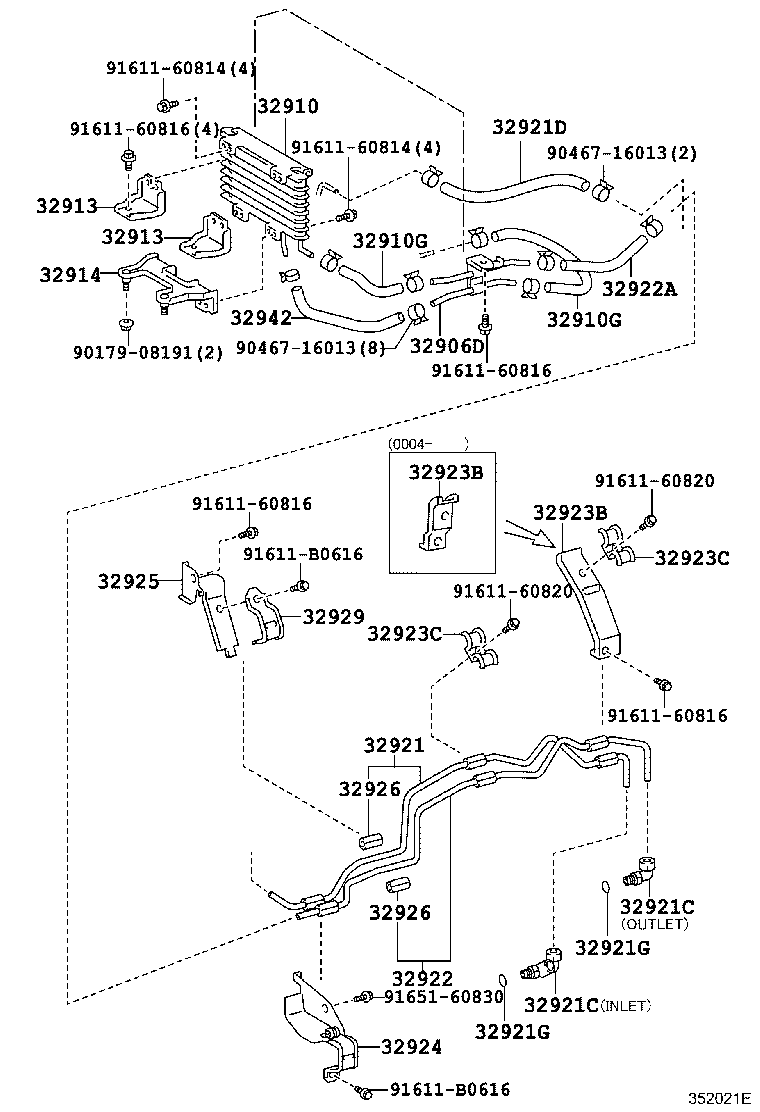

(9907-0408)HDB5#..4FC
A442E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906D - TUBE SUB-ASSY, OIL COOLER, NO.2 | ||||
| 32907-36100 |
HDB5#..4FC |
1 | ||
| 32907-36100 |
HDB5#..4FC |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-36040 |
HDB5#..4FC |
1 | ||
| 32910-36040 |
HDB5#..4FC |
1 | ||
| 32910G - HOSE, OIL COOLER OUTLET | ||||
| 90445-17100 |
HDB5#..4FC 長さ=200 |
1 | ||
| 90445-17101 |
HDB5#..4FC 長さ=185 |
1 | ||
| 90445-17109 |
HDB5#..4FC 長さ=190 |
1 | ||
| 90445-17101 |
HDB5#..4FC 長さ=185 |
1 | ||
| 32910G - HOSE, OIL COOLER OUTLET | ||||
| 90445-17100 |
HDB5#..4FC 長さ=200 |
1 | ||
| 90445-17101 |
HDB5#..4FC 長さ=185 |
1 | ||
| 90445-17109 |
HDB5#..4FC 長さ=190 |
1 | ||
| 90445-17101 |
HDB5#..4FC 長さ=185 |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-36040 |
HDB5#..4FC |
2 | ||
| 32913-36040 |
HDB5#..4FC |
2 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-36040 |
HDB5#..4FC |
2 | ||
| 32913-36040 |
HDB5#..4FC |
2 | ||
| 32914 - STAY, OIL COOLER | ||||
| 32914-36020 |
HDB5#..4FC |
1 | ||
| 32914-36020 |
HDB5#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921-36131 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921-36130 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 90407-20007 |
BB58,HDB5#,HZB4#,5#..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-20004 |
BB58,HDB5#,HZB4#,5#..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 90407-20007 |
BB58,HDB5#,HZB4#,5#..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-20004 |
BB58,HDB5#,HZB4#,5#..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17115 |
HDB5#,HZB4#,5#..4FC L=275 |
1 | ||
| 90445-17104 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 90445-17104 |
HDB5#,HZB4#,5#..4FC L=270 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
BB5#,HDB5#,HZB4#,5#..4FC |
2 | ||
| 90301-11006 |
BB58,HDB5#,HZB4#,5#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
BB5#,HDB5#,HZB4#,5#..4FC |
2 | ||
| 90301-11006 |
BB58,HDB5#,HZB4#,5#..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922-36141 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922-36140 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17096 |
HZB4#,5#..4FC |
1 | ||
| 90445-17103 |
HDB5#..4FC |
1 | ||
| 90445-17103 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-25010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-60060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-60050 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-25010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-60060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-60050 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
3 | ||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
3 | ||
| 90462-12076 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32909-60010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60070 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32925-36060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
6 | ||
| 32926-25010 |
HDB5#,HZB4#,5#..4FC 長さ=35,内径=12 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
6 | ||
| 32926-25010 |
HDB5#,HZB4#,5#..4FC 長さ=35,内径=12 |
2 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-25030 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 90445-17103 |
HDB5#..4FC |
1 | ||
| 90445-17103 |
HDB5#..4FC |
1 | ||
| Common parts | ||||
| 90179-08191 | ||||
| 90467-16013 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-B0616 | ||||
| 91651-60830 | ||||
