HDB51-ZRPQZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )1HDFTE

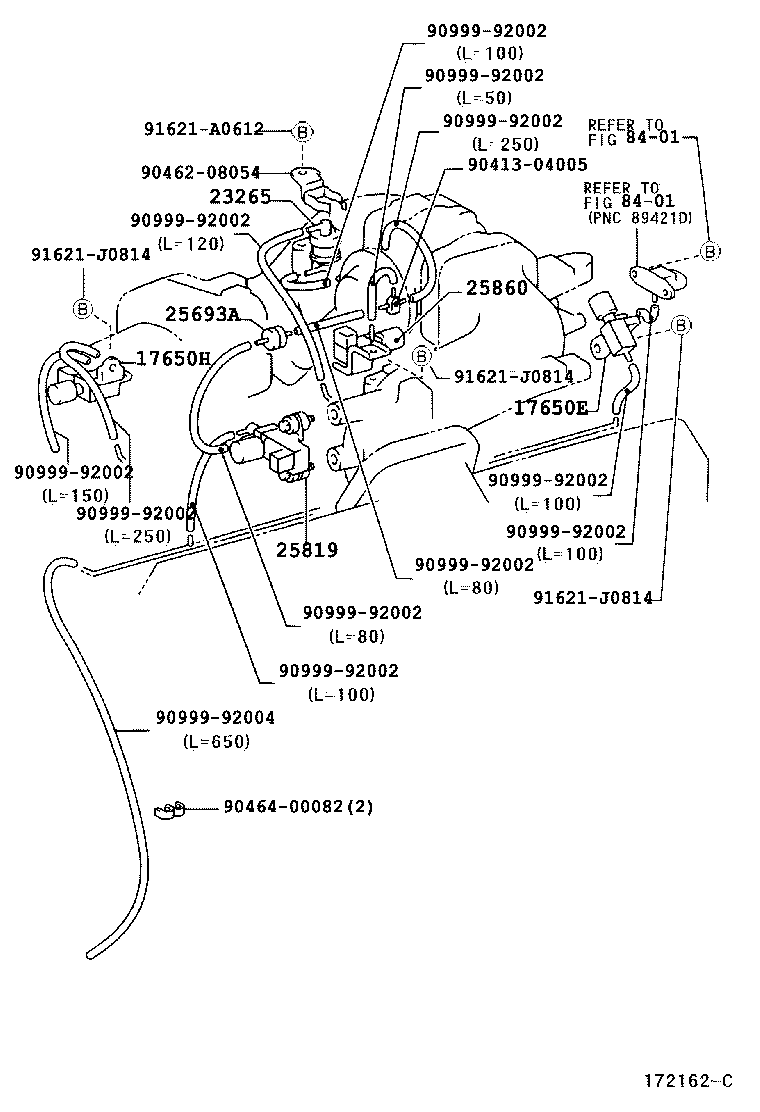

Click highlighted areas on diagram

diagram 17650E 17650H 23265 25693A 25819 25860 8401 8401 9041304005 9046208054 9046400082 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992004 91621A0612 91621J0814 91621J0814 91621J0814
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12013

1HDFTE..HDB5#

 1
90910-12136

1H#..HDB5#,HZB4#,5#

 1
17650H - VALVE, VACUUM SWITCHING
90910-12167

1HDFTE..HDB5#

 1
23265 - FILTER, GAS, NO.1
90925-06009

1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S

 1
90917-11036

1HDFTE..HDB5#

 1
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

1H#..HDB5#,HZB4#,5#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-58010

1H#..HDB5#,HZB4#,5#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-17080

1HDFTE..HDB5#

 1
Common parts
90413-04005
90462-08054
90464-00082
90999-92002
90999-92004
91621-A0612
91621-J0814
Linked diagrams
8401
