HDB51-ZRPQX (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HDT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

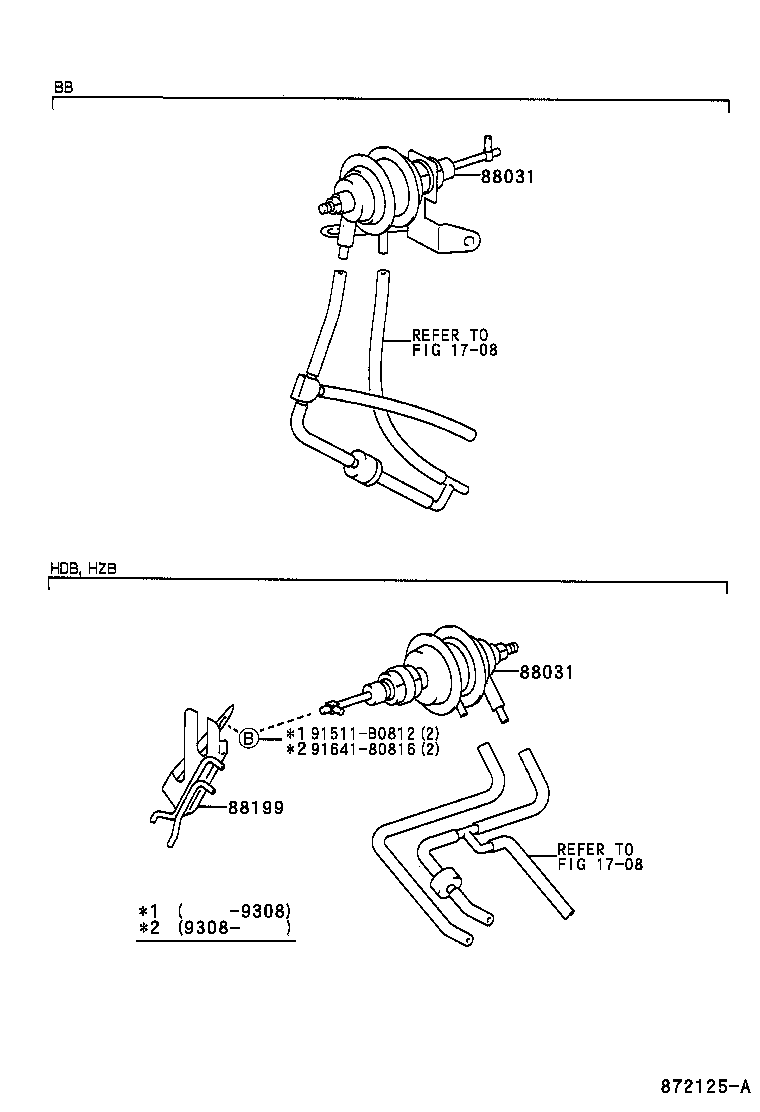

(9301-0408)BB4#,HDB5#,HZB4#,5#

Click highlighted areas on diagram

diagram 1708 1708 88031 88031 88199 91511B0812 9164180816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36100

HDB5#,HZB4#,5#..DSL2,TD2

 1
88031 - ACTUATOR SET, IDLE-UP
88031-36100

HDB5#,HZB4#,5#..DSL2,TD2

 1
88199 - BRACKET, IDLE UP ACTUATOR
88199-36010

HDB5#,HZB4#,5#

 1
Common parts
91511-B0812
91641-80816
Linked diagrams
1708

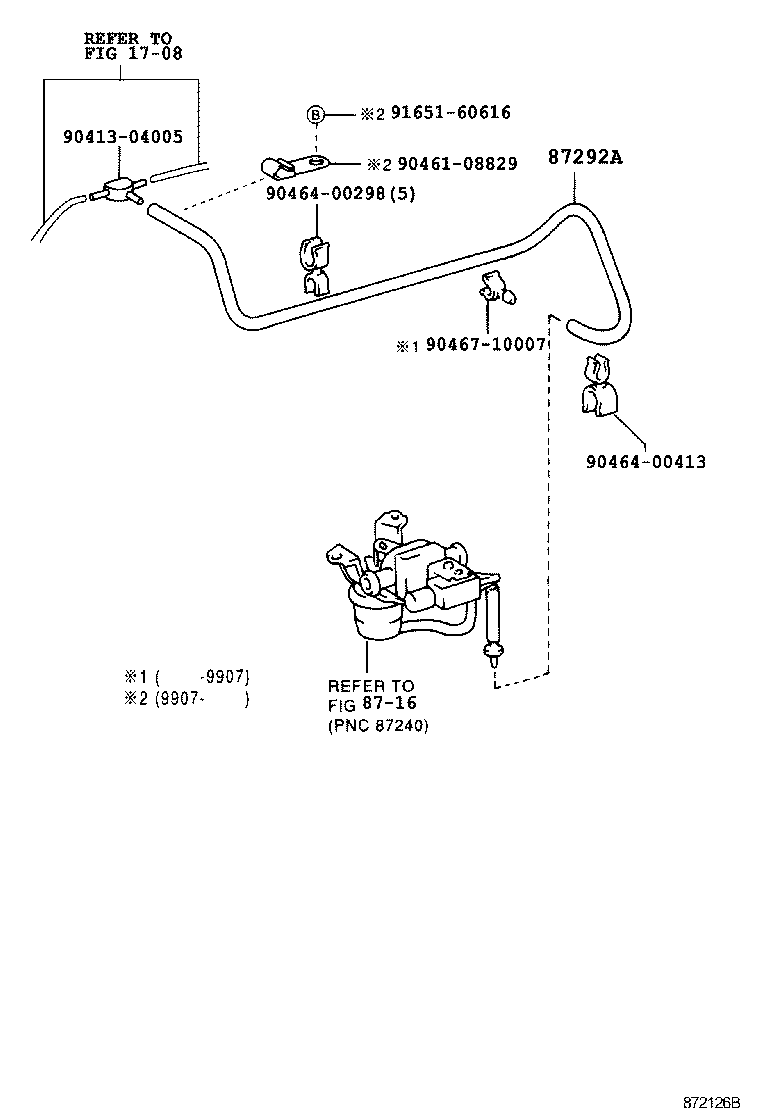

(9301-0408)EX,GX,SULNG..CBU,IV1 ; (0108-0408)IV5

Click highlighted areas on diagram

ｵ-ﾄｴｱｺﾝ

diagram 1708 8716 87292A 9041304005 9046108829 9046400298 9046400413 9046710007 9165160616
Part # Description Qty Price
87292A - HOSE, VACUUM TANK
90999-92004

HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)

 1
Common parts
90413-04005
90461-08829
90464-00298
90464-00413
90467-10007
91651-60616
Linked diagrams
1708
8716
