HDB51-ZRPQX (1993)
Toyota Coaster
ILLUST NO. 1 OF 4(9301-1209)
ｸﾞﾗｲﾄﾞ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85450F - MOTOR ASSY, DOOR CONTROL | ||||
| 85450-36040 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 85638A - SPACER, AUTOMATIC DOOR | ||||
| 85638-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-06255 | ||||
| 90119-08511 | ||||
| 90202-08039 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7851 | ||||

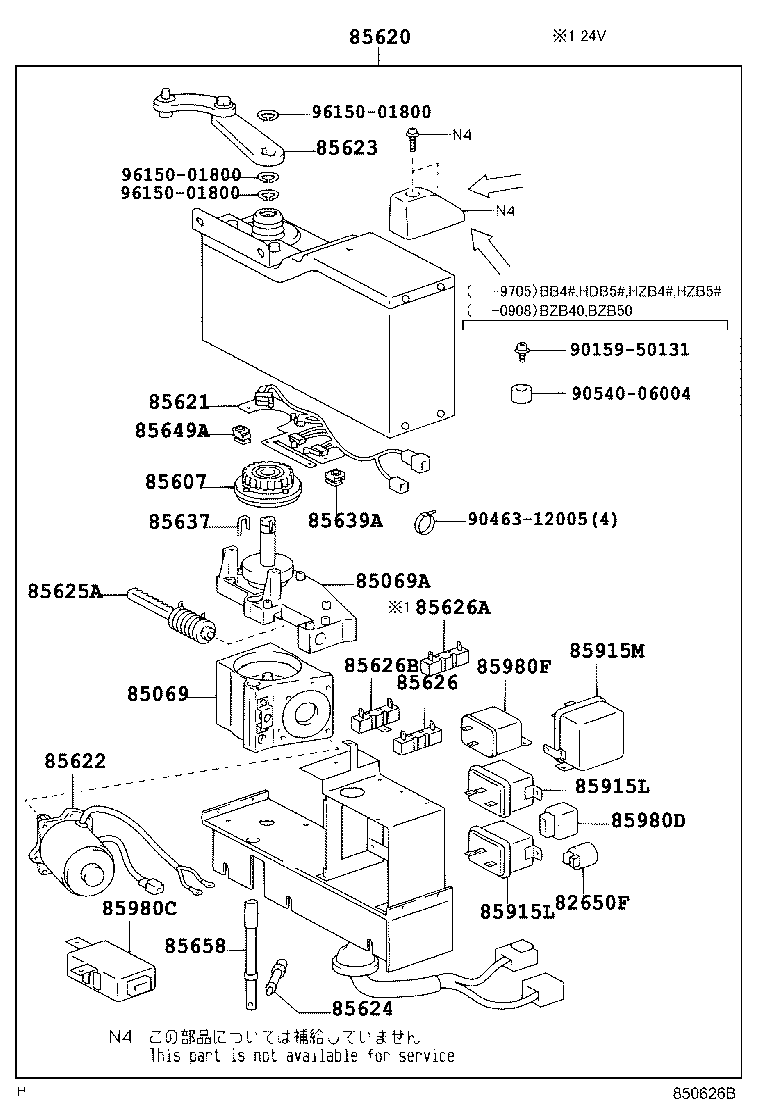

ILLUST NO. 2 OF 4(9301- )
ｸﾞﾗｲﾄﾞ ｼｷ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650F - BREAKER ASSY, WIRING CIRCUIT | ||||
| 82650-90500 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU 10A |
1 | ||
| 85069 - HOUSING SUB-ASSY, AUTO DOOR | ||||
| 85069-36020 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ (ﾌﾞｻﾞ- ﾂｷ) |
1 | ||
| 85069-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85069A - HOUSING SUB-ASSY, AUTO DOOR NO.2 | ||||
| 85069-36030 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85607 - GEAR SUB-ASSY, IDLE | ||||
| 85607-36020 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85607-36010 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR | ||||
| 85620-36080 |
BB46,HDB51,HZB41,56..EX,LX,SULNG |
1 | ||
| 85620-36120 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85620-36080E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 85621 - MOTOR & LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85621-36020 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85621-36010 |
BB46,HDB51,HZB41,56..(EX,LX,SULNG)..CBU |
1 | ||
| 85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR | ||||
| 85622-36020 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85622-36040 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85623 - LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85623-36010 |
BB46,HDB51,HZB41,56..EX,LX,SULNG |
1 | ||
| 85623-36020 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1 | ||||
| 85624-90B00 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85624-36010 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85625A - RACK, AUTOMATIC DOOR | ||||
| 85625-36020 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85625-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85626 - RESISTER, AUTOMATIC DOOR | ||||
| 85626-90B04 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU 2ｵ−ﾑ |
1 | ||
| 85626A - RESISTER, AUTOMATIC DOOR NO.2 | ||||
| 85626-90B05 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU 23ｵ−ﾑ |
1 | ||
| 85626B - RESISTER, AUTOMATIC DOOR NO.3 | ||||
| 85626-90B07 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU 12ｵ−ﾑ |
1 | ||
| 85637 - REMOVER, AUTOMATIC DOOR | ||||
| 85637-90B00 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 85639A - CAM, AUTO DOOR STOPPER, NO.1 | ||||
| 85639-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85649A - CAM, AUTO DOOR STOPPER, NO.2 | ||||
| 85649-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85658 - SHAFT, GUIDE ROLLER | ||||
| 85658-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85915L - RELAY, MAIN AUTOMATIC DOOR, NO.1 | ||||
| 85915-90B05 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 85915L - RELAY, MAIN AUTOMATIC DOOR, NO.1 | ||||
| 85915-90B05 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 85915M - RELAY, MAIN AUTOMATIC DOOR, NO.2 | ||||
| 85915-90B07 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36030 |
BB46,HDB51,HZB41,56..EX,LX,SULNG |
1 | ||
| 85980-36050 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36080 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
2 | ||
| 85980F - RELAY ASSY DOOR CONTROL, NO.4(FOR AUTOMATIC DOOR) | ||||
| 88630-90B01 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| Common parts | ||||
| 90159-50131 | ||||
| 90463-12005 | ||||
| 90540-06004 | ||||
| 96150-01800 | ||||
ILLUST NO. 1 OF 4(9301-1209)
ｵﾘﾄﾞ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 85629 - HOLDER, AUTOMATIC DOOR | ||||
| 85629-90B01 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-08354 | ||||
| 90119-08357 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| Linked diagrams | ||||
| 7851 | ||||
ILLUST NO. 2 OF 4(9301-1209)
ｵﾘﾄﾞ ｼｷ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85069 - HOUSING SUB-ASSY, AUTO DOOR | ||||
| 85069-36020 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ (ﾌﾞｻﾞ- ﾂｷ) |
1 | ||
| 85069-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85607 - GEAR SUB-ASSY, IDLE | ||||
| 85607-36020 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85607-36010 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85612 - GEAR, AUTOMATIC DOOR WORM WHEEL | ||||
| 85612-36010 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 85612-36011 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR | ||||
| 85620-36080 |
BB46,HDB51,HZB41,56..EX,LX,SULNG |
1 | ||
| 85620-36120 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85620-36080E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 85621 - MOTOR & LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85621-36020 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85621-36010 |
BB46,HDB51,HZB41,56..(EX,LX,SULNG)..CBU |
1 | ||
| 85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR | ||||
| 85622-36020 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85622-36040 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85623 - LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85623-36010 |
BB46,HDB51,HZB41,56..EX,LX,SULNG |
1 | ||
| 85623-36020 |
BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1 | ||||
| 85624-90B00 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85624-36010 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85625A - RACK, AUTOMATIC DOOR | ||||
| 85625-36020 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85625-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85627 - STAY, AUTOMATIC DOOR REGULATOR | ||||
| 85627-36010 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 85637 - REMOVER, AUTOMATIC DOOR | ||||
| 85637-90B00 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36030 |
BB46,HDB51,HZB41,56..EX,LX,SULNG |
1 | ||
| 85980-36050 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36080 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
2 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36080 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
2 | ||
| Common parts | ||||
| 90463-12005 | ||||
| 96150-01600 | ||||

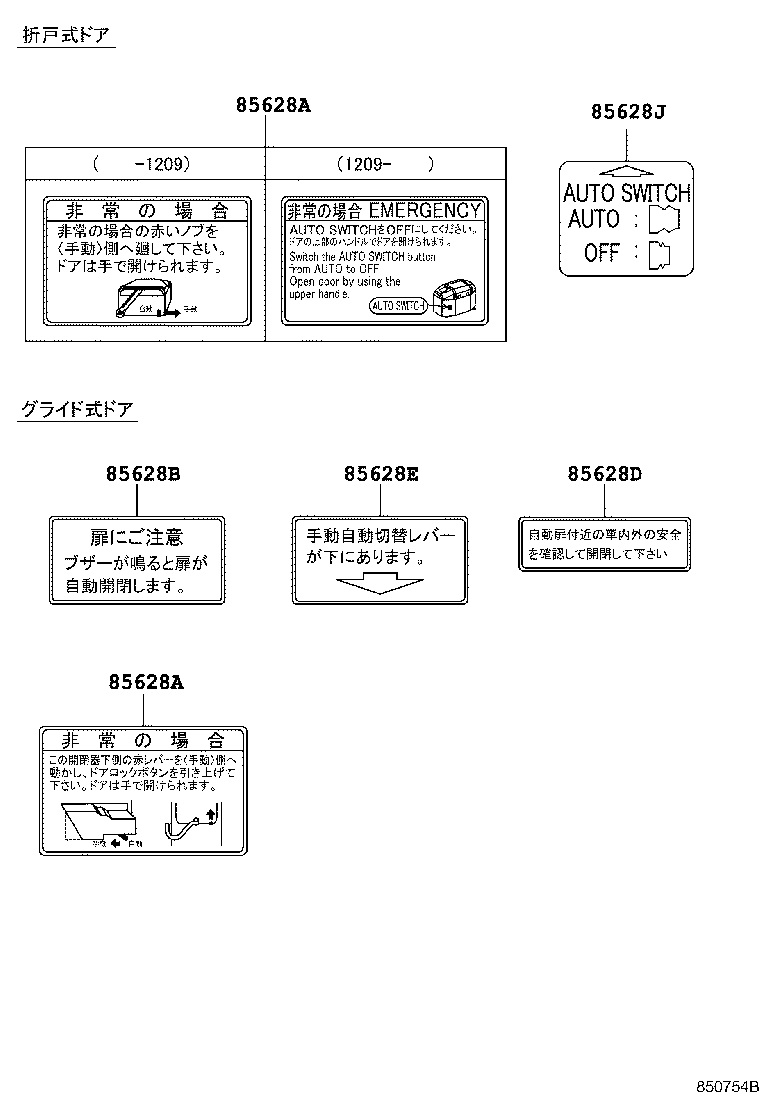

ILLUST NO. 3 OF 4(9301- )
ﾗﾍﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85628A - LABEL, AUTOMATIC DOOR, NO.2 | ||||
| 85628-36070 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85628-36040 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85628A - LABEL, AUTOMATIC DOOR, NO.2 | ||||
| 85628-36070 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85628-36040 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ |
1 | ||
| 85628B - LABEL, AUTOMATIC DOOR, NO.3 | ||||
| 85628-90B08 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85628D - LAVEL, AUTOMATIC DOOR, NO.4 | ||||
| 85628-90B10 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 85628E - LAVEL, AUTOMATIC DOOR, NO.5 | ||||
| 85628-90B12 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
