HDB51-ZRPQW1 (1998)
Toyota Coaster
ILLUST NO. 3 OF 7(9301-0408)EX,GX,LX ; (0408- )DX,EX,GX,LX
ｸﾞﾗｲﾄﾞｼｷ ｻｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62026 - FRAME SUB-ASSY, SIDE NO.2 WINDOW, OUTER LH | ||||
| 62026-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62026-36030 |
BB46..WOC;BB40,HDB5#,HZB4#,50..DX,EX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62026-36050 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *GLD ｵ-ﾄ) |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62029-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62029G - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62221H - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
BB40,HDB5#,HZB4#,50..EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD) OR ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ & *FD ｵ-ﾄ) |
1 | ||
| 62711-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221J - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36031 |
BB4#,58,HDB50,HZB40,5#..09S,26S,29S ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62461-36030 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S ｱﾘ(*FD) OR ｱﾘ(*FD ｵ-ﾄ) |
1 | ||
| 62777L - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB40,HZB50..(39S,49S)..WOC;BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777R - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54016 | ||||

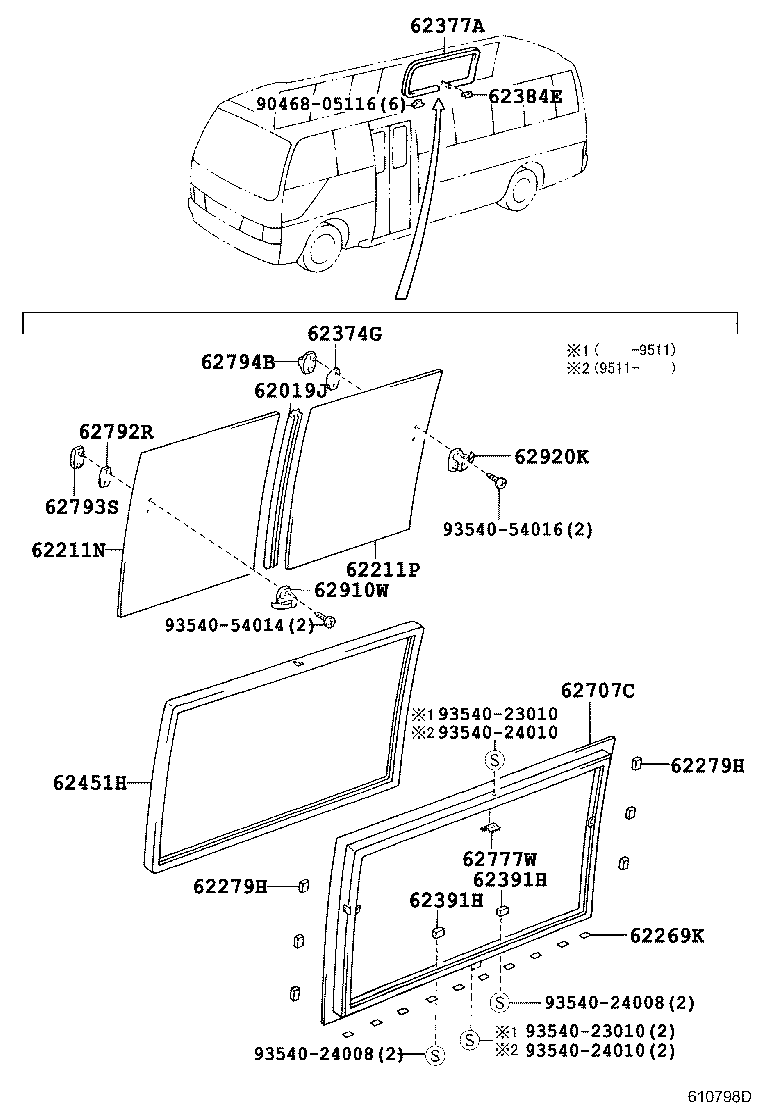

ILLUST NO. 5 OF 7(9301-0408)HDB51..EX ; (9907-0408)HDB50..GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019J - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36031 |
HDB51..IV5;BB4#,58,HDB50,HZB4#,5#..09S,26S,29S |
1 | ||
| 62451-36030 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62705-36010 |
HDB51..EX |
1 | ||
| 62777W - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

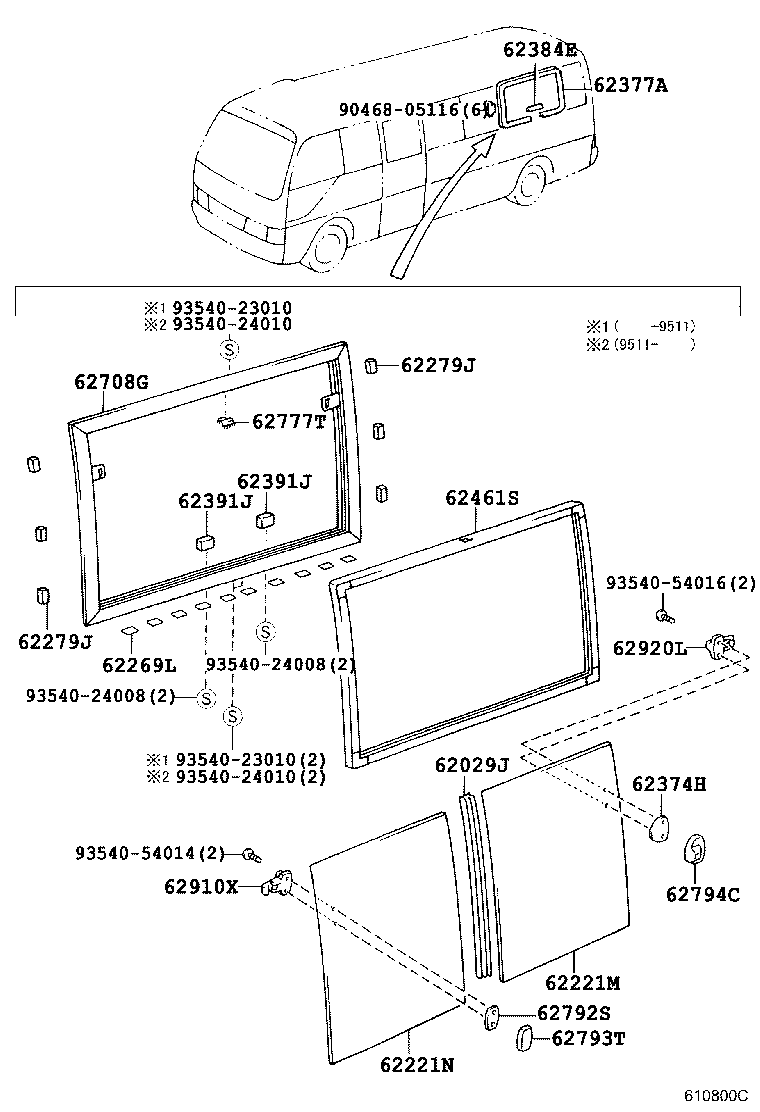

ILLUST NO. 6 OF 7(9301-0408)HDB51..EX ; (9907-0408)HDB50..GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029J - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36031 |
HDB51..IV5;BB4#,58,HDB50,HZB4#,5#..09S,26S,29S |
1 | ||
| 62461-36030 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62708G - FRAME SUB-ASSY, SIDE REAR WINDOW, LH | ||||
| 62706-36020 |
HDB51..EX |
1 | ||
| 62708-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62777T - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 5 OF 7(9301-0408)BB4#,5#,BZB40,50,HDB50,HZB4#,5#..09S,10S,15S,26S,29S ; (0408- )09S,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019D - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62019J - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36031 |
HDB51..IV5;BB4#,58,HDB50,HZB4#,5#..09S,26S,29S |
1 | ||
| 62451-36030 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62705-36010 |
HDB51..EX |
1 | ||
| 62777F - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777W - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 2 OF 7(9301-0408)08S,09S,10S,15S,19S,24S,26S,29S..CBU,IV5 ; (0408-1501)DX,EX,GX,LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015 - FRAME SUB-ASSY, SIDE WINDOW, RH | ||||
| 62015-36030 |
HDB51,HZB41..EX |
1 | ||
| 62015-36010 |
BB4#,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62019A - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62019-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019F - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62211G - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211H - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62388A - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62777C - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777H - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 4 OF 7(9301-0408)08S,09S,10S,15S,19S,24S,26S,29S..CBU,IV5 ; (0408- )DX,EX,GX,LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019C - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62019-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019H - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62211L - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211M - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 62707-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62707-36030 |
HDB51,HZB41..EX |
1 | ||
| 62777E - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777V - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 6 OF 7(9301-0408)BB4#,5#,BZB40,50,HDB50,HZB4#,5#..09S,10S,15S,26S,29S ; (0408- )09S,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029D - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62029-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62029J - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36031 |
HDB51..IV5;BB4#,58,HDB50,HZB4#,5#..09S,26S,29S |
1 | ||
| 62461-36030 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 62708G - FRAME SUB-ASSY, SIDE REAR WINDOW, LH | ||||
| 62706-36020 |
HDB51..EX |
1 | ||
| 62708-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62777N - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777T - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
