HDB51-ZRMQX (1993)
Toyota Coaster
Production
Jan 1993
-
May 1995
Engine
1HDT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9505)1HDT

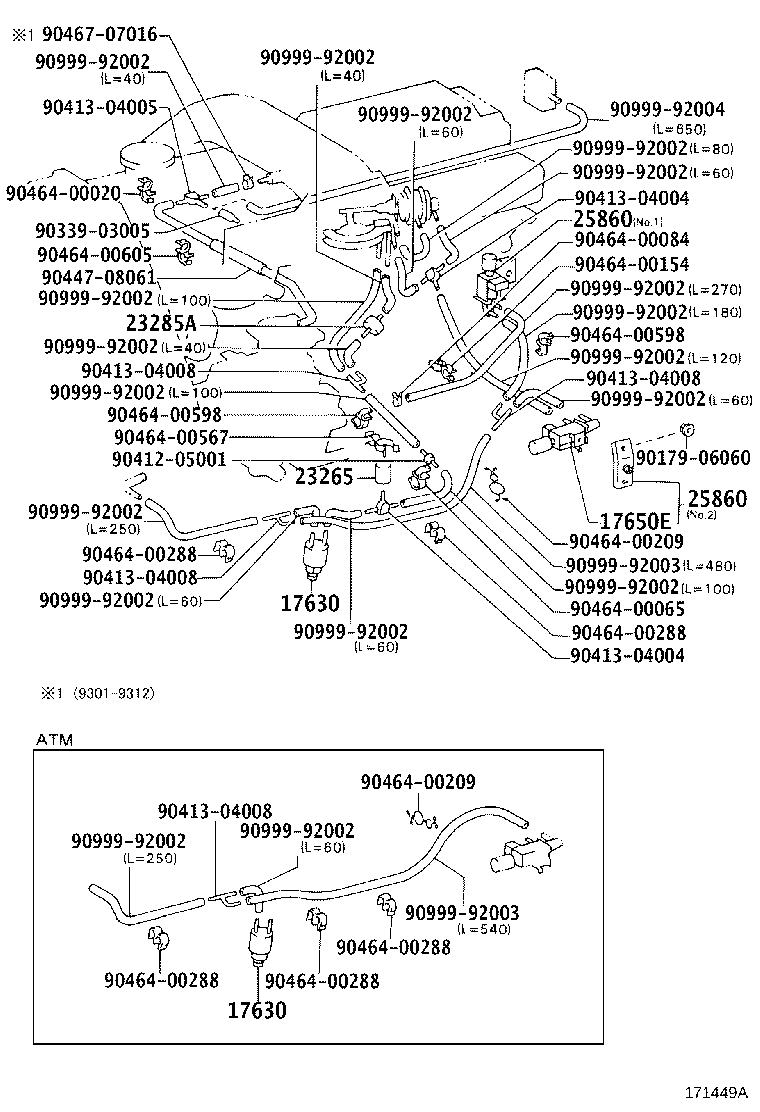

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12136 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90925-06009 |
1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-17020 |
1HDT..HDB5#..5F NO.1 |
1 | ||
| 25860-17030 |
1HDT..HDB5#..5F NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-17020 |
1HDT..HDB5#..5F NO.1 |
1 | ||
| 25860-17030 |
1HDT..HDB5#..5F NO.2 |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90339-03005 | ||||
| 90412-05001 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90447-08061 | ||||
| 90464-00020 | ||||
| 90464-00065 | ||||
| 90464-00084 | ||||
| 90464-00154 | ||||
| 90464-00209 | ||||
| 90464-00288 | ||||
| 90464-00567 | ||||
| 90464-00598 | ||||
| 90464-00605 | ||||
| 90467-07016 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
