HDB51-ZRFQZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

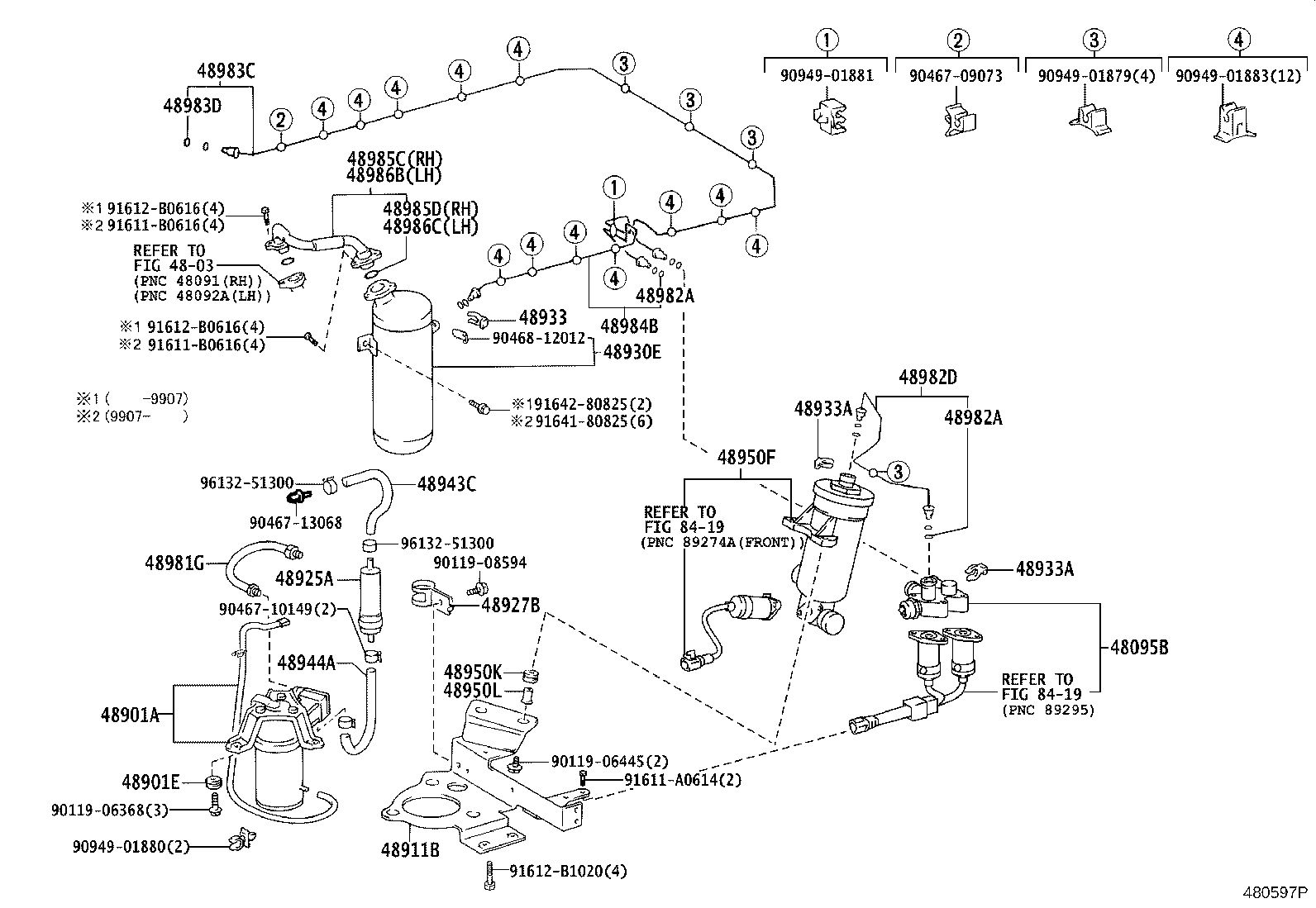

ILLUST NO. 1 OF 2(9301-0408)HDB51,HZB41

Click highlighted areas on diagram

diagram 4803 48095B 48901A 48901E 48911B 48925A 48927B 48930E 48933 48933A 48933A 48943C 48944A 48950F 48950K 48950L 48981G 48982A 48982A 48982D 48983C 48983D 48984B 48985C 48985D 48986B 48986C 8419 8419 9011906368 9011906445 9011908594 9046709073 9046710149 9046713068 9046812012 9094901879 9094901880 9094901881 9094901883 91611A0614 91611B0616 91611B0616 91612B0616 91612B0616 91612B1020 9164180825 9164280825 9613251300 9613251300
Part # Description Qty Price
48095B - VALVE SUB-ASSY, FRONT HEIGHT CONTROL, NO.1
48095-36020

HDB51,HZB41

 1
48095-36020

HDB51,HZB41

 1
48901A - COMPRESSOR SUB-ASSY, FRONT HEIGHT CONTROL
48901-36031

HDB51,HZB41

 1
48901-36030

HDB51,HZB41

 1
48901E - BUSH(FOR FRONT HEIGHT CONTROL COMPRESSOR)
90389-06022

HDB51,HZB41

 3
90389-06022

HDB51,HZB41

 3
48911B - BRACKET, FRONT HEIGHT CONTROL COMPRESSOR
48911-36030

HDB51,HZB41

 1
48911-36030

HDB51,HZB41

 1
48925A - FILTER, FRONT HEIGHT CONTROL
48925-36010

HDB51,HZB41

 1
48925-36010

HDB51,HZB41

 1
48927B - BRACKET, FRONT HEIGHT CONTROL AIR CLEANER, NO.1
48927-36010

HDB51,HZB41

 1
48927-36010

HDB51,HZB41

 1
48930E - TANK ASSY, PNEUMATIC
48930-36030

HDB51,HZB41

左側

 1
48930-36020

HDB51,HZB41

右側

 1
48930-36020

HDB51,HZB41

右側

 1
48930-36030

HDB51,HZB41

左側

 1
48933 - HOLDER, AIR CONNECTOR CLIP
48933-30010

HDB51,HZB41

 4
48933-30010

HDB51,HZB41

 4
48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP
48933-30010

HDB51,HZB41

 2
48933-30010

HDB51,HZB41

 2
48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP
48933-30010

HDB51,HZB41

 2
48933-30010

HDB51,HZB41

 2
48943C - HOSE, FRONT HEIGHT CONTROL, NO.1
48943-36010

HDB51,HZB41

 1
48943-36010

HDB51,HZB41

 1
48944A - HOSE, FRONT HEIGHT CONTROL, NO.2
48943-36020

HDB51,HZB41

 1
48943-36020

HDB51,HZB41

 1
48950F - DRYER ASSY, FRONT HEIGHT CONTROL
48950-36030

HDB51,HZB41

 1
48950-36030

HDB51,HZB41

 1
48950K - BUSH(FOR FRONT HEIGHT CONTROL DRYER)
90385-08009

HDB51,HZB41

 2
90385-08009

HDB51,HZB41

 2
48950L - SPACER(FOR FRONT HEIGHT CONTROL DRYER)
90560-06026

HDB51,HZB41

 2
90560-06026

HDB51,HZB41

 2
48981G - TUBE, HEIGHT CONTROL, FRONT NO.1
48981-36030

HDB51,HZB41

 1
48981-36030

HDB51,HZB41

 1
48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2)
90301-04004

HDB51,HZB41

 4
90301-04004

HDB51,HZB41

 8
48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2)
90301-04004

HDB51,HZB41

 4
90301-04004

HDB51,HZB41

 8
48982D - TUBE, HEIGHT CONTROL, FRONT NO.2
48982-36030

HDB51,HZB41

 1
48982-36030

HDB51,HZB41

 1
48983C - TUBE, HEIGHT CONTROL, FRONT NO.3
48983-36030

HDB51,HZB41

 1
48983-36030

HDB51,HZB41

 1
48983D - RING, O(FOR FRONT HEIGHT CONTROL TUBE NO.3)
90301-04004

HDB51,HZB41

 4
90301-04004

HDB51,HZB41

 4
48984B - TUBE, HEIGHT CONTROL, FRONT NO.4
48984-36030

HDB51,HZB41

 1
48984-36030

HDB51,HZB41

 1
48985C - TUBE, HEIGHT CONTROL, FRONT NO.5
48947-36010

HDB51,HZB41

 1
48947-36010

HDB51,HZB41

 1
48985D - RING, O(FOR FRONT HEIGHT CONTROL TUBE NO.5)
90301-25006

HDB51,HZB41

 2
90301-25006

HDB51,HZB41

 2
48986B - TUBE, HEIGHT CONTROL, FRONT NO.6
48947-36020

HDB51,HZB41

 1
48947-36020

HDB51,HZB41

 1
48986C - RING, O(FOR FRONT HEIGHT CONTROL TUBE NO.6)
90301-25006

HDB51,HZB41

 2
90301-25006

HDB51,HZB41

 2
Common parts
90119-06368
90119-06445
90119-08594
90467-09073
90467-10149
90467-13068
90468-12012
90949-01879
90949-01880
90949-01881
90949-01883
91611-A0614
91611-B0616
91612-B0616
91612-B1020
91641-80825
91642-80825
96132-51300
Linked diagrams
4803
8419
