HDB51-ZEPQZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0408)HDB5#

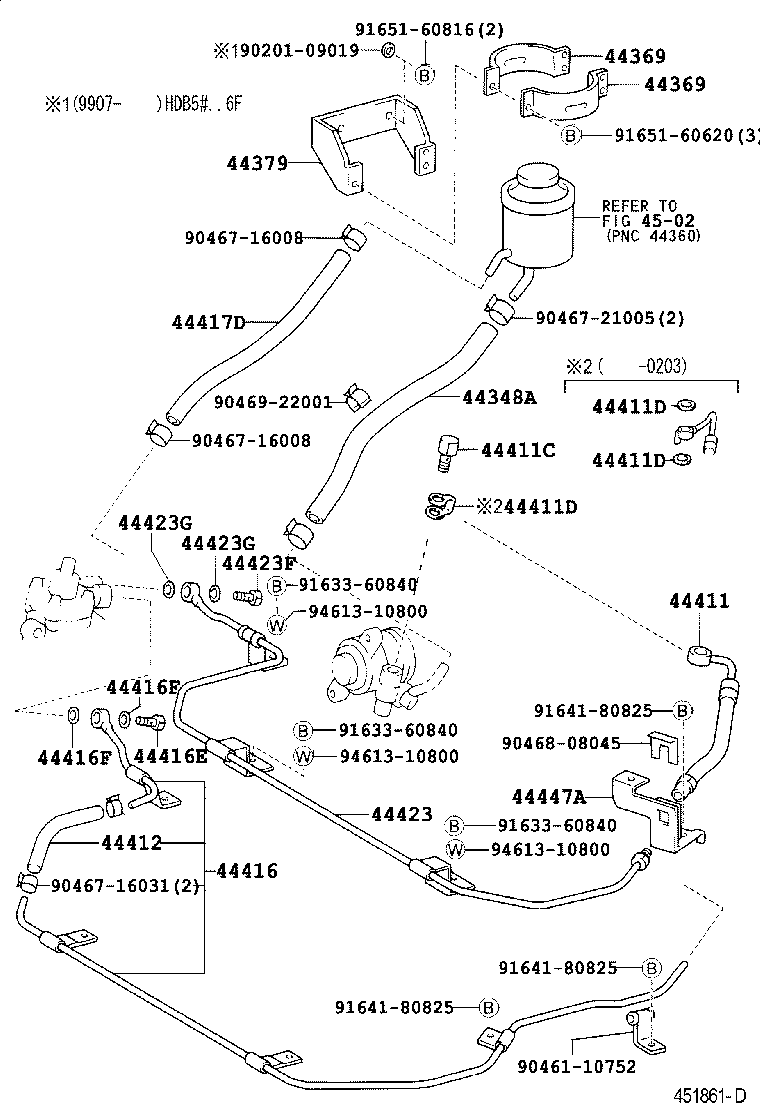

Click highlighted areas on diagram

diagram 44348A 44369 44369 44379 44411 44411C 44411D 44411D 44411D 44412 44416 44416E 44416F 44416F 44417D 44423 44423F 44423G 44423G 44447A 4502 9020109019 9046110752 9046716008 9046716008 9046716031 9046721005 9046808045 9046922001 9163360840 9163360840 9163360840 9164180825 9164180825 9164180825 9165160620 9165160816 9461310800 9461310800 9461310800
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36250

BB55,HDB5#,HZB4#,5#

 1
44348-36250

HZB4#,5#

 1
44348-36300

HDB5#

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020

HDB5#

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020

HDB5#

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44369-36040

HDB5#

 1
44411 - HOSE, PRESSURE FEED
44411-36500

HDB5#

 1
44411-36410

HDB5#,HZB4#,5#

 1
44411-36410

HZB4#,5#

 1
44411-36501

HDB5#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16020

HDB5#

 1
90404-16024

BB4#,5#,HDB5#,HZB4#,5#

 1
90404-16024

BZB40,50,HZB4#,5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-16168

BB58,HDB5#,HZB4#,5#

 2
44327-30030

BZB40,50,HZB4#,5#

 1
44327-30040

HDB5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-16168

BB58,HDB5#,HZB4#,5#

 2
44327-30030

BZB40,50,HZB4#,5#

 1
44327-30040

HDB5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-16168

BB58,HDB5#,HZB4#,5#

 2
44327-30030

BZB40,50,HZB4#,5#

 1
44327-30040

HDB5#

 1
44412 - HOSE, RETURN
90445-18137

BZB40,50,HDB5#,HZB4#,5#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36350

BB4#,HDB5#,HZB4#,5#

 1
44416-36351

BZB40,50,HZB4#,5#

 1
44416-36310

HDB5#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-14235

BB58,BZB40,50,HDB5#,HZB4#,5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-14235

BB58,BZB40,50,HDB5#,HZB4#,5#

 2
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18082

HDB5#

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36270

HDB5#,HZB4#,5#

 1
44423-36311

HDB5#,HZB4#,5#

 1
44423-36312

BZB40,50,HDB5#,HZB4#,5#

 1
44423F - BOLT, UNION
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
90401-14003

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44423G - GASKET, UNION BOLT
90430-14235

BB58,HDB5#,HZB4#,5#

 2
90430-14235

BZB40,50,HDB5#,HZB4#,5#

 2
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB58,HDB5#,HZB4#,5#

 2
90430-14235

BZB40,50,HDB5#,HZB4#,5#

 2
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36200

BZB40,50,HDB5#,HZB4#,5#

 1
44447-36200

BB4#,HDB5#,HZB4#,5#

 1
Common parts
90201-09019
90461-10752
90467-16008
90467-16031
90467-21005
90468-08045
90469-22001
91633-60840
91641-80825
91651-60620
91651-60816
94613-10800
Linked diagrams
4502

(9907-0408)HZB4#,5#

Click highlighted areas on diagram

diagram 44348A 44411 44411C 44411D 44411D 44411D 44412 44416 44416C 44416E 44416F 44416F 44423 44423F 44423G 44423G 44447A 44457C 9046716008 9046716008 9046716031 9046721005 9046721005 9046808045 9163360840 9163360840 9163360840 9164180825 9164180825 9165160816 9165160816 9165160830 9461310800 9461310800 9461310800
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36250

BB55,HDB5#,HZB4#,5#

 1
44348-36250

HZB4#,5#

 1
44348-36300

HDB5#

 1
44411 - HOSE, PRESSURE FEED
44411-36500

HDB5#

 1
44411-36410

HDB5#,HZB4#,5#

 1
44411-36410

HZB4#,5#

 1
44411-36501

HDB5#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16020

HDB5#

 1
90404-16024

BB4#,5#,HDB5#,HZB4#,5#

 1
90404-16024

BZB40,50,HZB4#,5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-16168

BB58,HDB5#,HZB4#,5#

 2
44327-30030

BZB40,50,HZB4#,5#

 1
44327-30040

HDB5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-16168

BB58,HDB5#,HZB4#,5#

 2
44327-30030

BZB40,50,HZB4#,5#

 1
44327-30040

HDB5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-16168

BB58,HDB5#,HZB4#,5#

 2
44327-30030

BZB40,50,HZB4#,5#

 1
44327-30040

HDB5#

 1
44412 - HOSE, RETURN
90445-18137

BZB40,50,HDB5#,HZB4#,5#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36350

BB4#,HDB5#,HZB4#,5#

 1
44416-36351

BZB40,50,HZB4#,5#

 1
44416-36310

HDB5#

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18139

HZB4#,5#

 1
90445-18139

HDB5#,HZB4#,5#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-14235

BB58,BZB40,50,HDB5#,HZB4#,5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
90430-14235

BB58,BZB40,50,HDB5#,HZB4#,5#

 2
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36270

HDB5#,HZB4#,5#

 1
44423-36311

HDB5#,HZB4#,5#

 1
44423-36312

BZB40,50,HDB5#,HZB4#,5#

 1
44423F - BOLT, UNION
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
90401-14003

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
44423G - GASKET, UNION BOLT
90430-14235

BB58,HDB5#,HZB4#,5#

 2
90430-14235

BZB40,50,HDB5#,HZB4#,5#

 2
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB58,HDB5#,HZB4#,5#

 2
90430-14235

BZB40,50,HDB5#,HZB4#,5#

 2
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36200

BZB40,50,HDB5#,HZB4#,5#

 1
44447-36200

BB4#,HDB5#,HZB4#,5#

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36090

HDB5#,HZB4#,5#

 1
44457-36090

HZB4#,5#

 1
Common parts
90467-16008
90467-16031
90467-21005
90468-08045
91633-60840
91641-80825
91651-60816
91651-60830
94613-10800
