HDB51-ZEPQX (1993)
Toyota Coaster
ILLUST NO. 3 OF 6(9301-1501)
ﾘﾔ ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87125B - GRILLE, HEATER AIR OUTLET | ||||
| 87125-36010B0 |
HDB51..CBU MD.CHARCOAL,TRIM1# |
8 | ||
| 87125B - GRILLE, HEATER AIR OUTLET | ||||
| 87125-36010B0 |
HDB51..CBU MD.CHARCOAL,TRIM1# |
8 | ||
| 87202 - DUCT, HEATER AIR | ||||
| 87202-36010B0 |
HDB51..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 87203B - DUCT SUB-ASSY, AIR, REAR LH | ||||
| 87203-36020B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-36060B0 |
HDB51..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-36020B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-36010B0 |
HDB51..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-36010B0 |
HDB51..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60304 | ||||
| 91553-80822 | ||||
| 93540-54016 | ||||
ILLUST NO. 4 OF 6(9301-1501)
ﾙ-ﾌ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-36060 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88430A - DUCT ASSY, AIR, NO.1 | ||||
| 88430-36110 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 88430B - DUCT ASSY, AIR, NO.2 | ||||
| 88430-36240 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 88430C - DUCT ASSY, AIR, NO.3 | ||||
| 88430-36050 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88430D - DUCT ASSY, AIR, NO.4 | ||||
| 88430-36060 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
2 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
2 | ||
| 88580 - DAMPER ASSY, AIR | ||||
| 88580-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-36110 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.2 |
1 | ||
| 88790-36040 |
HDB5#,HZB41,50..EX,GX,SULNG NO.3 |
1 | ||
| 88625-36130 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.4 |
1 | ||
| 88625-36070 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 88625-36120 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),NO.2 |
1 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36100 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36100 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36100 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
3 | ||
| Common parts | ||||
| 88569-36170 | ||||
| 90094-90405 | ||||
| 90099-00081 | ||||
| 91621-40614 | ||||
| 93383-15020 | ||||
| 93510-10410 | ||||

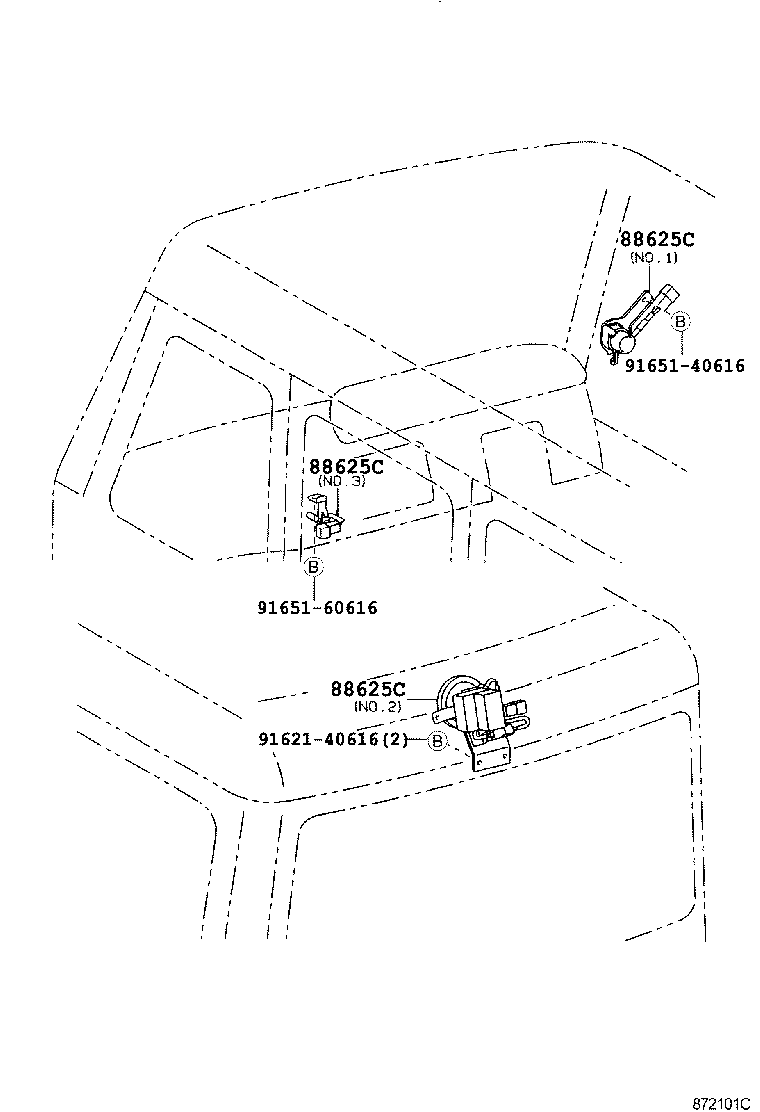

ILLUST NO. 6 OF 6(9301- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-36110 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.2 |
1 | ||
| 88790-36040 |
HDB5#,HZB41,50..EX,GX,SULNG NO.3 |
1 | ||
| 88625-36130 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.4 |
1 | ||
| 88625-36070 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 88625-36120 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-36110 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.2 |
1 | ||
| 88790-36040 |
HDB5#,HZB41,50..EX,GX,SULNG NO.3 |
1 | ||
| 88625-36130 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.4 |
1 | ||
| 88625-36070 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 88625-36120 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-36110 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.2 |
1 | ||
| 88790-36040 |
HDB5#,HZB41,50..EX,GX,SULNG NO.3 |
1 | ||
| 88625-36130 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.4 |
1 | ||
| 88625-36070 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 88625-36120 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),NO.2 |
1 | ||
| Common parts | ||||
| 91621-40616 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||

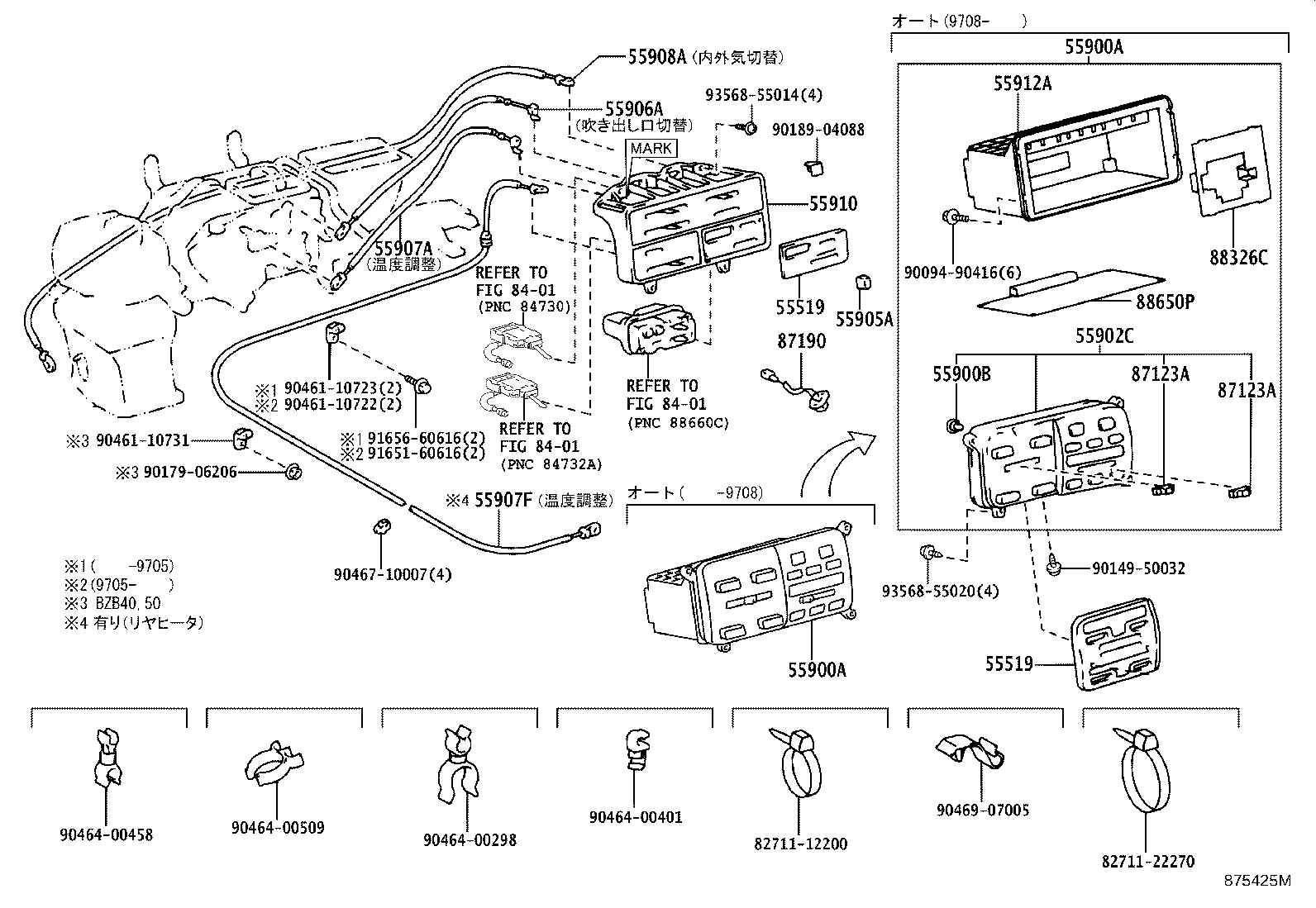

ILLUST NO. 1 OF 6(9301- )
ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) ｵ-ﾄ |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) ｵ-ﾄ |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-36470 |
HDB51,HZB41 |
1 | ||
| 55900-36480 |
HDB51,HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-36470 |
HDB51,HZB41 |
1 | ||
| 55900-36480 |
HDB51,HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90094-90416 | ||||
| 90149-50032 | ||||
| 90179-06206 | ||||
| 90189-04088 | ||||
| 90461-10722 | ||||
| 90461-10723 | ||||
| 90461-10731 | ||||
| 90464-00298 | ||||
| 90464-00401 | ||||
| 90464-00458 | ||||
| 90464-00509 | ||||
| 90467-10007 | ||||
| 90469-07005 | ||||
| 91651-60616 | ||||
| 91656-60616 | ||||
| 93568-55014 | ||||
| 93568-55020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

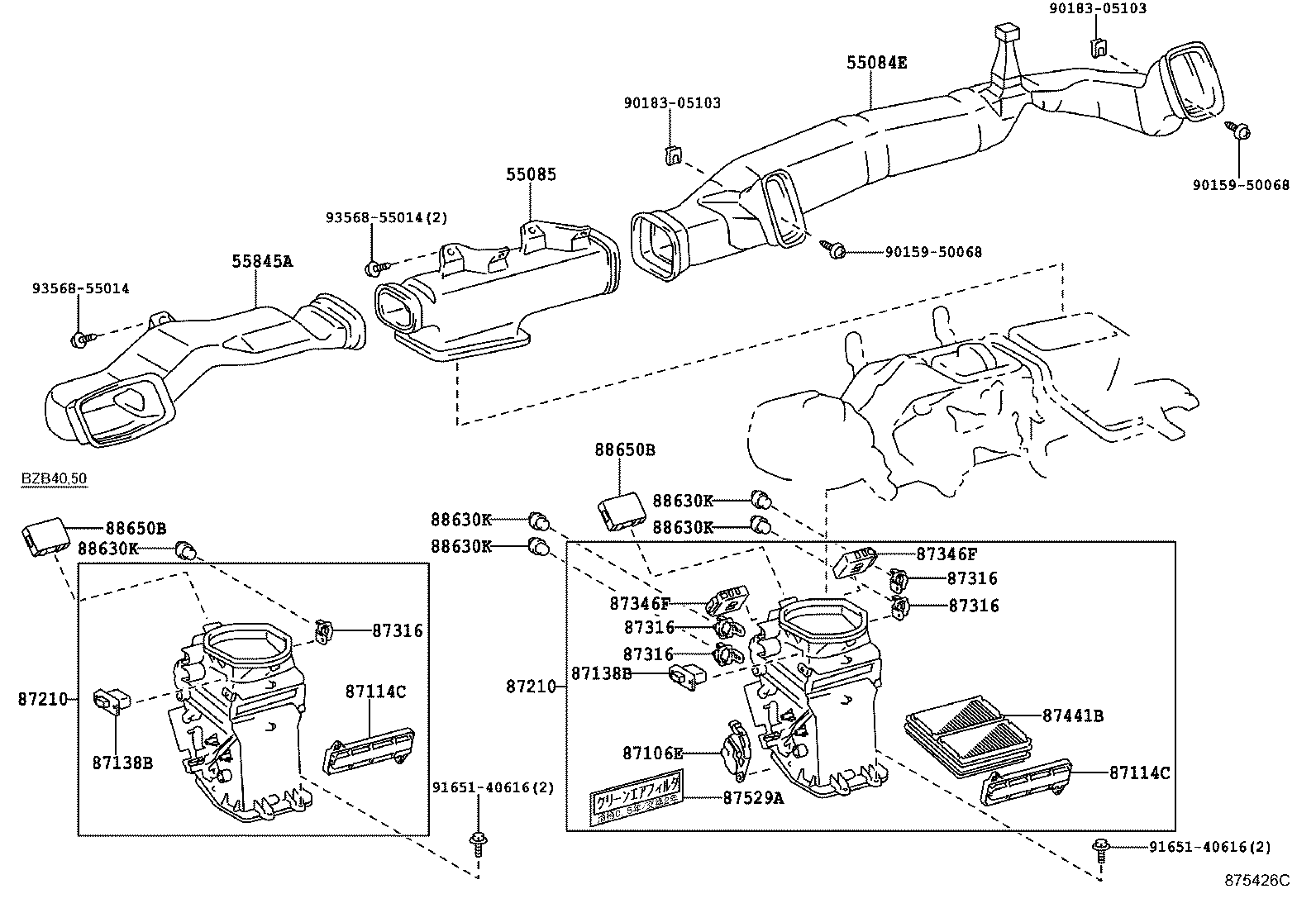

ILLUST NO. 2 OF 6(9301-0408)
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87106E - SERVO SUB-ASSY, HEATER DAMPER | ||||
| 87106-36040 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-36200 |
HZB50..GX;BB5#,HDB5#,HZB41..CBU,IV1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-36200 |
HZB50..GX;BB5#,HDB5#,HZB41..CBU,IV1 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-36050 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) |
1 | ||
| 87210-36090 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾌﾛﾝﾄ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-36050 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) |
1 | ||
| 87210-36090 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾌﾛﾝﾄ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 85999-12050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 85999-12050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 85999-12050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 85999-12050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 85999-12050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87346F - AMPLIFIER ASSY, HEATER | ||||
| 87346-36070 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) |
2 | ||
| 87346F - AMPLIFIER ASSY, HEATER | ||||
| 87346-36070 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) |
2 | ||
| 87441B - FILTER, HEATER AIR | ||||
| 87441-36010 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87529A - PLATE, AIR FILTER CAUTION | ||||
| 87529-36010 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
4 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
4 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
4 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
4 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
4 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90183-05103 | ||||
| 91651-40616 | ||||
| 93568-55014 | ||||
ILLUST NO. 5 OF 6(9301-1501)
ﾙ-ﾌ ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) IVORY,TRIM4# |
3 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
13 | ||
| 63620-90B00A0 |
BB40..SRF..(LX,STD)..WC;HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
9 | ||
| 63640-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾊﾟﾂｷﾝ ﾂｷ,IVORY,TRIM4# |
4 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
13 | ||
| 63620-90B00A0 |
BB40..SRF..(LX,STD)..WC;HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
9 | ||
| 63640-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾊﾟﾂｷﾝ ﾂｷ,IVORY,TRIM4# |
4 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
13 | ||
| 63620-90B00A0 |
BB40..SRF..(LX,STD)..WC;HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
9 | ||
| 63640-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾊﾟﾂｷﾝ ﾂｷ,IVORY,TRIM4# |
4 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
13 | ||
| 63620-90B00A0 |
BB40..SRF..(LX,STD)..WC;HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
9 | ||
| 63640-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾊﾟﾂｷﾝ ﾂｷ,IVORY,TRIM4# |
4 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
13 | ||
| 63620-90B00A0 |
BB40..SRF..(LX,STD)..WC;HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
9 | ||
| 63640-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾊﾟﾂｷﾝ ﾂｷ,IVORY,TRIM4# |
4 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
13 | ||
| 63620-90B00A0 |
BB40..SRF..(LX,STD)..WC;HDB5#,HZB5#..EX,GX,LX,SULNG IVORY,TRIM4# |
9 | ||
| 63640-36010A0 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾊﾟﾂｷﾝ ﾂｷ,IVORY,TRIM4# |
4 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
2 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
2 | ||
| 63911 - DUCT, COOLER, OUTER RH | ||||
| 63911-36010 |
BB5#,HDB5#,HZB5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63912 - DUCT, COOLER, OUTER LH | ||||
| 63911-36010 |
HZB50..GX,LX;BB5#,HDB5#,HZB56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63915-36070A1 |
HDB51 IVORY,TRIM4# |
1 | ||
| 63915-36160A1 |
HDB51 ｱﾘ(ｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63925-36160A1 |
HDB51 ｱﾘ(ｶ-ﾃﾝ),IVORY,TRIM4# |
1 | ||
| 63925-36070A1 |
HDB51 IVORY,TRIM4# |
1 | ||
| 63927A - COVER, COOLER DUCT END, NO.1 | ||||
| 63927-36010 |
HZB40..5F;HZB50..GX,LX;HZB40..LX..4FC..CBU;BB4#,5#,HDB5#,HZB41,56..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 63928 - COVER, COOLER DUCT END, NO.2 | ||||
| 63928-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 63352-36020 | ||||
| 63387-36050 | ||||
| 63636-36010 | ||||
| 90168-50031 | ||||
| 90183-04056 | ||||
| 90467-09037 | ||||
| 90467-10018 | ||||
| 90468-04137 | ||||
| 93540-14016 | ||||
| 93540-14020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
