HDB51-ZEPQX (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HDT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )BB4#,5#,HDB5#,HZB4#,5#,XZB4#,5#

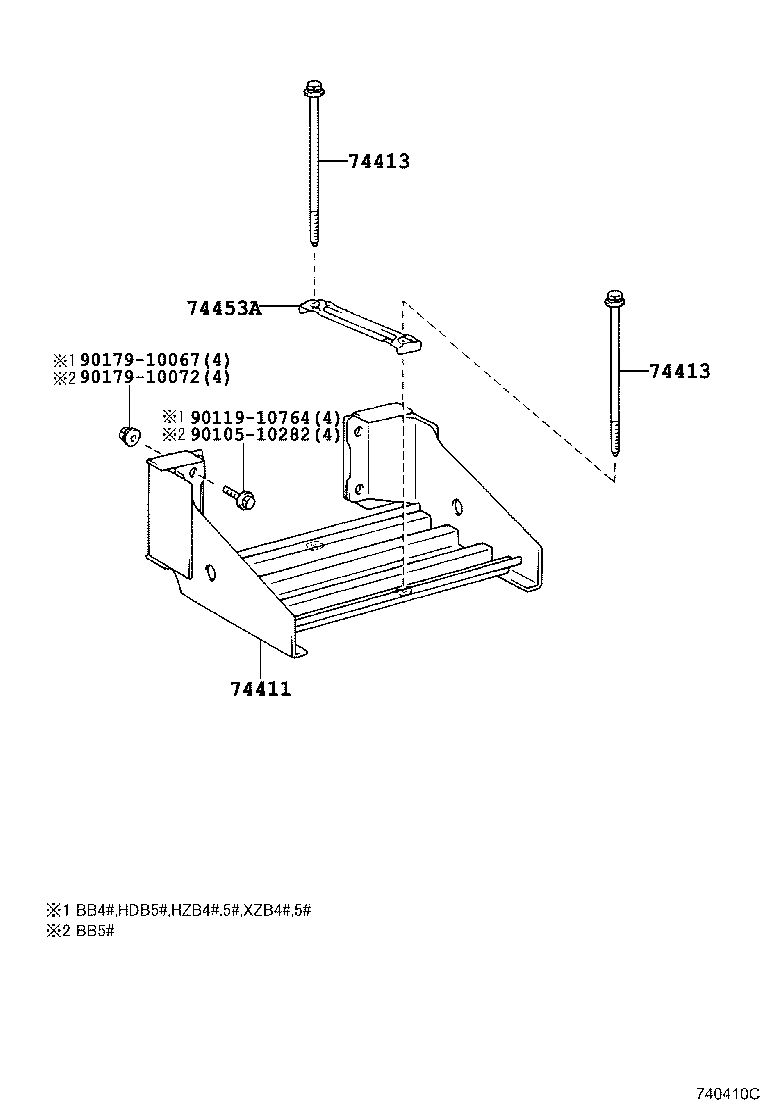

Click highlighted areas on diagram

diagram 74411 74413 74413 74453A 9010510282 9011910764 9017910067 9017910072
Part # Description Qty Price
74411 - CARRIER, BATTERY
74403-36070

BB4#,HDB5#..DSL2,TD2;HZB40,50..HRF..WC..CBU

ｱﾘ(ﾊﾞﾂﾃﾘ 75D26R X 2)

 1
74403-36080

HDB5#,HZB40,5#..(DSL2,TD2)..CBU

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R X 2)

 1
74403-36060

BB4#,5#,HDB5#,HZB40,5#

ｱﾘ(ﾊﾞﾂﾃﾘ 95D31R X 2)

 1
74413 - BOLT, BATTERY CLAMP
74451-36100

BB4#,5#,HDB5#,HZB4#,5#

 2
74413 - BOLT, BATTERY CLAMP
74451-36100

BB4#,5#,HDB5#,HZB4#,5#

 2
74453A - BAR, BATTERY SET PLATE
74453-36090

BB4#,5#,HDB5#,HZB4#,5#

ｱﾘ(ﾊﾞﾂﾃﾘ 95D31R X 2)

 1
74453-36110

HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..(DSL2,TD2)..CBU

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R X 2)

 1
74453-36100

HZB40,50..HRF..WC..CBU;BB4#,HDB5#,HZB41..DSL2,TD2

ｱﾘ(ﾊﾞﾂﾃﾘ 75D26R X 2)

 1
Common parts
90105-10282
90119-10764
90179-10067
90179-10072
