HDB51-ZEPQX (1993)
Toyota Coaster
ILLUST NO. 2 OF 2(9301- )
ﾗﾂｹﾞｰｼﾞﾄﾞｱ(ﾄﾘﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-90B00A0 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10016A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
15 | ||
| 90467-07054A1 |
HZB40..LX;HZB50..IV5;HZB50..DX,GX;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),IVORY,TRIM4# |
26 | ||

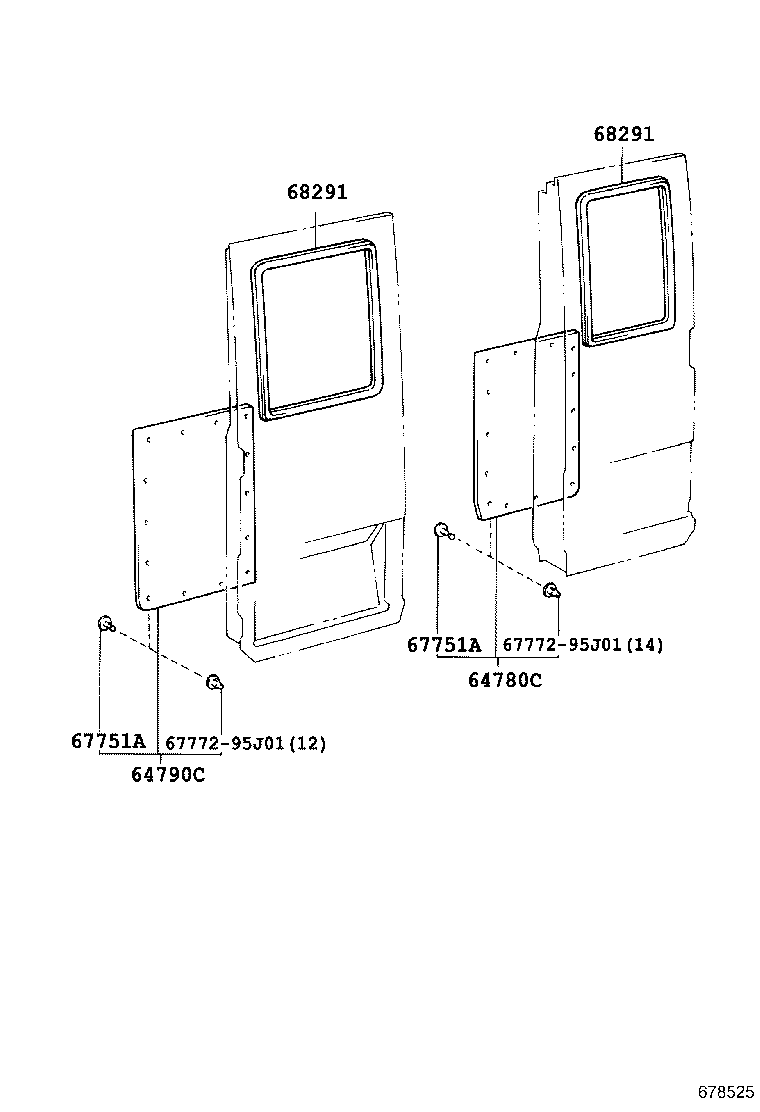

ILLUST NO. 2 OF 2(9301- )
ｶﾀﾋﾞﾗｷ ﾊﾞｯｸﾄﾞｱ(ﾄﾘﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64790C - PANEL ASSY, BACK DOOR TRIM, LH | ||||
| 64790-36010E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX GREIGE,TRIM4# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10016A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
15 | ||
| 90467-07054A1 |
HZB40..LX;HZB50..IV5;HZB50..DX,GX;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),IVORY,TRIM4# |
26 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-36010 |
BB40..39S;HZB40,50..26S,29S,49S;BB4#,5#,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU 右側 |
1 | ||
| 68292-36010 |
HZB40,50..26S,29S;BB4#,5#,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU 左側 |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90159-50279 | ||||
| 90189-06006 | ||||

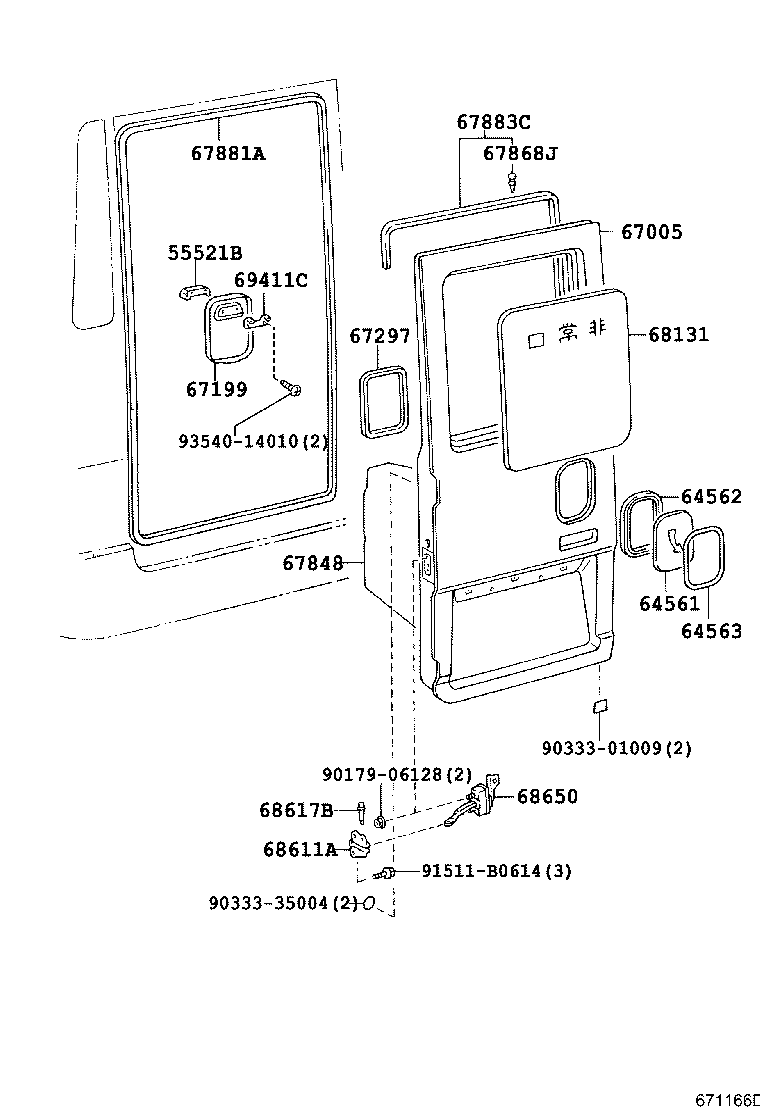

ILLUST NO. 1 OF 2(9301- )
ｶﾀﾋﾞﾗｷ ﾊﾞｯｸﾄﾞｱ(ﾊﾟﾈﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67008-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 要塗装,ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-36010 |
BB40..39S;HZB40,50..5F;HZB50..STD..4FC;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67848-36010 |
BB40..39S;BB40..DX,LX;BB46,HDB5#,HZB4#,5# |
1 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S 右側 |
9 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
HZB40..4FC..IV5;HZB50..29S..CBU;BB58,HZB40..LX..CBU;BB40,55,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 左側 |
2 | ||
| 67868-3003001 |
BB58..WC;HZB50..GX..4FC;HZB50..29S..5F..CBU;BB40,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),BLACK,TRIM4# |
4 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-36030 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67881-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 67881-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,右側 |
1 | ||
| 68131-36020 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,右側 |
1 | ||
| 68132-36060 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG *EHTT,厚さ=3.5,ﾌﾞﾙｰ,左側 |
1 | ||
| 68132-36060 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *EHTT,厚さ=3.5,ﾌﾞﾙｰ,左側 |
1 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-90K00 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 68611-90K00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 68617-50010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90333-01009 | ||||
| 90333-35004 | ||||
| 91511-B0614 | ||||
| 93540-14010 | ||||

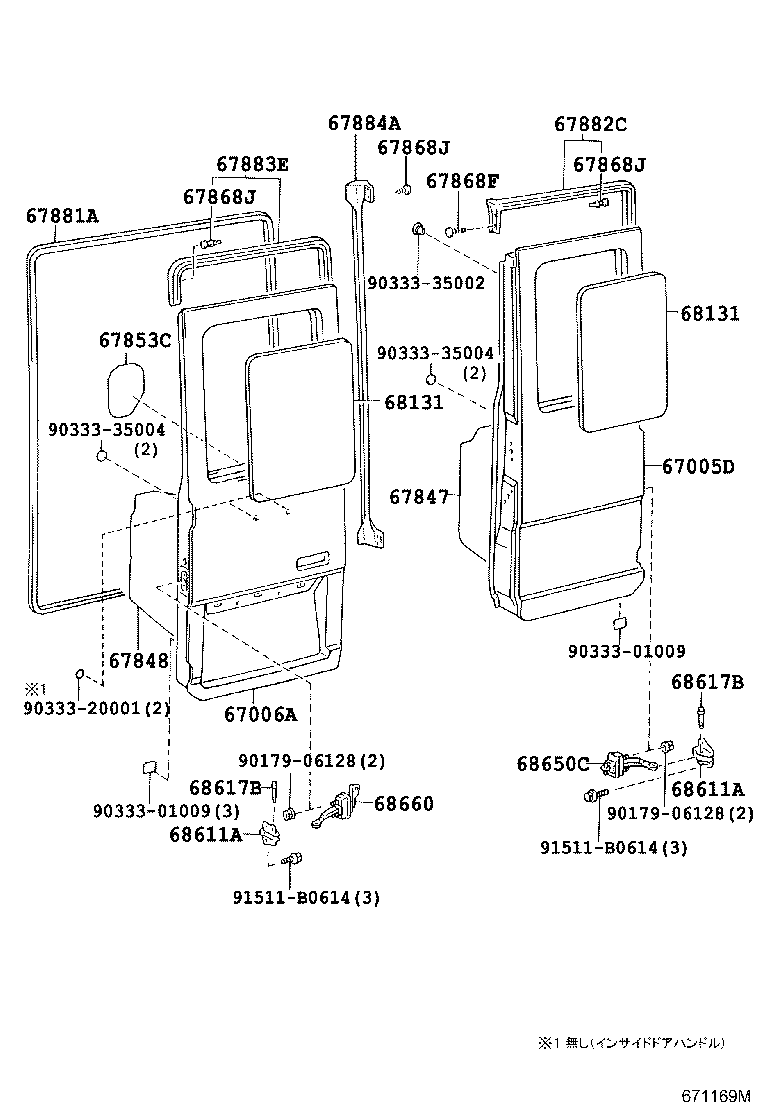

ILLUST NO. 1 OF 2(9301- )
ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ(ﾊﾟﾈﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005D - PANEL SUB-ASSY, BACK DOOR, RH | ||||
| 67005-36080 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67005-36080 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 67006A - PANEL SUB-ASSY, BACK DOOR, LH | ||||
| 67006-36080 |
HDB51,HZB41 |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 67847-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-36010 |
BB40..39S;HZB40,50..5F;HZB50..STD..4FC;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67848-36010 |
BB40..39S;BB40..DX,LX;BB46,HDB5#,HZB4#,5# |
1 | ||
| 67853C - COVER, BACK DOOR SERVICE HOLE, NO.3 | ||||
| 67853-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 67853-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67868F - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67868-3003001 |
HZB50..GX..4FC;HZB50..4FC..IV5;HZB40..LX..4FC..CBU;HZB40,50..(26S,29S)..5F;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU BLACK,TRIM4# |
2 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S 右側 |
9 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
HZB40..4FC..IV5;HZB50..29S..CBU;BB58,HZB40..LX..CBU;BB40,55,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 左側 |
2 | ||
| 67868-3003001 |
BB58..WC;HZB50..GX..4FC;HZB50..29S..5F..CBU;BB40,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),BLACK,TRIM4# |
4 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S 右側 |
9 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
HZB40..4FC..IV5;HZB50..29S..CBU;BB58,HZB40..LX..CBU;BB40,55,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 左側 |
2 | ||
| 67868-3003001 |
BB58..WC;HZB50..GX..4FC;HZB50..29S..5F..CBU;BB40,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),BLACK,TRIM4# |
4 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S 右側 |
9 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
HZB40..4FC..IV5;HZB50..29S..CBU;BB58,HZB40..LX..CBU;BB40,55,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 左側 |
2 | ||
| 67868-3003001 |
BB58..WC;HZB50..GX..4FC;HZB50..29S..5F..CBU;BB40,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),BLACK,TRIM4# |
4 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-36030 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67881-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 67881-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67882-36020 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67882-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 67883E - WEATHERSTRIP, BACK DOOR, NO.3 | ||||
| 67883-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 67883-36020 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67884A - WEATHERSTRIP, BACK DOOR, CENTER | ||||
| 67884-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 67884-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,右側 |
1 | ||
| 68131-36020 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,右側 |
1 | ||
| 68132-36060 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG *EHTT,厚さ=3.5,ﾌﾞﾙｰ,左側 |
1 | ||
| 68132-36060 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *EHTT,厚さ=3.5,ﾌﾞﾙｰ,左側 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,右側 |
1 | ||
| 68131-36020 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,右側 |
1 | ||
| 68132-36060 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG *EHTT,厚さ=3.5,ﾌﾞﾙｰ,左側 |
1 | ||
| 68132-36060 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *EHTT,厚さ=3.5,ﾌﾞﾙｰ,左側 |
1 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-90K00 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 68611-90K00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-90K00 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 68611-90K00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 68617-50010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 68617-50010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 68650C - CHECK ASSY, BACK DOOR, RH | ||||
| 68650-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 68650-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 68660 - CHECK ASSY, BACK DOOR, LH | ||||
| 68660-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 68660-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90333-01009 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90333-35004 | ||||
| 91511-B0614 | ||||
ILLUST NO. 1 OF 2(9301- )
ﾗﾂｹﾞｰｼﾞﾄﾞｱ(ﾊﾟﾈﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67008-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 要塗装,ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ |
1 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S 右側 |
9 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
HZB40..4FC..IV5;HZB50..29S..CBU;BB58,HZB40..LX..CBU;BB40,55,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 左側 |
2 | ||
| 67868-3003001 |
BB58..WC;HZB50..GX..4FC;HZB50..29S..5F..CBU;BB40,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),BLACK,TRIM4# |
4 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
10 | ||
| 67868-30040 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..15S,20S,26S,29S 右側 |
9 | ||
| 67868-30040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
17 | ||
| 67868-30040 |
HZB40..4FC..IV5;HZB50..29S..CBU;BB58,HZB40..LX..CBU;BB40,55,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) 左側 |
2 | ||
| 67868-3003001 |
BB58..WC;HZB50..GX..4FC;HZB50..29S..5F..CBU;BB40,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),BLACK,TRIM4# |
4 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-36030 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67881-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 67881-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67882-36020 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 67882-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
ILLUST NO. 2 OF 2(9301- )
ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ(ﾄﾘﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780C - PANEL ASSY, BACK DOOR TRIM, RH | ||||
| 64780-36010E1 |
HZB40..5F;HDB51..EX..TD2;HDB51..TD4..CBU;HZB40..LX..4FC..CBU;BB4#,58,HDB50,HZB41,5#..DX,EX,GX,LX GREIGE,TRIM4# |
1 | ||
| 64790C - PANEL ASSY, BACK DOOR TRIM, LH | ||||
| 64790-36010E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX GREIGE,TRIM4# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10016A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
15 | ||
| 90467-07054A1 |
HZB40..LX;HZB50..IV5;HZB50..DX,GX;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),IVORY,TRIM4# |
26 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10016A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
15 | ||
| 90467-07054A1 |
HZB40..LX;HZB50..IV5;HZB50..DX,GX;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ),IVORY,TRIM4# |
26 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-36010 |
BB40..39S;HZB40,50..26S,29S,49S;BB4#,5#,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU 右側 |
1 | ||
| 68292-36010 |
HZB40,50..26S,29S;BB4#,5#,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU 左側 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-36010 |
BB40..39S;HZB40,50..26S,29S,49S;BB4#,5#,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU 右側 |
1 | ||
| 68292-36010 |
HZB40,50..26S,29S;BB4#,5#,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU 左側 |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
