HDB51-ZEPQW (1995)
Toyota Coaster
ILLUST NO. 1 OF 6(9301-0108)
TV & VTR ｾｯﾄ(ﾅﾋﾞｹﾞｰｼｮﾝﾅｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82819B - GROMMET, WIRING HARNESS | ||||
| 82819-90B00 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 82819B - GROMMET, WIRING HARNESS | ||||
| 82819-90B00 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 82819B - GROMMET, WIRING HARNESS | ||||
| 82819-90B00 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 86010A - TUNER ASSY, TELEVISION | ||||
| 86010-36010 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86028 - BRACKET SUB-ASSY, TELEVISION | ||||
| 86028-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86050A - ANTENNA ASSY, TELEVISION | ||||
| 86050-36030 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 86050-36010 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86050D - ANTENNA ASSY, TELEVISION | ||||
| 86050-36020 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86190B - ADAPTER ASSY, REMOTE CONTROL | ||||
| 86190-36010 |
HDB51..CBU |
1 | ||
| 86335A - BASE, ANTENNA POLE | ||||
| 86335-90B00 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 86335A - BASE, ANTENNA POLE | ||||
| 86335-90B00 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-90B00 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) MATSUSHITA |
1 | ||
| 86690A - VIDEO DECK ASSY | ||||
| 86690-36010 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90153-50010 | ||||
| 90159-40161 | ||||
| 90467-08006 | ||||
| 91651-60830 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 2 OF 6(9301-0108)
ﾊｲｾﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86203J - WIRING SUB-ASSY, TELEVISION, NO.1 | ||||
| 86203-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86203-36050 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203J - WIRING SUB-ASSY, TELEVISION, NO.1 | ||||
| 86203-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86203-36050 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203K - WIRING SUB-ASSY, TELEVISION, NO.2 | ||||
| 86203-36030 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86203-36060 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203K - WIRING SUB-ASSY, TELEVISION, NO.2 | ||||
| 86203-36030 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86203-36060 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203L - WIRING SUB-ASSY, TELEVISION, NO.3 | ||||
| 86203-36070 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203-36040 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86203L - WIRING SUB-ASSY, TELEVISION, NO.3 | ||||
| 86203-36070 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203-36040 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86203M - WIRING SUB-ASSY, TELEVISION, NO.4 | ||||
| 86203-36100 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203-36080 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86203M - WIRING SUB-ASSY, TELEVISION, NO.4 | ||||
| 86203-36100 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 86203-36080 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86203N - WIRING SUB-ASSY, TELEVISION, NO.5 | ||||
| 86203-36130 |
HDB51..CBU |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
ILLUST NO. 2 OF 6(9301-0108)
TV & VTR ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046B - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-36020 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 82046-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 82046B - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-36020 |
HDB51..CBU ｱﾘ(BGV ｶﾗｵｹ) |
1 | ||
| 82046-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 82046C - WIRE SUB-ASSY, BODY GROUND, NO.2 | ||||
| 82046-36030 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 82046C - WIRE SUB-ASSY, BODY GROUND, NO.2 | ||||
| 82046-36030 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 82046C - WIRE SUB-ASSY, BODY GROUND, NO.2 | ||||
| 82046-36030 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 82046C - WIRE SUB-ASSY, BODY GROUND, NO.2 | ||||
| 82046-36030 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86274E - BRACKET, DISC PLAYER | ||||
| 86274-36010 |
HDB51..CBU |
2 | ||
| 86274E - BRACKET, DISC PLAYER | ||||
| 86274-36010 |
HDB51..CBU |
2 | ||
| 86692 - BRACKET, VIDEO, NO.1 | ||||
| 86692-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86692 - BRACKET, VIDEO, NO.1 | ||||
| 86692-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86692 - BRACKET, VIDEO, NO.1 | ||||
| 86692-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86692 - BRACKET, VIDEO, NO.1 | ||||
| 86692-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86693 - BRACKET, VIDEO, NO.2 | ||||
| 86693-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86693 - BRACKET, VIDEO, NO.2 | ||||
| 86693-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86693 - BRACKET, VIDEO, NO.2 | ||||
| 86693-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06156 | ||||
ILLUST NO. 3 OF 6(9301-0108) ; (0108-0408)BB58,HDB5#,HZB4#,5#..09S,20S,26S,29S..WC..CBU
ｵｰﾃﾞｲｵ ﾗﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74603D - GRIP SUB-ASSY, AUDIO RACK ASSIST | ||||
| 74603-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 74603D - GRIP SUB-ASSY, AUDIO RACK ASSIST | ||||
| 74603-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86107 - LEG SUB-ASSY, AUDIO RACK, NO.1 | ||||
| 86107-36020 |
HDB51..26S;HDB5#,HZB50..(20S,29S)..(EX,GX,LX,SULNG)..(4FC,5F)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86107-36020 |
HZB41..15S;HDB5#,HZB50..EX,GX,SULNG ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86107-36010 |
HDB51..26S;HDB51..(20S,29S)..(4FC,5F)..CBU;BB40,HDB50,HZB4#,50..HRF..(EX,GX,LX)..(4FC,5F)..CBU |
1 | ||
| 86107 - LEG SUB-ASSY, AUDIO RACK, NO.1 | ||||
| 86107-36020 |
HDB51..26S;HDB5#,HZB50..(20S,29S)..(EX,GX,LX,SULNG)..(4FC,5F)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86107-36020 |
HZB41..15S;HDB5#,HZB50..EX,GX,SULNG ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86107-36010 |
HDB51..26S;HDB51..(20S,29S)..(4FC,5F)..CBU;BB40,HDB50,HZB4#,50..HRF..(EX,GX,LX)..(4FC,5F)..CBU |
1 | ||
| 86200 - RACK ASSY, AUDIO | ||||
| 86200-36022 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86200-36012 |
HDB51..CBU;HDB50,HZB50..(GX,LX)..(4FC,5F)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86200 - RACK ASSY, AUDIO | ||||
| 86200-36022 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86200-36012 |
HDB51..CBU;HDB50,HZB50..(GX,LX)..(4FC,5F)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86223 - BOARD, AUDIO RACK, NO.1 | ||||
| 86223-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86223 - BOARD, AUDIO RACK, NO.1 | ||||
| 86223-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86296 - LABEL, TELEVISION INFORMATION | ||||
| 86296-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| Common parts | ||||
| 90119-06336 | ||||
| 90119-08258 | ||||
| 90119-08313 | ||||
| 90119-08993 | ||||
| 90159-50119 | ||||
| 90176-06036 | ||||
ILLUST NO. 3 OF 6(9301-0108)
ｵｰﾃﾞｲｵ ﾗﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74603D - GRIP SUB-ASSY, AUDIO RACK ASSIST | ||||
| 74603-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86183 - COVER, AUDIO RACK | ||||
| 86183-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86184 - COVER, AUDIO RACK, NO.2 | ||||
| 86184-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86188 - BRACKET, AUDIO RACK COVER, NO.1 | ||||
| 86188-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86188A - BRACKET, AUDIO RACK COVER, NO.2 | ||||
| 86188-36040 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86188B - BRACKET, AUDIO RACK COVER, NO.3 | ||||
| 86188-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86188B - BRACKET, AUDIO RACK COVER, NO.3 | ||||
| 86188-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86188C - BRACKET, AUDIO RACK COVER, NO.4 | ||||
| 86188-36030 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86189 - LOCK, AUDIO RACK COVER | ||||
| 86189-36010 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 86189 - LOCK, AUDIO RACK COVER | ||||
| 86189-36010 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 86198 - SPACER, AUDIO RACK COVER, NO.1 | ||||
| 86198-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86198 - SPACER, AUDIO RACK COVER, NO.1 | ||||
| 86198-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86198 - SPACER, AUDIO RACK COVER, NO.1 | ||||
| 86198-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
2 | ||
| 86199 - KNOB, AUDIO RACK COVER | ||||
| 86199-36010 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 86199 - KNOB, AUDIO RACK COVER | ||||
| 86199-36010 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 86200 - RACK ASSY, AUDIO | ||||
| 86200-36022 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86200-36012 |
HDB51..CBU;HDB50,HZB50..(GX,LX)..(4FC,5F)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 86294 - BRACKET, AUDIO RACK | ||||
| 86294-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86294-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
6 | ||
| 86294 - BRACKET, AUDIO RACK | ||||
| 86294-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86294-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
6 | ||
| 86294 - BRACKET, AUDIO RACK | ||||
| 86294-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 86294-36020 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
6 | ||
| Common parts | ||||
| 90159-60424 | ||||
| 90176-06036 | ||||
| 90540-06004 | ||||
| 93540-54008 | ||||
| Linked diagrams | ||||
| 7456 | ||||
ILLUST NO. 4 OF 6(9301-9907)
ﾊﾞｯｸﾓﾆﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82201A - WIRE, TELEVISION | ||||
| 82201-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 86708 - BRACKET SUB-ASSY, TELEVISION CAMERA | ||||
| 86708-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 86708-36040 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 86770 - DISPLAY ASSY, TELEVISION | ||||
| 86770-36020 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86770-36011 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 86770-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 86771A - BRACKET, TELEVISION CAMERA DISPLAY, RH | ||||
| 86771-36020 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86771-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 86772 - BRACKET, TELEVISION CAMERA DISPLAY, LH | ||||
| 86772-36020 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86772-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 86775 - PLATE, TELEVISION CAMERA DISPLAY | ||||
| 86775-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 86775-36020 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86794 - COVER, TELEVISION CAMERA WIRE | ||||
| 86794-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 86797 - WIRE, TELEVISION CAMERA, NO.2 | ||||
| 86797-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 86798 - WIRE, TELEVISION CAMERA, NO.3 | ||||
| 86798-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-36060 |
BB4#,55,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 86799-36050 |
BB4#,55,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 86799-36070 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-06594 | ||||
| 90119-08503 | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 90480-12002 | ||||
| 90480-30324 | ||||
| 91631-B0610 | ||||
| 93383-15016 | ||||

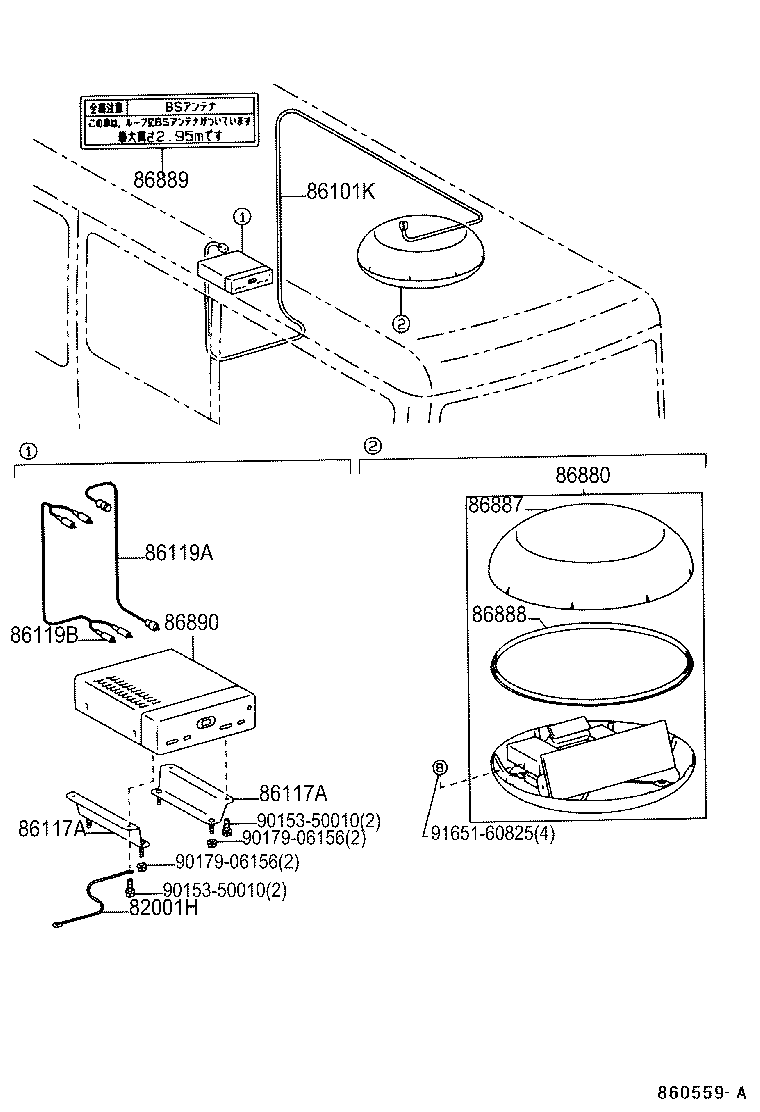

ILLUST NO. 5 OF 6(9301-9907)HDB51,HZB41
BS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001H - CABLE, BOND | ||||
| 90980-07313 |
HDB51,HZB41 |
1 | ||
| 90980-07313 |
HDB51..CBU |
1 | ||
| 86101K - CORD SUB-ASSY, TELEVISION ANTENNA | ||||
| 86101-36020 |
HDB51..CBU |
1 | ||
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-36010 |
HDB51,HZB41 |
2 | ||
| 86117-36010 |
HDB51..CBU |
2 | ||
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-36010 |
HDB51,HZB41 |
2 | ||
| 86117-36010 |
HDB51..CBU |
2 | ||
| 86119A - WIRE, TELEVISION SWITCH | ||||
| 86119-36010 |
HDB51,HZB41 |
1 | ||
| 86119-36010 |
HDB51..CBU |
1 | ||
| 86119B - WIRE, TELEVISION SWITCH | ||||
| 86119-36020 |
HDB51,HZB41 |
1 | ||
| 86119-36020 |
HDB51..CBU |
1 | ||
| 86880 - ANTENNA ASSY, BROADCASTING SATELLITE | ||||
| 86880-36011 |
HDB51 |
1 | ||
| 86880-36020 |
HDB51..CBU |
1 | ||
| 86880-36010 |
HDB51,HZB41 |
1 | ||
| 86887 - COVER, BS ANTENNA | ||||
| 86887-36020 |
HDB51..CBU |
1 | ||
| 86887-36010 |
HDB51,HZB41 |
1 | ||
| 86887-36011 |
HDB51 |
1 | ||
| 86888 - WEATHERSTRIP, BS ANTENNA | ||||
| 86888-36020 |
HDB51..CBU |
1 | ||
| 86888-36011 |
HDB51 |
1 | ||
| 86888-36010 |
HDB51,HZB41 |
1 | ||
| 86889 - LABEL, BS ANTENNA NOTICE | ||||
| 86889-36010 |
HDB51..CBU |
1 | ||
| 86889-36010 |
HDB51,HZB41 |
1 | ||
| 86890 - TUNER ASSY, BROADCASTING SATELLITE | ||||
| 86890-36010 |
HDB51,HZB41 |
1 | ||
| 86890-36010 |
HDB51..CBU |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06156 | ||||
| 91651-60825 | ||||
ILLUST NO. 6 OF 6(9301-1501)
ﾉｲｽﾞ ﾌｲﾙﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| 86011J - FILTER, NOISE | ||||
| 90980-05275 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 ｱﾘ(ﾘﾔﾜｲﾊﾟ),NO.2 |
2 | ||
| 90980-05145 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.1 |
4 | ||
| 90980-05276 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) NO.3 |
2 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
ILLUST NO. 1 OF 6(9301-0108)
TV & VTR ｾｯﾄ(ﾅﾋﾞｹﾞｰｼｮﾝﾂｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82819B - GROMMET, WIRING HARNESS | ||||
| 82819-90B00 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 82819B - GROMMET, WIRING HARNESS | ||||
| 82819-90B00 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 82819B - GROMMET, WIRING HARNESS | ||||
| 82819-90B00 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 86010A - TUNER ASSY, TELEVISION | ||||
| 86010-36010 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86028 - BRACKET SUB-ASSY, TELEVISION | ||||
| 86028-36010 |
BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 86050A - ANTENNA ASSY, TELEVISION | ||||
| 86050-36030 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 86050-36010 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86050D - ANTENNA ASSY, TELEVISION | ||||
| 86050-36020 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 86190B - ADAPTER ASSY, REMOTE CONTROL | ||||
| 86190-36010 |
HDB51..CBU |
1 | ||
| 86335A - BASE, ANTENNA POLE | ||||
| 86335-90B00 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 86335A - BASE, ANTENNA POLE | ||||
| 86335-90B00 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-90B00 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) MATSUSHITA |
1 | ||
| 86690A - VIDEO DECK ASSY | ||||
| 86690-36010 |
HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90153-50010 | ||||
| 90159-40161 | ||||
| 90467-08006 | ||||
| 91651-60830 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
