HDB51-ZEMQW (1995)

Toyota Coaster

Production May 1995 - May 1997
Engine 1HDFT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

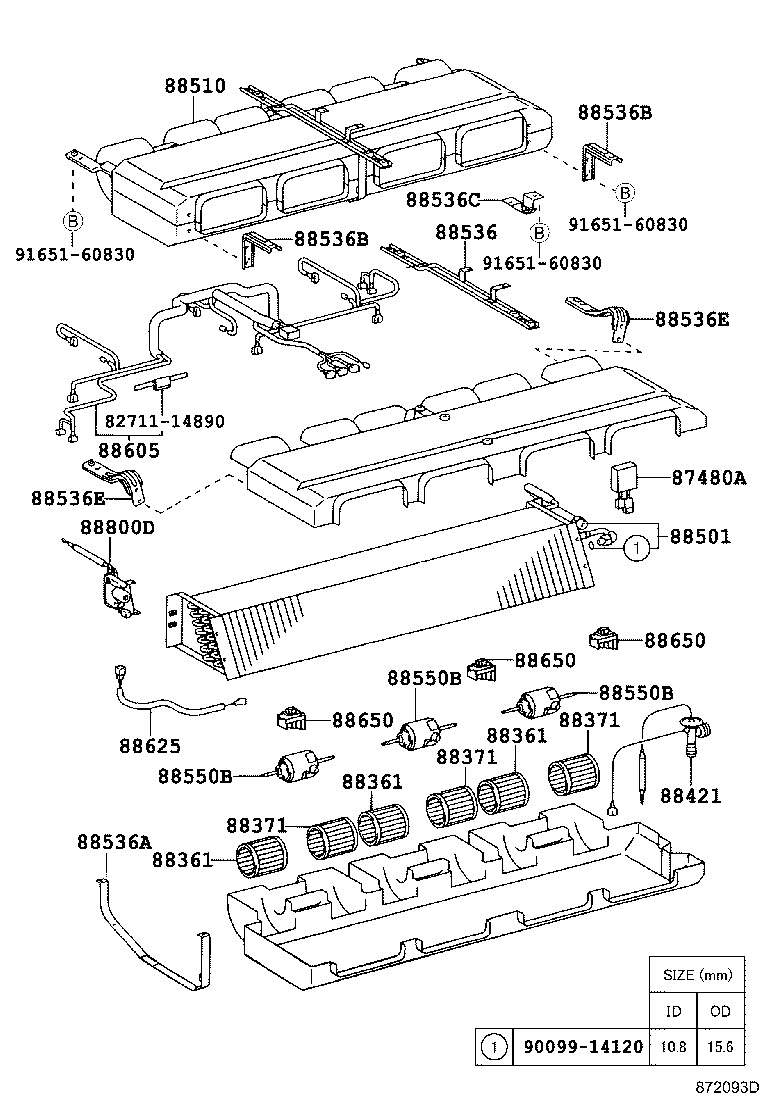

ILLUST NO. 1 OF 3(9301-9907)EX,GX,SULNG..CBU,IV5

Click highlighted areas on diagram

ｵ-ﾄ ｸ-ﾗ ﾕﾆﾂﾄ

diagram 8271114890 87480A 88361 88361 88361 88371 88371 88371 88421 88501 88510 88536 88536A 88536B 88536B 88536C 88536E 88536E 88550B 88550B 88550B 88605 88625 88650 88650 88650 88800D 9009914120 9165160830 9165160830 9165160830
Part # Description Qty Price
87480A - AMPLIFIER ASSY, HEATER
87480-36020

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 1
88361 - FAN, COOLER BLOWER, NO.1
87105-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88421 - VALVE, EXPANSION, NO.2
88421-36010

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-36080

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88510 - UNIT ASSY, COOLER
88510-36150

HDB51,HZB41

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 2
88536C - BRACKET, COOLING UNIT, NO.4
88536-36110

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36120

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

左側

 1
88536-36130

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

右側

 1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36120

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

左側

 1
88536-36130

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

右側

 1
88550B - MOTOR ASSY, BLOWER
88550-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88550B - MOTOR ASSY, BLOWER
88550-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88550B - MOTOR ASSY, BLOWER
88550-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-36130

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 1
88625 - THERMISTOR, COOLER, NO.1
88625-36140

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90B03

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90B03

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90B03

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 3
88800D - COOLING UNIT SERVO
88800-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
Common parts
82711-14890
90099-14120
91651-60830

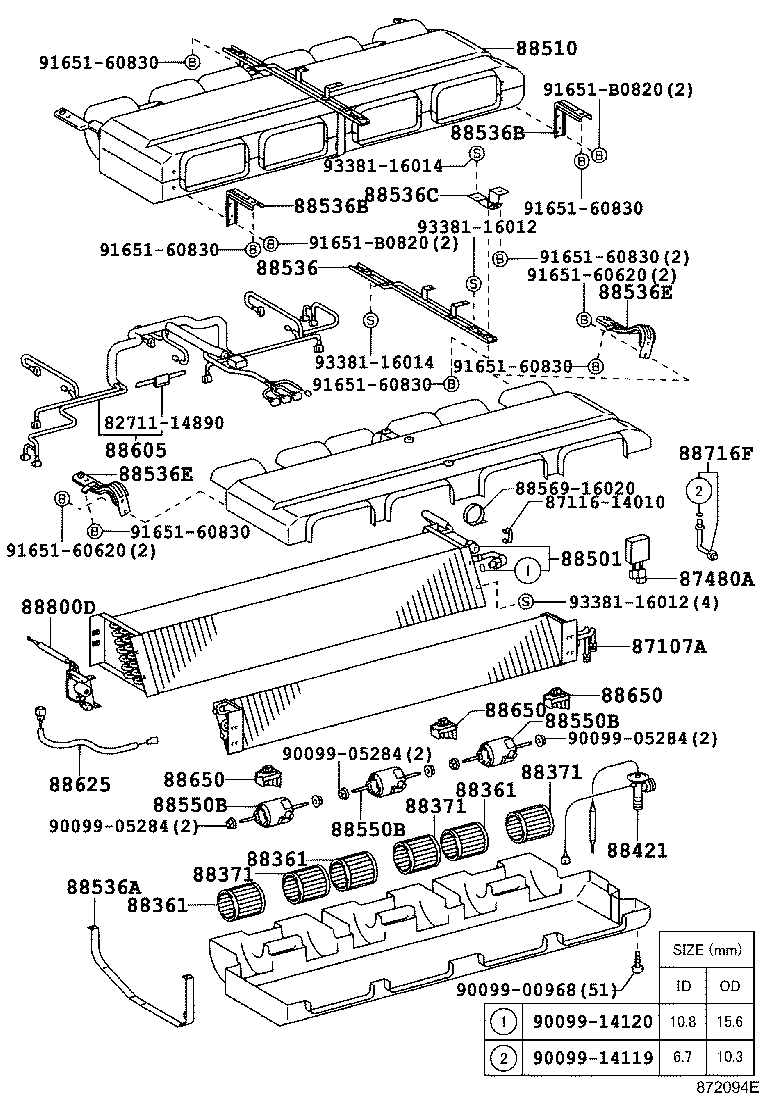

ILLUST NO. 1 OF 3(9301-9907)HDB51,HZB41..CBU

Click highlighted areas on diagram

ｵ-ﾄｸ-ﾗ ﾕﾆﾂﾄ(ﾘﾋ-ﾄ ﾂｷ)

diagram 8271114890 87107A 8711614010 87480A 88361 88361 88361 88371 88371 88371 88421 88501 88510 88536 88536A 88536B 88536B 88536C 88536E 88536E 88550B 88550B 88550B 8856916020 88605 88625 88650 88650 88650 88716F 88800D 9009900968 9009905284 9009905284 9009905284 9009914119 9009914120 9165160620 9165160620 9165160830 9165160830 9165160830 9165160830 9165160830 9165160830 9165160830 91651B0820 91651B0820 9338116012 9338116012 9338116014 9338116014
Part # Description Qty Price
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-36120

HDB51,HZB41..CBU

 1
87480A - AMPLIFIER ASSY, HEATER
87480-36020

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 1
88361 - FAN, COOLER BLOWER, NO.1
87105-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88421 - VALVE, EXPANSION, NO.2
88421-36010

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-36080

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88510 - UNIT ASSY, COOLER
88510-36150

HDB51,HZB41

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-36070

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 2
88536C - BRACKET, COOLING UNIT, NO.4
88536-36110

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36120

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

左側

 1
88536-36130

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

右側

 1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36120

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

左側

 1
88536-36130

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

右側

 1
88550B - MOTOR ASSY, BLOWER
88550-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88550B - MOTOR ASSY, BLOWER
88550-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88550B - MOTOR ASSY, BLOWER
88550-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 3
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-36130

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 1
88625 - THERMISTOR, COOLER, NO.1
88625-36140

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90B03

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90B03

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90B03

HDB5#,HZB41,50..(EX,GX,SULNG)..CBU

 3
88800D - COOLING UNIT SERVO
88800-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
Common parts
82711-14890
87116-14010
88569-16020
90099-00968
90099-05284
90099-14119
90099-14120
91651-60620
91651-60830
91651-B0820
93381-16012
93381-16014

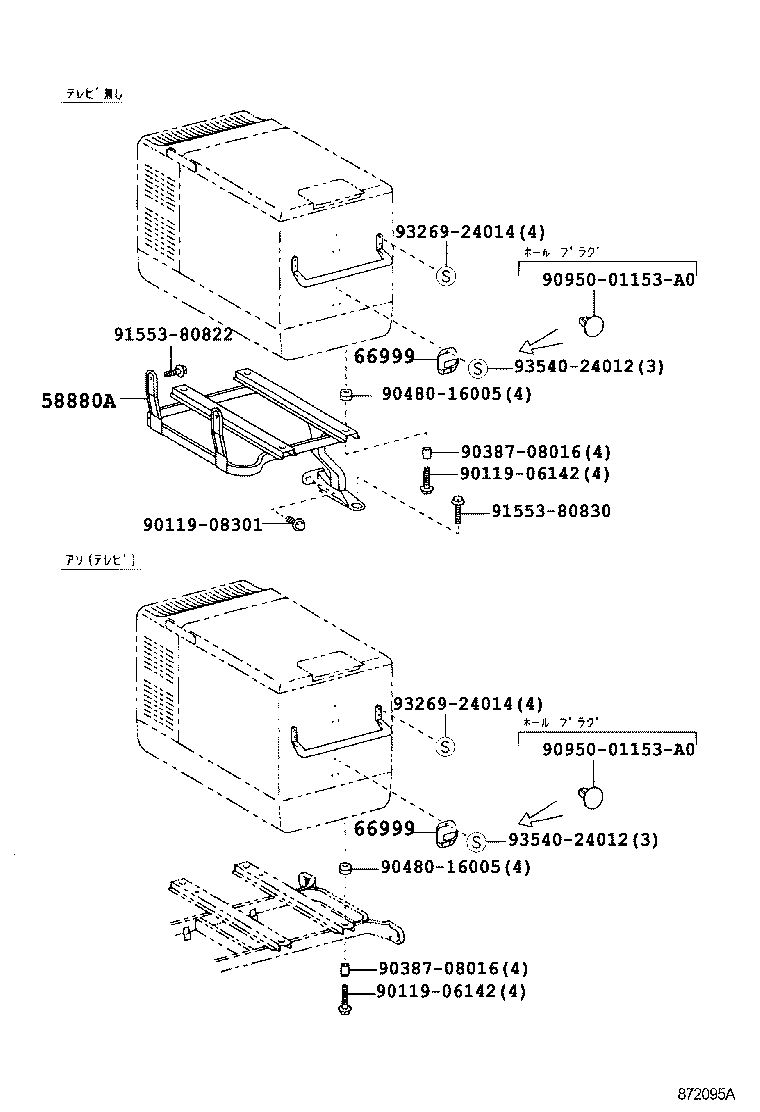

ILLUST NO. 2 OF 3(9301-9907)

Click highlighted areas on diagram

ｸ-ﾙ ﾎﾞﾂｸｽ ﾌﾞﾗｹﾂﾄ

diagram 58880A 66999 66999 9011906142 9011906142 9011908301 9038708016 9038708016 9048016005 9048016005 9095001153A0 9095001153A0 9155380822 9155380830 9326924014 9326924014 9354024012 9354024012
Part # Description Qty Price
58880A - LEG ASSY, COOLING BOX
58880-36010E0

HDB51..SULNG..TD2;HDB5#,HZB50..EX,GX,LX

GREIGE,TRIM4#

 1
66999 - STAY, CUP OPENER
66999-90B00

HDB5#,HZB50..EX,GX,LX

 1
66999-90B00

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
66999 - STAY, CUP OPENER
66999-90B00

HDB5#,HZB50..EX,GX,LX

 1
66999-90B00

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
Common parts
90119-06142
90119-08301
90387-08016
90480-16005
90950-01153A0
91553-80822
91553-80830
93269-24014
93540-24012

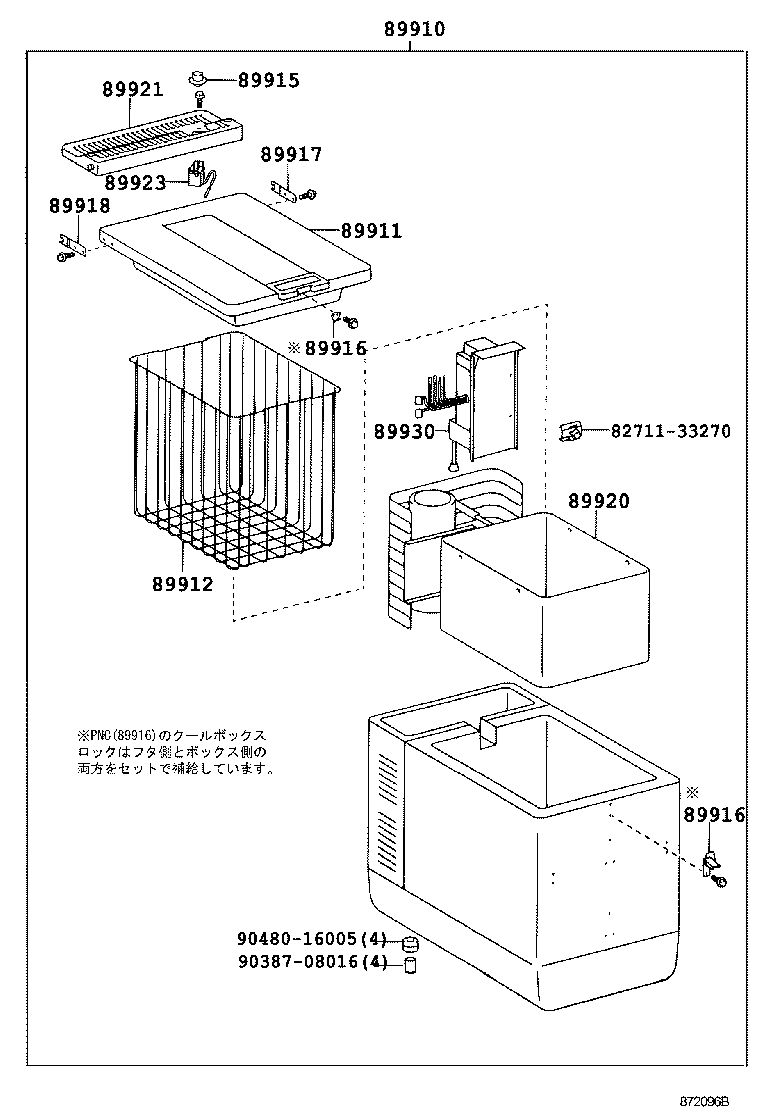

ILLUST NO. 3 OF 3(9301-9905)

Click highlighted areas on diagram

ｸ-ﾙ ﾎﾞﾂｸｽ

diagram 8271133270 89910 89911 89912 89915 89916 89916 89917 89918 89920 89921 89923 89930 9038708016 9048016005
Part # Description Qty Price
89910 - BOX ASSY, COOLER
89910-36012

HDB5#,HZB50..EX,GX,LX

 1
89911 - DOOR, COOLER BOX
89911-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89911-36021

HDB5#,HZB50..EX,GX,LX

 1
89912 - TRAY, COOLER BOX
89912-36021

HDB5#,HZB50..EX,GX,LX

 1
89912-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89915 - DIAL, COOLER CONTROL
89915-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89915-36021

HDB5#,HZB50..EX,GX,LX

 1
89916 - LOCK, COOLER BOX
89916-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89916-36020

HDB5#,HZB50..EX,GX,LX

 1
89916 - LOCK, COOLER BOX
89916-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89916-36020

HDB5#,HZB50..EX,GX,LX

 1
89917 - HINGE, COOLER BOX DOOR, RH
89917-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89918 - HINGE, COOLER BOX DOOR, LH
89918-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89920 - UNIT ASSY, COOLER DRIVE MECHANISM
89920-36022

HDB5#,HZB50..EX,GX,LX

 1
89920-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89921 - CASE, COOLER DRIVE UNIT
89921-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89921-36021

HDB5#,HZB50..EX,GX,LX

 1
89923 - THERMISTOR, COOLER BOX
89923-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89923-36021

HDB5#,HZB50..EX,GX,LX

 1
89930 - PARTS ASSY, COOLER BOX ELECTRICAL
89930-36020

HZB41..15S;HDB5#,HZB50..EX,GX,SULNG

 1
89930-36021

HDB5#,HZB50..EX,GX,LX

 1
Common parts
82711-33270
90387-08016
90480-16005
