HDB51-ZEFQW (1997)
Toyota Coaster
ILLUST NO. 1 OF 4(9301-9907)BB4#,HDB5#,HZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36490 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47311-36480 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47311-36490 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12045 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90412-12047 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90412-12047 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36270 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47312-36271 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10271 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 90412-10210 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90413-10271 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36250 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47313-36300 |
HDB5#..6F |
1 | ||
| 47313-36260 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313-36290 |
HDB5#..6F ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10270 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36300 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36220 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-36260 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47317-36130 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47317-36130 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36300 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47321-36310 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321-36310 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36340 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47322-36330 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322-36380 |
HDB5#..6F ｱﾘ(ABS) |
1 | ||
| 47322-36390 |
HDB5#..6F |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36290 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36200 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36060 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-36050 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47372-36050 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36030 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47307-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47307-36030 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-06112 | ||||
| 90462-06017 | ||||
| 90464-00549 | ||||
| 90468-08044 | ||||
| 90480-01187 | ||||
| 90480-01335 | ||||
| 90480-01359 | ||||
| 90904-80004 | ||||
| 90949-02081 | ||||
| 90949-02085 | ||||
| 90949-02086 | ||||
| 91611-B0816 | ||||
| 91642-80825 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||

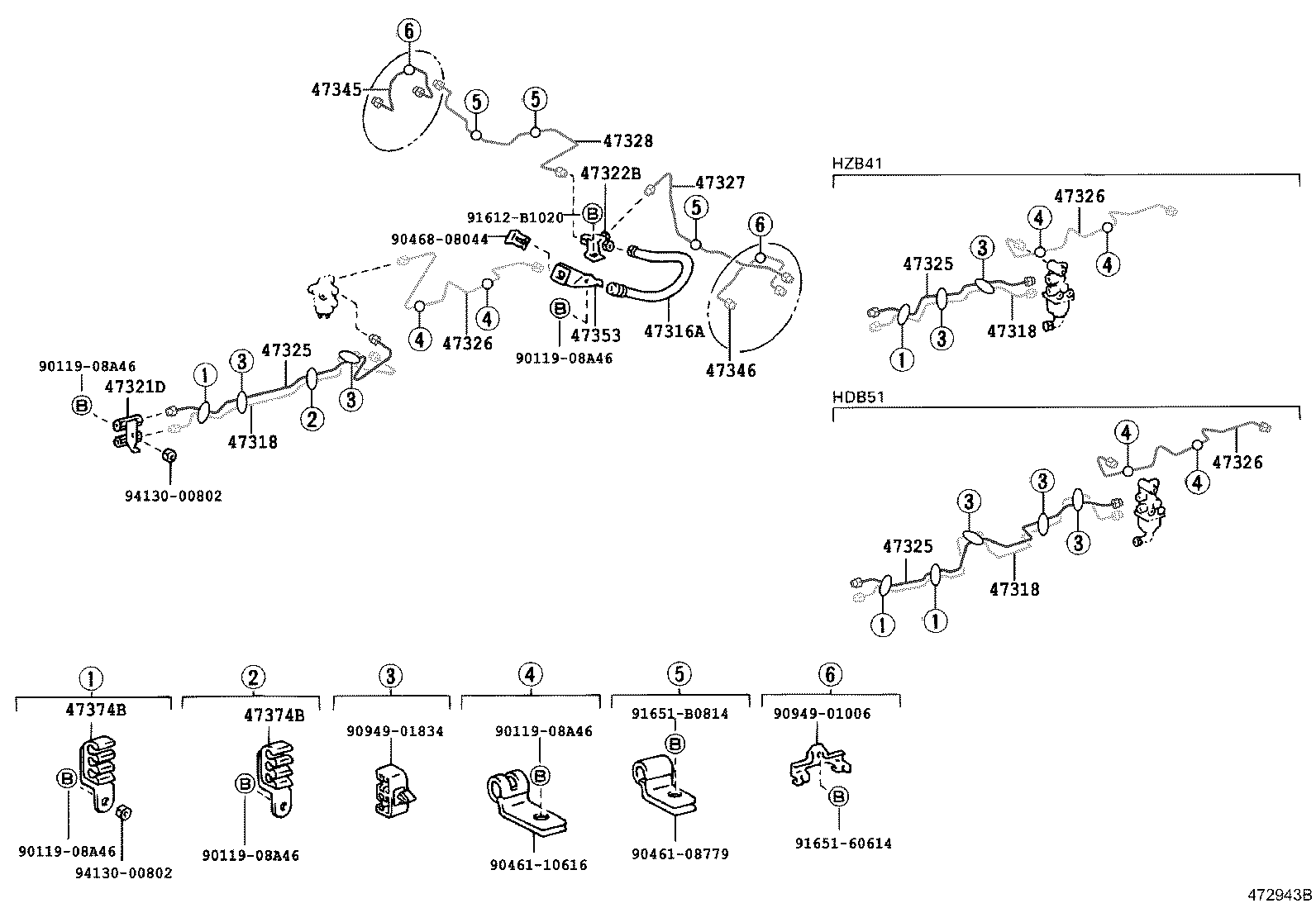

ILLUST NO. 2 OF 4(9301-9907)BB4#,HDB51,HZB4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-33805 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 90904-12001 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36210 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47326-36200 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36210 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47326-36200 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36210 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47326-36200 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36240 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36270 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47328-36260 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90468-08044 | ||||
| 90949-01006 | ||||
| 90949-01834 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||

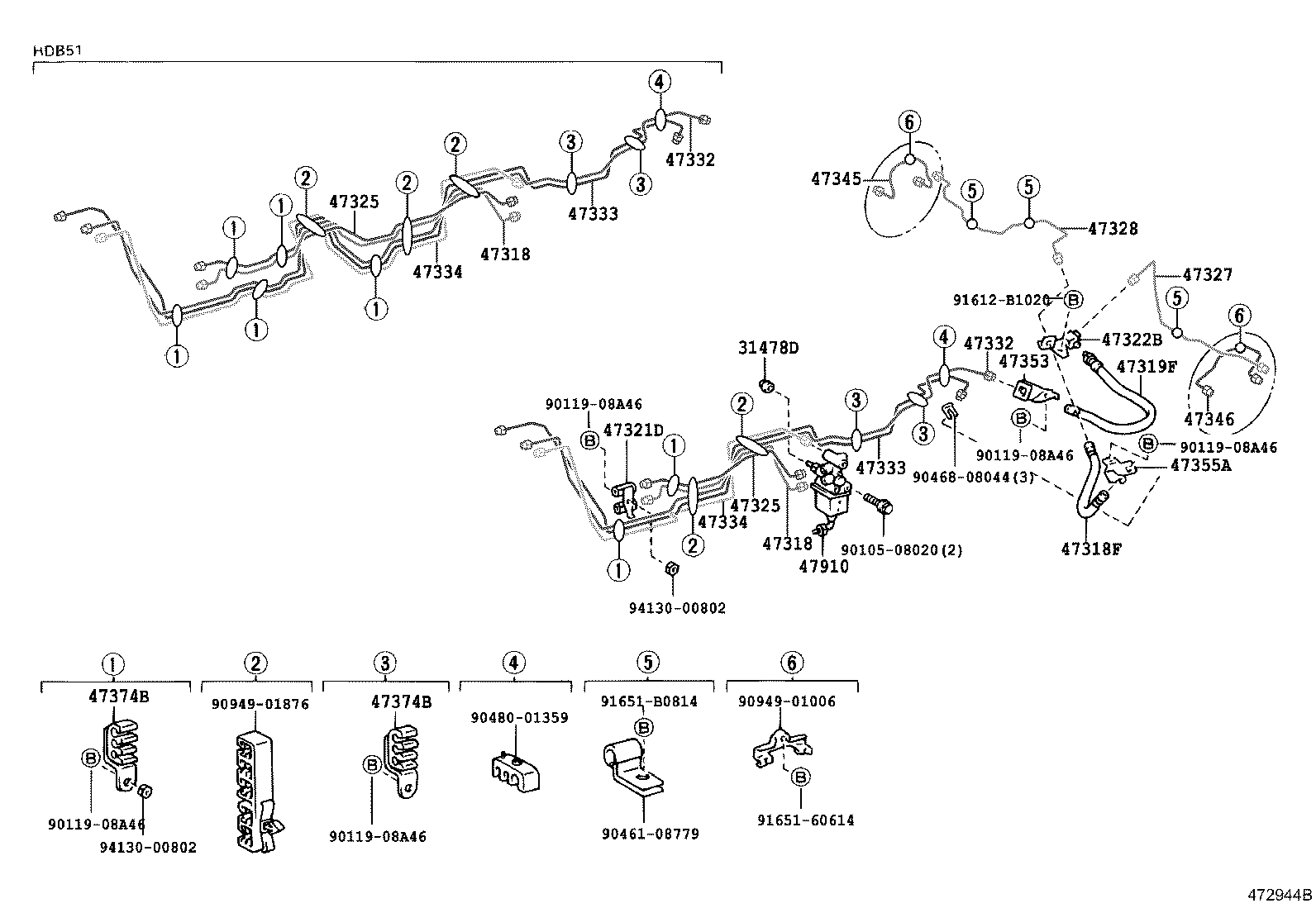

ILLUST NO. 2 OF 4(9301-9907)HDB51,HZB41
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02711 |
HDB51,HZB41 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02746 |
HDB51,HZB41 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 90904-12001 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36240 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36270 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47328-36260 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36110 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36110 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36030 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36030 |
HDB51 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-36180 |
HDB51,HZB41 |
1 | ||
| Common parts | ||||
| 90105-08020 | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90468-08044 | ||||
| 90480-01359 | ||||
| 90949-01006 | ||||
| 90949-01876 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(9301-9907)HDB51,HZB41
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36490 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47311-36480 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47311-36490 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12045 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90412-12047 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90412-12047 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10271 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 90412-10210 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90413-10271 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36250 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47313-36300 |
HDB5#..6F |
1 | ||
| 47313-36260 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313-36290 |
HDB5#..6F ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47317-36130 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47317-36130 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36300 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47321-36310 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321-36310 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36340 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47322-36330 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322-36380 |
HDB5#..6F ｱﾘ(ABS) |
1 | ||
| 47322-36390 |
HDB5#..6F |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36230 |
HDB51,HZB41 |
1 | ||
| 47331-36220 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36200 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36030 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 47361-36030 |
HDB51,HZB41 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 47362-36010 |
HDB51,HZB41 |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36020 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47363-36010 |
HDB51,HZB41 |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 47364-36010 |
HDB51,HZB41 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36060 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-36050 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47372-36050 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36030 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47307-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47307-36030 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-06112 | ||||
| 90464-00549 | ||||
| 90468-08044 | ||||
| 90480-01268 | ||||
| 90480-01335 | ||||
| 90904-80004 | ||||
| 90949-02082 | ||||
| 90949-02083 | ||||
| 90949-02084 | ||||
| 91611-B0816 | ||||
| 91642-80825 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(9705-9907)HDB50,HZB40,5#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36490 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47311-36480 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47311-36490 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12045 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90412-12047 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90412-12047 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10271 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 90412-10210 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90413-10271 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36250 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47313-36300 |
HDB5#..6F |
1 | ||
| 47313-36260 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313-36290 |
HDB5#..6F ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47317-36130 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47317-36130 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36300 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47321-36310 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321-36310 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36340 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47322-36330 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322-36380 |
HDB5#..6F ｱﾘ(ABS) |
1 | ||
| 47322-36390 |
HDB5#..6F |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36230 |
HDB51,HZB41 |
1 | ||
| 47331-36220 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36110 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36200 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36030 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 47361-36030 |
HDB51,HZB41 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 47362-36010 |
HDB51,HZB41 |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36020 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 47363-36010 |
HDB51,HZB41 |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 47364-36010 |
HDB51,HZB41 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36060 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-36050 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47372-36050 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36030 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 47307-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47307-36030 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-06112 | ||||
| 90464-00549 | ||||
| 90468-08044 | ||||
| 90480-01268 | ||||
| 90480-01335 | ||||
| 90904-80004 | ||||
| 90949-02082 | ||||
| 90949-02083 | ||||
| 90949-02084 | ||||
| 91611-B0816 | ||||
| 91642-80825 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||

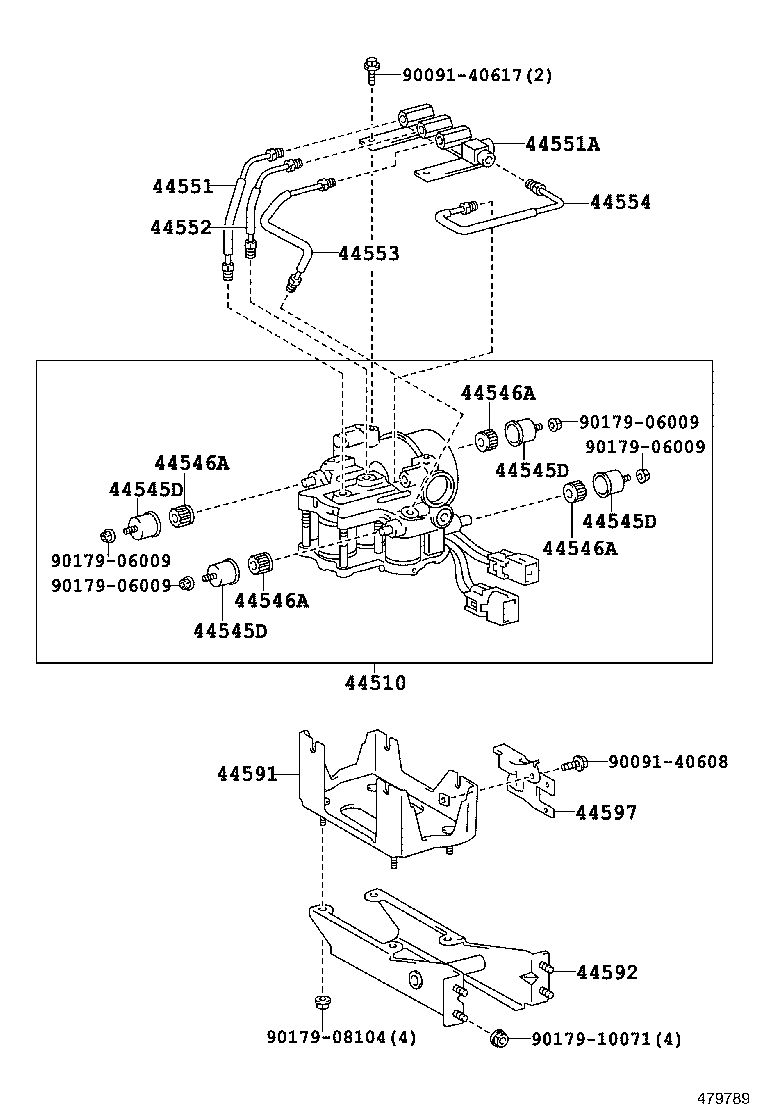

ILLUST NO. 3 OF 4(9301-9907)HDB51,HZB41
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-36020 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44510-36010 |
HDB51,HZB41 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-36010 |
HDB51,HZB41 |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10211 |
HDB51,HZB41 |
1 | ||
| 44589-36030 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-36030 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44552-36010 |
HDB51,HZB41 |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-36010 |
HDB51,HZB41 |
1 | ||
| 44553-36030 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44554-36010 |
HDB51,HZB41 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-36011 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44591-36010 |
HDB51,HZB41 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-36010 |
HDB51,HZB41 |
1 | ||
| 44592-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44597-36010 |
HDB51,HZB41 |
1 | ||
| Common parts | ||||
| 90091-40608 | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08104 | ||||
| 90179-10071 | ||||
ILLUST NO. 3 OF 4(9705-9907)HDB50,HZB40,5#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-36020 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44510-36010 |
HDB51,HZB41 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
HDB51,HZB41 |
4 | ||
| 44545-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
HDB51,HZB41 |
4 | ||
| 44546-33010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
4 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10211 |
HDB51,HZB41 |
1 | ||
| 44589-36030 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-36030 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44552-36010 |
HDB51,HZB41 |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-36010 |
HDB51,HZB41 |
1 | ||
| 44553-36030 |
HDB50,HZB40,5#..09S,26S,29S,49S |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44554-36010 |
HDB51,HZB41 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-36011 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44591-36010 |
HDB51,HZB41 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-36010 |
HDB51,HZB41 |
1 | ||
| 44592-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-36010 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 44597-36010 |
HDB51,HZB41 |
1 | ||
| Common parts | ||||
| 90091-40608 | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08104 | ||||
| 90179-10071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
