HDB51-ZCPZX (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HDT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

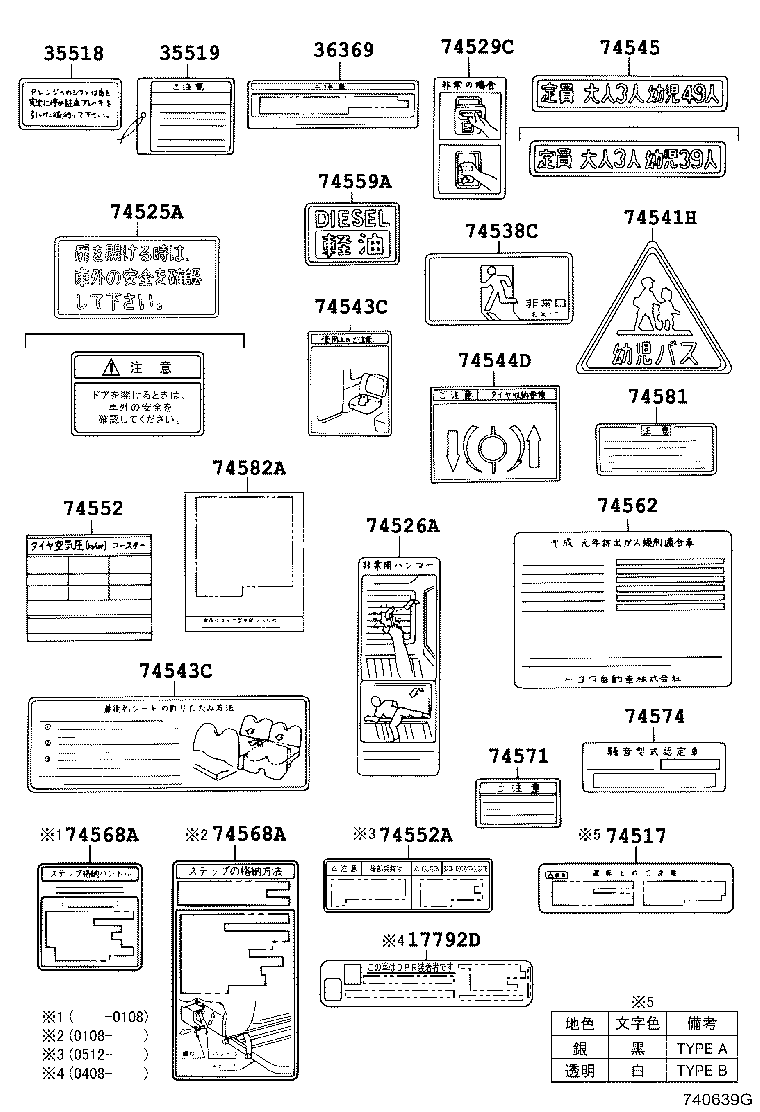

ILLUST NO. 1 OF 3(9301- )

Click highlighted areas on diagram

diagram 17792D 35518 35519 36369 74517 74525A 74526A 74529C 74538C 74541H 74543C 74543C 74544D 74545 74552 74552A 74559A 74562 74568A 74568A 74571 74574 74581 74582A
Part # Description Qty Price
35518 - PLATE, AUTOMATIC TRANSMISSION CAUTION, NO.2
35518-36010

BB5#,HDB5#,HZB4#,5#..4FC

 1
35519 - PLATE, AUTOMATIC TRANSMISSION CAUTION
35519-36040

HDB5#,HZB4#,5#..4FC

 1
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-20020

BB4#,HDB5#,HZB4#,5#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
74526A - PLATE, EMERGENCY HAMMER CAUTION
74526-36010

HDB51..SULNG

 2
74543C - LABEL, REAR SEAT INFORMATION
74543-36010

BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG

 1
74543C - LABEL, REAR SEAT INFORMATION
74543-36010

BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-36020

BB4#,55,HDB5#,HZB4#,5#

 1
74552 - PLATE, SAFETY CAUTION
74552-3B730

HDB5#,HZB5#

 1
74559A - PLATE, FUEL CAUTION
74559-14030

BB4#,5#,HDB5#,HZB4#,5#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-36250

HDB5#

 1
74562-60150

HZB4#,5#

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

BB4#,HDB5#,HZB4#,5#

 1
74581 - PLATE, POWER STEERING CAUTION
74581-37010

BB4#,HDB5#,HZB4#,5#

 1

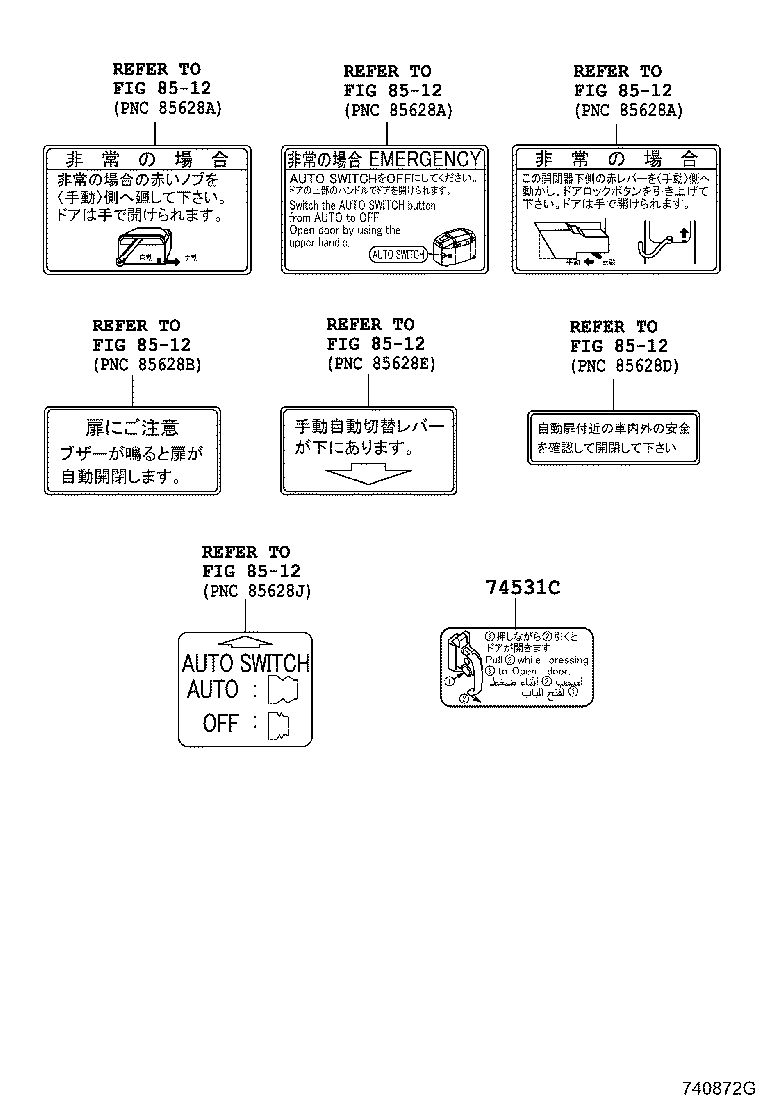

ILLUST NO. 2 OF 3(9301- )

Click highlighted areas on diagram

diagram 74531C 8512 8512 8512 8512 8512 8512 8512
Part # Description Qty Price
Linked diagrams
8512
