HDB51-ZCPZX (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HDT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9907)HDB5#,HZB4#,5#

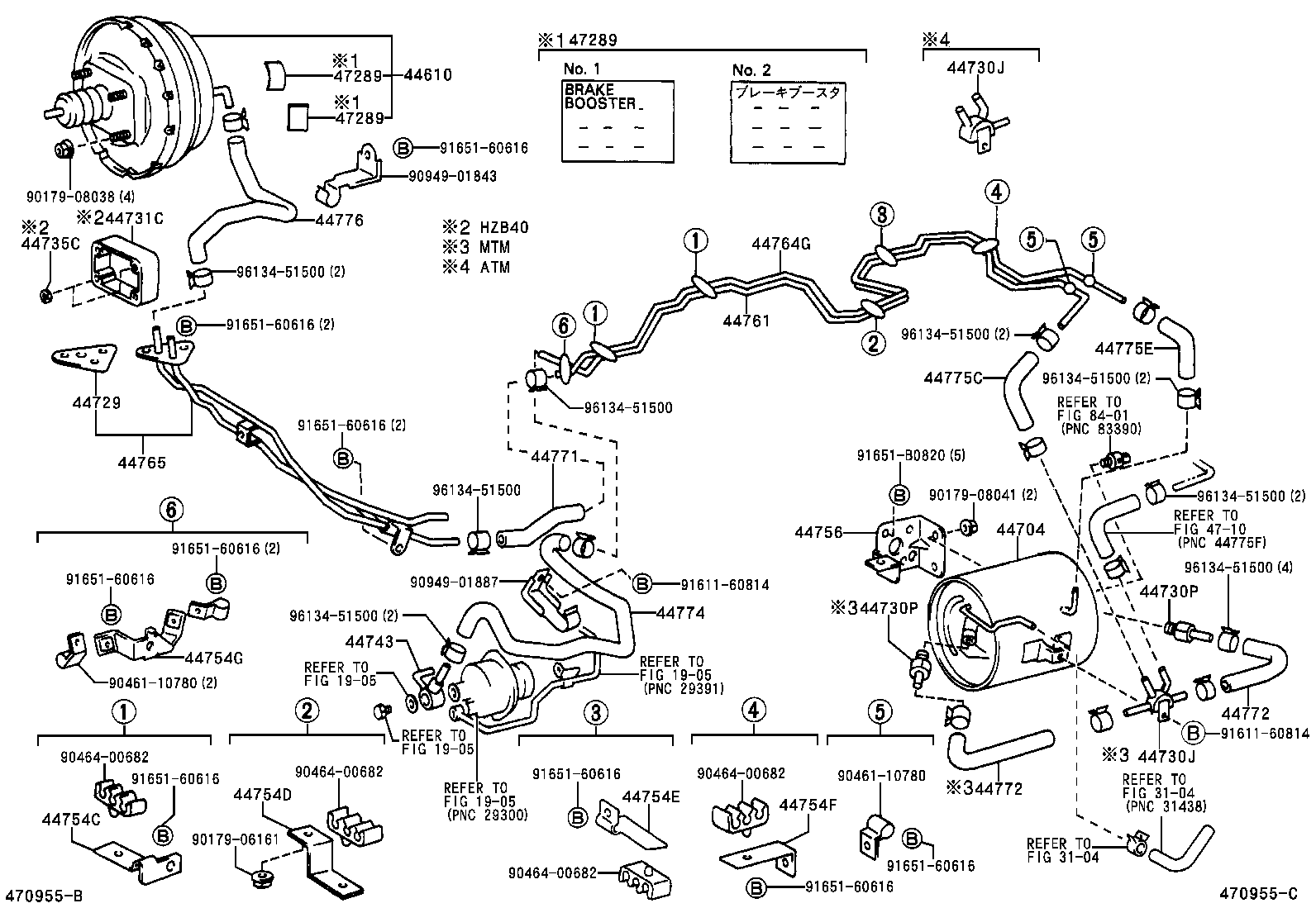

Click highlighted areas on diagram

diagram 1905 1905 1905 1905 3104 3104 44610 44704 44729 44730J 44730J 44730P 44730P 44731C 44735C 44743 44754C 44754D 44754E 44754F 44754G 44756 44761 44764G 44765 44771 44772 44772 44774 44775C 44775E 44776 4710 47289 47289 47289 8401 9017906161 9017908038 9017908041 9046110780 9046110780 9046400682 9046400682 9046400682 9046400682 9094901843 9094901887 9161160814 9161160814 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 91651B0820 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-36520

BB5#,HDB5#,HZB41,5#

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36270

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44729 - GASKET, VACUUM TUBE
44729-36020

BB4#,HDB5#,HZB4#,5#

 1
44730J - WAY(FOR BOOSTER VACUUM)
90413-09037

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44730J - WAY(FOR BOOSTER VACUUM)
90413-09037

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09142

HDB5#,HZB4#,5#

 1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-36090

BB4#,HDB5#,HZB4#,5#

 2
44754D - BRACKET, VACUUM TUBE, NO.2
44754-36110

BB4#,HDB5#,HZB4#,5#

 1
44754E - BRACKET, VACUUM TUBE, NO.3
44754-36120

BB4#,HDB5#,HZB4#,5#..4FC,5F

 1
44754F - BRACKET, VACUUM TUBE, NO.4
44754-36130

BB4#,HDB5#,HZB4#,5#

 1
44754G - BRACKET, VACUUM TUBE, NO.5
44754-36140

BB4#,HDB5#,HZB4#,5#

 1
44756 - BRACKET, VACUUM RESERVOIR
44757-36060

BB4#,HDB5#,HZB4#,5#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-36140

BB4#,HDB5#,HZB4#,5#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-36480

BB4#,HDB5#,HZB4#,5#

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36210

HDB5#,HZB4#,5#..4FC

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36240

HDB5#,HZB4#,5#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-36090

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-36090

BB4#,5#;HDB5#,HZB4#,5#..4FC

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36230

HDB5#,HZB4#,5#

 1
44775C - HOSE, CONNECTOR TO WAY
44775-36030

BB4#,HDB5#,HZB4#,5#

 1
44775E - HOSE, WAY TO CONNECTOR
44775-36030

BB4#,HDB5#,HZB4#,5#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36090

BB4#,5#,HDB5#,HZB4#,5#

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-60020

BB4#,5#,HDB5#,HZB4#,5#

NO.2

 1
47289-60010

BB4#,5#,HDB5#,HZB4#,5#

NO.1

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-60020

BB4#,5#,HDB5#,HZB4#,5#

NO.2

 1
47289-60010

BB4#,5#,HDB5#,HZB4#,5#

NO.1

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-60020

BB4#,5#,HDB5#,HZB4#,5#

NO.2

 1
47289-60010

BB4#,5#,HDB5#,HZB4#,5#

NO.1

 1
Common parts
90179-06161
90179-08038
90179-08041
90461-10780
90464-00682
90949-01843
90949-01887
91611-60814
91651-60616
91651-B0820
96134-51500
Linked diagrams
1905
3104
4710
8401
