HDB51-ZCMZX (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HDT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,50,56..08S,09S,10S,15S,19S,20S,24S

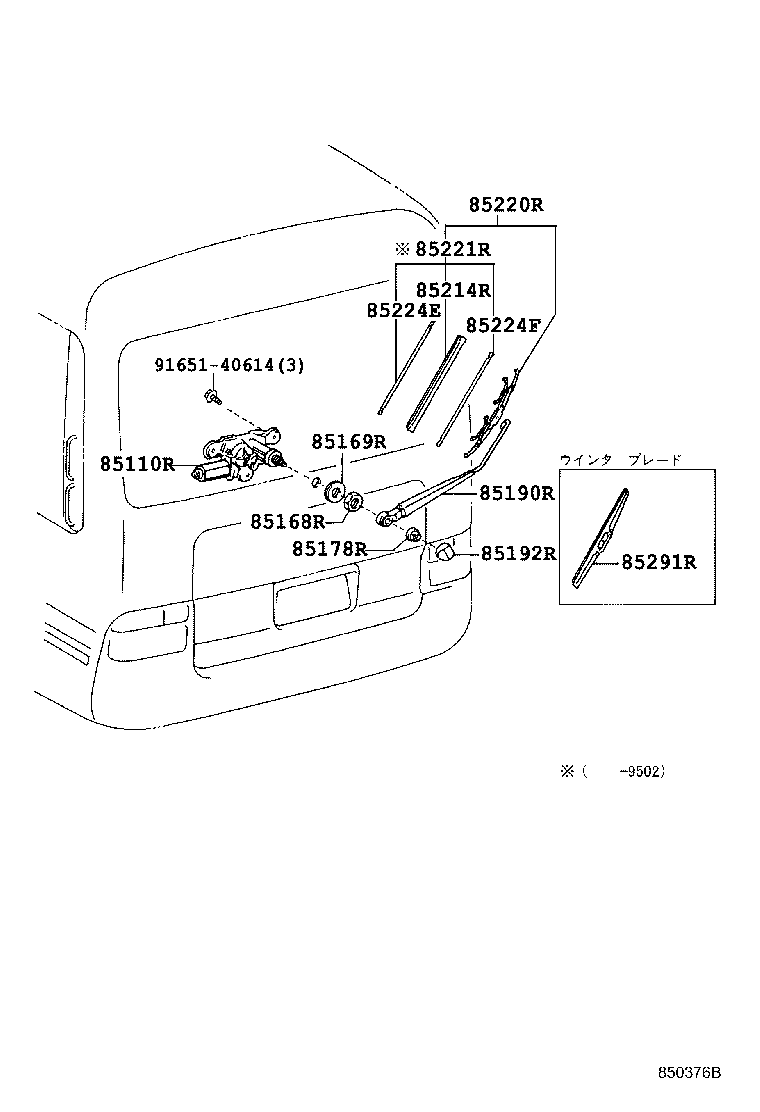

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85190R 85192R 85214R 85220R 85221R 85224E 85224F 85291R 9165140614
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-36020

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85130-36020

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
90099-05157

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-16150

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85179-16150

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06070

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
90179-06070

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85190R - ARM ASSY, REAR WIPER
85241-36010

BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S

 1
85241-36010

BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S

 1
85192R - COVER, REAR WIPER ARM
85292-36010

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85292-36010

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85220R - BLADE ASSY, REAR WIPER
85242-36010

BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S

 1
85242-36010

BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S

 1
85221R - BLADE, REAR WIPER
85243-36010

BB40,HDB5#,HZB4#,50..15S,20S,26S,29S

 1
85243-36010

BB40,HDB5#,HZB4#,50..15S,20S,26S,29S

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60060

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
85291-60060

HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)

 1
Common parts
91651-40614
