HDB51-ZCMZX (1993)
Toyota Coaster

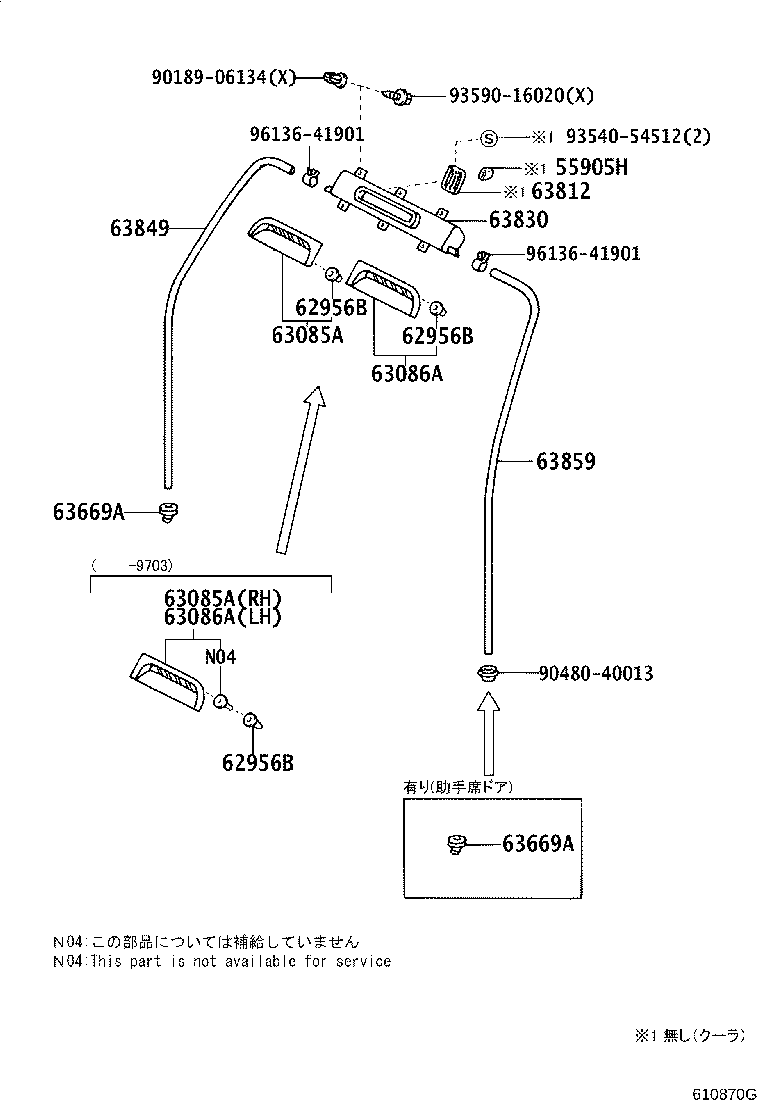

ILLUST NO. 2 OF 4(9301- )
ﾙｰﾌﾍﾞﾝﾁﾚｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62956B - RETAINER, QUARTER VENT LOUVER, LH | ||||
| 62956-36010 |
BB4#,55,HDB5#,HZB4#,5# |
12 | ||
| 62956B - RETAINER, QUARTER VENT LOUVER, LH | ||||
| 62956-36010 |
BB4#,55,HDB5#,HZB4#,5# |
12 | ||
| 62956B - RETAINER, QUARTER VENT LOUVER, LH | ||||
| 62956-36010 |
BB4#,55,HDB5#,HZB4#,5# |
12 | ||
| 63085A - LOUVER SUB-ASSY, ROOF VENTILATOR, RH | ||||
| 63085-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63085A - LOUVER SUB-ASSY, ROOF VENTILATOR, RH | ||||
| 63085-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63086A - LOUVER SUB-ASSY, ROOF VENTILATOR, LH | ||||
| 63086-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63086A - LOUVER SUB-ASSY, ROOF VENTILATOR, LH | ||||
| 63086-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63830 - DUCT ASSY, ROOF VENTILATOR | ||||
| 63830-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 63849 - HOSE, ROOF VENTILATOR DRAIN | ||||
| 63849-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63859 - HOSE, ROOF VENTILATOR DRAIN, NO.2 | ||||
| 63859-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90189-06134 | ||||
| 90480-40013 | ||||
| 93540-54512 | ||||
| 93590-16020 | ||||
| 96136-41901 | ||||

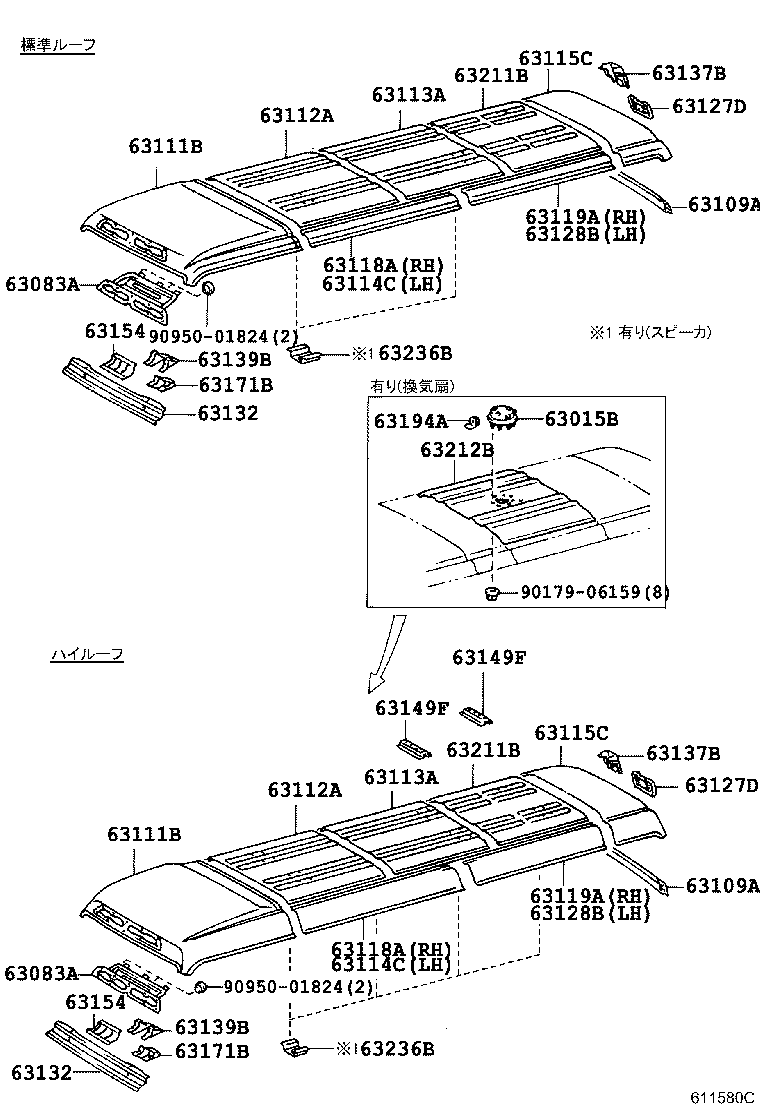

ILLUST NO. 1 OF 4(9301- )
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63015B - FLANGE SUB-ASSY, BOOST VENTILATOR HOLE | ||||
| 63015-36010 |
HZB50..GX;BB4#,HDB5#,HZB4#,56..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 63083A - PANEL SUB-ASSY, ROOF VENTILATOR | ||||
| 63083-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63083A - PANEL SUB-ASSY, ROOF VENTILATOR | ||||
| 63083-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-36010 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-36010 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63116-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63116-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63117-36070 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63117-36070 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63114C - SUPPORT, ROOF PANEL, FRONT LH | ||||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63114C - SUPPORT, ROOF PANEL, FRONT LH | ||||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63115C - PANEL, ROOF, NO.4 | ||||
| 63115-36170 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36160 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36160 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36170 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36040 |
BB40,55,HDB5#,HZB4#,50..HRF ｱﾘ(ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36050 |
BB40,55,HDB5#,HZB4#,50..HRF |
1 | ||
| 63115C - PANEL, ROOF, NO.4 | ||||
| 63115-36170 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36160 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36160 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36170 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36040 |
BB40,55,HDB5#,HZB4#,50..HRF ｱﾘ(ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36050 |
BB40,55,HDB5#,HZB4#,50..HRF |
1 | ||
| 63118A - SUPPORT, ROOF PANEL, FRONT RH | ||||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63118A - SUPPORT, ROOF PANEL, FRONT RH | ||||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63119A - SUPPORT, ROOF PANEL, REAR RH | ||||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63119A - SUPPORT, ROOF PANEL, REAR RH | ||||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63127D - RETAINER, ROOF TELEVISION CAMERA | ||||
| 63127-36010 |
HZB40,50..HRF..5F;BB4#,HDB5#,HZB41,56..HRF |
1 | ||
| 63127-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63127D - RETAINER, ROOF TELEVISION CAMERA | ||||
| 63127-36010 |
HZB40,50..HRF..5F;BB4#,HDB5#,HZB41,56..HRF |
1 | ||
| 63127-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63128B - SUPPORT, ROOF PANEL, REAR LH | ||||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63128B - SUPPORT, ROOF PANEL, REAR LH | ||||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63137B - RETAINER, OUTER UNDER REAR VIEW MIRROR | ||||
| 63137-36010 |
BB40,5#,HDB5#,HZB4#,50..HRF..CBU |
1 | ||
| 63137B - RETAINER, OUTER UNDER REAR VIEW MIRROR | ||||
| 63137-36010 |
BB40,5#,HDB5#,HZB4#,50..HRF..CBU |
1 | ||
| 63139B - BRACKET, WINDSHIELD HEADER CLOCK SUPPORT | ||||
| 63139-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63139B - BRACKET, WINDSHIELD HEADER CLOCK SUPPORT | ||||
| 63139-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63149F - BRACKET, ROOF ANTENNA, NO.3 | ||||
| 63149-36010 |
HDB51,HZB41 |
2 | ||
| 63149F - BRACKET, ROOF ANTENNA, NO.3 | ||||
| 63149-36010 |
HDB51,HZB41 |
2 | ||
| 63154 - REINFORCEMENT, WINDSHIELD HEADER PANEL, CENTER | ||||
| 63154-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63154 - REINFORCEMENT, WINDSHIELD HEADER PANEL, CENTER | ||||
| 63154-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63171B - BRACKET, INNER MIRROR BASE | ||||
| 63171-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63171B - BRACKET, INNER MIRROR BASE | ||||
| 63171-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63194A - BRACKET, BOOST VENTIRATOR COVER, NO.1 | ||||
| 63194-90B00 |
HZB50..GX;BB4#,HDB5#,HZB4#,56..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 63211B - PANEL, REMOVABLE ROOF | ||||
| 63211-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 63211B - PANEL, REMOVABLE ROOF | ||||
| 63211-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 63212B - PANEL, ROOF WIND DEFLECTOR | ||||
| 63212-36010 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU |
1 | ||
| 63236B - BRACKET, ROOM SPEAKER | ||||
| 63236-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 63236-36010 |
HDB51..SULNG ｱﾘ(6 ｽﾋﾟ-ｶ & *TV BSｱﾝﾃﾅﾂｷ) |
6 | ||
| 63236B - BRACKET, ROOM SPEAKER | ||||
| 63236-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 63236-36010 |
HDB51..SULNG ｱﾘ(6 ｽﾋﾟ-ｶ & *TV BSｱﾝﾃﾅﾂｷ) |
6 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90950-01824 | ||||

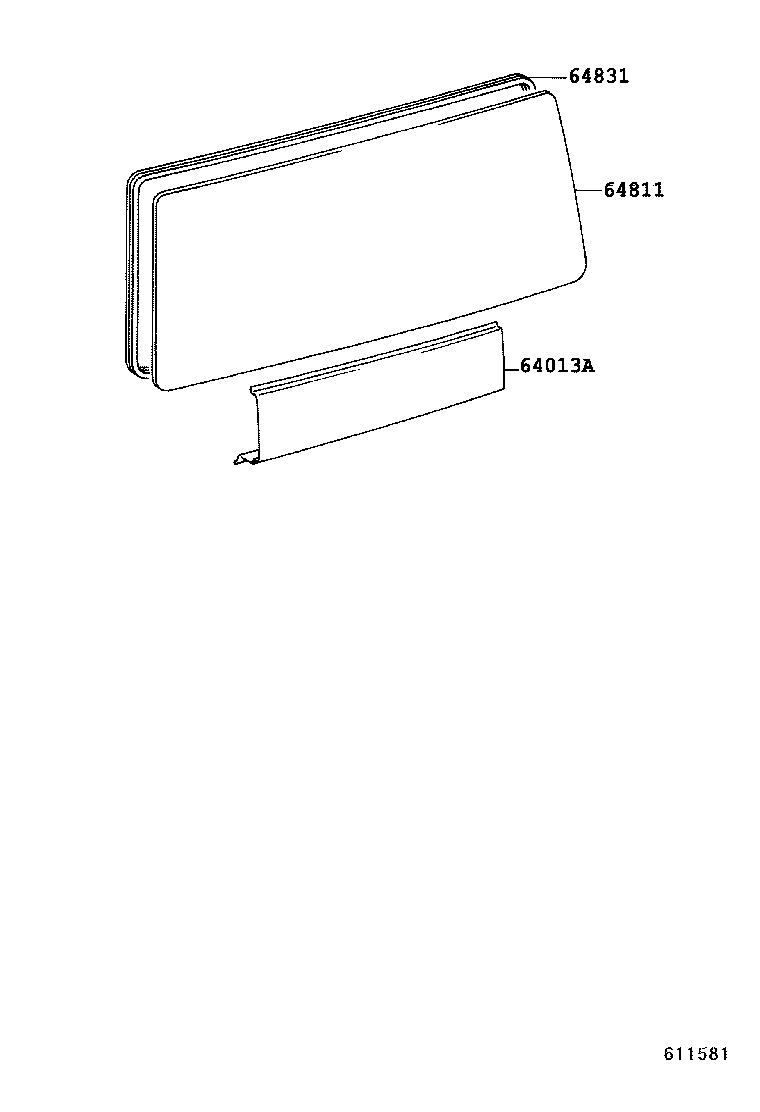

ILLUST NO. 3 OF 4(9301- )
ﾗｯｹﾞｰｼﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64013A - RAIL SUB-ASSY, BACK | ||||
| 64013-36020 |
HZB40..4FC..IV5;HDB51,HZB41..CBU,IV5 ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐｼ-ﾄ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
HDB51,HZB41 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||

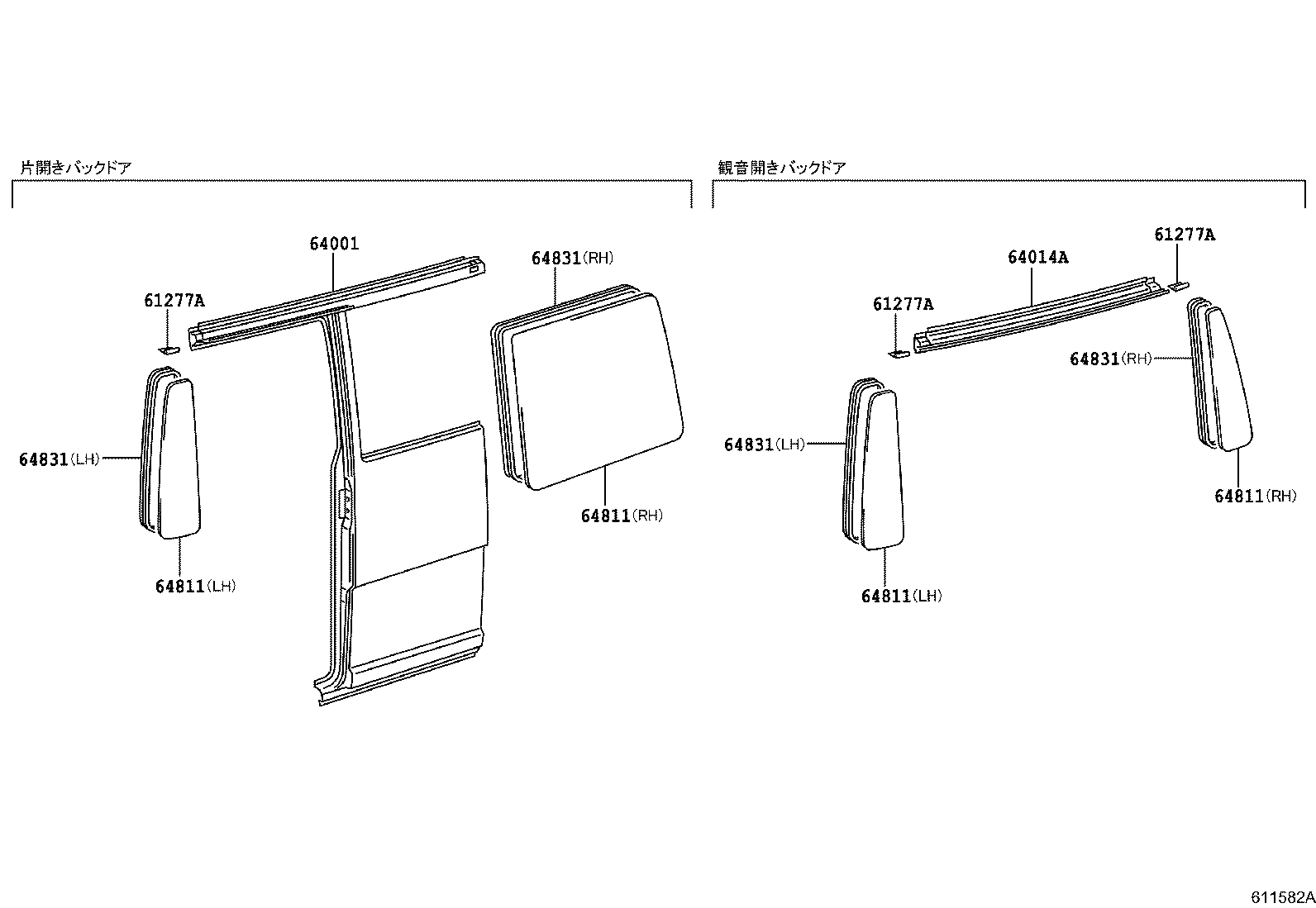

ILLUST NO. 3 OF 4(9301- )
ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ OR ｶﾝﾉﾝﾋﾞﾗｷﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 64014A - RAIL SUB-ASSY, UPPER BACK | ||||
| 64014-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 64014-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
HDB51,HZB41 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
HDB51,HZB41 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
HDB51,HZB41 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
HDB51,HZB41 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
