HDB51-ZCMZW (1995)

Toyota Coaster

Production May 1995 - May 1997
Engine 1HDFT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9907)1HD#

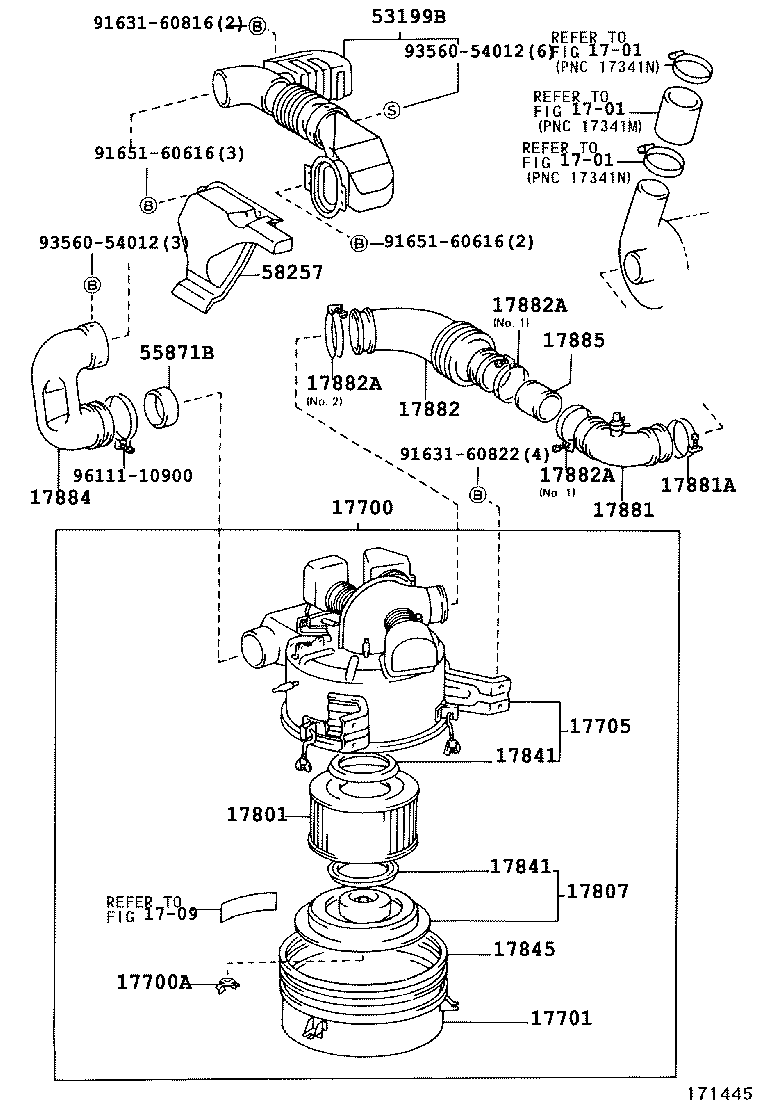

Click highlighted areas on diagram

diagram 1701 1701 1701 1709 17700 17700A 17701 17705 17801 17807 17841 17841 17845 17881 17881A 17882 17882A 17882A 17882A 17884 17885 53199B 55871B 58257 9163160816 9163160822 9165160616 9165160616 9356054012 9356054012 9611110900
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-17160

1HD#..HDB5#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-68101

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17070

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68030

1HD#..HDB5#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-68010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

1HD#,1HZ..HDB5#,HZB4#,5#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

1HD#,1HZ..HDB5#,HZB4#,5#

 2
17845 - GASKET, AIR CLEANER CAP
17845-68020

1H#..HDB5#,HZB4#,5#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-17050

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-17020

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 2
96111-10900

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 2
96111-10900

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 2
96111-10900

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
17884 - HOSE, AIR CLEANER, NO.4
59132-36020

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17885 - PIPE, AIR CLEANER
17885-17010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-36030

HDB5#,HZB4#,5#

 1
55871B - SEAL, AIR DUCT
55871-36020

HDB5#,HZB4#,5#

 1
55871-36020

BB4#,5#

 1
58257 - PLATE, AIR CLEANER HOUSE
58257-36020

HDB5#,HZB4#,5#

 1
58257-36030

BB4#,5#

 1
Common parts
91631-60816
91631-60822
91651-60616
93560-54012
96111-10900
Linked diagrams
1701
1709
