HDB51-ZCFZZ (1999)
Toyota Coaster

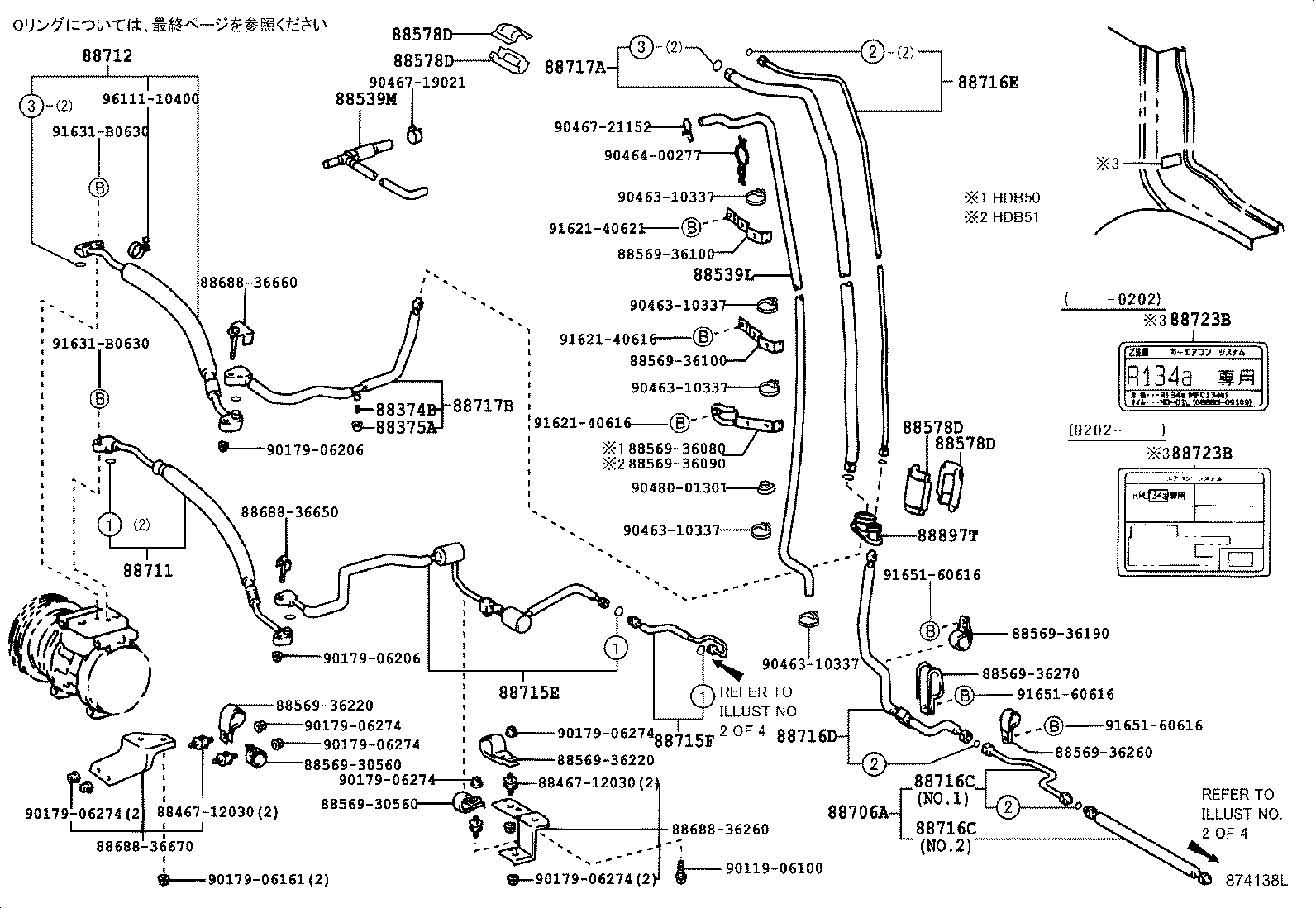

ILLUST NO. 3 OF 4(9907-0408)HDB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88374-30010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
BB58,BZB40,50,HDB5#..WC..(CBU,IV5) |
1 | ||
| 88539L - HOSE, DRAIN COOLER | ||||
| 88539-36150 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 88539-36150 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 88539M - HOSE, DRAIN COOLER, NO.2 | ||||
| 88539-36170 |
HZB40,41..10S,19S;BZB40,50,HDB5#,HZB46..(08S,20S,24S,26S,29S)..(CBU,IV5) |
1 | ||
| 88539-36170 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
4 | ||
| 88578-90B01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
4 | ||
| 88578-90B01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
4 | ||
| 88578-90B01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
4 | ||
| 88578-90B01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
4 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-36050 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 88706-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36520 |
HDB5#..CBU,IV5 |
1 | ||
| 88711-36150 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88711-36530 |
HZB4#,5#..WC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36150 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88712-36510 |
HZB4#,5#..WC |
1 | ||
| 88712-36500 |
HDB5#..CBU,IV5 |
1 | ||
| 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E | ||||
| 88715-36140 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88715-36390 |
HDB5#..CBU,IV5 |
1 | ||
| 88715-36141 |
HZB4#,5#..WC |
1 | ||
| 88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F | ||||
| 88715-36130 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88715-36130 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36260 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.2 |
1 | ||
| 88716-36140 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC NO.1 |
1 | ||
| 88716-36320 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.1 |
1 | ||
| 88716-36260 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.2 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36260 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.2 |
1 | ||
| 88716-36140 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC NO.1 |
1 | ||
| 88716-36320 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.1 |
1 | ||
| 88716-36260 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.2 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-36150 |
BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 88716-36150 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36220 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 88716-36220 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-36110 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 88717-36110 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-36160 |
HZB4#,5#..WC |
1 | ||
| 88717-36260 |
HDB5#..CBU,IV5 |
1 | ||
| 88717-36160 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
BB58,HDB5#,HZB4#,5#..WC |
1 | ||
| 88733-36020 |
BZB40,50,HDB5#,HZB4#,5#..WC |
1 | ||
| 88723-20030 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-36020 |
BZB40,50,HDB5#,HZB4#,5#..WC |
1 | ||
| 88723-20030 |
BB58,HDB5#,HZB4#,5#..WC |
1 | ||
| 88723-20030 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 88897-36040 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88569-30560 | ||||
| 88569-36080 | ||||
| 88569-36090 | ||||
| 88569-36100 | ||||
| 88569-36190 | ||||
| 88569-36220 | ||||
| 88569-36260 | ||||
| 88569-36270 | ||||
| 88688-36260 | ||||
| 88688-36650 | ||||
| 88688-36660 | ||||
| 88688-36670 | ||||
| 90119-06100 | ||||
| 90179-06161 | ||||
| 90179-06206 | ||||
| 90179-06274 | ||||
| 90463-10337 | ||||
| 90464-00277 | ||||
| 90467-19021 | ||||
| 90467-21152 | ||||
| 90480-01301 | ||||
| 91621-40616 | ||||
| 91621-40621 | ||||
| 91631-B0630 | ||||
| 91651-60616 | ||||
| 96111-10400 | ||||
