HDB51-ZCFZZ (1999)
Toyota Coaster

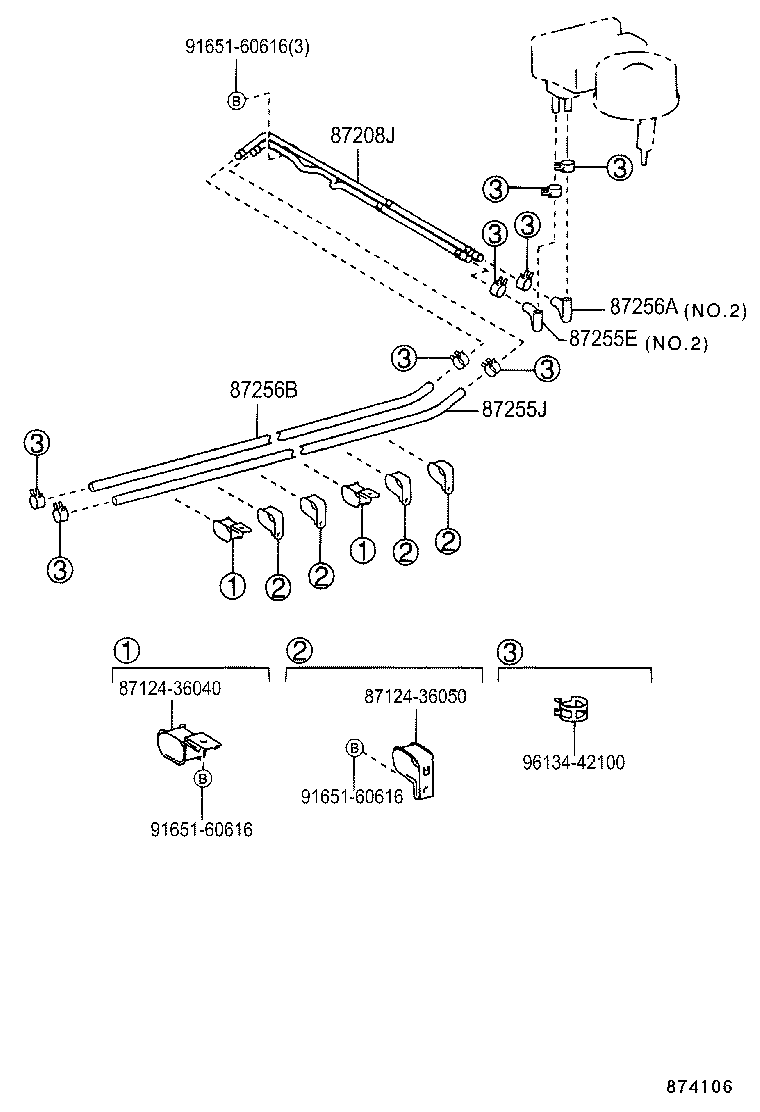

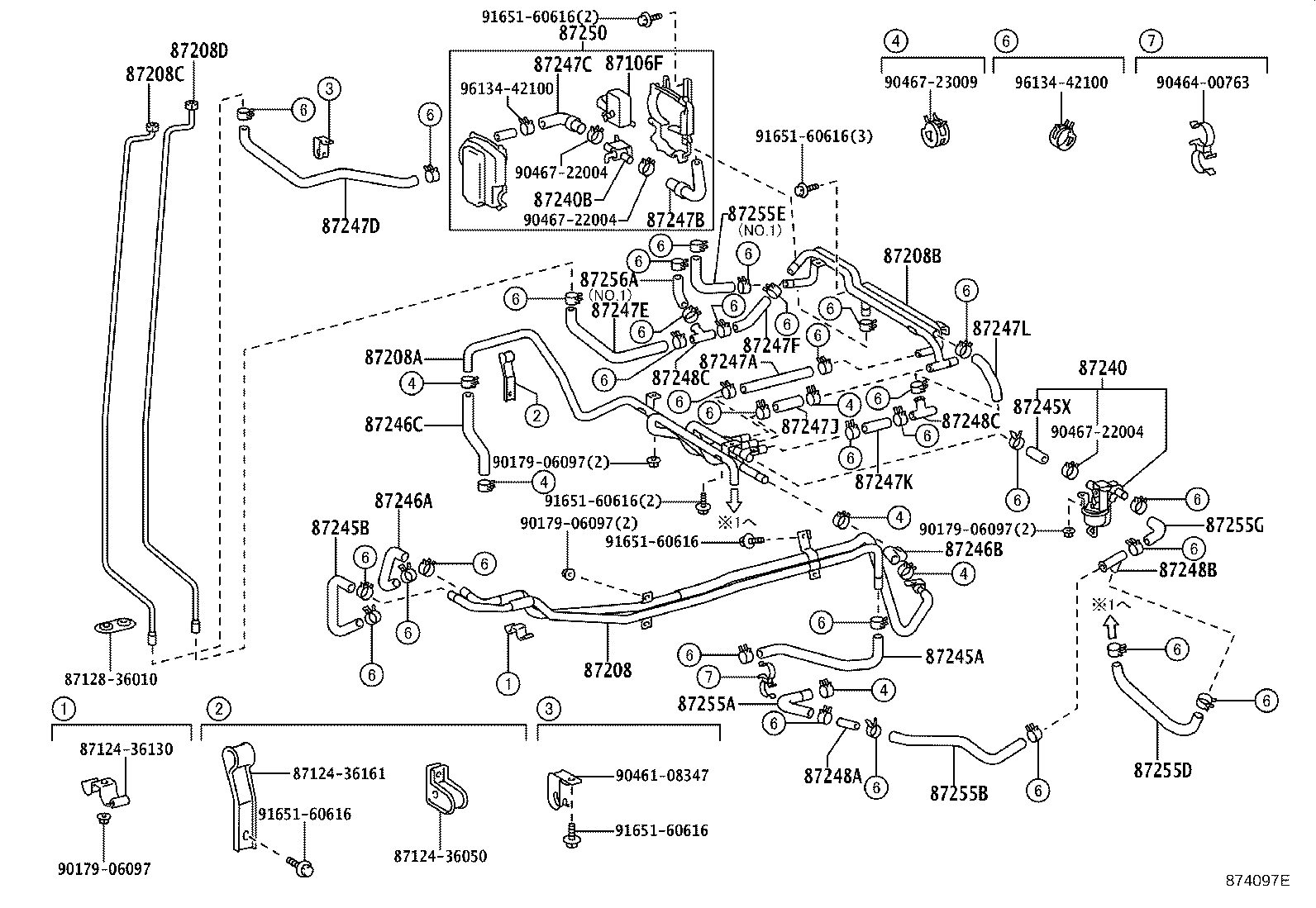

ILLUST NO. 1 OF 3(9907-0408)IV1 ; (9907-0408)HDB50,HZB40,46,5#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36450 |
HDB51,HZB41 |
1 | ||
| 87208-36721 |
HDB5#..(EX,GX,SULNG)..6F |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36070 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87240-36072 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B280 |
HDB51 NO.3 |
1 | ||
| 99556-30100 |
BB40,HDB5#,HZB4#,50 *H,L=55 |
1 | ||
| 87245-3B320 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B310 |
HDB51..20S,26S NO.1 |
1 | ||
| 99556-32000 |
HDB51 *H,L=1800,NO.4 |
1 | ||
| 87245-3C410 |
HDB5#,HZB4#,5# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3C270 |
HDB5# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-14090 |
HDB5#,HZB4#,5# |
1 | ||
| 87248-36300 |
HDB5#,HZB4#,5# |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-3B620 |
HDB5#,HZB4#,50 |
1 | ||
| 87245-3B621 |
HDB5#,HZB4#,5# |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-3B580 |
HDB51,HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ |
1 | ||
| 87245-3B610 |
HDB51,HZB41 |
1 | ||
| 87245-3B612 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-36263 |
HDB51..IV1;HDB50,HZB40,46,5# |
1 | ||
| 87245-3B581 |
HDB51,HZB41..(10S,20S,26S,29S)..(CBU,IV5) ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 87124-36150 | ||||
| 87124-36161 | ||||
| 90179-06206 | ||||
| 90464-00763 | ||||
| 90467-22004 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 3(9907-0408)IV1 ; (9907-0408)HDB50,HZB40,46,5#
ﾌﾛﾝﾄ(ｶﾝﾚｲﾁ ｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36450 |
HDB51,HZB41 |
1 | ||
| 87208-36721 |
HDB5#..(EX,GX,SULNG)..6F |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36070 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87240-36072 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3C471 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B280 |
HDB51 NO.3 |
1 | ||
| 99556-30100 |
BB40,HDB5#,HZB4#,50 *H,L=55 |
1 | ||
| 87245-3B320 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B310 |
HDB51..20S,26S NO.1 |
1 | ||
| 99556-32000 |
HDB51 *H,L=1800,NO.4 |
1 | ||
| 87245-3C410 |
HDB5#,HZB4#,5# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3C270 |
HDB5# |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-3B620 |
HDB5#,HZB4#,50 |
1 | ||
| 87245-3B621 |
HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 87124-36140 | ||||
| 87124-36150 | ||||
| 87124-36161 | ||||
| 90179-06206 | ||||
| 90467-22004 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 96134-42100 | ||||

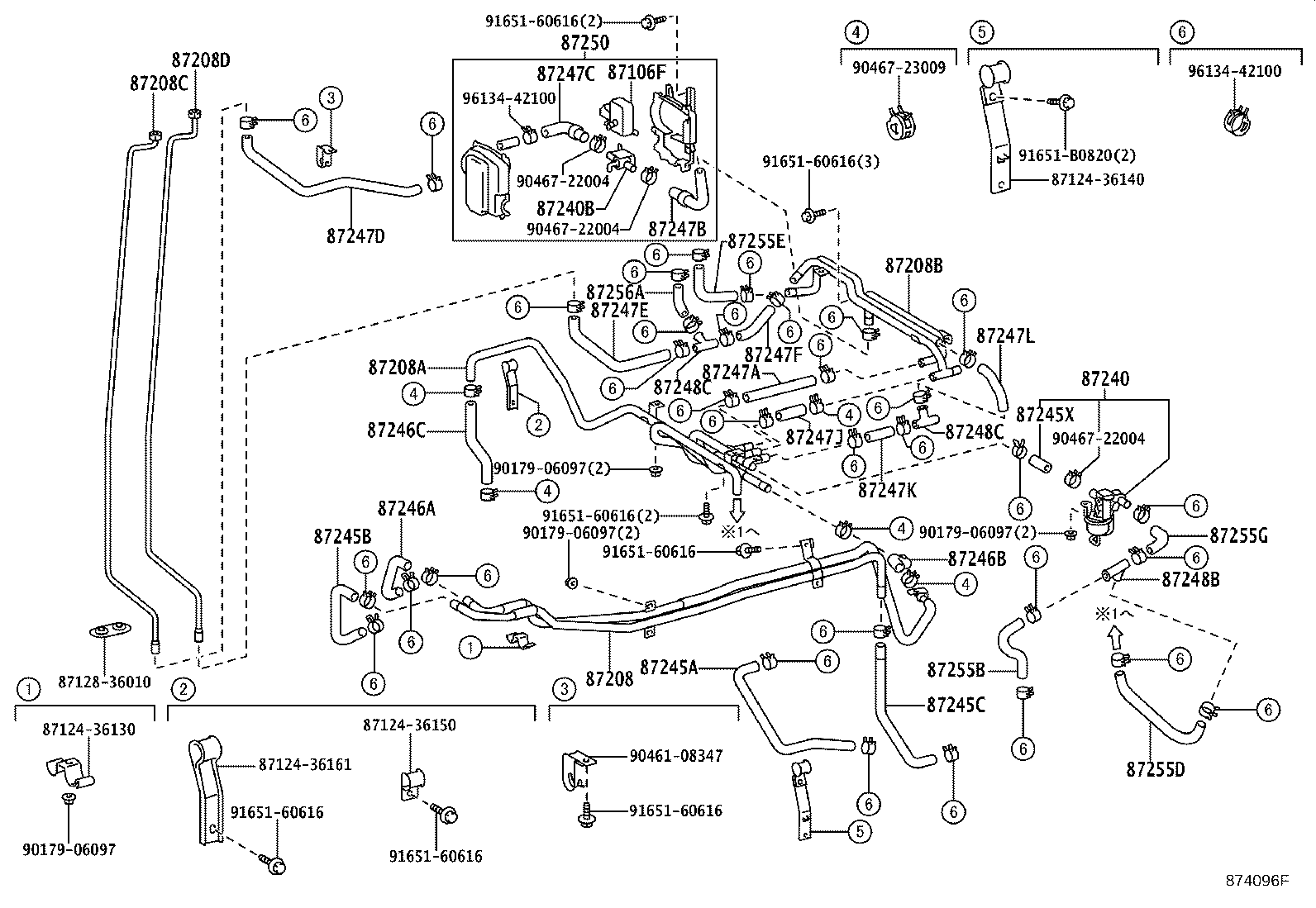

ILLUST NO. 1 OF 3(9907-0408)HDB51..CBU
ﾌﾛﾝﾄ(ｶﾝﾚｲﾁ ｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106F - SERVO SUB-ASSY, HEATER VALVE DAMPER | ||||
| 87106-36070 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87106-36070 |
HDB51,HZB41..CBU |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36450 |
HDB51,HZB41 |
1 | ||
| 87208-36721 |
HDB5#..(EX,GX,SULNG)..6F |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-36490 |
HDB51 |
1 | ||
| 87208-36491 |
HDB51..CBU |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-36360 |
HDB51 ﾘﾔ |
1 | ||
| 87208-36510 |
HDB51,HZB41..CBU,IV5 ﾌﾛﾝﾄ |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-36520 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36070 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87240-36072 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87240B - VALVE ASSY, HEATER WATER, NO.2 | ||||
| 87240-36100 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87240-36100 |
HDB51,HZB41..CBU |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3C471 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B280 |
HDB51 NO.3 |
1 | ||
| 99556-30100 |
BB40,HDB5#,HZB4#,50 *H,L=55 |
1 | ||
| 87245-3B320 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B310 |
HDB51..20S,26S NO.1 |
1 | ||
| 99556-32000 |
HDB51 *H,L=1800,NO.4 |
1 | ||
| 87245-3C410 |
HDB5#,HZB4#,5# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3C270 |
HDB5# |
1 | ||
| 87247A - HOSE, HEATER WATER, A | ||||
| 99556-30200 |
HDB51,HZB41 *H,L=170 |
1 | ||
| 99556-30100 |
HDB51,HZB41..CBU,IV5 *H,L=90 |
1 | ||
| 87247B - HOSE, HEATER WATER, B | ||||
| 87245-3B550 |
HDB51 NO.1 |
1 | ||
| 87245-3B570 |
HDB51,HZB41 NO.2 |
1 | ||
| 87245-3C091 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87247C - HOSE, HEATER WATER, C | ||||
| 87245-3C101 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-3B540 |
HDB51 |
1 | ||
| 87247D - HOSE, HEATER WATER, D | ||||
| 87245-3B560 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-3B530 |
HDB51 |
1 | ||
| 87247E - HOSE, HEATER WATER, E | ||||
| 87245-3B570 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87247F - HOSE, HEATER WATER, F | ||||
| 87245-3B521 |
HDB51..CBU |
1 | ||
| 87247J - HOSE, HEATER WATER, J | ||||
| 87245-3C631 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-3B550 |
HDB51,HZB41 |
1 | ||
| 87247K - HOSE, HEATER WATER, K | ||||
| 87245-3C090 |
HDB51,HZB41 |
1 | ||
| 87245-3C280 |
HDB51..CBU |
1 | ||
| 87247L - HOSE, HEATER WATER, L | ||||
| 87245-3C100 |
HDB51,HZB41 |
1 | ||
| 87245-3B542 |
HDB51..CBU |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-36080 |
HDB51 |
2 | ||
| 87248-08030 |
HDB51..CBU |
2 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-36090 |
HDB51 NO.2 |
1 | ||
| 87248-14090 |
HDB51..CBU NO.1 |
1 | ||
| 87248-08030 |
HDB51..CBU |
2 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-36090 |
HDB51 NO.2 |
1 | ||
| 87248-14090 |
HDB51..CBU NO.1 |
1 | ||
| 87248-08030 |
HDB51..CBU |
2 | ||
| 87250 - HOSE AND VALVE ASSY | ||||
| 87250-36030 |
HDB51,HZB41..CBU |
1 | ||
| 87250-36030 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-3B580 |
HDB51,HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ |
1 | ||
| 87245-3B610 |
HDB51,HZB41 |
1 | ||
| 87245-3B612 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-36263 |
HDB51..IV1;HDB50,HZB40,46,5# |
1 | ||
| 87245-3B581 |
HDB51,HZB41..(10S,20S,26S,29S)..(CBU,IV5) ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-3C671 |
HZB41..IV5;HDB51..CBU,IV5 NO.1 |
1 | ||
| 87245-3B600 |
HDB51,HZB41 |
1 | ||
| 87245-3B602 |
HDB51..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B311 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B531 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-3B591 |
HDB51,HZB41..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 87245-3C751 |
HDB51,HZB41..CBU,IV5 NO.1 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3B511 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87245-3B321 |
HDB51..20S,26S NO.2 |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 87124-36140 | ||||
| 87124-36150 | ||||
| 87124-36161 | ||||
| 87128-36010 | ||||
| 90179-06097 | ||||
| 90461-08347 | ||||
| 90467-22004 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 3(9907-0408)HDB51..CBU
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106F - SERVO SUB-ASSY, HEATER VALVE DAMPER | ||||
| 87106-36070 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87106-36070 |
HDB51,HZB41..CBU |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36450 |
HDB51,HZB41 |
1 | ||
| 87208-36721 |
HDB5#..(EX,GX,SULNG)..6F |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-36490 |
HDB51 |
1 | ||
| 87208-36491 |
HDB51..CBU |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-36360 |
HDB51 ﾘﾔ |
1 | ||
| 87208-36510 |
HDB51,HZB41..CBU,IV5 ﾌﾛﾝﾄ |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-36520 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36070 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87240-36072 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 87240B - VALVE ASSY, HEATER WATER, NO.2 | ||||
| 87240-36100 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87240-36100 |
HDB51,HZB41..CBU |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B280 |
HDB51 NO.3 |
1 | ||
| 99556-30100 |
BB40,HDB5#,HZB4#,50 *H,L=55 |
1 | ||
| 87245-3B320 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B310 |
HDB51..20S,26S NO.1 |
1 | ||
| 99556-32000 |
HDB51 *H,L=1800,NO.4 |
1 | ||
| 87245-3C410 |
HDB5#,HZB4#,5# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3C270 |
HDB5# |
1 | ||
| 87247A - HOSE, HEATER WATER, A | ||||
| 99556-30200 |
HDB51,HZB41 *H,L=170 |
1 | ||
| 99556-30100 |
HDB51,HZB41..CBU,IV5 *H,L=90 |
1 | ||
| 87247B - HOSE, HEATER WATER, B | ||||
| 87245-3B550 |
HDB51 NO.1 |
1 | ||
| 87245-3B570 |
HDB51,HZB41 NO.2 |
1 | ||
| 87245-3C091 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87247C - HOSE, HEATER WATER, C | ||||
| 87245-3C101 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-3B540 |
HDB51 |
1 | ||
| 87247D - HOSE, HEATER WATER, D | ||||
| 87245-3B560 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-3B530 |
HDB51 |
1 | ||
| 87247E - HOSE, HEATER WATER, E | ||||
| 87245-3B570 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87247F - HOSE, HEATER WATER, F | ||||
| 87245-3B521 |
HDB51..CBU |
1 | ||
| 87247J - HOSE, HEATER WATER, J | ||||
| 87245-3C631 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-3B550 |
HDB51,HZB41 |
1 | ||
| 87247K - HOSE, HEATER WATER, K | ||||
| 87245-3C090 |
HDB51,HZB41 |
1 | ||
| 87245-3C280 |
HDB51..CBU |
1 | ||
| 87247L - HOSE, HEATER WATER, L | ||||
| 87245-3C100 |
HDB51,HZB41 |
1 | ||
| 87245-3B542 |
HDB51..CBU |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-14090 |
HDB5#,HZB4#,5# |
1 | ||
| 87248-36300 |
HDB5#,HZB4#,5# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-36080 |
HDB51 |
2 | ||
| 87248-08030 |
HDB51..CBU |
2 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-36090 |
HDB51 NO.2 |
1 | ||
| 87248-14090 |
HDB51..CBU NO.1 |
1 | ||
| 87248-08030 |
HDB51..CBU |
2 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-36090 |
HDB51 NO.2 |
1 | ||
| 87248-14090 |
HDB51..CBU NO.1 |
1 | ||
| 87248-08030 |
HDB51..CBU |
2 | ||
| 87250 - HOSE AND VALVE ASSY | ||||
| 87250-36030 |
HDB51,HZB41..CBU |
1 | ||
| 87250-36030 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-3B620 |
HDB5#,HZB4#,50 |
1 | ||
| 87245-3B621 |
HDB5#,HZB4#,5# |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-3B580 |
HDB51,HZB41 ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ﾋ-ﾀ |
1 | ||
| 87245-3B610 |
HDB51,HZB41 |
1 | ||
| 87245-3B612 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 87245-36263 |
HDB51..IV1;HDB50,HZB40,46,5# |
1 | ||
| 87245-3B581 |
HDB51,HZB41..(10S,20S,26S,29S)..(CBU,IV5) ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-3C671 |
HZB41..IV5;HDB51..CBU,IV5 NO.1 |
1 | ||
| 87245-3B600 |
HDB51,HZB41 |
1 | ||
| 87245-3B602 |
HDB51..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B311 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B531 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-3B591 |
HDB51,HZB41..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 87245-3C751 |
HDB51,HZB41..CBU,IV5 NO.1 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3B511 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87245-3B321 |
HDB51..20S,26S NO.2 |
1 | ||
| Common parts | ||||
| 87124-36050 | ||||
| 87124-36130 | ||||
| 87124-36161 | ||||
| 87128-36010 | ||||
| 90179-06097 | ||||
| 90461-08347 | ||||
| 90464-00763 | ||||
| 90467-22004 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
ILLUST NO. 2 OF 3(9907-0408)IV1 ; (9907-0408)HDB50,HZB50..DX,LX ;(0108-0408)HDB51..IV5 ; (0203-1501
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-36320 |
HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36540 |
HDB51..IV1,IV5;BB4#,HDB50,HZB4#,5# |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36361 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-3C671 |
HZB41..IV5;HDB51..CBU,IV5 NO.1 |
1 | ||
| 87245-3B600 |
HDB51,HZB41 |
1 | ||
| 87245-3B602 |
HDB51..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B311 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B531 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B311 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B531 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-3B591 |
HDB51,HZB41..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 87245-3C751 |
HDB51,HZB41..CBU,IV5 NO.1 |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 87245-3C720 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3B511 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87245-3B321 |
HDB51..20S,26S NO.2 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3B511 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87245-3B321 |
HDB51..20S,26S NO.2 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-3C720 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
ILLUST NO. 2 OF 3(9907-0408)HDB51..CBU
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36361 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B311 |
HDB51..20S,26S NO.2 |
1 | ||
| 87245-3B531 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 87245-3C720 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3B511 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU NO.1 |
1 | ||
| 87245-3B321 |
HDB51..20S,26S NO.2 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-3C720 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
ILLUST NO. 3 OF 3(9907-0408)HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S..CBU,IV5
ﾊﾟﾜ-ﾋ-ﾀ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208K - PIPE SUB-ASSY, HEATER WATER, K | ||||
| 87208-36320 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36191 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245J - HOSE, HEATER WATER, INLET J | ||||
| 87245-3B380 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245K - HOSE, HEATER WATER, INLET K | ||||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B360 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245L - HOSE, HEATER WATER, L | ||||
| 87245-3B640 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B640 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245M - HOSE, HEATER WATER, M | ||||
| 87245-3B630 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B630 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245N - HOSE, HEATER WATER, INLET N | ||||
| 87245-3B350 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B350 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B350 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B350 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245P - HOSE, HEATER WATER, INLET P | ||||
| 87245-3B370 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B370 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B371 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-36040 |
HDB5#,HZB5#..CBU,IV5 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87248-36041 |
HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 87248-36041 |
HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 87248-36041 |
HDB5#,HZB5#..CBU,IV5 |
2 | ||
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-36051 |
HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 87248-36051 |
HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 87248-36050 |
HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 87248-36051 |
HDB5#,HZB5#..CBU,IV5 |
2 | ||
| 87248J - PIPE, HEATER WATER INLET, J | ||||
| 87248-36100 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36100 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87248K - PIPE, HEATER WATER INLET, K | ||||
| 87248-36110 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87248L - PIPE, HEATER WATER, L | ||||
| 87248-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36120 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87248M - PIPE, HEATER WATER, M | ||||
| 87248-36130 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87248-36130 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36031 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36032 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452F - BRACKET, POWER HEATER, NO.3 | ||||
| 87452-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36090 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452G - BRACKET, REAR HEATER, NO.1 | ||||
| 87452-36111 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452-36110 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452H - BRACKET, REAR HEATER, NO.2 | ||||
| 87452-36121 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452J - BRACKET, REAR HEATER PIPE, NO.1 | ||||
| 87452-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36170 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452K - BRACKET, REAR HEATER PIPE, NO.2 | ||||
| 87452-36180 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36180 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452L - BRACKET, REAR HEATER PIPE, NO.3 | ||||
| 87452-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 87124-36100 | ||||
| 87124-36190 | ||||
| 87124-36200 | ||||
| 87124-36230 | ||||
| 87124-36240 | ||||
| 87124-36250 | ||||
| 87124-36260 | ||||
| 87124-36270 | ||||
| 90179-08017 | ||||
| 91651-60620 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96112-10360 | ||||
ILLUST NO. 3 OF 3(9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501)XZB4#,5#
ﾋ-ﾀﾖｳ ｳｵ-ﾀﾎﾟﾝﾌﾟ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208K - PIPE SUB-ASSY, HEATER WATER, K | ||||
| 87208-36320 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36191 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245Q - HOSE, HEATER WATER, INLET Q | ||||
| 87245-36200 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36200 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36201 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248J - PIPE, HEATER WATER INLET, J | ||||
| 87248-36100 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36100 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87248K - PIPE, HEATER WATER INLET, K | ||||
| 87248-36110 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36031 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36032 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452J - BRACKET, REAR HEATER PIPE, NO.1 | ||||
| 87452-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36170 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452K - BRACKET, REAR HEATER PIPE, NO.2 | ||||
| 87452-36180 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36180 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452L - BRACKET, REAR HEATER PIPE, NO.3 | ||||
| 87452-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 87124-36240 | ||||
| 87124-36250 | ||||
| 87124-36260 | ||||
| 87124-36270 | ||||
| 90179-08017 | ||||
| 90463-15003 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96112-10360 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
