Toyota Coaster HDB51 WIRING & CLAMP

HDB51-ZCFZZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004

Engine 1HDFTE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9301-0408)BB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36180	HDB5#..6F	07/1999 - 05/2001	1
82121-36190	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	07/1999 - 05/2001	1
82121-36181	HDB51..6F	05/2001 - 08/2001	1
82121-36191	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	05/2001 - 08/2004	1
82121 - WIRE, ENGINE
82121-36180	HDB5#..6F	07/1999 - 05/2001	1
82121-36190	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	07/1999 - 05/2001	1
82121-36181	HDB51..6F	05/2001 - 08/2001	1
82121-36191	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	05/2001 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82261A - WIRE, ALTERNATOR
82261-36030	HDB51,HZB41..20S,26S,29S	01/1993 - 05/1995	1
82261-36040	HDB51,HZB41..20S,26S,29S ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82671 - BLOCK, JUNCTION
82671-28010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82822A - BRACKET, CONNECTOR BLOCK
82822-36020	HZB4#,5#	07/1999 - 08/2004	1
82822A - BRACKET, CONNECTOR BLOCK
82822-36020	HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	HDB51..CBU;HZB40..4FC..IV5 ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2001	1
82823-24030	HDB50,HZB40,46,5#..HRF..(GX,LX);BZB40,50,HDB51,HZB41..EX,STD,SULNG ﾌﾞﾗｯｸ	07/1999 - 08/2004	1
82823-22050	BB58,BZB40,50,HDB50,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2004	1
Common parts
82715-36060
90119-06915
90119-08827
90179-06158
90179-08204
91651-40614
91651-B0820
94130-00802
Linked diagrams
8201

ILLUST NO. 2 OF 9(9301-0408)HDB5#,HZB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36180	HDB5#..6F	07/1999 - 05/2001	1
82121-36190	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	07/1999 - 05/2001	1
82121-36181	HDB51..6F	05/2001 - 08/2001	1
82121-36191	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	05/2001 - 08/2004	1
82121 - WIRE, ENGINE
82121-36180	HDB5#..6F	07/1999 - 05/2001	1
82121-36190	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	07/1999 - 05/2001	1
82121-36181	HDB51..6F	05/2001 - 08/2001	1
82121-36191	HDB5#..6F ｵﾙﾀﾈｰﾀ 24V 85A	05/2001 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82261A - WIRE, ALTERNATOR
82261-36030	HDB51,HZB41..20S,26S,29S	01/1993 - 05/1995	1
82261-36040	HDB51,HZB41..20S,26S,29S ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82261A - WIRE, ALTERNATOR
82261-36030	HDB51,HZB41..20S,26S,29S	01/1993 - 05/1995	1
82261-36040	HDB51,HZB41..20S,26S,29S ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82671 - BLOCK, JUNCTION
82671-28010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82671 - BLOCK, JUNCTION
82671-28010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82822A - BRACKET, CONNECTOR BLOCK
82822-36020	HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	HDB51..CBU;HZB40..4FC..IV5 ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2001	1
82823-24030	HDB50,HZB40,46,5#..HRF..(GX,LX);BZB40,50,HDB51,HZB41..EX,STD,SULNG ﾌﾞﾗｯｸ	07/1999 - 08/2004	1
82823-22050	BB58,BZB40,50,HDB50,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2004	1
Common parts
82715-36060
90119-06390
90119-06915
90119-08827
90179-06158
90179-08204
91622-G1014
91641-80812
91651-40620
91651-60620
91651-B0820
94130-00802
Linked diagrams
8201

ILLUST NO. 3 OF 9(9301-0408)

Click highlighted areas on diagram

ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-36253	HDB51..6F ｱﾘ(BGV ｶﾗｵｹｼｽﾃﾑ)	07/1999 - 08/2001	1
82131-36590	HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2001	1
82131-36600	HDB5#..(EX,GX,SULNG)..6F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	07/1999 - 08/2001	1
82131-36254	HDB51..6F ｱﾘ(BGV ｶﾗｵｹｼｽﾃﾑ)	08/2001 - 08/2004	1
82131-36591	HDB5#..(EX,GX,SULNG)..6F	08/2001 - 08/2004	1
82131-36601	HDB5#..(EX,GX,SULNG)..6F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	08/2001 - 08/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-36010	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 05/1995	1
82141-36013	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2001	1
82141-36014	HDB5#,HZB41,50..EX,GX,SULNG	08/2001 - 08/2004	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-36033	BB58,HDB50,HZB40,46,5#	07/1999 - 08/2004	1
82142-36013	HDB51,HZB41	07/1999 - 08/2004	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08246	BB58,HDB5#;HZB40,50..WOC 100A,ｵｽ端子,青	07/1999 - 08/2004	1
90982-08281	BB58,BZB40,50,HDB5#,HZB4#,5# 40A,ﾒｽ端子,緑	07/1999 - 08/2004	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08202	BB58,BZB40,50,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	07/1999 - 08/2004	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08280	BB58,BZB40,50,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃	07/1999 - 08/2004	1
90982-08282	BB58,BZB40,50,HDB5#,HZB4#,5# 50A,ﾒｽ端子,赤	07/1999 - 08/2004	1
90982-08203	BZB40,50,HZB4#,5# 80A,ｵｽ端子,黒	07/1999 - 08/2004	1
90982-08274	BZB40,50,HDB5#,HZB4#,5#..WC 120A,ｵｽ端子,白	07/1999 - 08/2004	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-32020	BB58,BZB40,50,HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
82345-12050	BB58,BZB40,50,HDB5#,HZB4#,5# NO.1	07/1999 - 08/2004	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-32020	BB58,BZB40,50,HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
82345-12050	BB58,BZB40,50,HDB5#,HZB4#,5# NO.1	07/1999 - 08/2004	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82666A - HOLDER, CONNECTOR NO.2
82666-36010	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82666-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-36020	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666-36020	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-36060	BB58,BZB40,50,HDB5#,HZB4#,5#	12/2000 - 08/2004	1
82819C - GROMMET, WIRING HARNESS
82819-20070	HDB50..LX;BB58,HZB4#,5#;HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2004	1
82824 - CONNECTOR, WIRING HARNESS
82824-22060	HDB5#,HZB41,50..EX,GX,SULNG NO.1	01/1993 - 05/1995	1
82824-30130	HZB41,50..(EX,GX)..CBU;HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2004	3
82824F - CONNECTOR, WIRING HARNESS
82824-36060	BB40..SRF..LX;HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 02/1993	1
82824-36060	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82824H - CONNECTOR, WIRING HARNESS
82824-30130	HZB41,50..EX,GX;HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2004	3
85996A - BRACKET, RELAY, NO.2
85996-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 11/1997	1
85996-36010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
Common parts
85999-36100
90119-06048
90119-06166
90119-06915
90463-12008
91651-40616
93568-55014
Linked diagrams
8401

ILLUST NO. 4 OF 9(9301-0408)

Click highlighted areas on diagram

ﾌﾛｱ

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-36010	BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S	01/1993 - 05/1997	1
82132-36060	HDB5#,HZB41,50..EX,GX,LX,SULNG ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	01/1993 - 05/1997	1
82132-36070	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	01/1993 - 05/1997	1
82132-36053	HDB51..CBU ｱﾘ(BGV ｶﾗｵｹｼｽﾃﾑ)	02/2000 - 08/2001	1
82132-36062	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	07/1999 - 02/2000	1
82132-36050	HDB51 ｱﾘ(BGV ｶﾗｵｹｼｽﾃﾑ)	01/1993 - 05/1997	1
82132-36052	HDB51..CBU ｱﾘ(BGV ｶﾗｵｹｼｽﾃﾑ)	07/1999 - 02/2000	1
82132-36064	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	08/2001 - 08/2004	1
82132-36082	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82132-36063	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	02/2000 - 08/2001	1
82132-36054	HDB51..CBU ｱﾘ(BGV ｶﾗｵｹｼｽﾃﾑ)	08/2001 - 08/2004	1
82132-36012	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82159 - WIRE, PILLAR, NO.2
82159-36040	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82161 - WIRE, FLOOR
82161-36050	HDB51 ｱﾘ(*66)	01/1993 - 10/1995	1
82161-36140	HDB51 ｱﾘ(*66) & ｶﾝﾉﾝﾄﾞｱﾀｲﾌﾟ & ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) OR ｶﾝﾉﾝﾄﾞｱﾀｲﾌﾟ & ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ)	01/1993 - 05/1995	1
82161-36150	HDB51 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 10/1995	1
82161-36100	HDB51 ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ)	01/1993 - 10/1995	1
82161-36200	HDB51	01/1993 - 10/1995	1
82161-36153	HDB51 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 05/2001	1
82161-36053	HDB51..CBU	07/1999 - 08/2004	1
82161-36143	HDB51..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾊﾟﾜ-ﾋ-ﾀ)	07/1999 - 08/2001	1
82161-36103	HDB51..CBU ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	07/1999 - 08/2004	1
82161-36154	HDB51..CBU,IV1 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	05/2001 - 08/2004	1
82161-36144	HDB51..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾊﾟﾜ-ﾋ-ﾀ)	08/2001 - 08/2004	1
82163 - WIRE, FLOOR, NO.3
82163-36010	BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
82163-36010	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
82164 - WIRE, FRAME
82164-36010	HDB51,HZB41 ｱﾘ(*66)	01/1993 - 05/1997	1
82164-36020	HDB51,HZB41	01/1993 - 05/1997	1
82164-36012	HDB51,HZB41	07/1999 - 08/2004	1
82165 - WIRE, FRAME, NO.2
82165-36010	HDB51,HZB41	01/1993 - 07/1999	1
82165-36010	HDB51,HZB41	07/1999 - 08/2004	1
82214B - WIRE, LAMP, REAR
82214-60010	BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5	07/1999 - 08/2004	1
82281 - WIRE, GAGE
82281-36020	BB4#,HDB50,HZB40,5#	01/1993 - 10/1995	1
82281-36021	BB58,HDB50,HZB40,46,5#	07/1999 - 08/2004	1
82281-36010	HDB51,HZB41	01/1993 - 10/1995	1
82281-36011	HDB51,HZB41	07/1999 - 08/2004	1
82561 - WIRE, REAR SPEAKER
82561-36020	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	07/1999 - 08/2004	1
82561-36020	HDB51	01/1993 - 02/1993	1
82561A - WIRE, REAR SPEAKER NO.2
82561-36060	HDB51..20S,26S	07/1999 - 08/2001	1
82561-36060	HDB51..20S,26S	01/1993 - 07/1999	1
82562-36060	HDB51..20S,26S	08/2001 - 08/2004	1
82562A - WIRE, REAR SPEAKER, NO.2
82562-36010	HDB51..20S,26S	01/1993 - 05/1995	1
82562-36011	HDB51..20S,26S	07/1999 - 08/2004	1
82816 - BRACKET, WIRING HARNESS GROMMET
82816-36020	BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5	01/1993 - 07/1999	1
Common parts
82711-12200
90119-06923
93540-14010

ILLUST NO. 5 OF 9(9301-0408)

Click highlighted areas on diagram

ﾙ-ﾌ, ﾄﾞｱ(ﾊﾈｱｹﾞﾀｲﾌﾟ)

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-36010	BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82151-36010	BB46..WC;BB40,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153-36010	BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82154 - WIRE, REAR DOOR, NO.2
82154-36020	BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	01/1993 - 05/1995	1
82154-36021	BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	07/1999 - 08/2004	1
82162 - WIRE, FLOOR, NO.2
82162-36013	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2000 - 08/2001	1
82162-36010	BB40,55,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG	01/1993 - 05/1997	1
82162-36080	HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2001 - 08/2004	1
82162-36012	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	07/1999 - 08/2000	1
82171 - WIRE, ROOF, NO.1
82171-36020	HDB5#,HZB50..GX,SULNG ｱﾘ(ｶﾝｷｾﾝ)	01/1993 - 07/1999	1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36020	HDB5#,HZB50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ)	07/1999 - 08/2004	1
82172 - WIRE, ROOF, NO.2
82172-36100	HDB51 ｱﾘ(*AF & ﾃﾚﾋﾞ)	01/1993 - 05/1997	1
82172-36080	HDB51..CBU ｱﾘ(*AF)	01/1993 - 07/1999	1
82172-36150	HDB51..CBU ｱﾘ(ﾃﾚﾋﾞ)	01/1993 - 07/1999	1
82172-36090	HDB51 ｱﾘ(4 ｱﾝﾌﾟ & ﾃﾚﾋﾞ)	01/1993 - 05/1997	1
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36070	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & 4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82172-36070	BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(4 ｱﾝﾌﾟ)	01/1993 - 07/1999	1
82172-36050	BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(10S,20S,24S,26S,29S,49S)..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82172-36080	HDB51..CBU ｱﾘ(8 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36020	HDB51,HZB41 ｱﾘ(ﾘﾓｺﾝｲﾝﾅ- ﾐﾗ-)	01/1993 - 05/1995	1
82173-36050	BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ)	07/1999 - 08/2004	1
82173-36060	HDB51,HZB41..CBU,IV5 ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ & ﾘﾓｺﾝｲﾝﾅ- ﾐﾗ-)	07/1999 - 08/2004	1
82174 - WIRE, ROOF, NO.4
82174-36010	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	01/1993 - 07/1999	1
82174-36010	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82175 - WIRE, ROOF, NO.5
82175-36010	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	07/1999 - 12/1999	1
82175-36012	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	08/2001 - 08/2004	1
82175-36010	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)	01/1993 - 05/1997	1
82175-36011	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	12/1999 - 08/2001	1
82184 - WIRE, BACK DOOR, NO.1
82184-36020	BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 10/1995	1
82184-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82184-36021	HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82184-36010	BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36030	HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 07/1999	1
82186-36010	BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82186-36030	BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82219 - WIRE, THERMO SENSOR
82219-36010	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 05/1997	1
82376A - WIRE, AUTO FAN
82376-36030	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 04/1993	1
82376-36030	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
Common parts
90119-06915
90980-10789
93560-14012

ILLUST NO. 5 OF 9(9301-1501)

Click highlighted areas on diagram

ﾙ-ﾌ, ﾄﾞｱ(ｶﾝﾉﾝﾀｲﾌﾟ)

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-36010	BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82151-36010	BB46..WC;BB40,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153-36010	BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82154 - WIRE, REAR DOOR, NO.2
82154-36020	BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	01/1993 - 05/1995	1
82154-36021	BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	07/1999 - 08/2004	1
82162 - WIRE, FLOOR, NO.2
82162-36013	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2000 - 08/2001	1
82162-36010	BB40,55,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG	01/1993 - 05/1997	1
82162-36080	HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2001 - 08/2004	1
82162-36012	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	07/1999 - 08/2000	1
82171 - WIRE, ROOF, NO.1
82171-36020	HDB5#,HZB50..GX,SULNG ｱﾘ(ｶﾝｷｾﾝ)	01/1993 - 07/1999	1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36020	HDB5#,HZB50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ)	07/1999 - 08/2004	1
82172 - WIRE, ROOF, NO.2
82172-36100	HDB51 ｱﾘ(*AF & ﾃﾚﾋﾞ)	01/1993 - 05/1997	1
82172-36080	HDB51..CBU ｱﾘ(*AF)	01/1993 - 07/1999	1
82172-36150	HDB51..CBU ｱﾘ(ﾃﾚﾋﾞ)	01/1993 - 07/1999	1
82172-36090	HDB51 ｱﾘ(4 ｱﾝﾌﾟ & ﾃﾚﾋﾞ)	01/1993 - 05/1997	1
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36070	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & 4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82172-36070	BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(4 ｱﾝﾌﾟ)	01/1993 - 07/1999	1
82172-36050	BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(10S,20S,24S,26S,29S,49S)..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82172-36080	HDB51..CBU ｱﾘ(8 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36020	HDB51,HZB41 ｱﾘ(ﾘﾓｺﾝｲﾝﾅ- ﾐﾗ-)	01/1993 - 05/1995	1
82173-36050	BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ)	07/1999 - 08/2004	1
82173-36060	HDB51,HZB41..CBU,IV5 ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ & ﾘﾓｺﾝｲﾝﾅ- ﾐﾗ-)	07/1999 - 08/2004	1
82174 - WIRE, ROOF, NO.4
82174-36010	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	01/1993 - 07/1999	1
82174-36010	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82184 - WIRE, BACK DOOR, NO.1
82184-36020	BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 10/1995	1
82184-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82184-36021	HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82184-36010	BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36030	HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 07/1999	1
82186-36010	BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82186-36030	BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36030	HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 07/1999	1
82186-36010	BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82186-36030	BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82219 - WIRE, THERMO SENSOR
82219-36010	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 05/1997	1
Common parts
82711-36130
82817-12630
90119-06915
90467-08043
90480-30033
90980-10789
90980-12350

ILLUST NO. 8 OF 9(9907-0408)BB58,HDB5#

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty

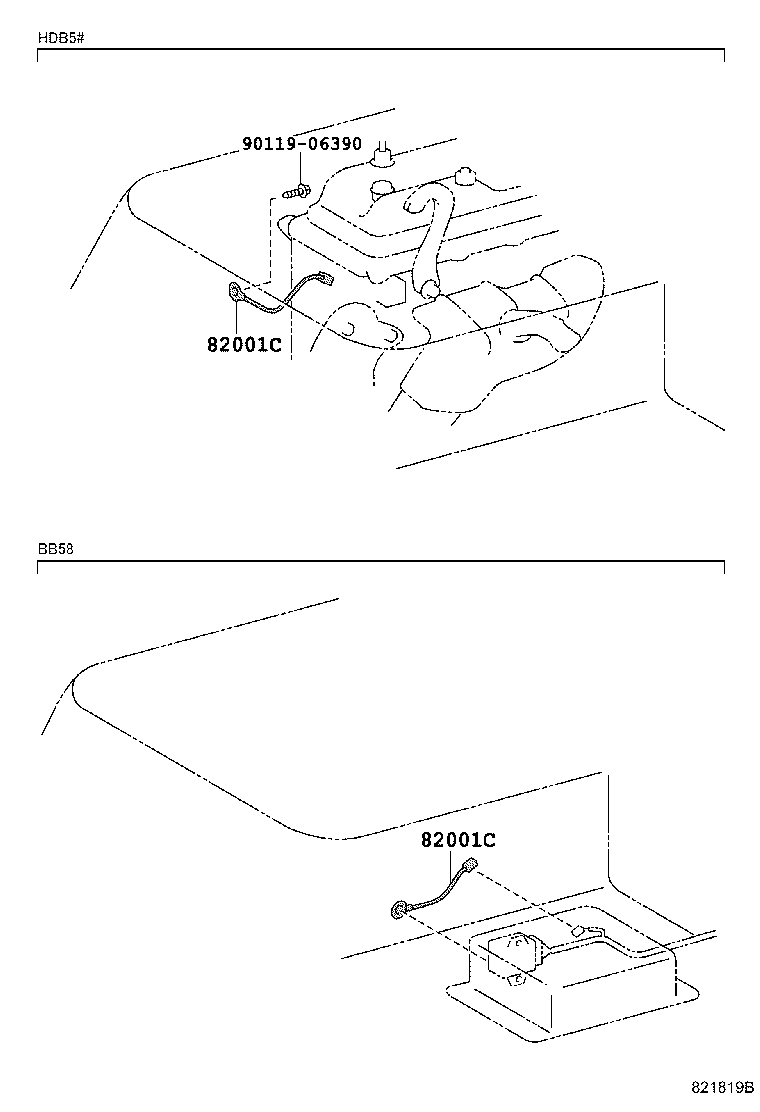

82001C - CABLE, BOND, NO.2
90980-07342	BB58,HDB5#	07/1999 - 08/2004	1
82001C - CABLE, BOND, NO.2
90980-07342	BB58,HDB5#	07/1999 - 08/2004	1
Common parts
90119-06390

HDB51-ZCFZZ (1999)

ILLUST NO. 2 OF 9(9301-0408)BB4#,5#

ILLUST NO. 2 OF 9(9301-0408)HDB5#,HZB4#,5#

ILLUST NO. 3 OF 9(9301-0408)

ILLUST NO. 4 OF 9(9301-0408)

ILLUST NO. 5 OF 9(9301-0408)

ILLUST NO. 5 OF 9(9301-1501)

ILLUST NO. 8 OF 9(9907-0408)BB58,HDB5#

Part Price Details
