HDB51-ZCFZZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0408)BB58,BZB40,HDB50..29S,39S ; (9907-0408)BZB50,HDB51..EX,STD,SULNG

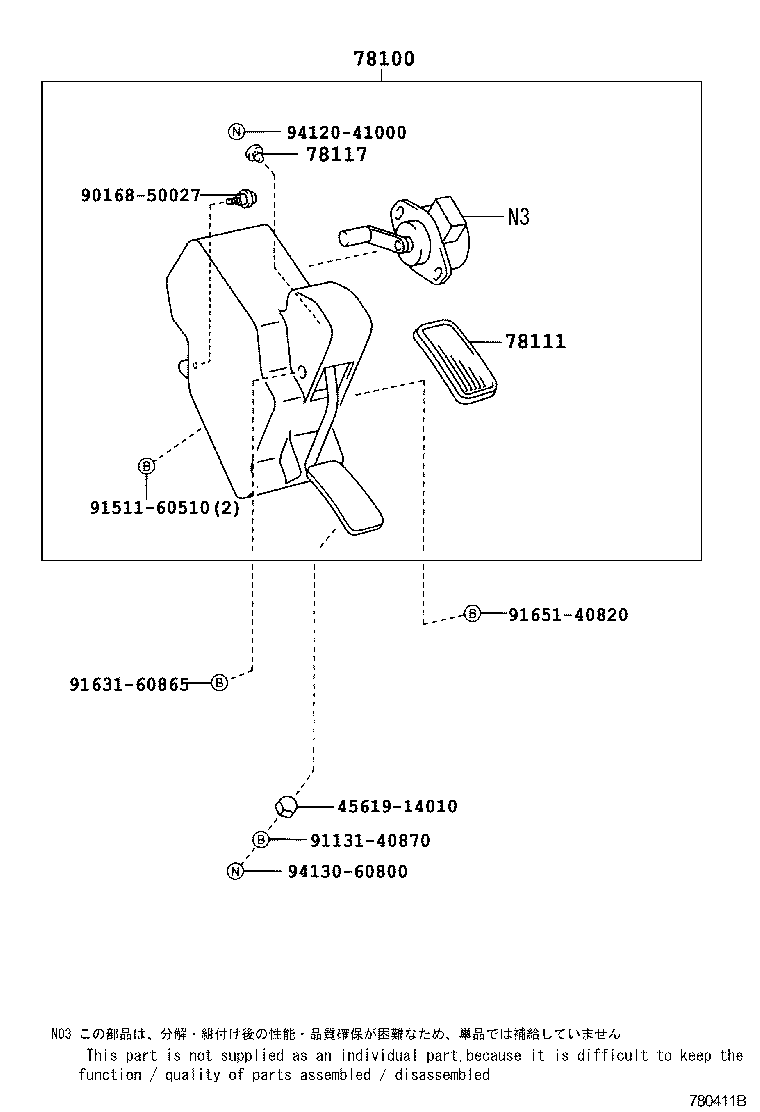

Click highlighted areas on diagram

diagram 4561914010 78100 78111 78117 9016850027 9113140870 9151160510 9163160865 9165140820 9412041000 9413060800
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78010-36010

BB58,HDB5#

 1
78010-36011

BB58,HDB5#

 1
78111 - PEDAL, ACCELERATOR
78111-95110

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
78111-95110

BB4#,5#,HDB5#,HZB4#,5#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
90541-06036

BB4#,5#,HDB5#,HZB4#,5#

 1
Common parts
45619-14010
90168-50027
91131-40870
91511-60510
91631-60865
91651-40820
94120-41000
94130-60800

(0309-0408)HZB4#,5#

Click highlighted areas on diagram

diagram 4561914010 78024 78103 78104 78105F 78111 78117 78134 78134 78169 78180P 78183B 78185A 78195 78197 78197 78410 78411A 8271122270 9011608208 9011908846 9017908053 9017914032 9038608044 9038608077 9046110669 9046400597 9046806009 9046905005 9050816134 9054105006 9113140870 91511B0812 91511B0812 9163160865 9165140820 9165160616 9165160616 9413060800 9414260840 9453100800 9461210800 9461210800 9538102518
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60010

HZB4#,5#

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-60022

HZB4#,5#

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60010

HZB4#,5#

 1
78111 - PEDAL, ACCELERATOR
78111-95110

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
78111-95110

BB4#,5#,HDB5#,HZB4#,5#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

BB58,BZB40,50,HDB5#,HZB4#,5#

 1
90541-06036

BB4#,5#,HDB5#,HZB4#,5#

 1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

HDB5#,HZB4#,5#

 2
78134-10010

HZB4#,5#

 2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

HDB5#,HZB4#,5#

 2
78134-10010

HZB4#,5#

 2
78169 - HANGER, ACCELERATOR SPRING
78169-60010

HZB4#,5#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-36020

HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ;ｱﾘ(ｽﾛﾂﾄﾙｺﾝﾄﾛ-ﾙｹ-ﾌﾞﾙ)

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-36060

BZB40,50,HZB4#,5#

 1
78183-36010

BZB40,50,HZB4#,5#

 1
78183-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-36010

HZB4#,5#

 1
78195 - BRACKET, ACCELERATOR LINK
78195-60011

HZB4#,5#

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

HZB4#,5#

 2
78197-10010

HDB5#,HZB4#,5#

 2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

HZB4#,5#

 2
78197-10010

HDB5#,HZB4#,5#

 2
78410 - CABLE ASSY, THROTTLE CONTROL
78410-36280

HZB4#,5#

 1
78410-36280

HDB5#,HZB4#,5#

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78402-60030

HZB4#,5#

 1
78402-60030

HDB5#,HZB4#,5#

 1
Common parts
45619-14010
82711-22270
90116-08208
90119-08846
90179-08053
90179-14032
90386-08044
90386-08077
90461-10669
90464-00597
90468-06009
90469-05005
90508-16134
90541-05006
91131-40870
91511-B0812
91631-60865
91651-40820
91651-60616
94130-60800
94142-60840
94531-00800
94612-10800
95381-02518
