HDB51-ZCFZZ (1999)
Toyota Coaster

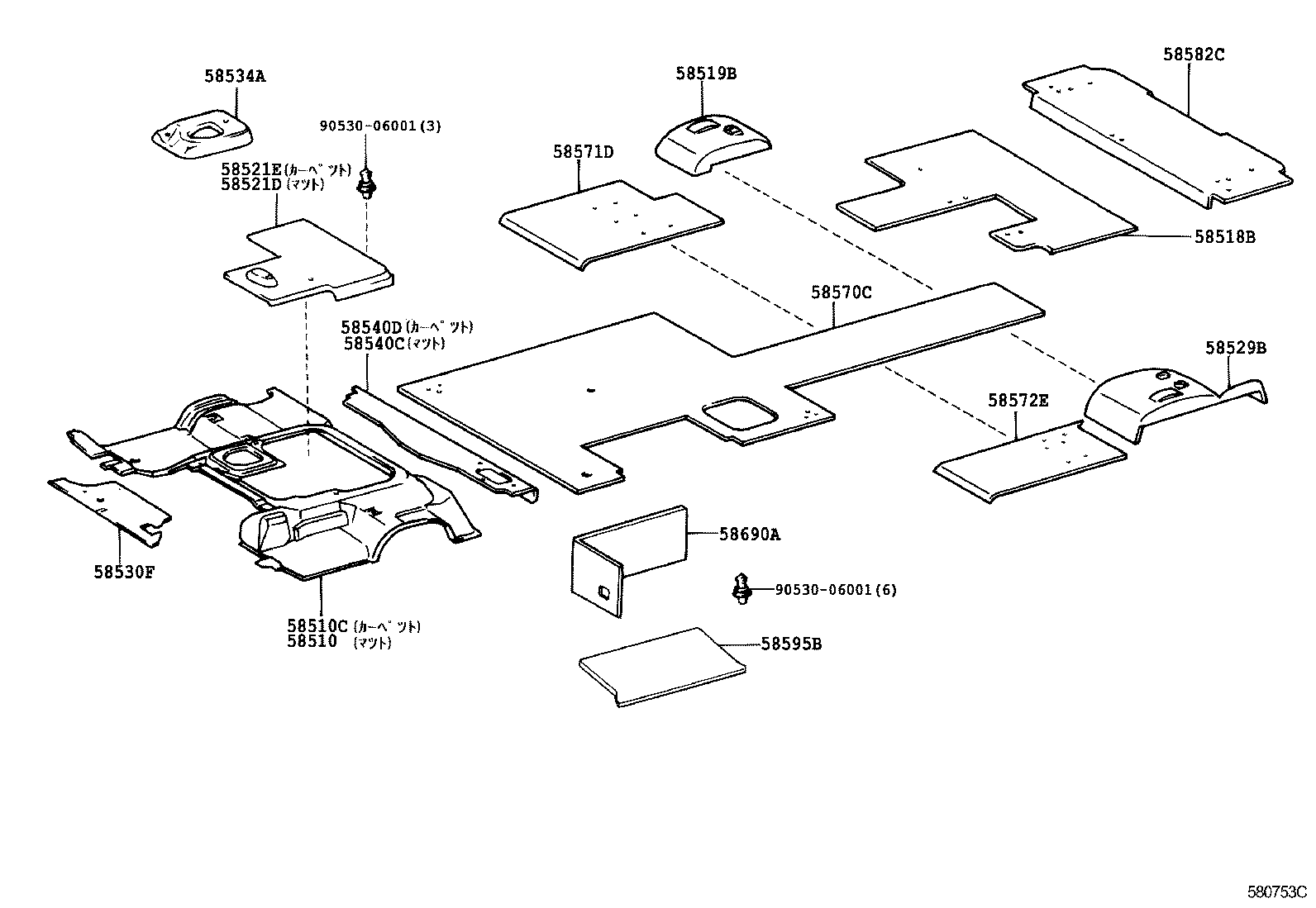

ILLUST NO. 1 OF 2(9301-1108)SULNG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36800E0 |
HDB51..SULNG..6F GREIGE,TRIM4# |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-36801B1 |
HDB51..SULNG..6F MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-36060E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58518-36030E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58518-36061B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58580-36020E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58580-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58580-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521E - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-36131B2 |
HDB5#,HZB41,50..EX,GX,SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58521-36130E0 |
HDB5#,HZB41,50..EX,GX,SULNG GREIGE,TRIM4# |
1 | ||
| 58521-36010E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58590-36030E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58590-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58590-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-36030B1 |
HDB51,HZB41 MD.CHARCOAL,TRIM1# |
1 | ||
| 58530-36020E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 58530-36030E1 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 58534A - MAT, TRANSMISSION COVER | ||||
| 58534-36020E0 |
HDB5#,HZB4#,5#..MTM GREIGE,TRIM4# |
1 | ||
| 58534-36020B0 |
BZB40,50,HDB5#,HZB4#,5#..MTM MD.CHARCOAL,TRIM1# |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-36310E0 |
HDB51..SULNG..6F GREIGE,TRIM4# |
1 | ||
| 58540D - CARPET ASSY, FLOOR, REAR | ||||
| 58540-36311B1 |
HDB51..SULNG..6F MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58540-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-36030E0 |
HDB51..SULNG ｱﾘ(ｽﾋﾟ-ｶ),GREIGE,TRIM4# |
1 | ||
| 58570-36040E0 |
HDB51..SULNG ｱﾘ(ｶｻﾀﾃ & ｽﾋﾟ-ｶ),GREIGE,TRIM4# |
1 | ||
| 58570-36010E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58570-36020E0 |
HDB51..SULNG ｱﾘ(ｶｻﾀﾃ),GREIGE,TRIM4# |
1 | ||
| 58570-36101B1 |
HDB51..SULNG..6F MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58570-36171B1 |
HDB51..SULNG..6F ｱﾘ(ｵ-ﾄ ｽﾃﾂﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58570-36093B1 |
HDB51..SULNG..6F ｱﾘ(ｶｻﾀﾃ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58570-36100E0 |
HDB51..SULNG..6F GREIGE,TRIM4# |
1 | ||
| 58570-36170E0 |
HDB51..SULNG..6F ｱﾘ(ｵ-ﾄ ｽﾃﾂﾌﾟ),GREIGE,TRIM4# |
1 | ||
| 58570-36113B1 |
HDB51..SULNG..6F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ｶｻﾀﾃ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58571D - MAT, REAR FLOOR, FRONT RH | ||||
| 58571-36030E0 |
HDB51..SULNG ｱﾘ(ｽﾋﾟ-ｶ),GREIGE,TRIM4# |
1 | ||
| 58571-36040E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58571-36071B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58571-36070E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58572E - MAT, REAR FLOOR, FRONT | ||||
| 58572-36030E0 |
HDB51..SULNG ｱﾘ(ｽﾋﾟ-ｶ),GREIGE,TRIM4# |
1 | ||
| 58572-36070E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58572-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58572-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58582C - MAT, REAR FLOOR, REAR | ||||
| 58582-36020E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58582-36031B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58582-36030E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58595B - CARPET, CENTER DOOR STEP | ||||
| 58595-36010E2 |
HDB5#,HZB50..(20S,26S,29S)..WC..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),DK.BROWN,TRIM4# |
1 | ||
| 58595-36010E2 |
HDB51..CBU;HDB50,HZB50..(GX,LX)..(DSL2,TD2)..CBU GREIGE,TRIM4# |
1 | ||
| 58595-36010E2 |
HDB5#,HZB50..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),DK.BROWN,TRIM1# |
1 | ||
| 58690A - CARPET ASSY, CENTER DOOR STEP | ||||
| 58690-36010E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58690-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58690-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90530-06001 | ||||
ILLUST NO. 1 OF 3(9301-0408)HZB50..DX,LX,STD ; (9301-0408)BB4#,BZB40,50,HDB5#,HZB4#,56..08S,09S,10S,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36800E0 |
HDB51..SULNG..6F GREIGE,TRIM4# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58580-36020E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58580-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58580-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521E - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-36131B2 |
HDB5#,HZB41,50..EX,GX,SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58521-36130E0 |
HDB5#,HZB41,50..EX,GX,SULNG GREIGE,TRIM4# |
1 | ||
| 58521-36010E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58590-36030E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58590-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58590-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-36030B1 |
HDB51,HZB41 MD.CHARCOAL,TRIM1# |
1 | ||
| 58530-36020E0 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 58530-36030E1 |
HDB51,HZB41 GREIGE,TRIM4# |
1 | ||
| 58534A - MAT, TRANSMISSION COVER | ||||
| 58534-36020E0 |
HDB5#,HZB4#,5#..MTM GREIGE,TRIM4# |
1 | ||
| 58534-36020B0 |
BZB40,50,HDB5#,HZB4#,5#..MTM MD.CHARCOAL,TRIM1# |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-36310E0 |
HDB51..SULNG..6F GREIGE,TRIM4# |
1 | ||
| 58595B - CARPET, CENTER DOOR STEP | ||||
| 58595-36010E2 |
HDB5#,HZB50..(20S,26S,29S)..WC..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),DK.BROWN,TRIM4# |
1 | ||
| 58595-36010E2 |
HDB51..CBU;HDB50,HZB50..(GX,LX)..(DSL2,TD2)..CBU GREIGE,TRIM4# |
1 | ||
| 58595-36010E2 |
HDB5#,HZB50..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),DK.BROWN,TRIM1# |
1 | ||
| 58690A - CARPET ASSY, CENTER DOOR STEP | ||||
| 58690-36010E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58690-36050E0 |
HDB51..SULNG GREIGE,TRIM4# |
1 | ||
| 58690-36051B1 |
HDB51..SULNG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 58775-90B00 | ||||
| 90530-04005 | ||||
| 90530-06001 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 6759 | ||||
ILLUST NO. 2 OF 2(9301-0408)HDB51..20S,26S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-36010 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 58577 - SET PLATE, REAR FLOOR MAT SIDE, REAR RH | ||||
| 58577-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58577-36060 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 58584B - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.4 | ||||
| 58584-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 58584-36050 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 58611B - PLATE, MAT SET, NO.1 | ||||
| 58611-36010E0 |
BB46,HDB5#,HZB56 GREIGE,TRIM4# |
1 | ||
| 58611-36070E0 |
HDB5#..6F GREIGE,TRIM4# |
1 | ||
| 58611-36070B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
1 | ||
| 58611B - PLATE, MAT SET, NO.1 | ||||
| 58611-36010E0 |
BB46,HDB5#,HZB56 GREIGE,TRIM4# |
1 | ||
| 58611-36070E0 |
HDB5#..6F GREIGE,TRIM4# |
1 | ||
| 58611-36070B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010E0 |
BB46,HDB51,HZB56 GREIGE,TRIM4# |
1 | ||
| 58612-36010E0 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58612-36010B1 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010E0 |
BB46,HDB51,HZB56 GREIGE,TRIM4# |
1 | ||
| 58612-36010E0 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58612-36010B1 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010E0 |
BB46,HDB51,HZB56 GREIGE,TRIM4# |
1 | ||
| 58612-36010E0 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58612-36010B1 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36040E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58613-36040B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36040E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58613-36040B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36040E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58613-36040B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36010E0 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58614-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58614-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58655-36040E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58655-36040E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58655-36040B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58616-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58616-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58616-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58617B - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58617-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58617-36030B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 58617D - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58618D - PLATE, REAR FLOOR MAT, REAR RH | ||||
| 58618-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58618-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58618-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58619B - PLATE, REAR FLOOR MAT, REAR CENTER | ||||
| 58619-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58619-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58619-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58621A - PLATE, MAT SET, NO.1 LH | ||||
| 58621-36010E0 |
HDB5#..6F GREIGE,TRIM4#,NO.1 & NO.2 |
2 | ||
| 58621-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1#,NO.1 & NO.2 |
2 | ||
| 58621A - PLATE, MAT SET, NO.1 LH | ||||
| 58621-36010E0 |
HDB5#..6F GREIGE,TRIM4#,NO.1 & NO.2 |
2 | ||
| 58621-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1#,NO.1 & NO.2 |
2 | ||
| 58622A - PLATE, MAT SET, NO.2 LH | ||||
| 58622-36010E0 |
BB46,HDB51,HZB56 GREIGE,TRIM4# |
1 | ||
| 58622-36010E0 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58622-36010B1 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58622A - PLATE, MAT SET, NO.2 LH | ||||
| 58622-36010E0 |
BB46,HDB51,HZB56 GREIGE,TRIM4# |
1 | ||
| 58622-36010E0 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58622-36010B1 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58622A - PLATE, MAT SET, NO.2 LH | ||||
| 58622-36010E0 |
BB46,HDB51,HZB56 GREIGE,TRIM4# |
1 | ||
| 58622-36010E0 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58622-36010B1 |
BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58623D - PLATE, MAT SET, NO.3 A | ||||
| 58623-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58623-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58623-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58624E - PLATE, MAT SET, NO.4 A | ||||
| 58624-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58624-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58624-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58625F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58625-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58625-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58626E - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36030E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58626-36030E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58626-36030B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58627B - PLATE, REAR WHEEL HOUSE MAT, LH | ||||
| 58627-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58627-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58627-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58628B - PLATE, REAR FLOOR MAT, REAR LH | ||||
| 58628-36030B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58628-36030E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58628-36030E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58632-36040 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58633C - PLATE, MAT SET, NO.1 A | ||||
| 58633-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
2 | ||
| 58633-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 58633-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
2 | ||
| 58633C - PLATE, MAT SET, NO.1 A | ||||
| 58633-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
2 | ||
| 58633-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 58633-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
2 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36020 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58634-36040 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 58635A - PLATE, REAR FLOOR, CENTER UPPER NO.1 RH | ||||
| 58635-36020E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58635-36020E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58635-36020B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 58636 - PLATE, REAR FLOOR, CENTER UPPER NO.2 RH | ||||
| 58636-36020E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58637 - PLATE, REAR FLOOR, CENTER UPPER NO.3 RH | ||||
| 58637-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58637-36010E0 |
HDB51 GREIGE,TRIM4# |
1 | ||
| 58637-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58638A - PLATE, REAR FLOOR, CENTER UPPER NO.4 RH | ||||
| 58638-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
2 | ||
| 58638-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 58638-36020E0 |
HDB51 GREIGE,TRIM4# |
1 | ||
| 58639B - PLATE, MAT SET, NO.5 | ||||
| 58639-36030E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58639-36030B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58639-36030E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58643A - PLATE, MAT SET, NO.2 A | ||||
| 58643-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
2 | ||
| 58643-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 58643-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
2 | ||
| 58643A - PLATE, MAT SET, NO.2 A | ||||
| 58643-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
2 | ||
| 58643-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 58643-36010E0 |
HDB51..CBU GREIGE,TRIM4# |
2 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36020 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S NO.2 |
1 | ||
| 58644-36030 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 58645A - PLATE, REAR FLOOR, CENTER UPPER NO.1 LH | ||||
| 58645-36050E0 |
HDB51 GREIGE,TRIM4# |
1 | ||
| 58619-36010B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
1 | ||
| 58619-36010E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58647A - PLATE, REAR FLOOR, CENTER UPPER NO.3 LH | ||||
| 58647-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58647-36030B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 58647-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58648A - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58648-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58648-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58648-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58649B - PLATE, MAT SET, NO.6 | ||||
| 58649-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58649-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58649-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58651-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58651-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58655A - PLATE, REAR FLOOR, CENTER LOWER NO.1 RH | ||||
| 58655-36040B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58655-36040E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58655-36040E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58656B - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58656-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58656B - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58656-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58656B - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58656-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58657A - PLATE, REAR FLOOR, CENTER LOWER NO.3 RH | ||||
| 58657-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58657-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58657-36030B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 58658A - PLATE, REAR FLOOR, CENTER LOWER NO.4 RH | ||||
| 58658-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58658-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58658-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58665A - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58655-36040E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58655-36040B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58655-36040E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58665B - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58665-36040B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
1 | ||
| 58665-36040E0 |
HDB5#..6F GREIGE,TRIM4# |
1 | ||
| 58666B - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58666-36030E0 |
HDB51..20S,26S GREIGE,TRIM4# |
1 | ||
| 58666-36030B0 |
HDB51..20S,26S MD.CHARCOAL,TRIM1# |
1 | ||
| 58667A - PLATE, REAR FLOOR, CENTER LOWER NO.3 LH | ||||
| 58667-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58667-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58667-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58668A - PLATE, REAR FLOOR, CENTER LOWER NO.4 LH | ||||
| 58668-36020E0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 58668-36020E0 |
HDB51..CBU GREIGE,TRIM4# |
1 | ||
| 58668-36020B0 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36010 |
HZB40..LX..CBU;HZB40..4FC..IV5;BB4#,HDB5#,HZB41,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) |
1 | ||
| 58671-36010 |
HZB40..4FC..IV5;HZB40..26S..WC..CBU;HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(*GLD) |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36010 |
HZB40..LX..CBU;HZB40..4FC..IV5;BB40,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) |
1 | ||
| 58672-36010 |
HZB40..4FC..IV5;HZB40..26S..WC..CBU;HDB5#,HZB41,50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(*GLD) |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58673-36020 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58675A - PLATE, CENTER DOOR PILLAR MAT, FRONT | ||||
| 58675-36010E0 |
HZB40..LX..CBU;HZB40..4FC..IV5;BB4#,HDB5#,HZB41,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD),GREIGE,TRIM4# |
1 | ||
| 58675-36010B0 |
HZB40..4FC..IV5;HZB40..26S..WC..CBU;HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(*GLD),MD.CHARCOAL,TRIM1# |
1 | ||
| 58675-36010E0 |
HZB40..LX..CBU;HZB40..4FC..IV5;HDB5#,HZB41,46,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD),GREIGE,TRIM4# |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36010E0 |
HZB40..LX..CBU;HZB40..4FC..IV5;BB4#,HDB5#,HZB41,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD),GREIGE,TRIM4# |
1 | ||
| 58676-36010B0 |
HZB40..4FC..IV5;HZB40..26S..WC..CBU;HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(*GLD),MD.CHARCOAL,TRIM1# |
1 | ||
| 58676-36010E0 |
HZB40..LX..CBU;HZB40..4FC..IV5;HDB5#,HZB41,46,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD),GREIGE,TRIM4# |
1 | ||
| 58691A - PLATE, CENTER DOOR STEP MAT, LOWER FRONT | ||||
| 58691-36010 |
HDB51,HZB41 |
1 | ||
| 58691-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 58693 - PLATE, CENTER DOOR STEP MAT, LOWER SIDE | ||||
| 58693-36010 |
HDB51,HZB41 ｱﾘ(*GLD(AUTO)) |
1 | ||
| 58693-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
1 | ||
| 58694-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
1 | ||
| 58696A - PLATE, REAR FLOOR MAT VERTICAL, NO.2 | ||||
| 58696-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58696-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58696A - PLATE, REAR FLOOR MAT VERTICAL, NO.2 | ||||
| 58696-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58696-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58697 - PLATE, REAR FLOOR MAT VERTICAL, NO.3 | ||||
| 58697-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58697-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58697 - PLATE, REAR FLOOR MAT VERTICAL, NO.3 | ||||
| 58697-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
2 | ||
| 58697-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
2 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-36010B0 |
HDB5#..6F MD.CHARCOAL,TRIM1# |
1 | ||
| 58698-36010E0 |
HDB5#..6F GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 90167-50061 | ||||
| 90167-50062 | ||||
| 90189-04013 | ||||
| 90189-05127 | ||||
| 90339-03003 | ||||
| 90468-05112 | ||||
| 93530-14014 | ||||
| 93530-15014 | ||||
| 93560-14014 | ||||
| 93560-15016 | ||||
| 93560-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
