HDB51-ZCFZZ (1999)
Toyota Coaster

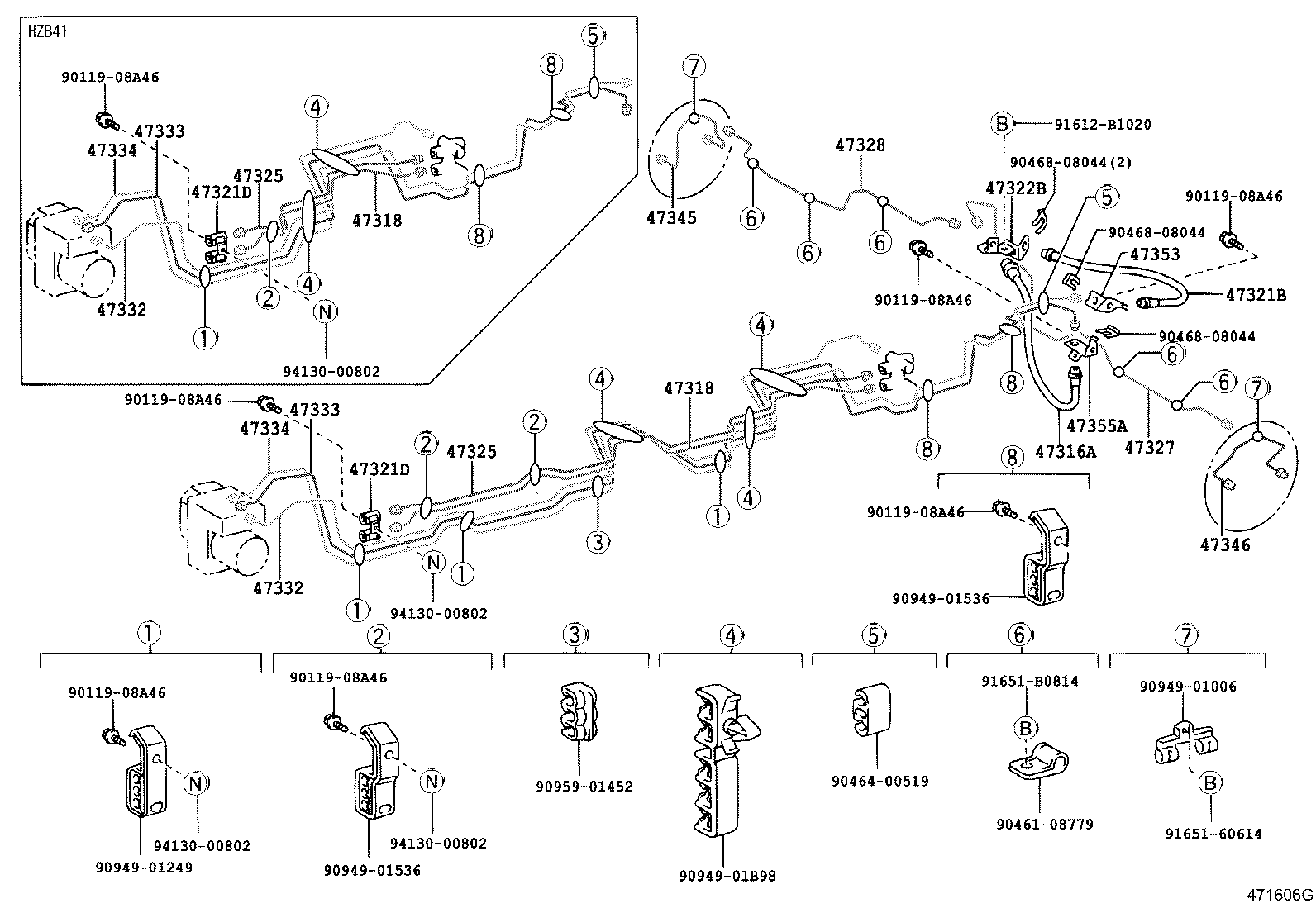

ILLUST NO. 2 OF 4(9907-0408)HDB51,HZB41 ; (0408- )XZB51..4FC,6F
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02990 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| 96912-33805 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90947-02B93 |
HDB51,HZB41 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 90904-12001 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47354-36110 |
HDB51,HZB41 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36271 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47327-36240 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36270 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47328-36311 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47328-36260 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36040 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90464-00519 | ||||
| 90468-08044 | ||||
| 90949-01006 | ||||
| 90949-01249 | ||||
| 90949-01536 | ||||
| 90949-01B98 | ||||
| 90959-01452 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(9907-0105)HDB50,HZB40,46,5#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10210 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90413-10271 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90904-13517 |
HDB5#,HZB4#,5#..08S,09S,19S,20S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 90904-13517 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02990 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| 96912-33805 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90947-02B93 |
HDB51,HZB41 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 90904-12001 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47354-36110 |
HDB51,HZB41 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36271 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47327-36240 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36270 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47328-36311 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47328-36260 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36040 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90464-00778 | ||||
| 90468-08044 | ||||
| 90949-01006 | ||||
| 90949-01249 | ||||
| 90949-01536 | ||||
| 90949-01B98 | ||||
| 90959-01452 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(0105-0108)HDB50,HZB40,46,5#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10210 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90413-10271 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90904-13517 |
HDB5#,HZB4#,5#..08S,09S,19S,20S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 90904-13517 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02990 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| 96912-33805 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90947-02B93 |
HDB51,HZB41 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 90904-12001 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47354-36110 |
HDB51,HZB41 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36271 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47327-36240 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36270 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47328-36311 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47328-36260 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36040 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90464-00778 | ||||
| 90468-08044 | ||||
| 90480-01628 | ||||
| 90909-29002 | ||||
| 90949-01006 | ||||
| 90949-01249 | ||||
| 90949-01536 | ||||
| 90949-01872 | ||||
| 90949-01B98 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(0108-0408)HZB46..09S ; (0108- )BZB40,50,HDB50,HZB40,5#..09S,26S,29S,39S,49S ; (
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02990 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| 96912-33805 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90947-02B93 |
HDB51,HZB41 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36220 |
HDB51 |
1 | ||
| 47318-36301 |
HDB51 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 90947-02B94 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90412-12042 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 90904-12001 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47354-36110 |
HDB51,HZB41 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36430 |
HDB51 |
1 | ||
| 47325-36531 |
HDB51 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36271 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47327-36240 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36270 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
1 | ||
| 47328-36311 |
HDB51,HZB41..CBU,IV5 |
1 | ||
| 47328-36260 |
BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5) |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36090 |
HDB51 |
1 | ||
| 47332-36121 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36020 |
HDB51 |
1 | ||
| 47333-36041 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-36051 |
HDB51 |
1 | ||
| 47334-36030 |
HDB51 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 47345-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353-36230 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36030 |
HDB51,HZB41 |
1 | ||
| 47355-36040 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90464-00778 | ||||
| 90468-08044 | ||||
| 90480-01433 | ||||
| 90480-01628 | ||||
| 90909-29002 | ||||
| 90949-01006 | ||||
| 90949-01249 | ||||
| 90949-01536 | ||||
| 90949-01872 | ||||
| 90949-01B98 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 4(9907-0408)BZB40,50,HDB5#,HZB4#,5# ; (0310-0408)08S,19S ; (0408- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-36010 |
HDB51,HZB41 |
1 | ||
| 44510-36040 |
HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 44590-36020 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90179-10071 | ||||
ILLUST NO. 1 OF 4(9907-0408)BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S ; (0310-0408)08
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36551 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47311-36480 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47311-36490 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12045 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90412-12047 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90904-12083 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10210 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90413-10271 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 90904-13517 |
HDB5#,HZB4#,5#..08S,09S,19S,20S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 90904-13517 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36250 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47313-36321 |
HDB5#..6F |
1 | ||
| 47313-36260 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 90947-02B91 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 90947-02B91 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 90401-10023 |
HZB50;BB4#,HDB5#,HZB4#,56..WC |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 90430-10074 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47317-36171 |
HDB5#,HZB4#,5# ｱﾘ(ABS) |
1 | ||
| 47317-36130 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47317-36171 |
HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36300 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47321-36310 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47321-36371 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36340 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47322-36330 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47322-36411 |
HDB5#..6F |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36230 |
HDB51,HZB41 |
1 | ||
| 47331-36261 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47331-36261 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36210 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47351-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36200 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47352-36200 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47353-36210 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47354-36090 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36071 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47361-36071 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47361-36030 |
HDB51,HZB41 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-36031 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47362-36010 |
HDB51,HZB41 |
1 | ||
| 47362-36031 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47363-36060 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47363-36041 |
HDB5#,HZB4#,5# |
1 | ||
| 47363-36010 |
HDB51,HZB41 |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-36031 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47364-36010 |
HDB51,HZB41 |
1 | ||
| 47364-36031 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36110 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47371-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36060 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47373-35040 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47373-36040 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-36050 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47372-36050 |
HDB51,HZB41..CBU,IV5 ｱﾘ(ABS) |
2 | ||
| 90949-01536 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36090 |
BB58,BZB40,50,HDB5#,HZB41,5# |
1 | ||
| 47307-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 47307-36030 |
HDB51,HZB41 ｱﾘ(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
BB4#,HDB51,HZB40..CBU,IV5 NO.1 |
2 | ||
| 47372-36060 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 47371-36050 |
HDB51 ｱﾘ(ABS) |
7 | ||
| 47371-35130 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-36060 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47381-36160 |
BZB40,50,HDB5#,HZB4#,5# |
5 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47381-36160 |
BZB40,50,HDB5#,HZB4#,5# |
5 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-06112 | ||||
| 90464-00519 | ||||
| 90464-00778 | ||||
| 90468-08044 | ||||
| 90480-01422 | ||||
| 90904-80004 | ||||
| 90949-01540 | ||||
| 91162-61216 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
