HDB51-ZCFZZ (1999)
Toyota Coaster
ILLUST NO. 2 OF 2(9301-0408)BB4#,5#,HDB5#,HZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44037-36080 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 44037-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-36040 |
HDB5# |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-36040 |
HDB5# |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19016 |
BB58,HDB5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19016 |
BB58,HDB5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36331 |
HZB4#,5# |
1 | ||
| 44360-36330 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36310 |
HDB5# |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44363-36040 |
HZB4#,5# |
1 | ||
| 44363-37130 |
BB58,HDB5# |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44391-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
| 91611-60812 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4503 | ||||

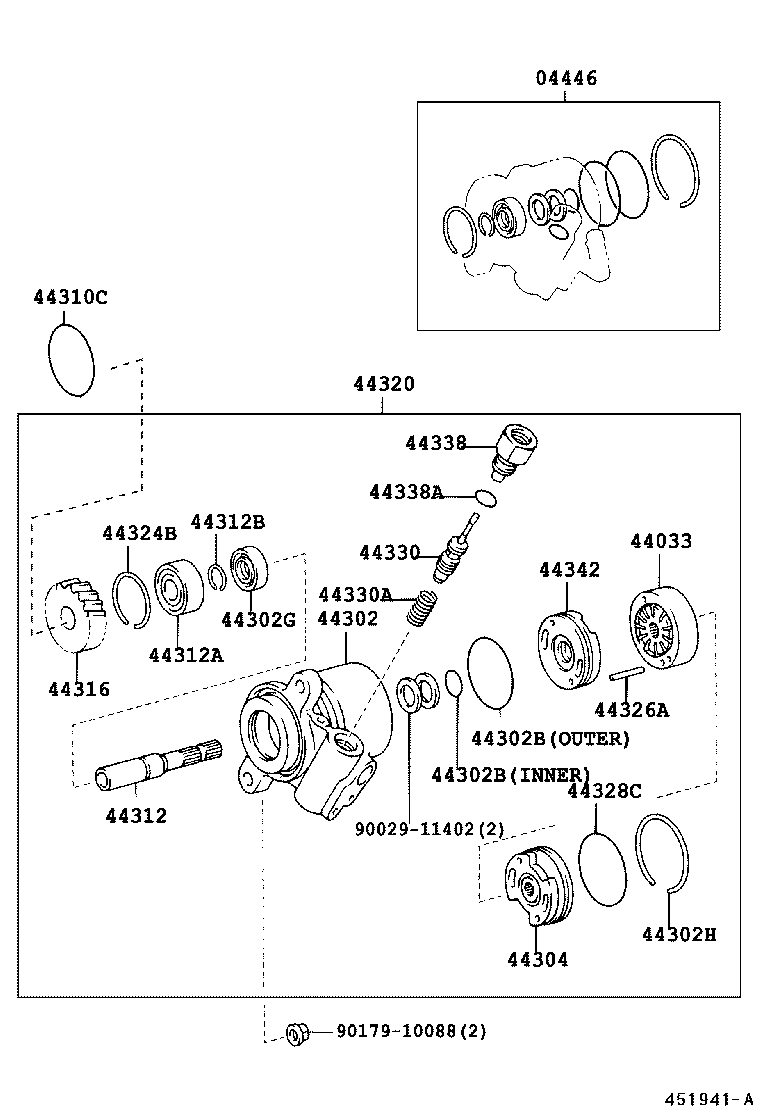

ILLUST NO. 1 OF 2(9907-0408)HDB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36090 |
HDB5#,HZB4#,5# |
1 | ||
| 04446-36090 |
HZB4#,5# |
1 | ||
| 04446-60100 |
BB58,HDB5# |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36040 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 44033-36040 |
BZB40,50,HZB4#,5# |
1 | ||
| 44033-60010 |
BB58,HDB5# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB5#,HZB4#,5# |
1 | ||
| 44302-36200 |
HZB4#,5# |
1 | ||
| 44302-36270 |
HDB5# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20043 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20056 |
BB58,HDB5# 内側 |
1 | ||
| 90029-20043 |
BZB40,50,HZB4#,5# |
1 | ||
| 90029-20057 |
BB58,HDB5# 外側 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20043 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20056 |
BB58,HDB5# 内側 |
1 | ||
| 90029-20043 |
BZB40,50,HZB4#,5# |
1 | ||
| 90029-20057 |
BB58,HDB5# 外側 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-21018 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52011 |
BB58,HDB5# |
1 | ||
| 96151-04000 |
BZB40,50,HZB4#,5# |
1 | ||
| 96151-04000 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36200 |
HDB5#,HZB4#,5# |
1 | ||
| 44304-36200 |
HZB4#,5# |
1 | ||
| 44304-60040 |
BB58,HDB5# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90301-60002 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36110 |
BB4#,5# |
1 | ||
| 44312-60030 |
BB58,HDB5# |
1 | ||
| 44312-89101 |
HZB4#,5# |
1 | ||
| 44312-89101 |
HDB5#,HZB4#,5# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-36003 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-52402 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60040 |
HDB5# |
1 | ||
| 44316-36020 |
BB4#,5# |
1 | ||
| 44316-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 44316-60010 |
HZB4#,5# |
1 | ||
| 44316-60050 |
HDB5# |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-36270 |
HDB5# |
1 | ||
| 44320-36240 |
HDB5#,HZB4#,5# |
1 | ||
| 44320-36240 |
HZB4#,5# |
1 | ||
| 44310-36300 |
HDB5# |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90029-52010 |
BB58,HDB5# |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB4#,5#,HDB5#,HZB4#,5# 長さ=29.1 |
1 | ||
| 44347-89101 |
BZB40,50,HZB4#,5# 長さ=29.1 |
1 | ||
| 90029-14205 |
BB58,HDB5# 長さ=25.8 |
2 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 90029-20042 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20042 |
BZB40,50,HZB4#,5# |
1 | ||
| 90029-20058 |
BB58,HDB5# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 40410-36290 |
HDB5# ﾏｰｸ C |
1 | ||
| 44330-36200 |
BB55,HDB5#,HZB4#,5# 二本溝 |
1 | ||
| 40430-36290 |
HDB5# ﾏｰｸ A |
1 | ||
| 40420-36290 |
HDB5# ﾏｰｸ B |
1 | ||
| 44330-36210 |
BB55,HDB5#,HZB4#,5# 一本溝 |
1 | ||
| 44330-36220 |
BZB40,50,HZB4#,5# 溝無し |
1 | ||
| 44330-36220 |
BB55,HDB5#,HZB4#,5# 溝無し |
1 | ||
| 44330-36210 |
BZB40,50,HZB4#,5# 一本溝 |
1 | ||
| 44330-36200 |
BZB40,50,HZB4#,5# 二本溝 |
1 | ||
| 44330-36290 |
HDB5# ﾏｰｸ D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90029-60002 |
BZB40,50,HZB4#,5# |
1 | ||
| 90029-60013 |
BB58,HDB5# |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-36010 |
BB58,HDB5# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19016 |
BB58,HDB5# 外径=19.6,内径=15.8 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-36040 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342-36040 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 44342-60050 |
BB58,HDB5# |
1 | ||
| Common parts | ||||
| 90029-11402 | ||||
| 90179-10088 | ||||
