HDB51-ZCFZZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0408)1HDFTE

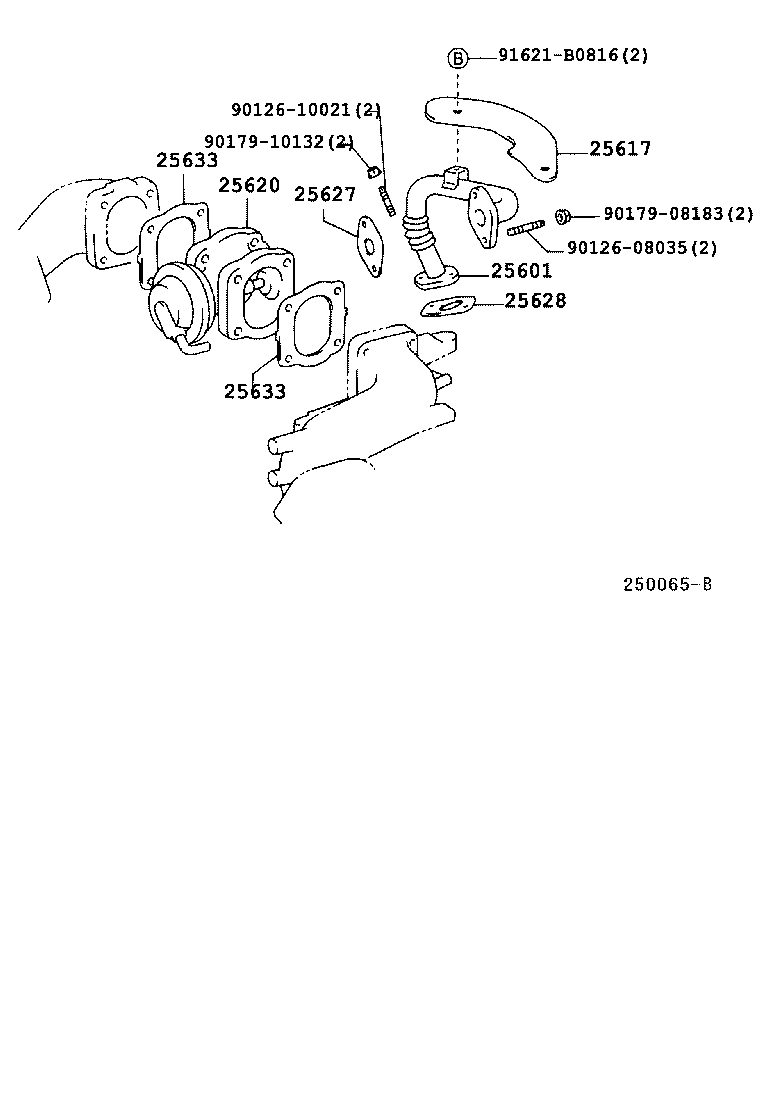

Click highlighted areas on diagram

diagram 25601 25617 25620 25627 25628 25633 25633 9012608035 9012610021 9017908183 9017910132 91621B0816
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-17030

1HDFTE..HDB5#

 1
25617 - PLATE, EGR HOLE COVER
25615-17010

1HDFTE..HDB5#

 1
25620 - VALVE ASSY, EGR
25620-58050

1HDFTE..HDB5#

 1
25627 - GASKET, EGR VALVE
25627-17020

1H#..HDB5#,HZB4#,5#

 1
25628 - GASKET, EGR INLET
25628-17010

1H#..HDB5#,HZB4#,5#

 1
25633 - GASKET, EGR VALVE
17849-58020

1H#..HDB5#,HZB4#,5#

 2
25633 - GASKET, EGR VALVE
17849-58020

1H#..HDB5#,HZB4#,5#

 2
Common parts
90126-08035
90126-10021
90179-08183
90179-10132
91621-B0816
