HDB51-ZCFZZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )1HDFTE

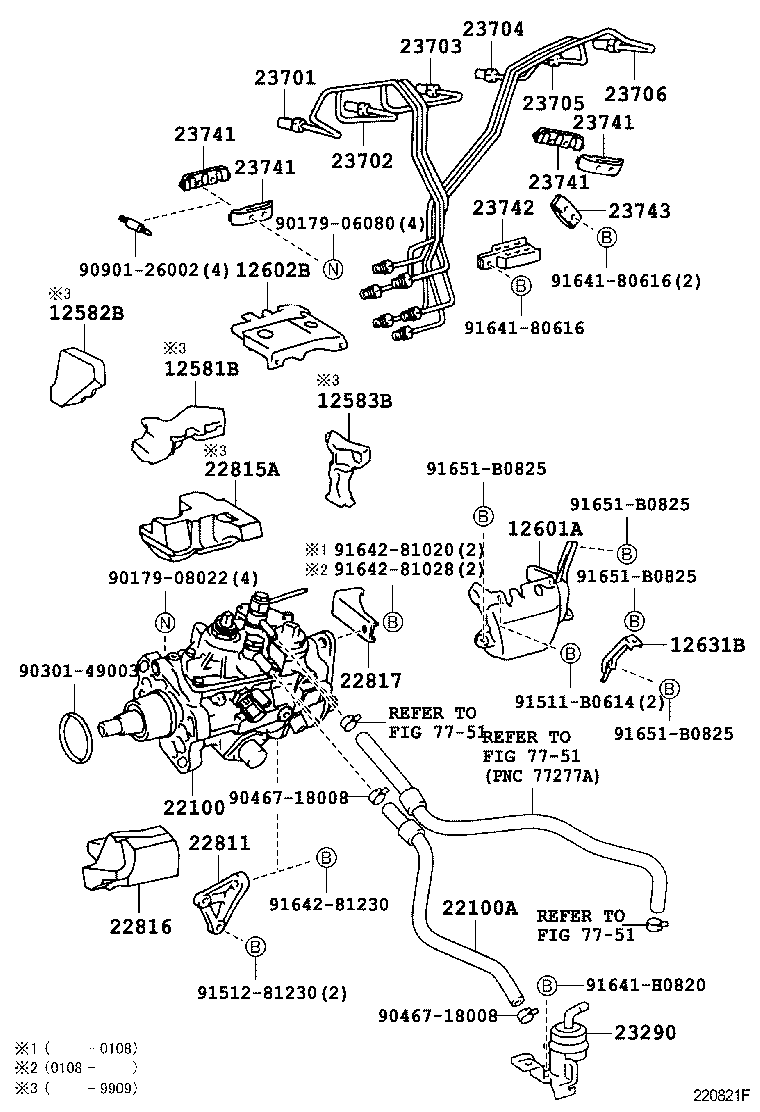

Click highlighted areas on diagram

diagram 12581B 12582B 12583B 12601A 12602B 12631B 22100 22100A 22811 22815A 22816 22817 23290 23701 23702 23703 23704 23705 23706 23741 23741 23741 23741 23742 23743 7751 7751 7751 9017906080 9017908022 9030149003 9046718008 9046718008 9090126002 91511B0614 9151281230 9164180616 9164180616 91641H0820 9164281020 9164281028 9164281230 91651B0825 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
12581B - INSULATOR, CYLINDER BLOCK, NO.1
12581-17020

1HDFTE..HDB5#

 1
12582B - INSULATOR, CYLINDER BLOCK, NO.2
12582-17010

1HDFTE..HDB5#

 1
12583B - INSULATOR, CYLINDER BLOCK, NO.3
12583-17010

1HDFTE..HDB5#

 1
12601A - INSULATOR, CYLINDER BLOCK
12601-17020

1HDFTE..HDB5#

 1
12602B - COVER SUB-ASSY, ENGINE, NO.2
12602-17010

1HDFTE..HDB5#

 1
12631B - BRACKET, ENGINE COVER
12631-17011

1HDFTE..HDB5#

 1
12631-17012

1HDFTE..HDB5#

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-1C361

1HDFTE..HDB5#

 1
22100-1C360

1HDFTE..HDB5#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-12028

1H#..HDB5#,HZB4#,5#

*H,L=280,内径=12

 1
23271-17140

1HDFTE..HDB5#

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-17010

1H#..HDB5#,HZB4#,5#

 1
22811-17030

1H#..HDB5#,HZB4#,5#

 1
22815A - INSULATOR, INJECTION PUMP
22815-17020

1HDFTE..HDB5#

 1
22816 - INSULATOR, INJECTION PUMP, NO.2
22816-17010

1HDFTE..HDB5#

 1
22817 - BRACKET, PUMP STAY
22817-17010

1HDFTE..HDB5#

 1
22817-17020

1HDFTE..HDB5#

 1
23290 - DAMPER ASSY, FUEL SUCTION
23290-17020

1HDFTE..HDB5#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17060

1HDFTE..HDB5#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17060

1HDFTE..HDB5#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17060

1HDFTE..HDB5#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17060

1HDFTE..HDB5#

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17060

1HDFTE..HDB5#

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17060

1HDFTE..HDB5#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17050

1HDFTE..HDB5#

 4
23741-17020

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
23741-17051

1HDFTE..HDB5#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17050

1HDFTE..HDB5#

 4
23741-17020

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
23741-17051

1HDFTE..HDB5#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17050

1HDFTE..HDB5#

 4
23741-17020

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
23741-17051

1HDFTE..HDB5#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17050

1HDFTE..HDB5#

 4
23741-17020

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 1
23741-17051

1HDFTE..HDB5#

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17030

1HDFTE..HDB5#

 1
23743 - CLAMP, INJECTION PIPE, NO.3
23743-17010

1HDFTE..HDB5#

 1
Common parts
90179-06080
90179-08022
90301-49003
90467-18008
90901-26002
91511-B0614
91512-81230
91641-80616
91641-H0820
91642-81020
91642-81028
91642-81230
91651-B0825
Linked diagrams
7751
