HDB51-ZCFZZ (1999)
Toyota Coaster

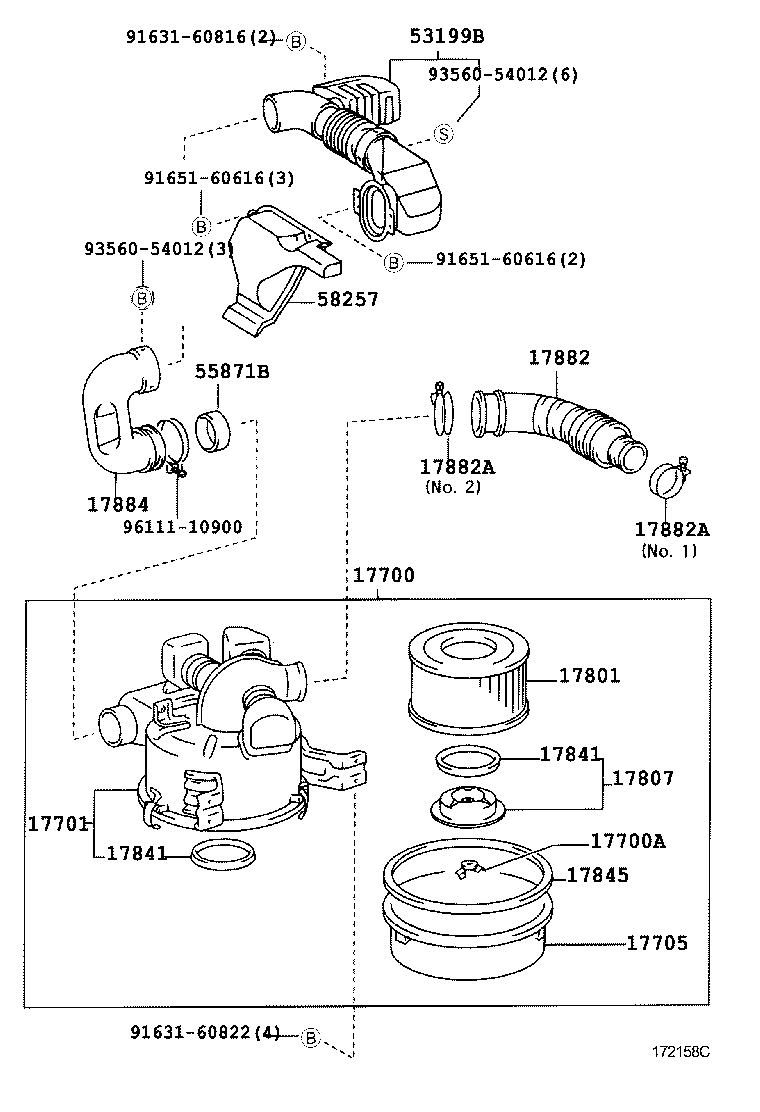

ILLUST NO. 1 OF 2(9907-0408)1HDFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17160 |
1HD#..HDB5# |
1 | ||
| 17700-17240 |
1HDFTE..HDB5# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 90175-08008 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-17170 |
1HDFTE..HDB5# |
1 | ||
| 17701-68101 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17070 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 17705-17180 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58030 |
1HDFTE..HDB5# |
1 | ||
| 17801-68030 |
1HD#..HDB5# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 17807-68010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 17841-68010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 17841-68010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 17845-68020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-17020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 17882-17021 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
1H#..HDB5#,HZB4#,5# NO.2 |
1 | ||
| 96111-10780 |
1HD#,1HZ..HDB5#,HZB4#,5# NO.1 |
2 | ||
| 96111-10780 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 96111-10900 |
1HD#,1HZ..HDB5#,HZB4#,5# NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
1H#..HDB5#,HZB4#,5# NO.2 |
1 | ||
| 96111-10780 |
1HD#,1HZ..HDB5#,HZB4#,5# NO.1 |
2 | ||
| 96111-10780 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 96111-10900 |
1HD#,1HZ..HDB5#,HZB4#,5# NO.2 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 59132-36020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36030 |
HDB5#,HZB4#,5# |
1 | ||
| 53207-36030 |
HDB5#,HZB4#,5# |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 55871-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 58257-36030 |
BB4#,5# |
1 | ||
| 58257-36020 |
HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 93560-54012 | ||||
| 96111-10900 | ||||

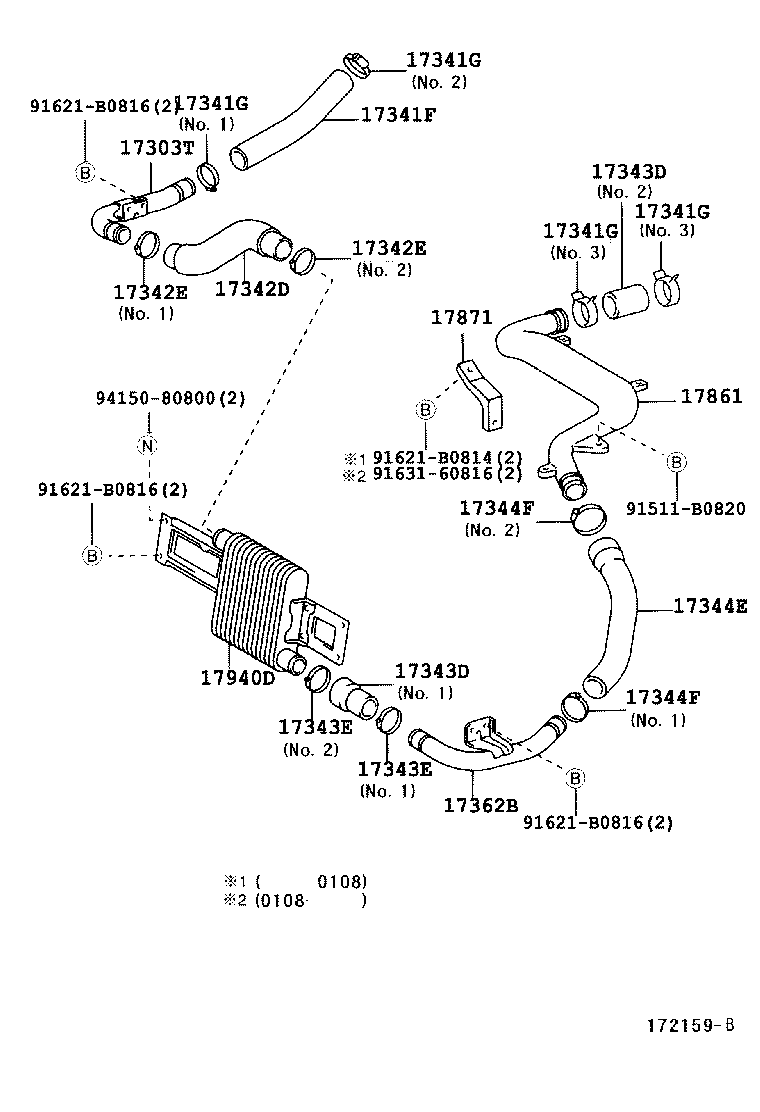

ILLUST NO. 2 OF 2(9907-0408)1HDFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303T - PIPE SUB-ASSY, AIR | ||||
| 17303-17020 |
1HDFTE..HDB5# |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-17030 |
1HDFTE..HDB5# |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90467-56001 |
1HDFTE..HDB5# NO.3 |
2 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90467-56001 |
1HDFTE..HDB5# NO.3 |
2 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90467-56001 |
1HDFTE..HDB5# NO.3 |
2 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90467-56001 |
1HDFTE..HDB5# NO.3 |
2 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-17021 |
1HDFTE..HDB5# |
1 | ||
| 17342-17020 |
1HDFTE..HDB5# |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-17020 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 17343-58040 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-17020 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 17343-58040 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-17020 |
1HDFTE..HDB5# |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-63010 |
1HDFTE..HDB5# NO.1 |
1 | ||
| 90460-67004 |
1HDFTE..HDB5# NO.2 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-17020 |
1HDFTE..HDB5# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-17050 |
1HDFTE..HDB5# |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-17010 |
1HDFTE..HDB5# |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-17020 |
1HDFTE..HDB5# |
1 | ||
| Common parts | ||||
| 91511-B0820 | ||||
| 91621-B0814 | ||||
| 91621-B0816 | ||||
| 91631-60816 | ||||
| 94150-80800 | ||||
